Alinco - DR-138HE Alinco - DR-138HE Alinco - DR-138HE

Alinco - DR-138HE

Product code: 1188
Barcode: 4969182341201

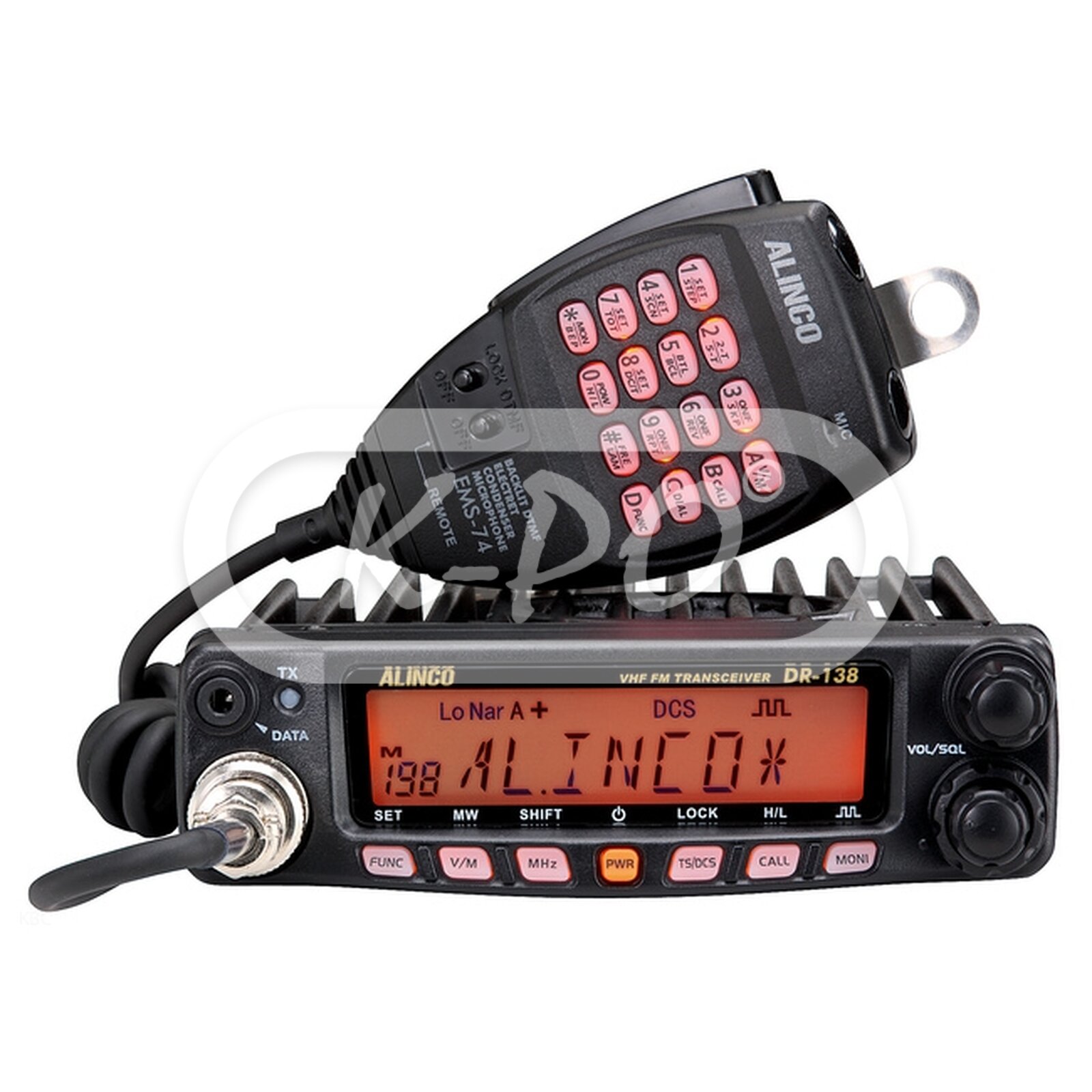

The DR-138HE is a high technology PLL synthesized radio that delivers power and performance in a small package. User-friendly configuration and programmable features make the DR-138H the radio of choice for demanding operators, both professionals and amateurs.

Frequency range: TX/RX: 144-146 MHz
Shipped next business day - Stock: 1
€199.95 (165.25 excl. 21% VAT)

Features

  • Display: Yes with backlight
  • DTMF: Yes, encode and decode
  • 2-tone/5-tone: Yes
  • High/low power selection: Yes, 3 programmable output power levels
  • Voice compander: Yes, reduce noise and enhance audio clarity
  • Carrier: Yes
  • DCS: Yes, encode and decode
  • CTCSS: Yes, encode and decode
  • Program: Yes, by computer
  • Burst tone: Yes, at 1750Hz

Electrical data

  • Frequency step: 5 kHz / 6.25 kHz / 8.33 kHz / 10 kHz / 12.5 kHz / 15 kHz / 20 kHz / 25 kHz / 30 kHz / 50 kHz /
  • Channels: 200
  • Wide and narrow bandwidth selection: Yes
  • Operating temperature: -20℃ to +60℃
  • Channel spacing: Wide: 25 KHz Middle: 20 KHz Narrow: 12.5 KHz

Transmitter

  • Power output (Watts): VHF: 10 / 25 / 60 Watts
  • Modulation limit: 16K0F3E / 11K0F3E
  • Adjacent channel power: Wide: ≥70 dB / Narrow: ≥60 dB
  • Spurious Emission: Wide: ≥60 dB / Narrow: ≥60 dB
  • Audio distortion: ≤5%
  • Frequency stability: ±2.5 PPM
  • Hum & Noise: Wide: ≥40 dB / Narrow: ≥36 dB
  • Audio response: Wide: 300-3000 Hz +1 to -3 dB / Narrow: 300-2550 Hz +1 to -3 dB

Receiver

  • Sensitivity: Wide: ≤0.25 μV / Narrow: ≤0.35 μV
  • Spurious rejection: Wide: ≥70 dB / Narrow: ≥70 dB
  • Hum & noise: Wide: ≥45 dB / Narrow: ≥40 dB
  • Audio distortion: ≤5%
  • Audio power output: 2 Watts @10%
  • Audio response: Wide: 300-3000 Hz +1 to -3 dB / Narrow: 300-2550 Hz +1 to -3 dB
  • Adjacent channel selection: Wide: ≥70 dB / Narrow: ≥60 dB
  • Inter modulation: Wide: ≥65 dB / Narrow: ≥60 dB

Mechanical data

  • Length: 145 mm
  • Height: 47 mm
  • Width: 190 mm
  • Weight: 1200 gram
  • Antenna connector: UHF (PL) female (SO-239)
  • Mike connector: 8 pin connector

Inside the box

  • Transceiver: Yes
  • Microphone: Yes
  • Mounting bracket: Yes
  • Mounting parts: Yes
  • DC power cable: Yes
  • Installation manual: English
  • DC cable: Yes
