Astatic - 636L Chrome P4

Product code: 1710

Factory code: 302-10187

Barcode: 631922101874

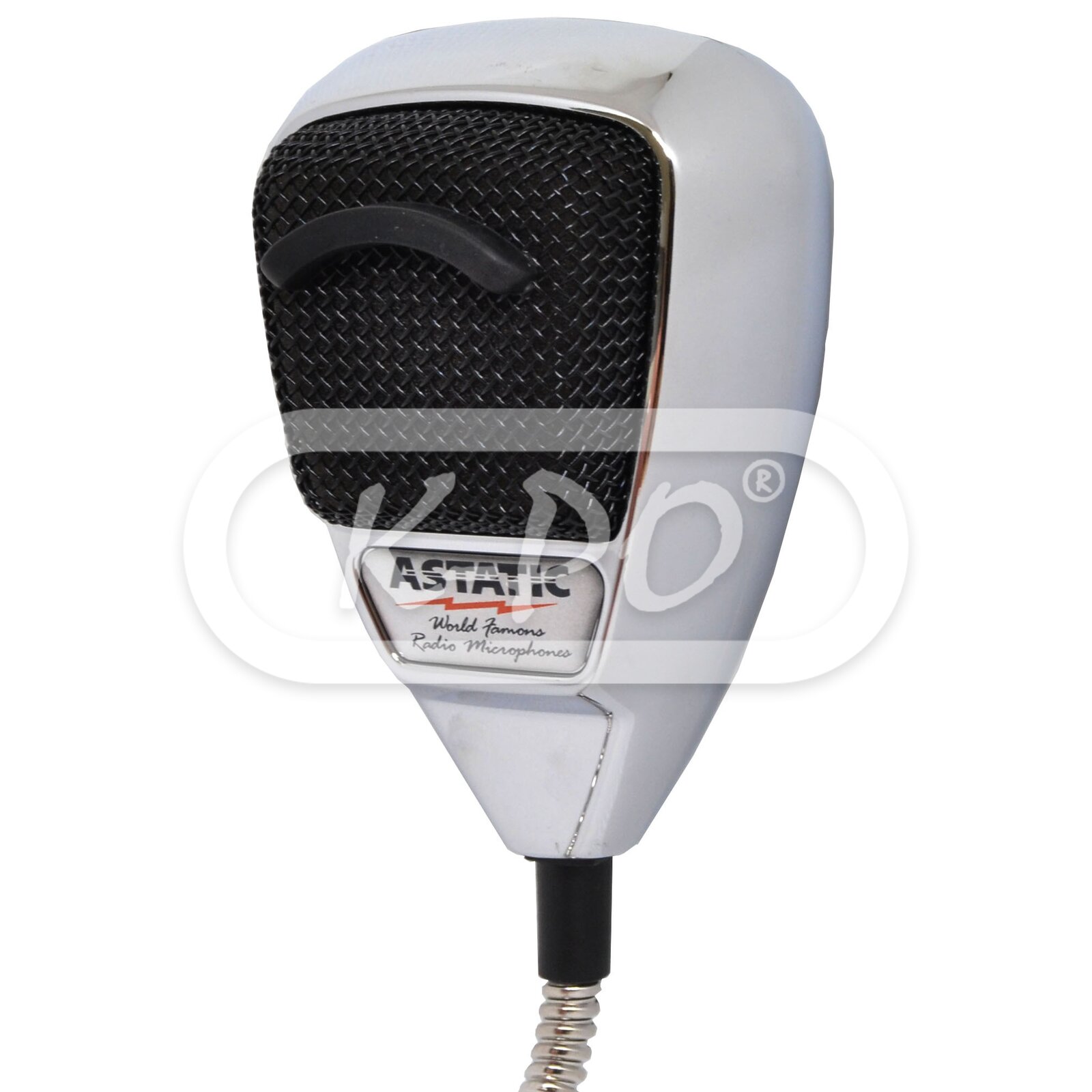

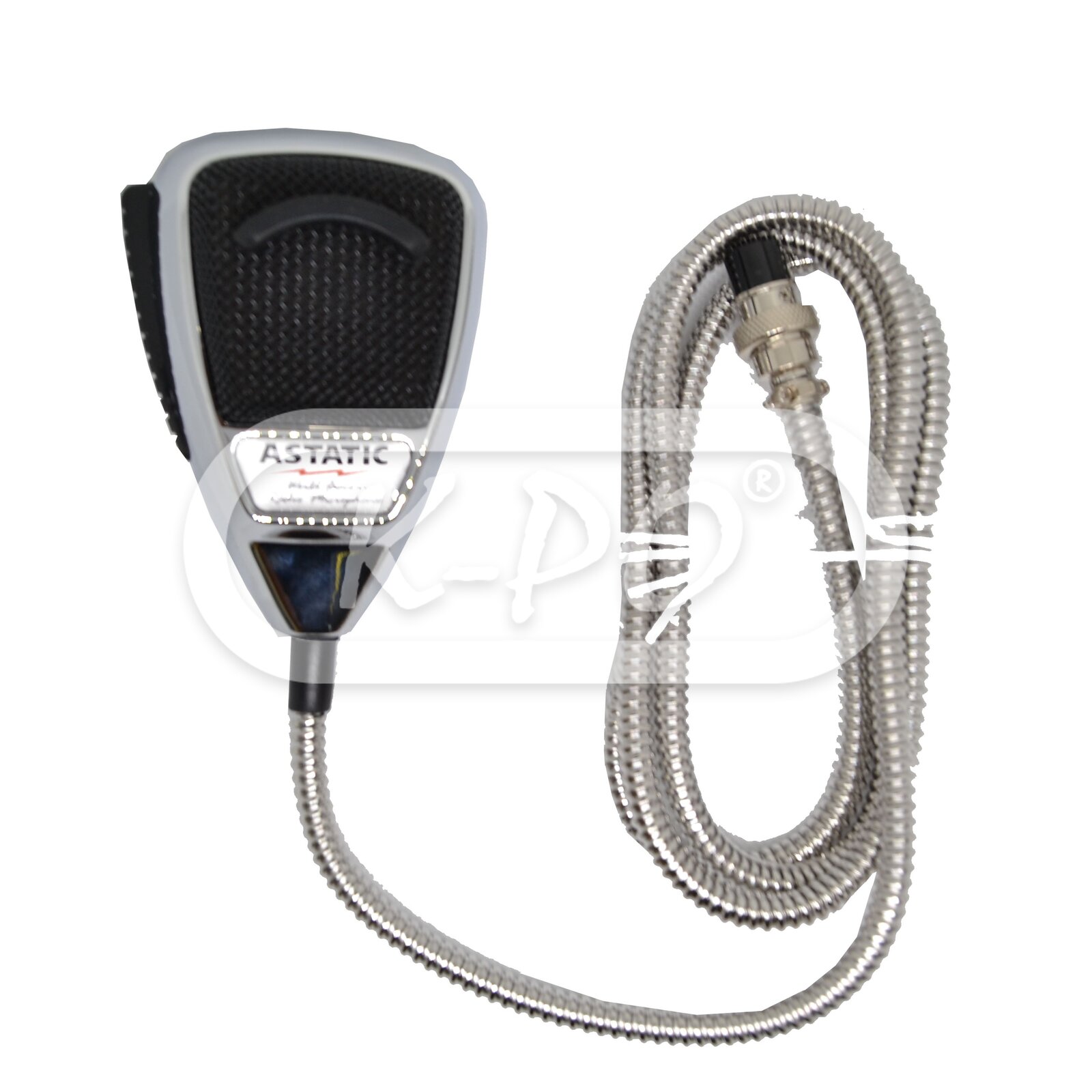

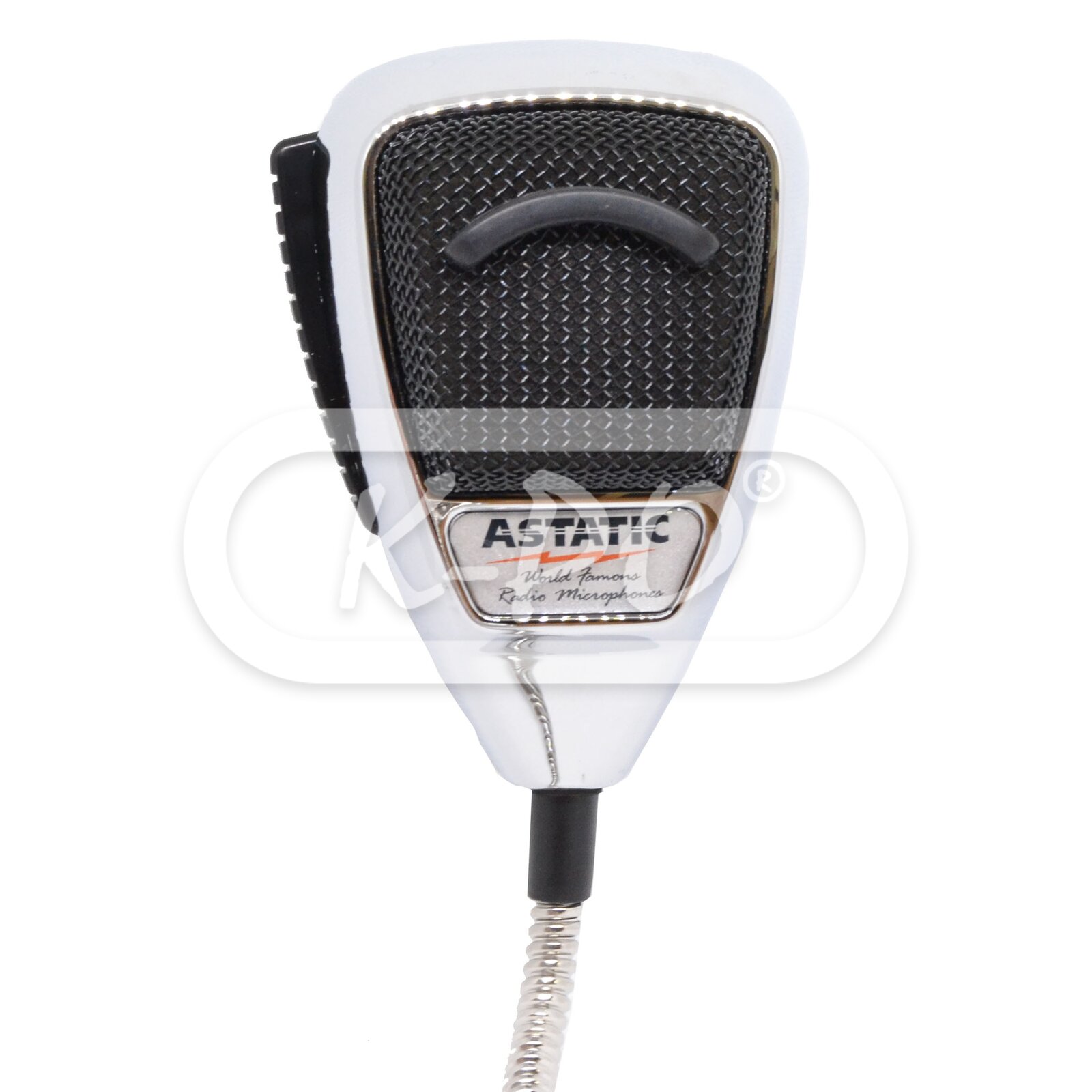

This famous 636L CB microphone has a low impedance dynamic noise cancelling element. Chrome plated housing design, polyurethane coated steel grille screen and indestructible super flex stainless steel cord.
Designed for close talking handheld applications with CB, amateur radio and SSB communications.

Shipped today

€55.95 (46.24 excl. 21% VAT)

Features

• Suitable for: 4-pin P4 connector / Danita 640 / Midland 203 / Midland Alan 199 / Midland Alan 100 Plus B / Midland Alan 210 DS / Midland M10 / Midland M-Zero / President Grant Classic / President Herbert / President Jackson / President JFK ASC / President Wilson /
• Microphone type: Dynamic microphone

Electrical data

• Frequency response: 100 - 5000 Hz
• Output level: -58 dB (0 dB=1 mw/10 microbars) -76 dB (0 dB=1 volt/microbar)
• Impedance: 200 Ohm

Mechanical data

• Cable Length: 2.3 meter

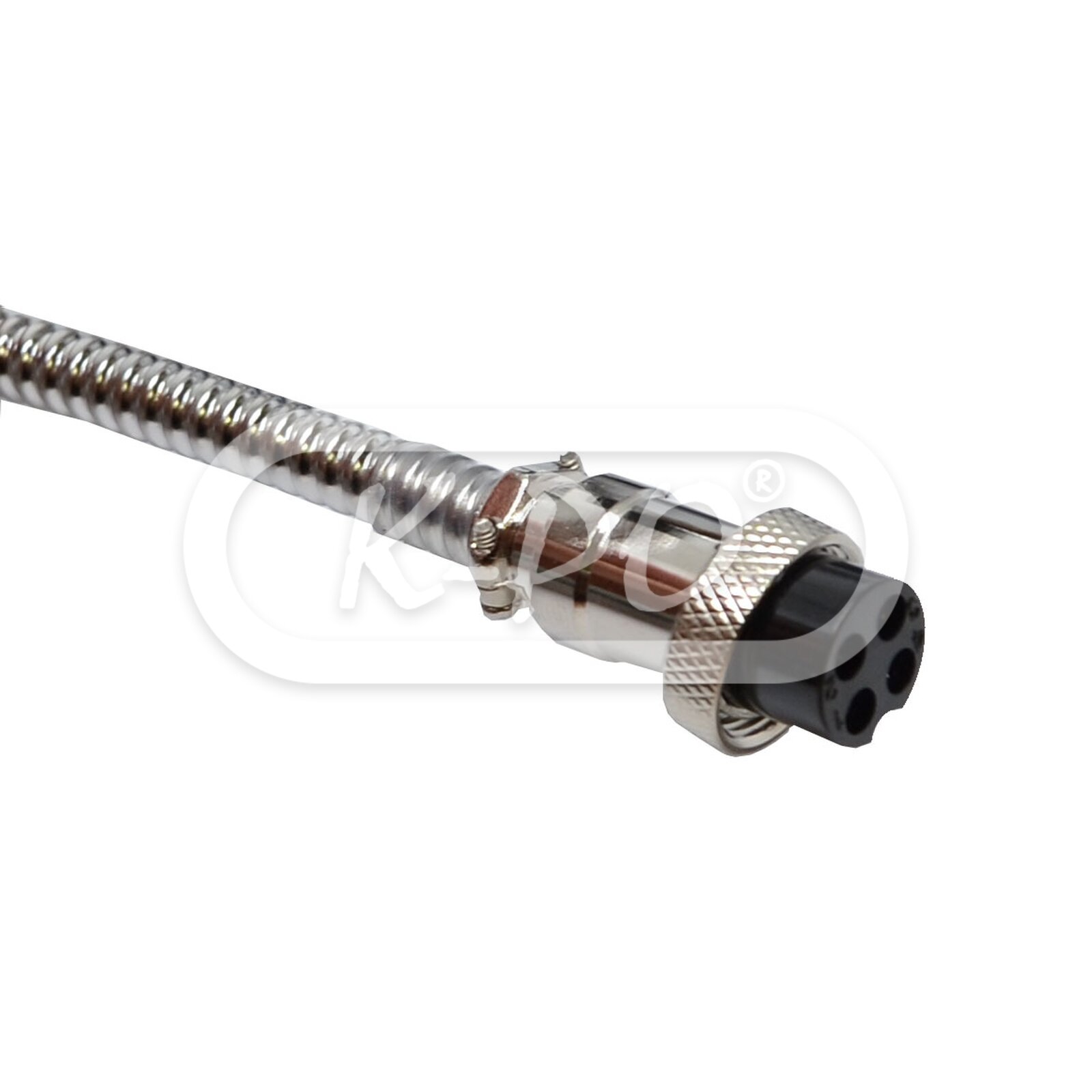

• Microphone connector: 4-pin
• Cable: Six wire, five conductors, durable super flex stainless steel cord.
• Housing: Durable polyurethane coated steel grille screen

Microphone wiring

• Receive: Pin 4
• Transmit: Pin 3
• Mic Audio: Pin 2
• Ground: Pin 1
