Comet - CF-360B

Product code: 805360

Barcode: 4932273180089

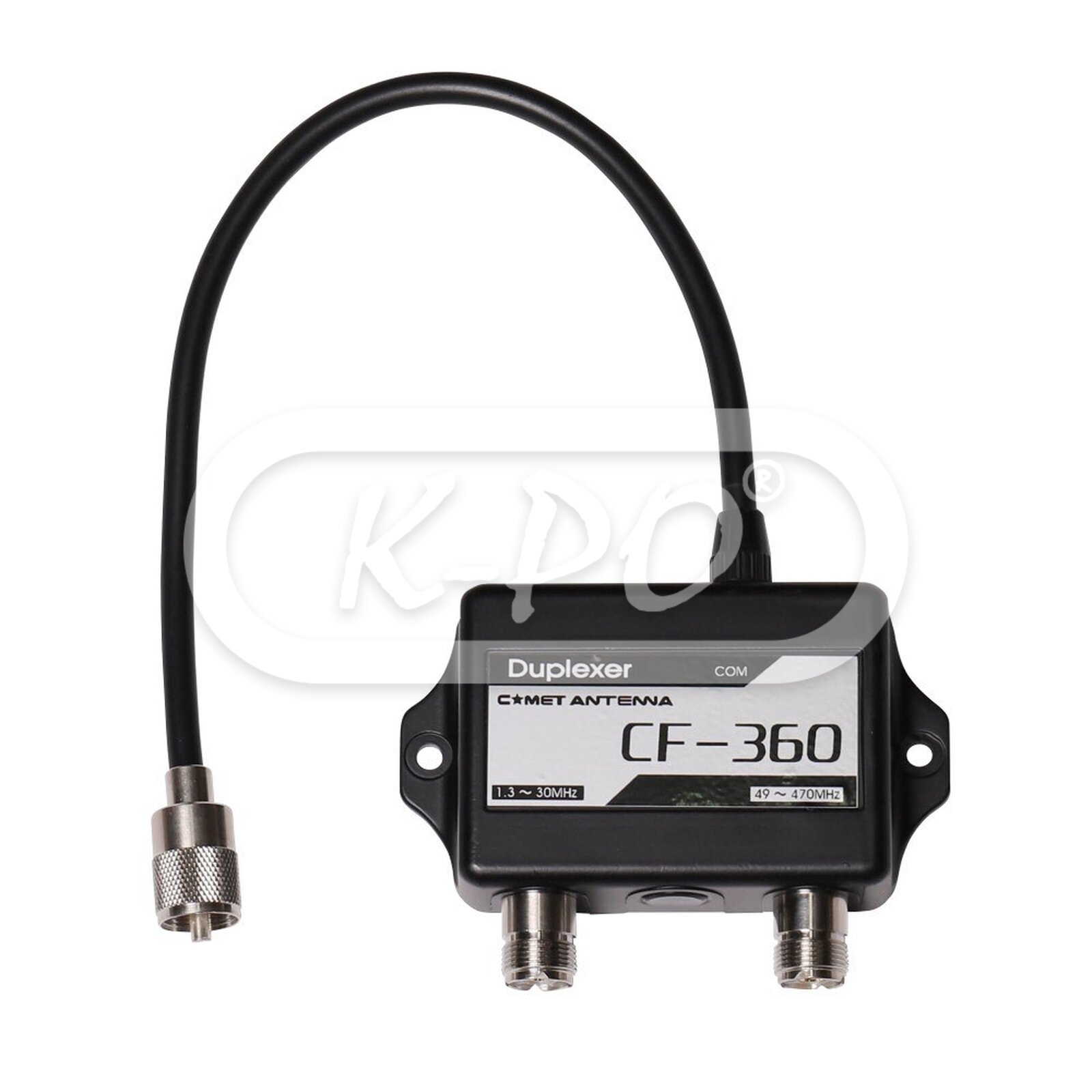

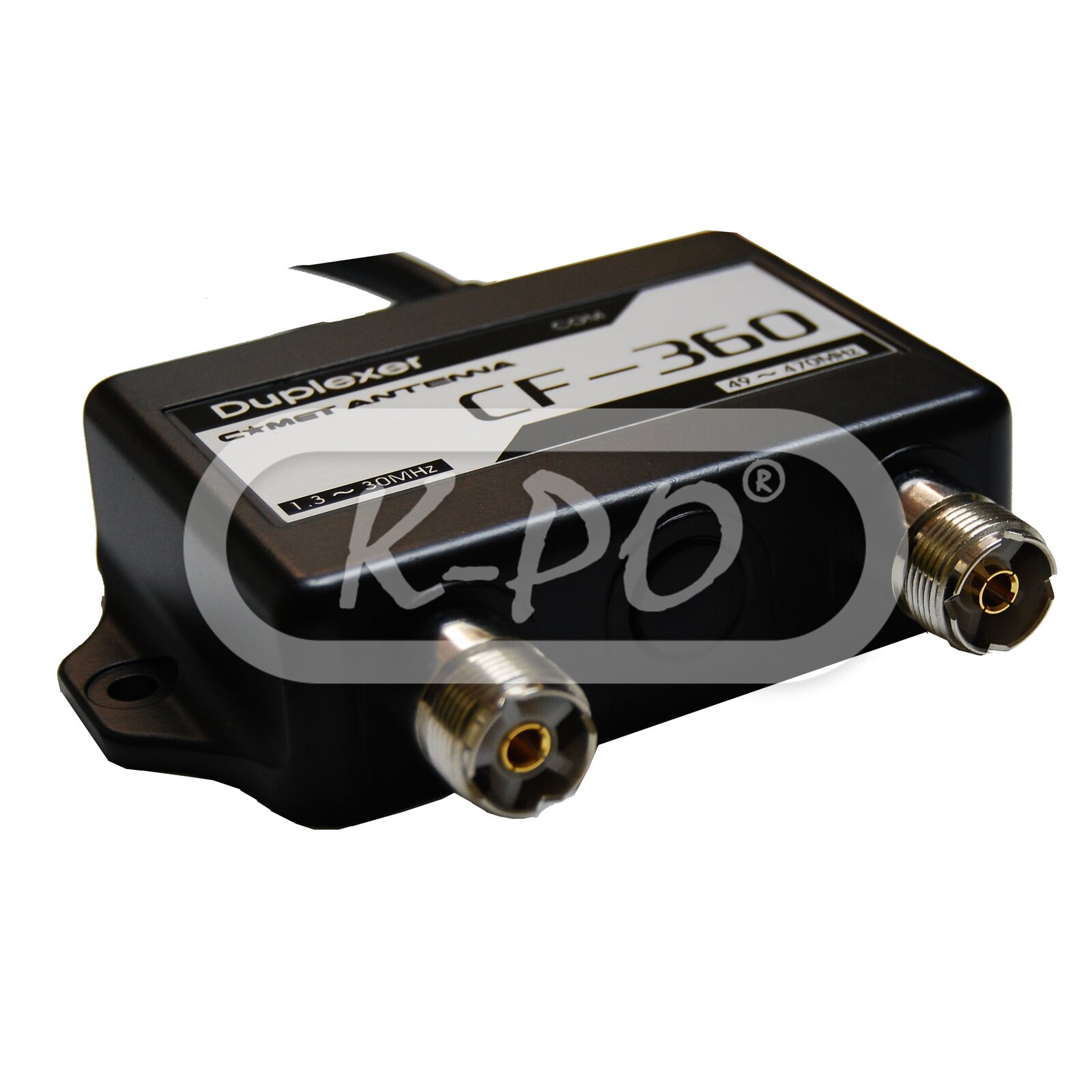

Model CF-360B is the duplexer for transmitting/receiving all 2 bands of HF-band (30 MHz) and VHF&UHF (50MHz, 144-430 MHz) at the same time. Using one or two CF-360 you can connect transceivers and antennas by one coaxial cable. The combined high quality filters of CF-360 work to prevent occurrence of TVI on the other hand. (Isolation of each connectors are over 45 dB). When using CF-360 for one frequency, the other connectors can be remain as [open), but additional dummy load will be much better.

Frequency range: 1.3-30 / 49-470 MHz

Shipped next business day

€68.95 (56.98 excl. 21% VAT)

Electrical data

• Power peak: 1.3-30 MHz: 600W (PEP) / 49-250 MHz: 600W (PEP) / 300-470 MHz: 500W (PEP)
• VSWR: 1.2 or less
• Impedance: 50 Ohm
• Insertion loss: 1.3-30 MHz: 0.2 dB or less / 49-470 MHz 0.25 dB or less
• Isolation: more than 45 dB

Mechanical data

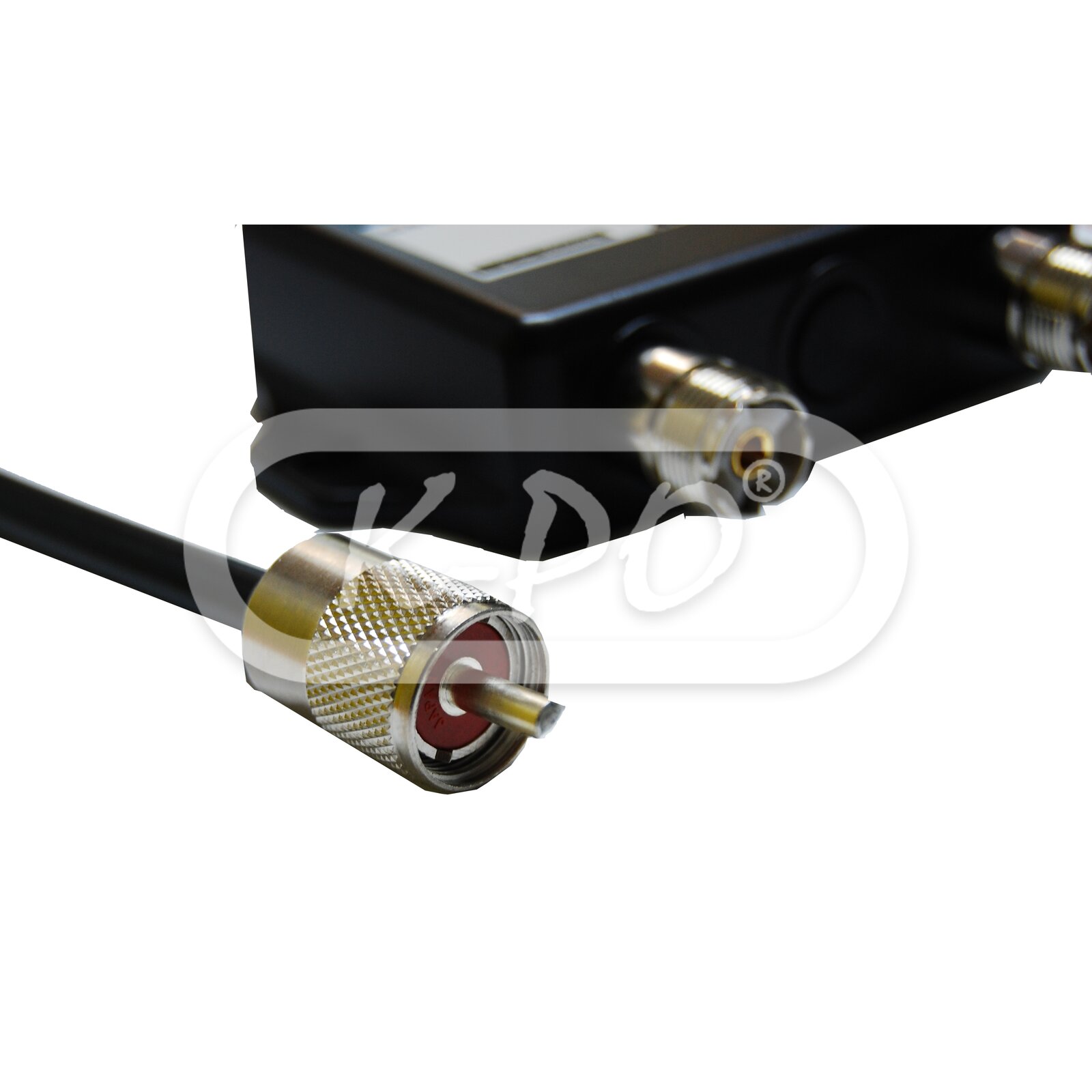

• Connector(s) type in: UHF (PL) male
• Connector(s) type out: 1.3-30 MHz: UHF (PL) female / 49-470 MHz: UHF (PL) female /
• Length: 66 mm
• Height: 26 mm
• Width: 90 mm
• Weight: 325 gram

Downloads

• Datasheet: CF 360 B watermarked
