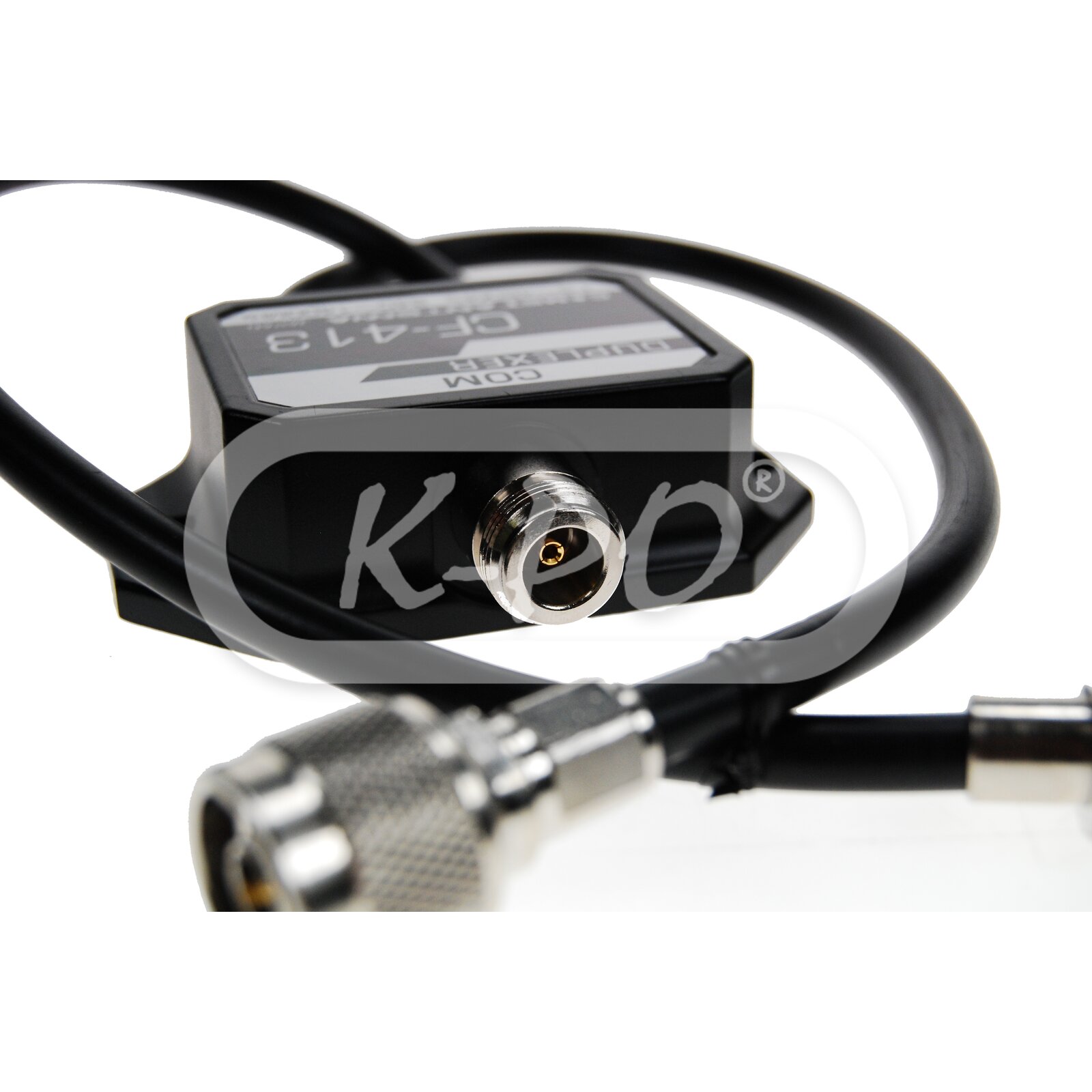

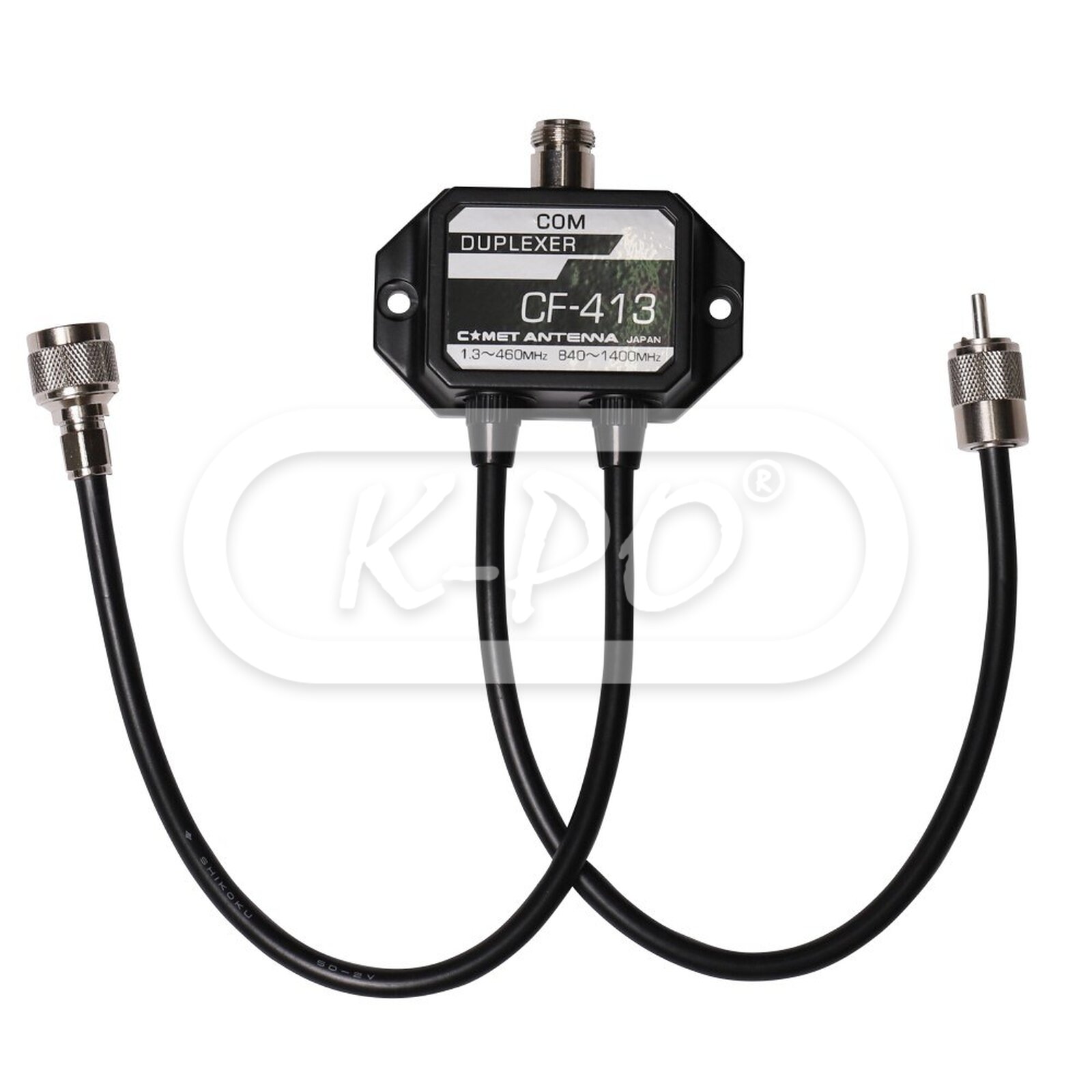

Comet - CF-413B

Product code: 805413

Barcode: 4932273007362

Model CF-413B is the duplexer for transmitting/receiving all 2 bands of 430 MHz and 1200MHz at the same time. Using one, or two CF-413B, you can connect transceivers and antennas by one coaxial cable. The combined high quality filters of CF-413B work to prevent occurrence of TVI on the other hand (Isolation of each connectors are over 55 dB).When using CF-413B for one frequency, the other connectors can be remain as open, but additional dummy load will be much better.

Frequency range: 1.3-460 / 840-1400 MHz

Shipped next business day - Stock: 2

€68.95 (56.98 excl. 21% VAT)

Electrical data

• Power peak: 1.3-150 MHz: 800W (PEP) / 350-500 MHz: 500W (PEP) / 840-1400 MHz: 200W (PEP)
• VSWR: 1.2 or less
• Impedance: 50 Ohm
• Insertion loss: 1.3-460 MHz: 0.25 dB or less / 840-1400 MHz 0.4 dB or less
• Isolation: more than 55 dB

Mechanical data

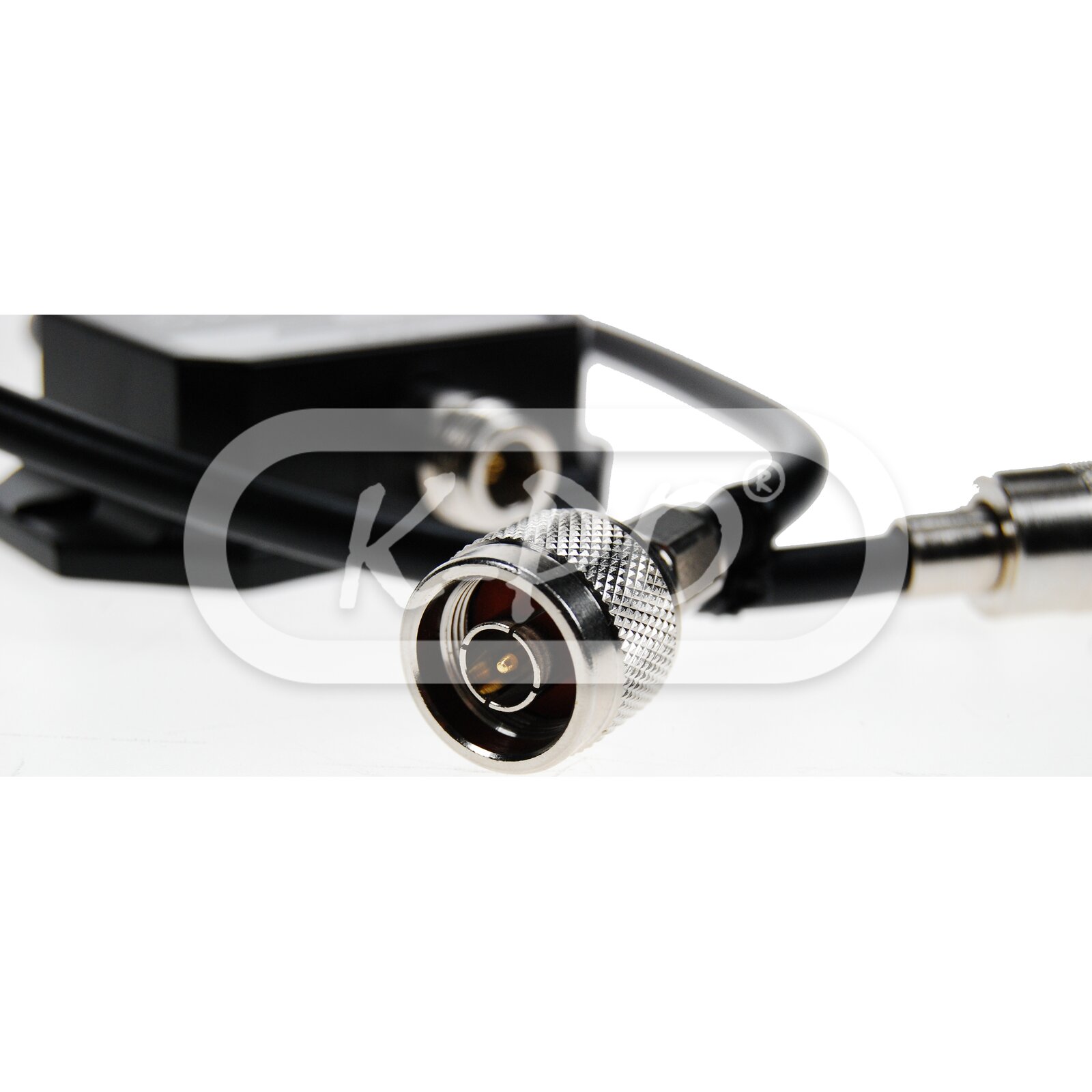

• Connector(s) type in: N female

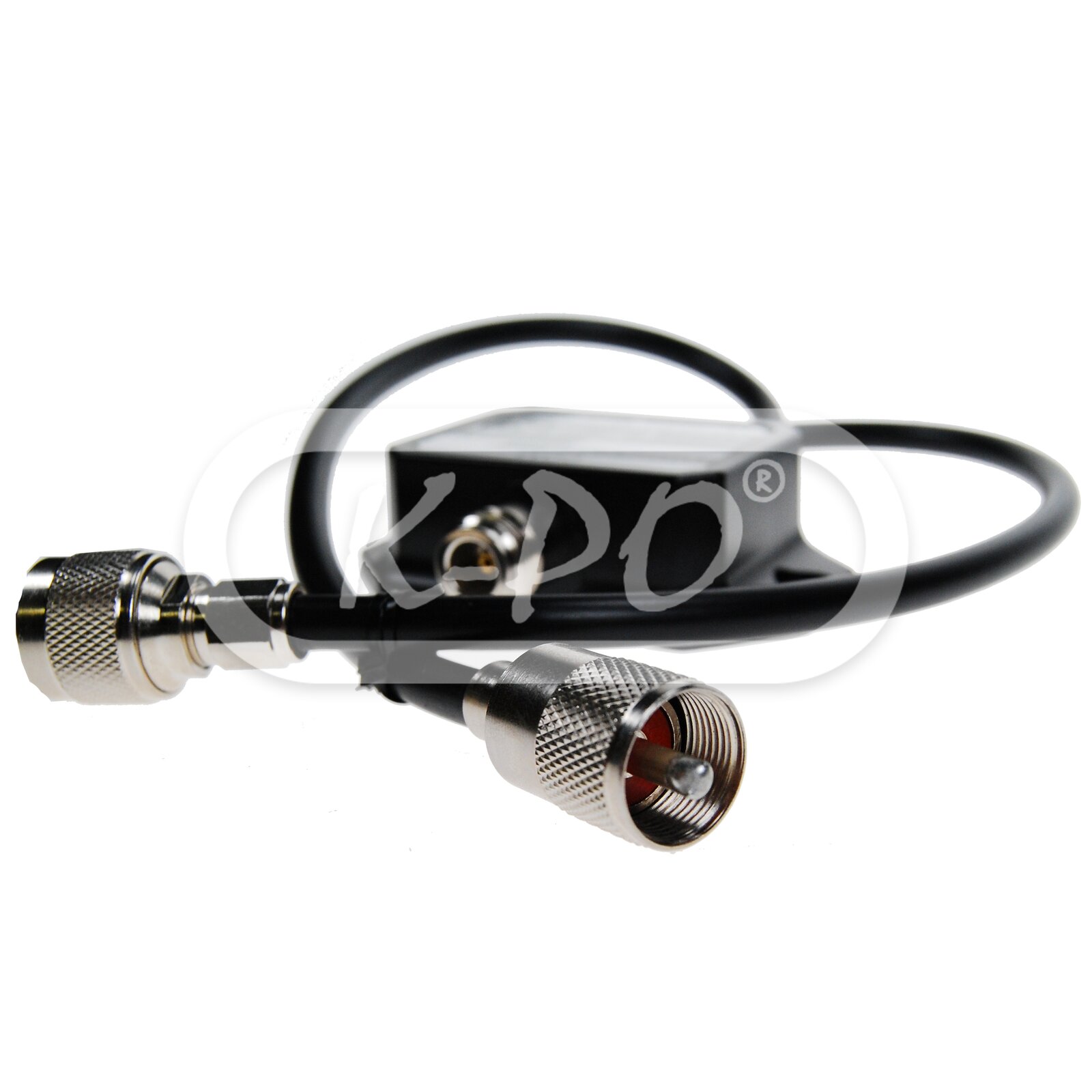

• Connector(s) type out: 840-1400 MHz: N male / 1.3-460 MHz: UHF (PL) male /
• Length: 66 mm
• Height: 26 mm
• Width: 90 mm
• Weight: 325 gram
