Comet - CF-416C

Product code: 805418

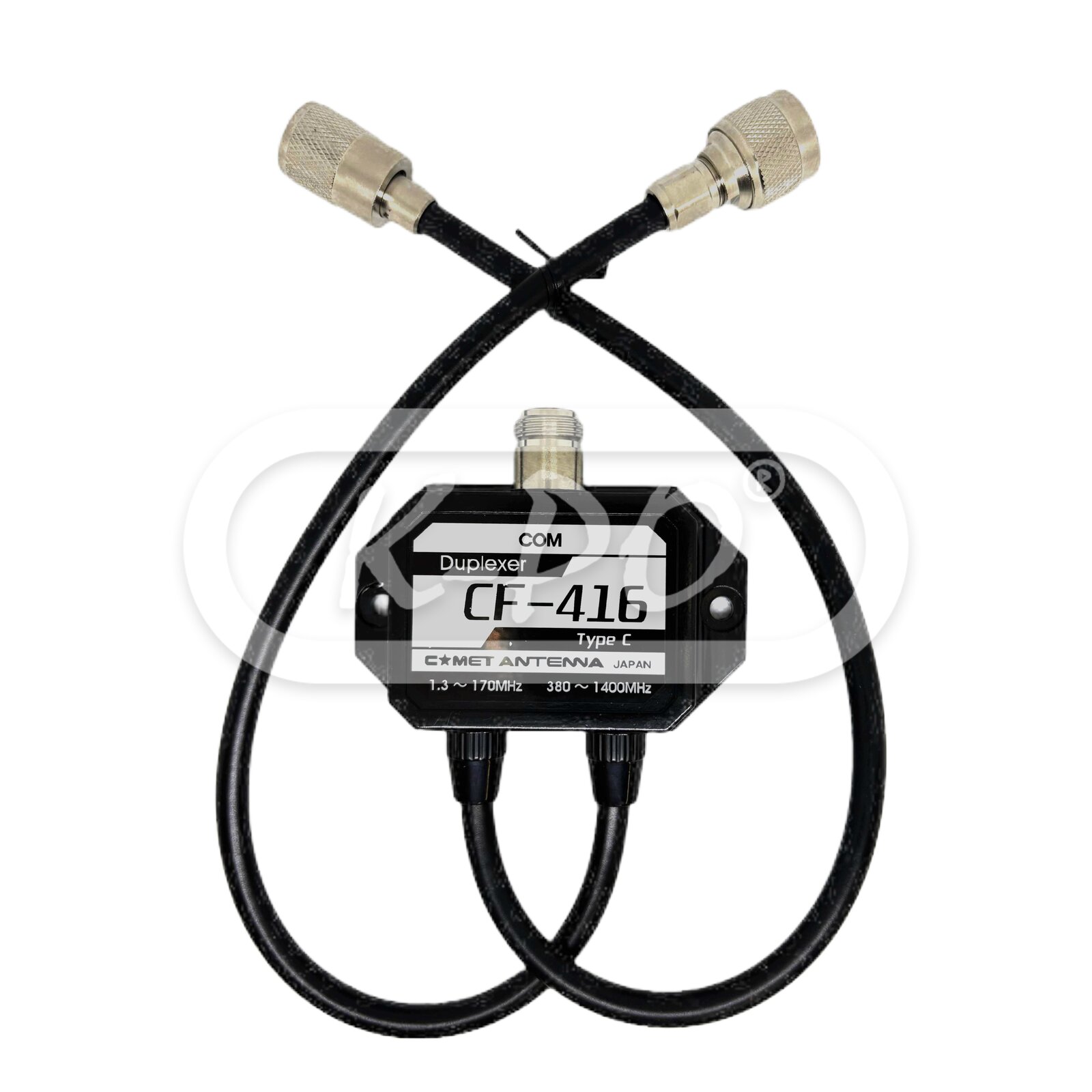

The Comet CF-416C Duplexer, 1.3-170 MHz Low Pass, 380-1400 MHz High Pass, 60 dB Isolation. Using one, or two CF-416C, you can connect transceivers and antennas by one coaxial cable. The combined high quality filters of CF-416C work to prevent of occurrence of TVI on the other hand (isolation of each connectors are over 60 dB). When using CF-416C for one frequency, the other connectors can be remain as (open), but additional dummy load will be much better.

Frequency range: 1.3-170 / 380-1400 MHz

Shipped today

€74.95 (61.94 excl. 21% VAT)

Electrical data

• Power peak: 1.3-60 MHz: 1000W (PEP) / 100-170 MHz: 800W (PEP) / 380-1400 MHz: 500W (PEP)
• VSWR: 1.2 or less
• Impedance: 50 Ohm
• Insertion loss: 1.3-170 MHz: 0.15 dB or less / 380-1400 MHz 0.25 dB or less
• Isolation: more than 60 dB

Mechanical data

• Connector(s) type in: N female

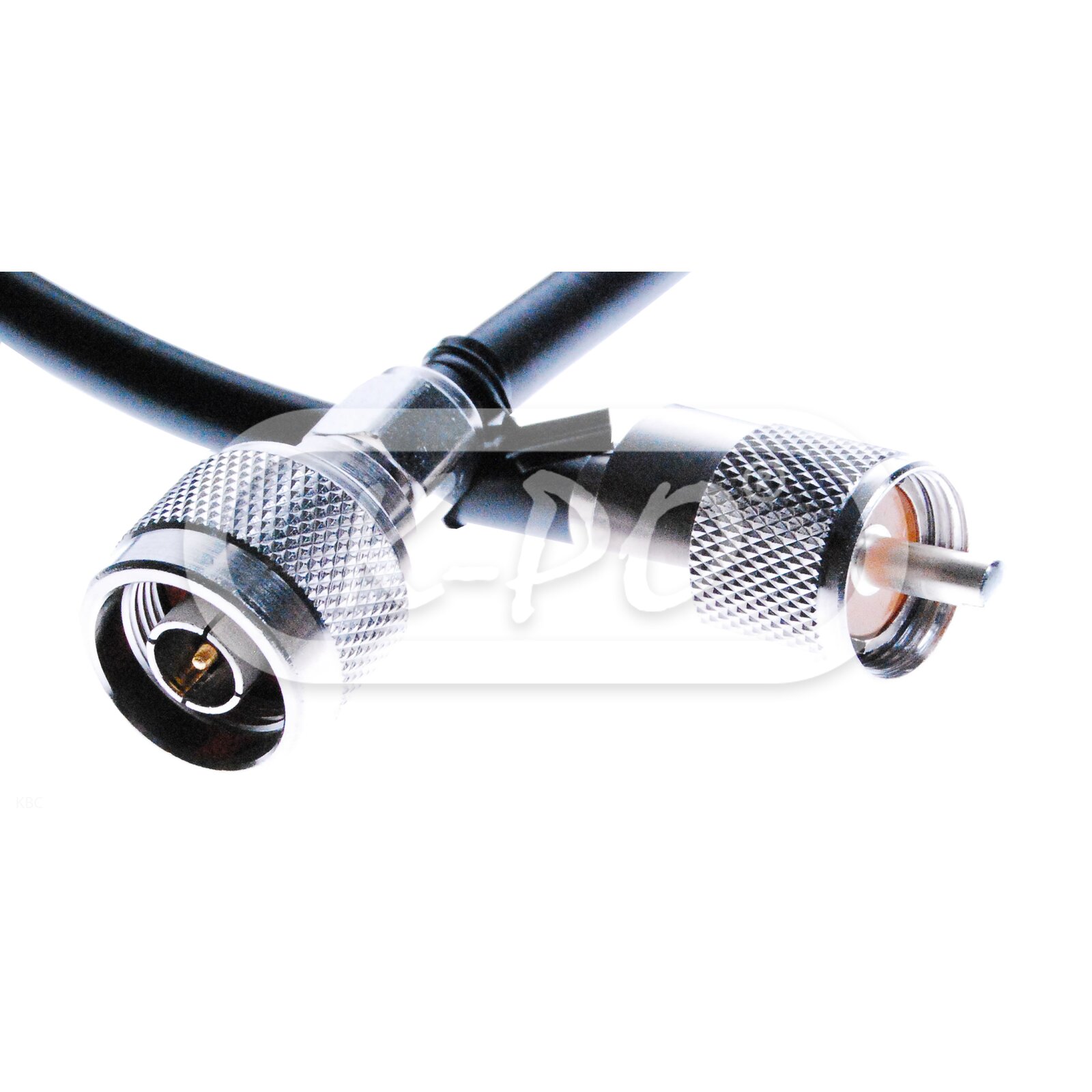

• Connector(s) type out: 1.3-170 MHz: UHF (PL) male / 380-1400 MHz: N male /
• Length: 66 mm
• Height: 26 mm
• Width: 90 mm
• Weight: 325 gram
