Comet - CF-530C Comet - CF-530C

Comet - CF-530C

Product code: 806530
Barcode: 4932273180492

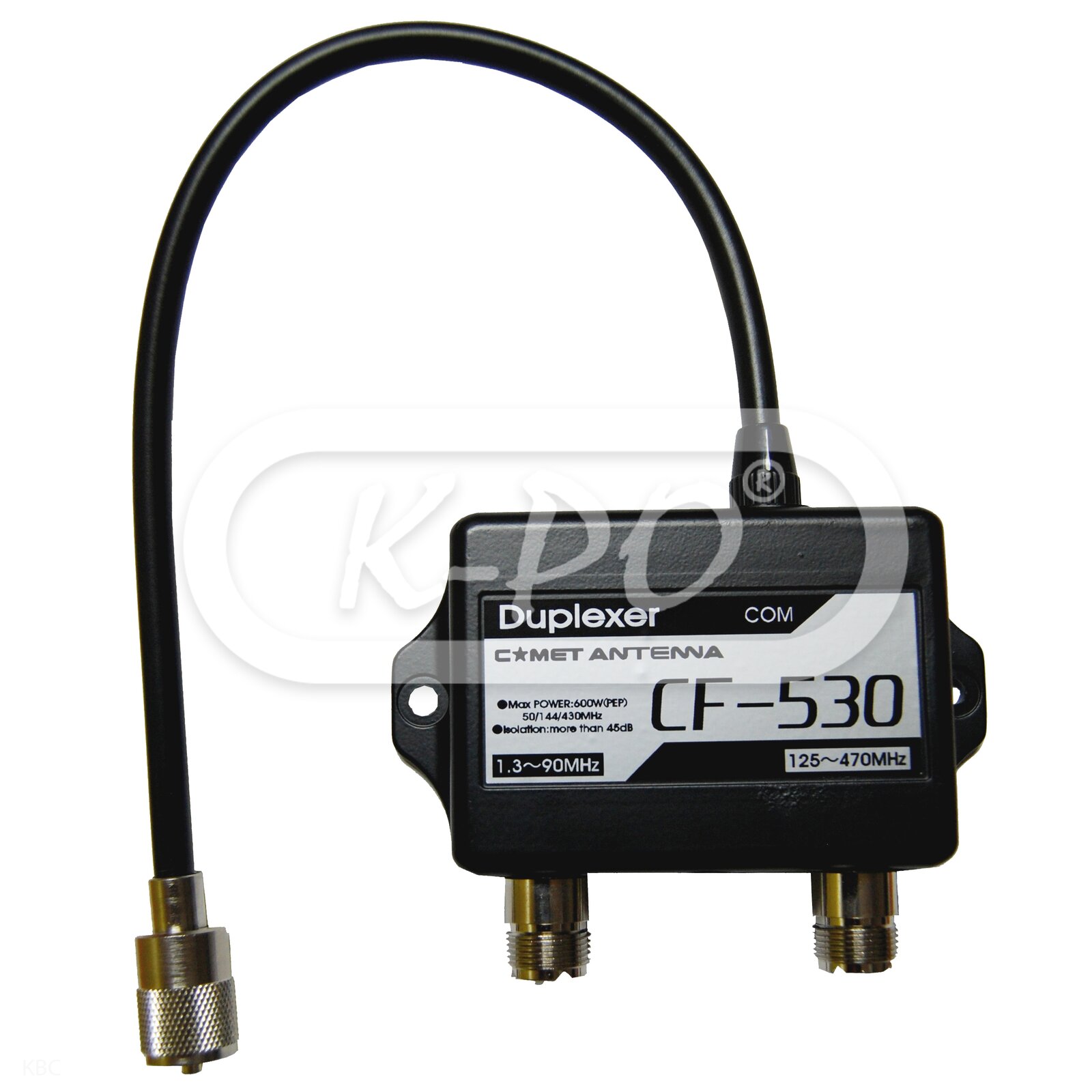

Model CF-530C is the duplexer for transmitting/receiving all 2 bands of 50 MHz and 144 MHz at the same time. Using one, or two CF-530C, you can connect transceivers and antennas by one coaxial cable. The combined high quality filters of CF-530C work to present occurrence of TVI on the other hand (isolation of each connectors are over 45 dB) When using CF-530C for one frequency, the other connectors can be remain as (open), but additional dummy load will be much better.

Frequency range: 1.3-90 / 125-470 MHz
Shipped next business day
€68.95 (56.98 excl. 21% VAT)

Electrical data

  • Power peak: 1.3-90 MHz: 600W (PEP) / 125-470 MHz: 600W (PEP)
  • VSWR: 1.2 or less
  • Impedance: 50 Ohm
  • Insertion loss: 1.3-90 MHz: 0.2 dB or less / 125-470 MHz 0.3 dB or less
  • Isolation: more than 45 dB

Mechanical data

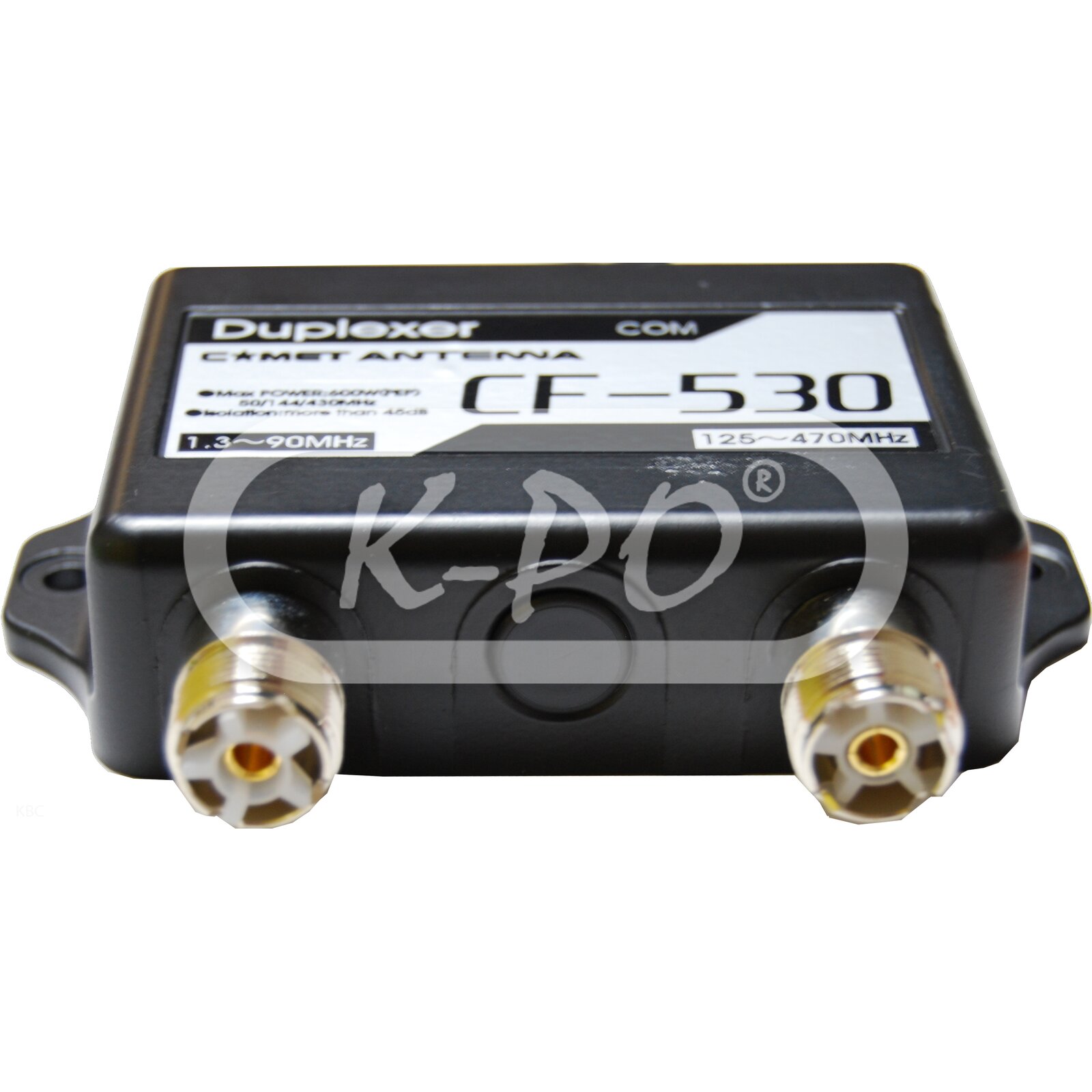

  • Connector(s) type in: UHF (PL) male
  • Connector(s) type out: 1.3-90 MHz: UHF (PL) female / 125-470 MHz: UHF (PL) female /
  • Length: 66 mm
  • Height: 26 mm
  • Width: 90 mm
  • Weight: 325 gram
