Comet - CSC-140J Comet - CSC-140J

Comet - CSC-140J

Product code: 805140
Barcode: 4932273163174

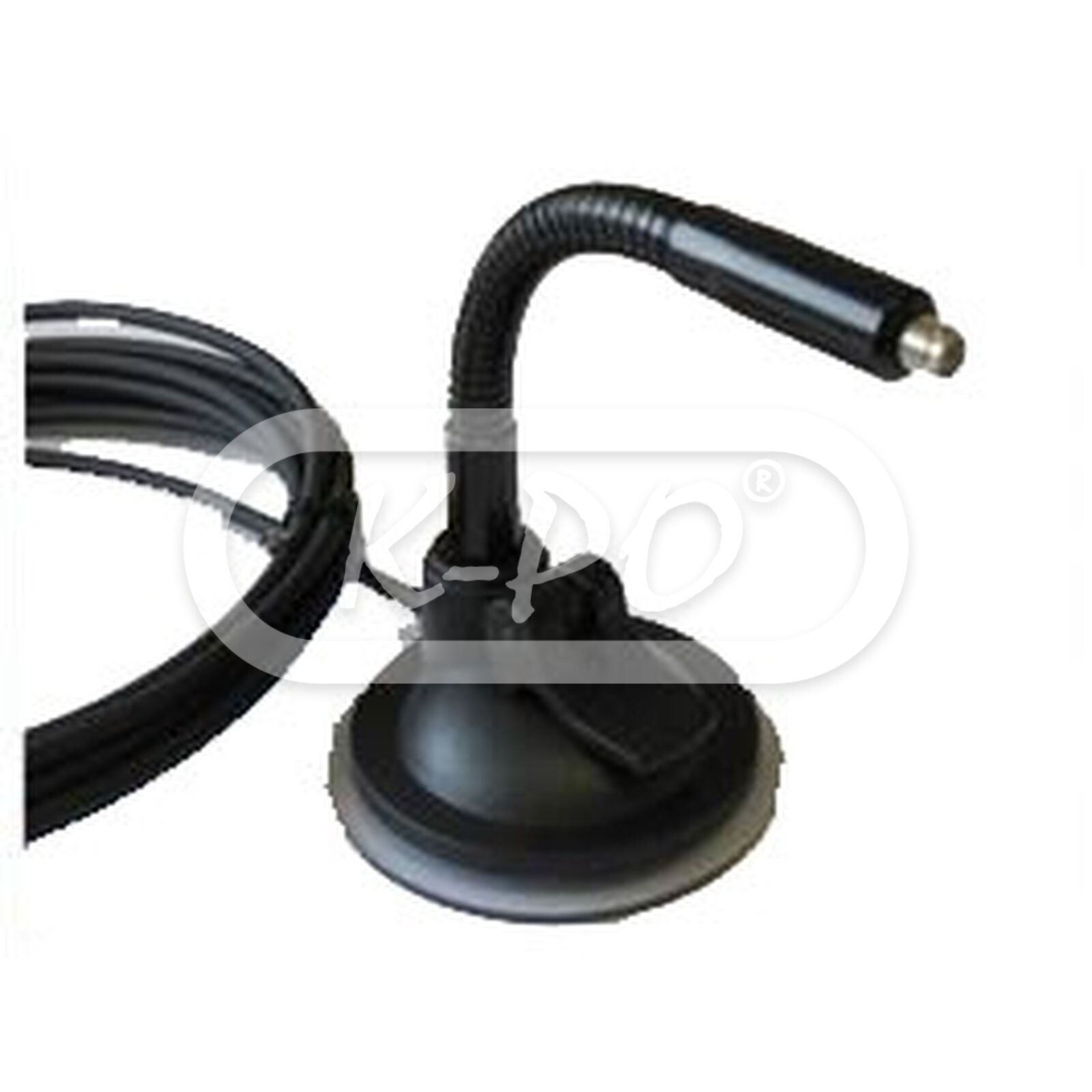

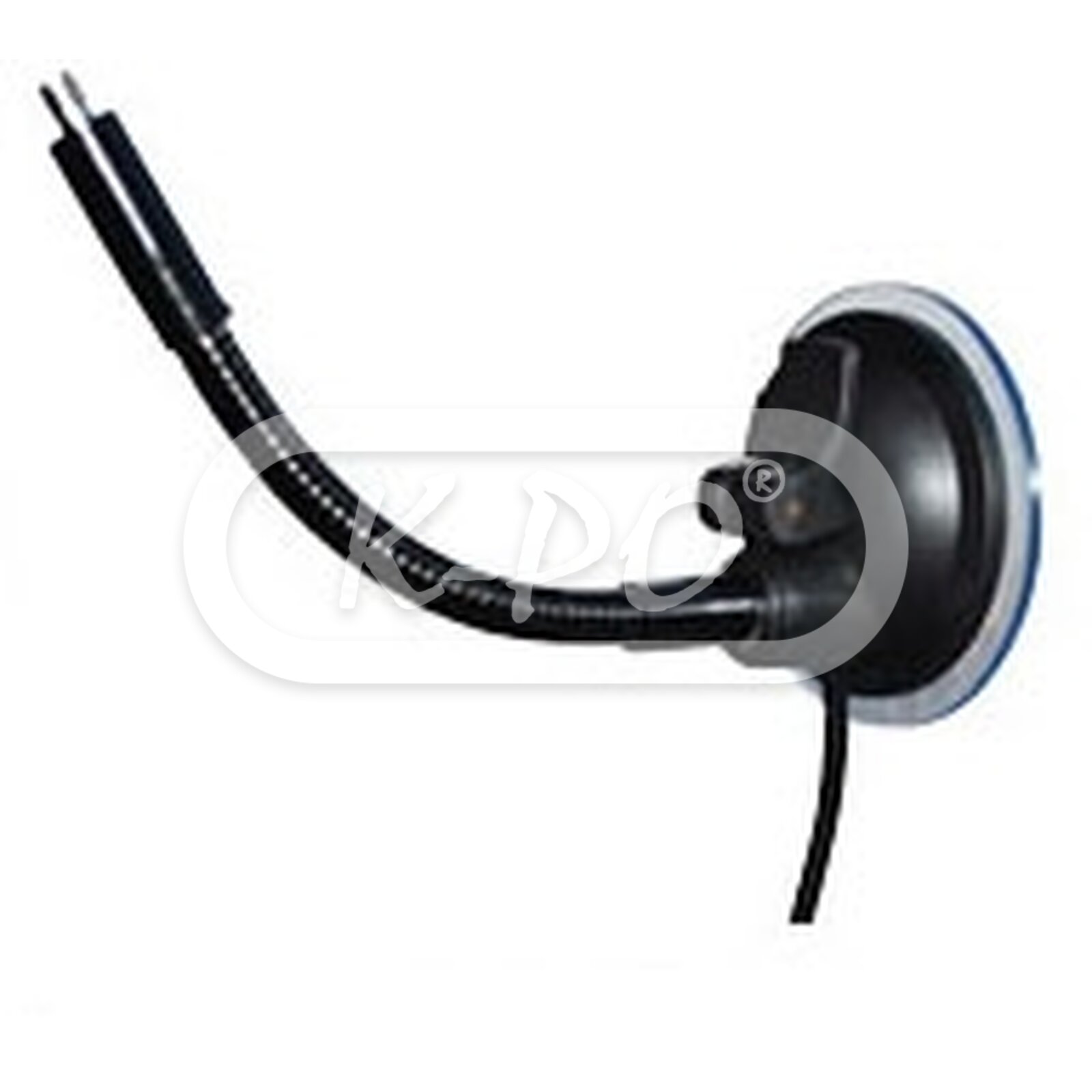

The CSC-140J is easy to install without the use of tools. The goose-neck provides easy manipulation for antenna positioning. SMA female connection on the goose-neck, SMA male connector on the cable end.

Frequency range: up to 2.5 GHz
Shipped next business day - Stock: 3
€59.94 (49.54 excl. 21% VAT)

Mechanical data

  • Cable: Yes
  • Cable length: 300 cm
  • Cable type: Low loss Fujikura 2D-LFB cable
  • Height: 165 mm
  • Weight: ± 150 gram
  • Max. power: 0-200 MHz: 80 Watts / 200-500 MHz: 40 Watts / 500 MHz - 1 GHz: 20 Watts / 1 GHz: 10 Watts
  • Cable loss: 100 MHz: 0.53 dB / 500 MHz: 1.2 dB / 900 MHz: 1.7 dB / 2.0 GHz: 2.7 dB / 2.5 GHz: 3.3 dB
  • Impedance: 50 Ohm
  • Flextube bent angle: Max 90°
  • V.SWR: 1.25
