Comet - CTC-50N

Comet - CTC-50N

Product code: 805065
Barcode: 4932273163242

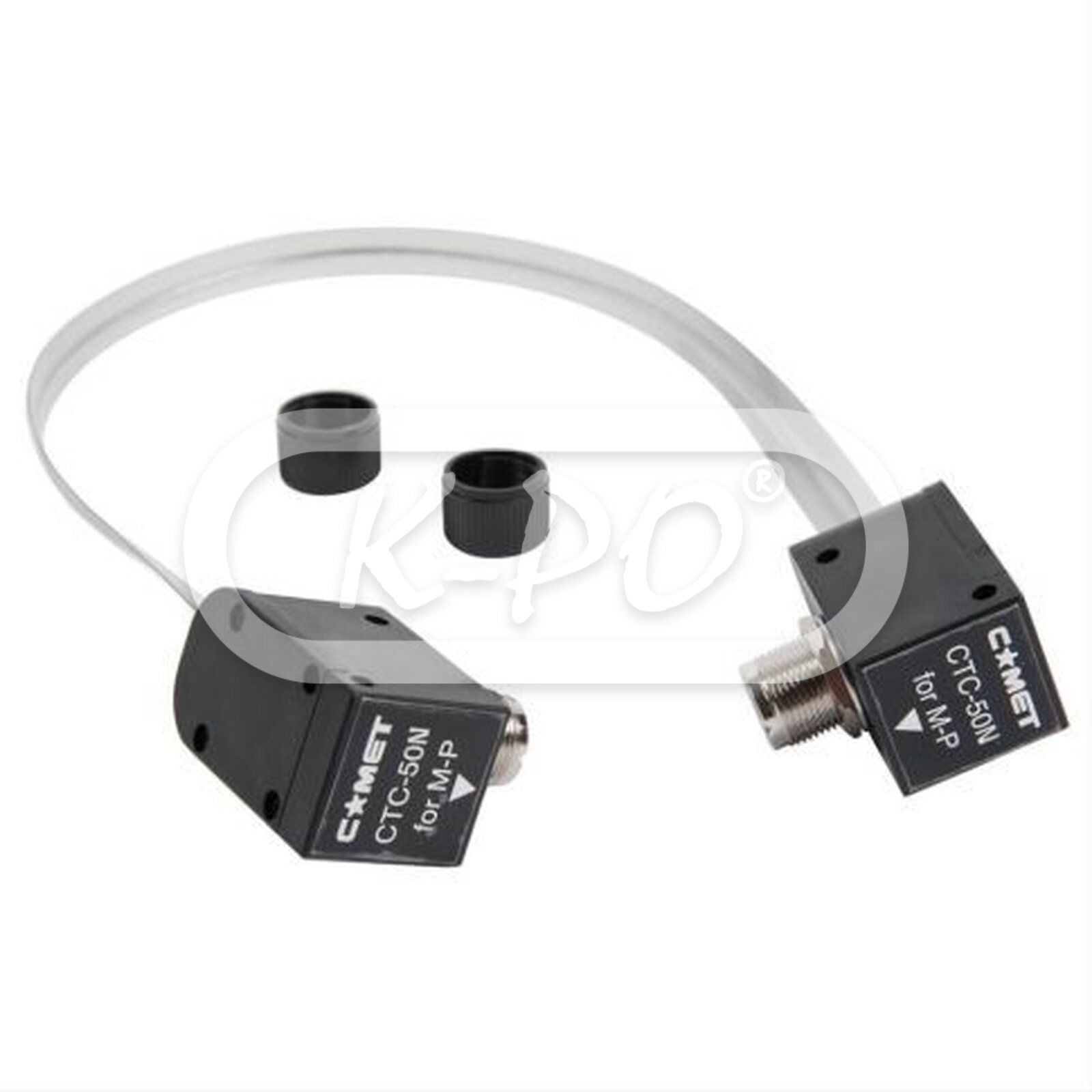

The CTC-50N avoids the need to drill holes through walls for routing coaxial cables indoors from an outdoor antenna. The CTC-50N is equipped with two low-loss N female connectors, allowing you to connect any grade 50 Ohm impedance coaxial cable with ease.

Frequency range: Up to 1300 MHz
Shipped next business day
€55.95 (46.24 excl. 21% VAT)

Mechanical data

  • Length: ± 50 cm
  • Weight: 150 gram
  • Max. power: 0-50 MHz: 100 Watts (PEP) / 144 MHz: 60 Watts (FM) / 430 MHz: 40 Watts (FM) / 1300 MHz: 10 Watts (FM)
  • Insertion loss: 0-500 MHz: less than 0.7 dB / 500-900 MHz: less than 1.3 dB / 900-1300 MHz: less than 1.8 dB
  • Impedance: 50 Ohm
  • V.SWR: <500 MHz: less than 1.3:1 / >500 MHz: less than 1.7 :1
  • Connector: 2x N female
