Certified European Distributor

Comet - HFJ-2734Y

Product code: 805090

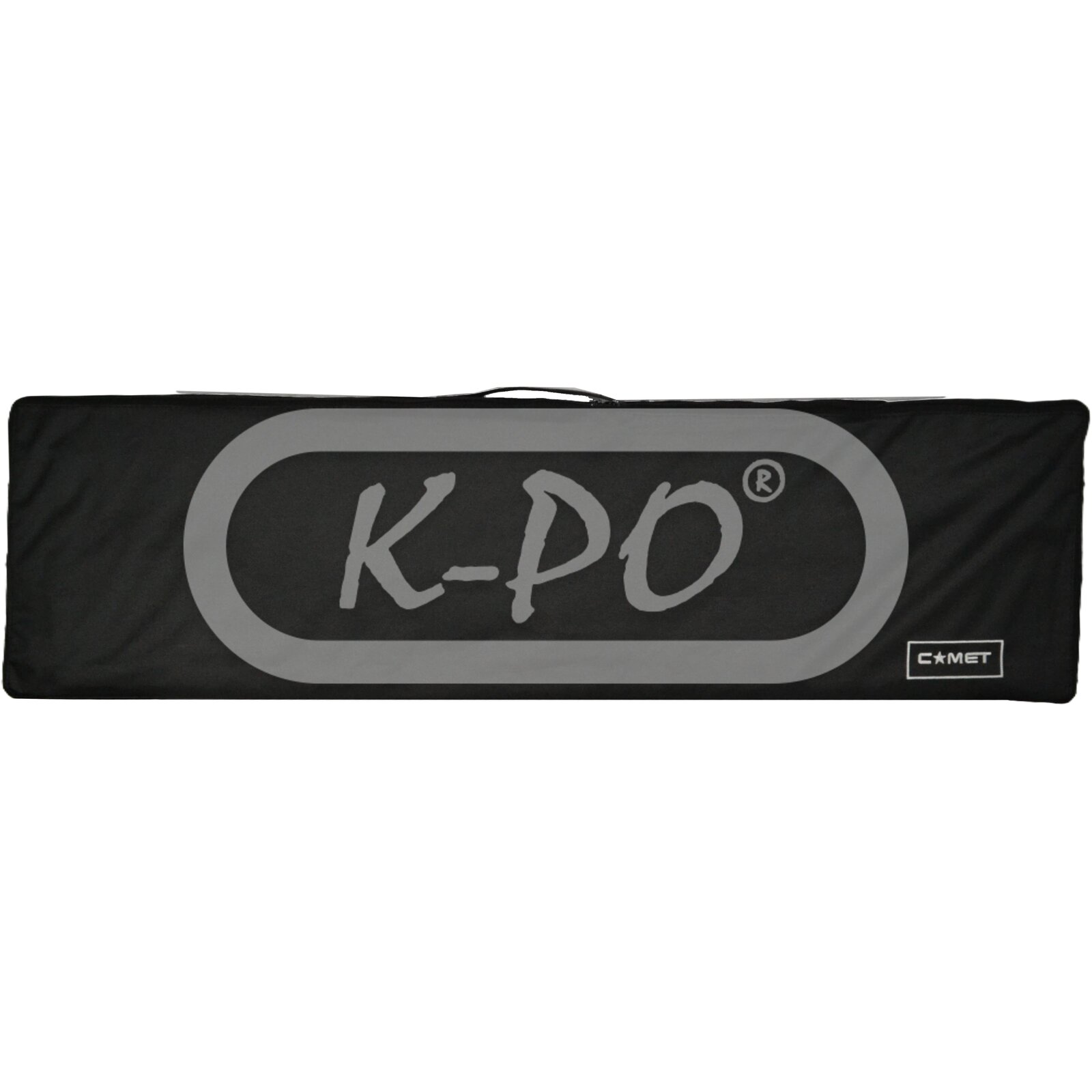

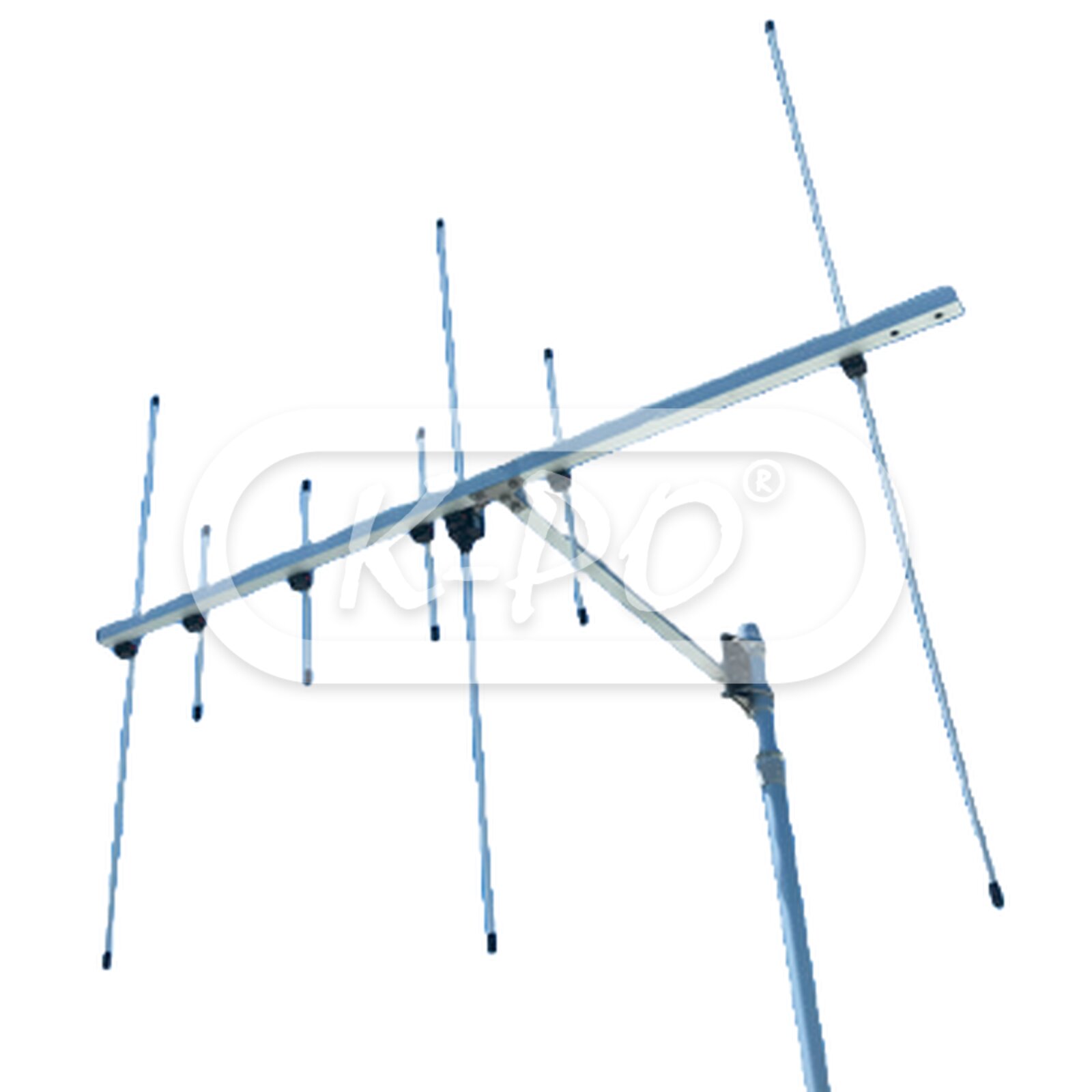

The Comet HFJ-2734Y is a mobile dual-band Yagi antenna, nicely packed in a nylon carrying bag with pre-cut foam. Ideal for POTA (Parks On The Air) and GMA (Global Mountain Activity) and other outdoor activities and holidays.

It can be fully assembled without the need for extra tools, simply by clicking the elements together and tighten the thumbscrews. Specially designed for mobile operation, it can also be used for more permanent installations.

With a VSWR of ≤1.5 on both the 2-meter and 70 cm bands, the 3- and 4-element offer a gain of 7 dBi on 144 MHz and 9 dBi on 430 MHz, with a power handling capacity of up to 60 watts.

The HFJ-2734Y is made of lightweight and durable materials, including fiber-reinforced plastic (FRP) and aluminum.

Frequency range: 144 / 430 MHz
Shipped next business day
€199.95 (165.25 excl. 21% VAT)

Electrical data

  • Electrical type: 144 MHz: 3 element / 430 MHz: 4 element
  • Gain: 144 MHz: 7 dBi / 430 MHz: 9 dBi
  • VSWR: ≤1.5
  • Power peak: 60 Watts
  • Impedance: 50 Ohm
  • Polarization: Linear vertical

Mechanical data

  • Materials: Aluminium, fiber-reinforced plastic (FRP)
  • Mast Ø: 60 mm
  • Max wind resistance: 126 km/h
  • Length: Approximately 100 cm (main boom)
  • Weight: 650 gram
  • Mounting type: On mast
  • Antenna connector: BNC female
  • Nylon carrying bag measurements: 106 x 30 x 5 cm

Inside the box

  • Antenna: Yes
  • Mounting parts: Yes
  • Installation manual: English
