Comet - MA-AIR

Product code: 805070

Barcode: 805070

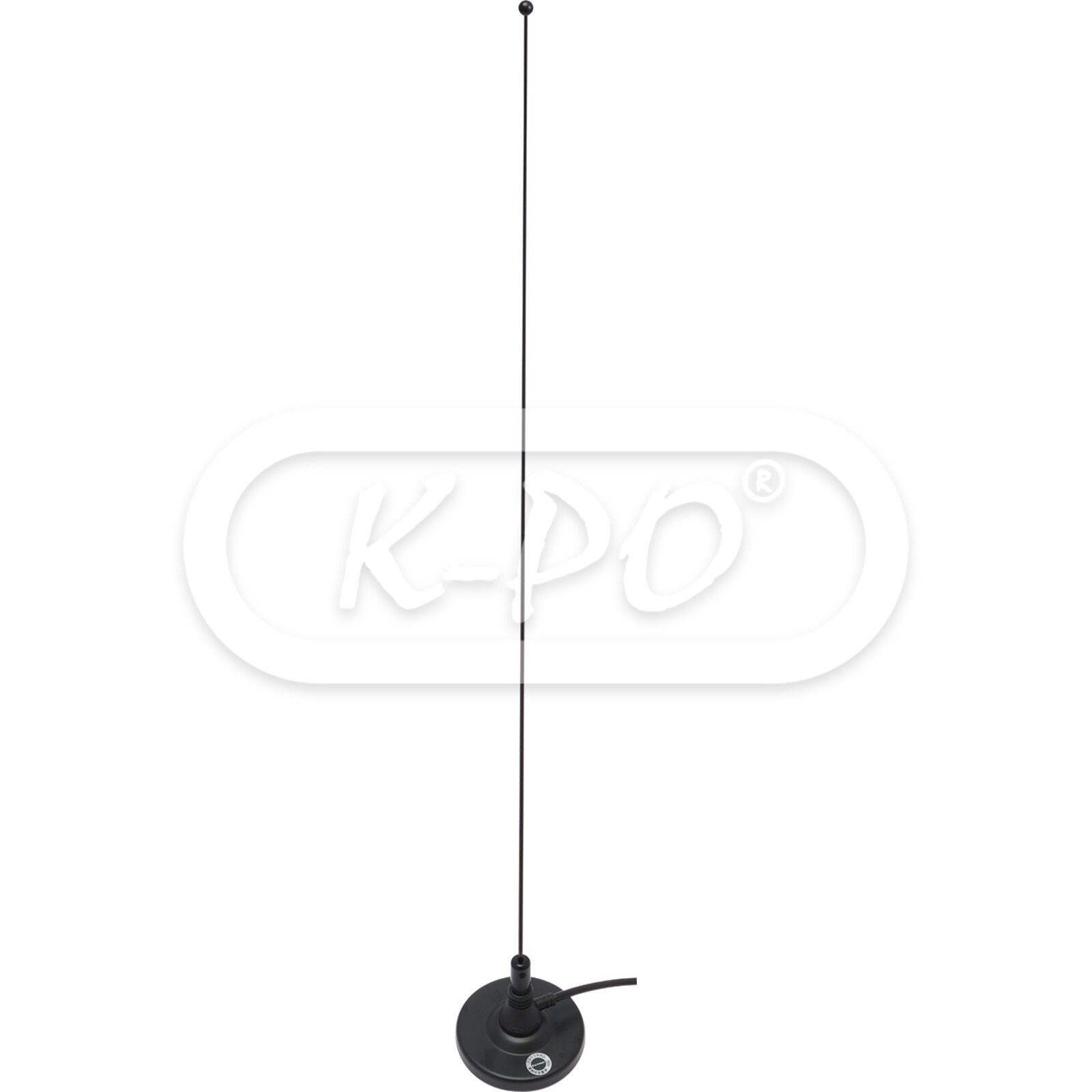

The Comet MA-AIR is a robust, full-scale air band receiving magnet antenna designed for the 108–140 MHz and 220–400 MHz frequency ranges.

It features a strong magnetic base for easy installation and includes a scratch-resistant transparent seal to protect surfaces.

The antenna is equipped with a low-loss FME-female connector at the cable's end and includes an FME-male to SMA-male adapter for added compatibility.

Additional optional FME connectors are available to suit the specific connector of your receiver.

Frequency range: 108 - 140 MHz, 220 - 400 MHz

Shipped next business day

€43.95 (36.32 excl. 21% VAT)

Electrical data

• Electrical type: 120 MHz band 1/4λ, 300 MHz band 3/4λ
• Gain: 144 MHz: 1.7 dBi / 430 MHz: 4.15 dBi
• Bandwidth: 120 MHz-band (108 tot 140) 300 MHz-band (220 tot 400 MHz)
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Cable: Yes
• Cable length: 5 meter

Mechanical data

• Height: 620 mm
• Weight: 440 gram
• Mounting type: 77 mm magnet
• Antenna connector: FME female
• Cable: Durable coaxial cable, RG 58A/U

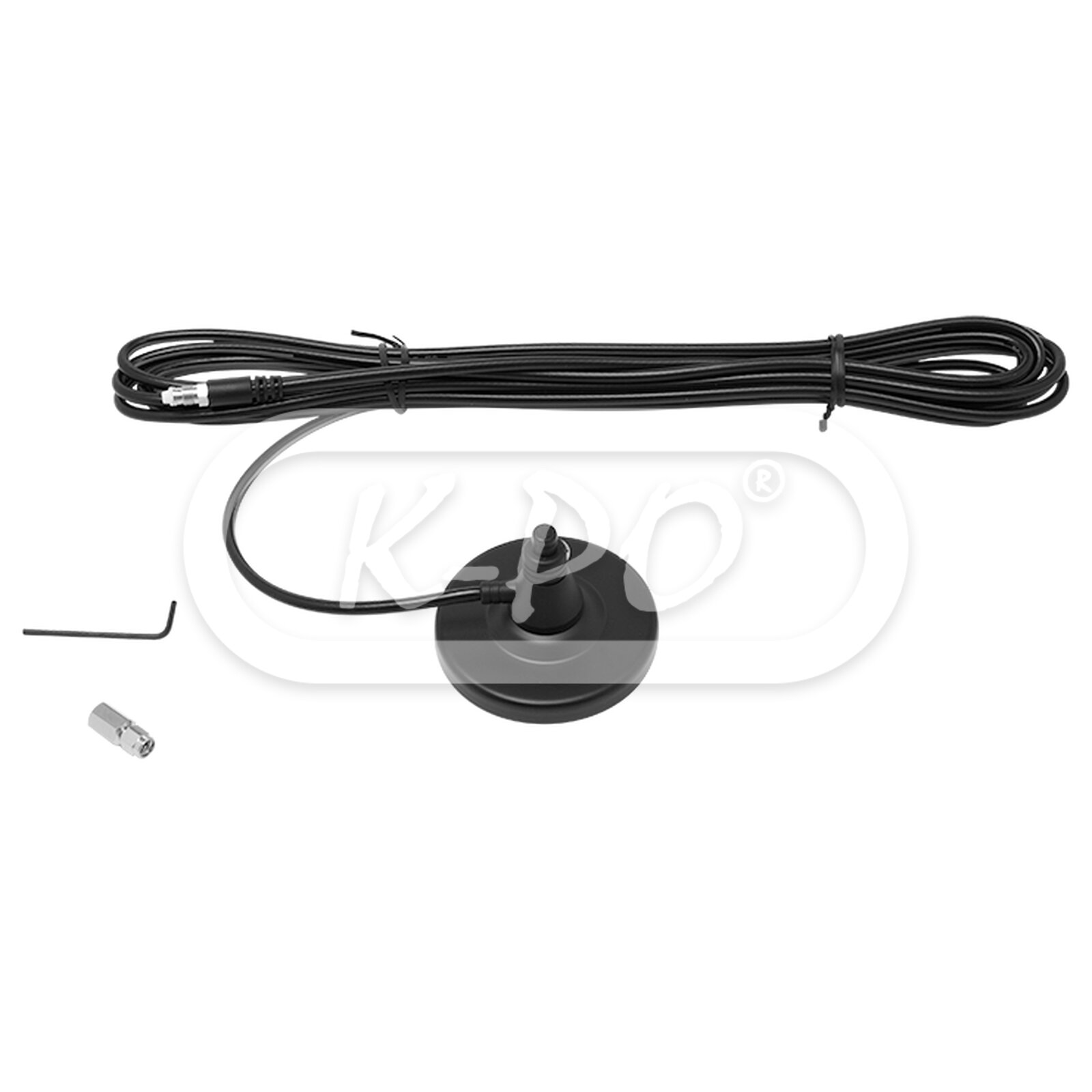

Inside the box

• Antenna: Yes
• Radio connector: FME male to SMA male adapter
• Antenna cable: Yes
• Installation manual: Japanese
