Comet - SMA3

Product code: 805033

Barcode: 4932273100483

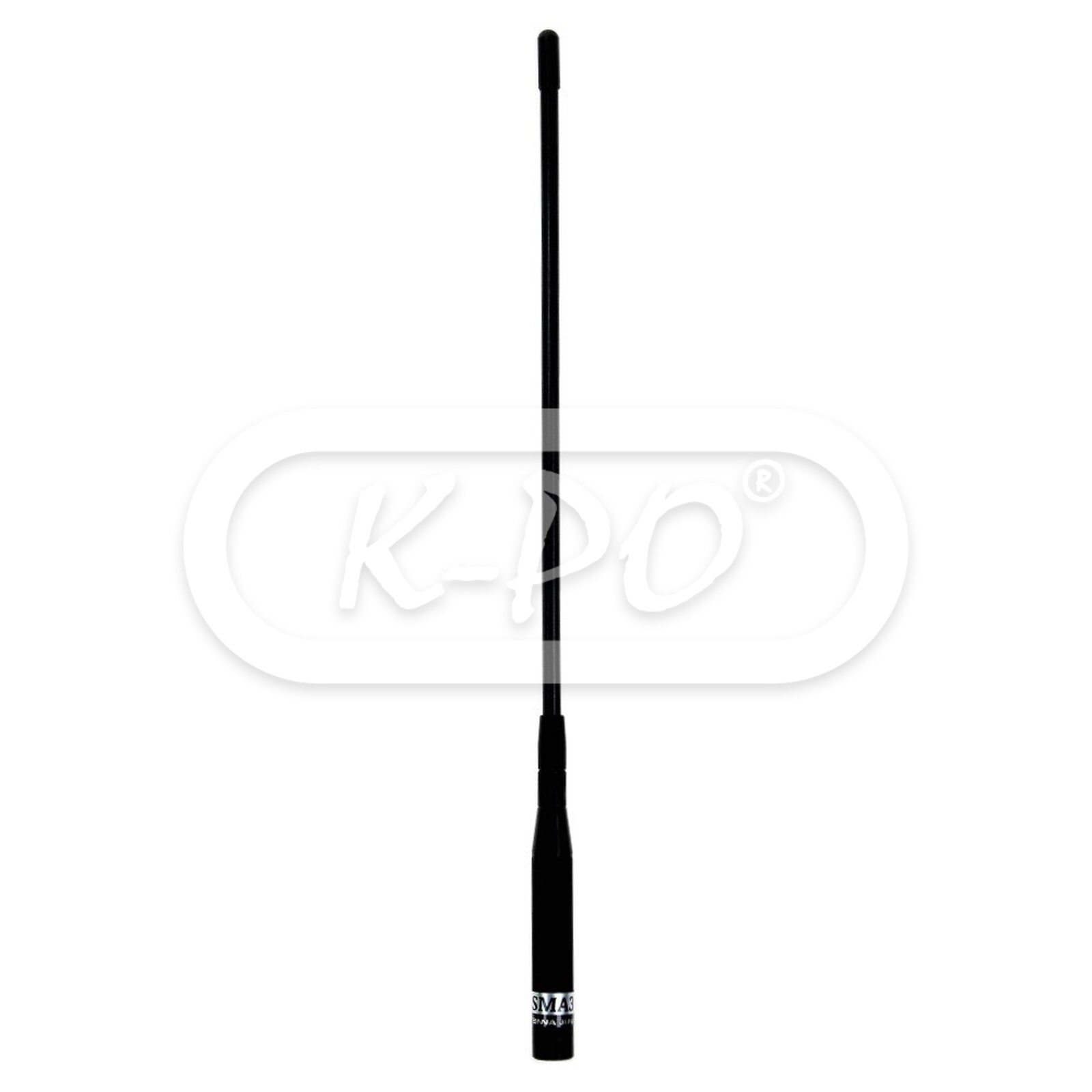

The Comet SMA 3 is a neat and slim replacement antenna for most modern handhelds with TX on 144 / 430 / 900 MHz and a maximum power handling of 10 Watts. Can also be used as a semi scanner antenna with reception on 118 - 160 / 250 - 290 / 360 - 390 / 420 - 470 / 820 - 900 MHz.

Frequency range: TX: 144 / 430 / 900 MHz, RX: 118 - 160 / 250 - 290 / 360 - 390 / 420 - 470 / 820 - 900 MHz

Shipped today

€32.95 (27.23 excl. 21% VAT)

Electrical data

• Gain: 144 MHz: 1.2 dBi / 430 MHz: 1.7 dBi / 900 MHz: 3.4 dBi
• Maximum continuous power: 10 Watts
• Impedance: 50 Ohm
• Polarization: Linear vertical

Mechanical data

• Length: 250 mm
• Weight: 30 gram

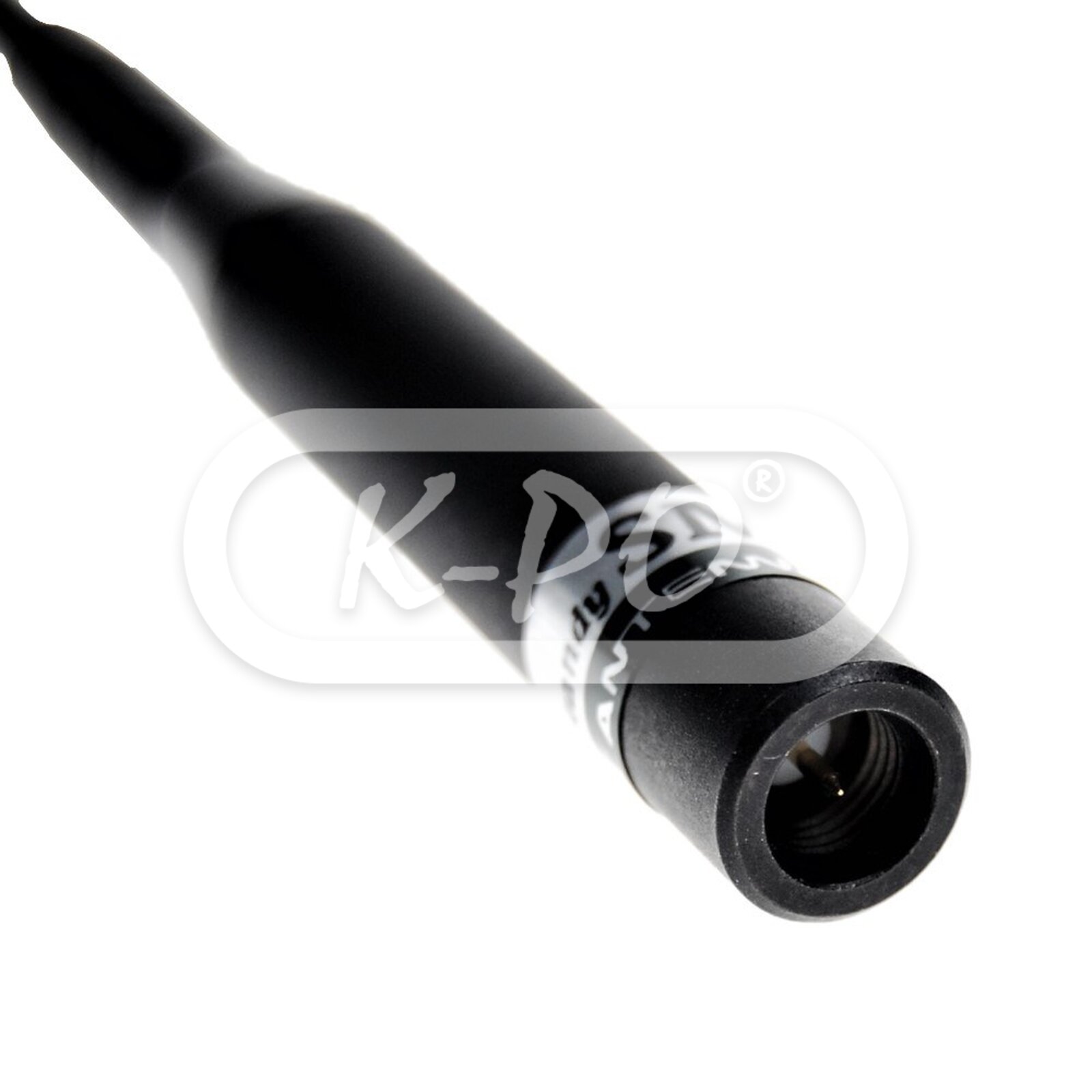

• Antenna connector: SMA male

Inside the box

• Antenna: Yes
