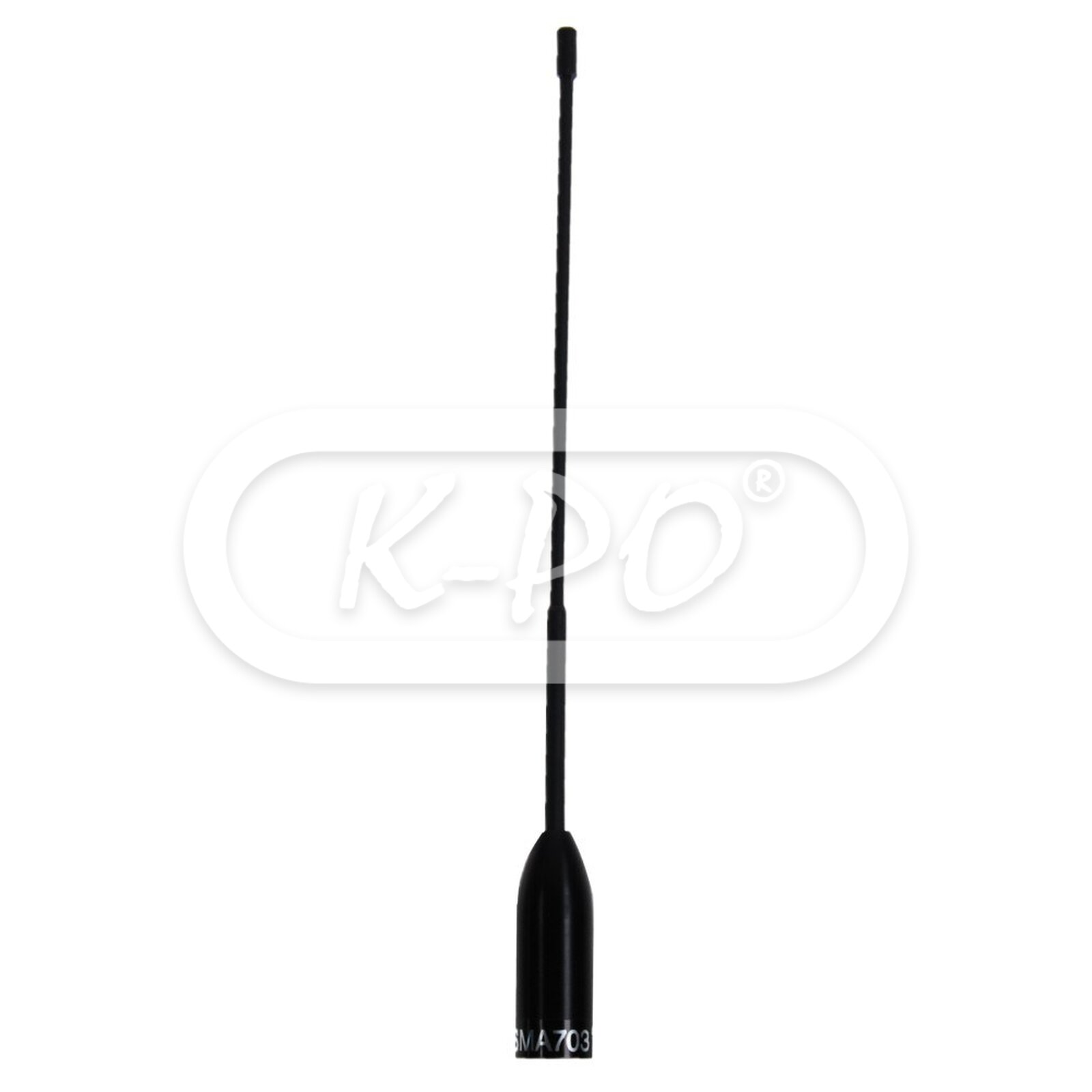

Comet - SMA703

Product code: 805703

Barcode: 4932273101930

Handheld antenna with TX on 144 / 430 / 1200 MHz. Wide band reception on 118 - 160 / 250 - 290 / 360 - 390 / 420 - 470 / 820 - 960 / 1260 - 1300 MHz. 10 Watts power handling on 144 / 430 MHz and 5 Watts on 1200 MHz.

Frequency range: TX: 144 / 430 / 1200 MHz, RX: 118 - 160 / 250 - 290 / 360 - 390 / 420 - 470 / 820 - 960 / 1260 - 1300 MHz

Shipped next business day - Stock: 6

€25.95 (21.45 excl. 21% VAT)

Electrical data

• Gain: 144 MHz: 0 dBi / 430 MHz: 0 dBi / 1200 MHz: 3.4 dBi
• Maximum continuous power: 144 / 430 MHz; 10 Watts / 1200 MHz: 5 watts
• Impedance: 50 Ohm
• Polarization: Linear vertical

Mechanical data

• Length: 170 mm
• Weight: 11 gram

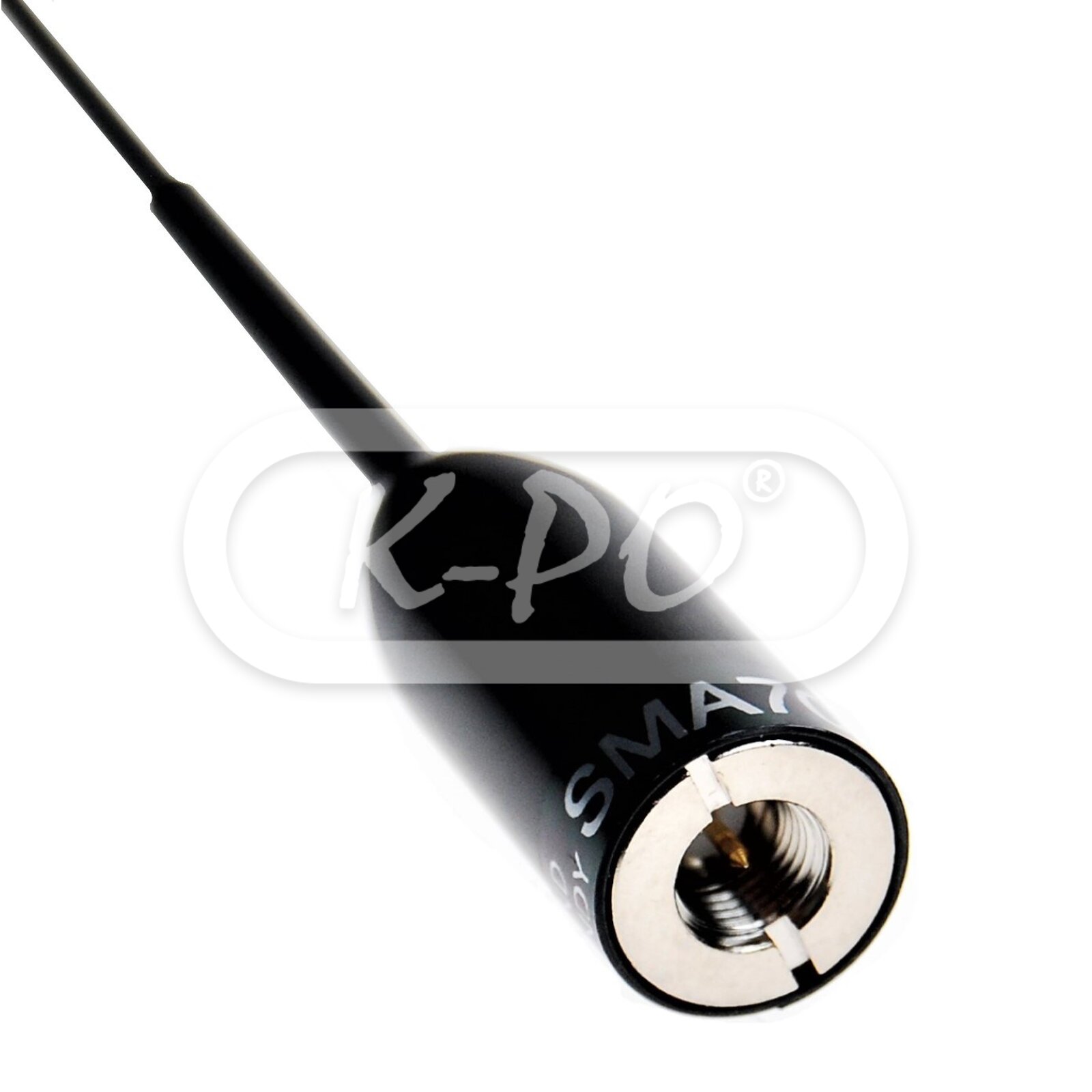

• Antenna connector: SMA male

Inside the box

• Antenna: Yes
