Comet - UHV-9

Product code: 806009

Barcode: 4932273103576

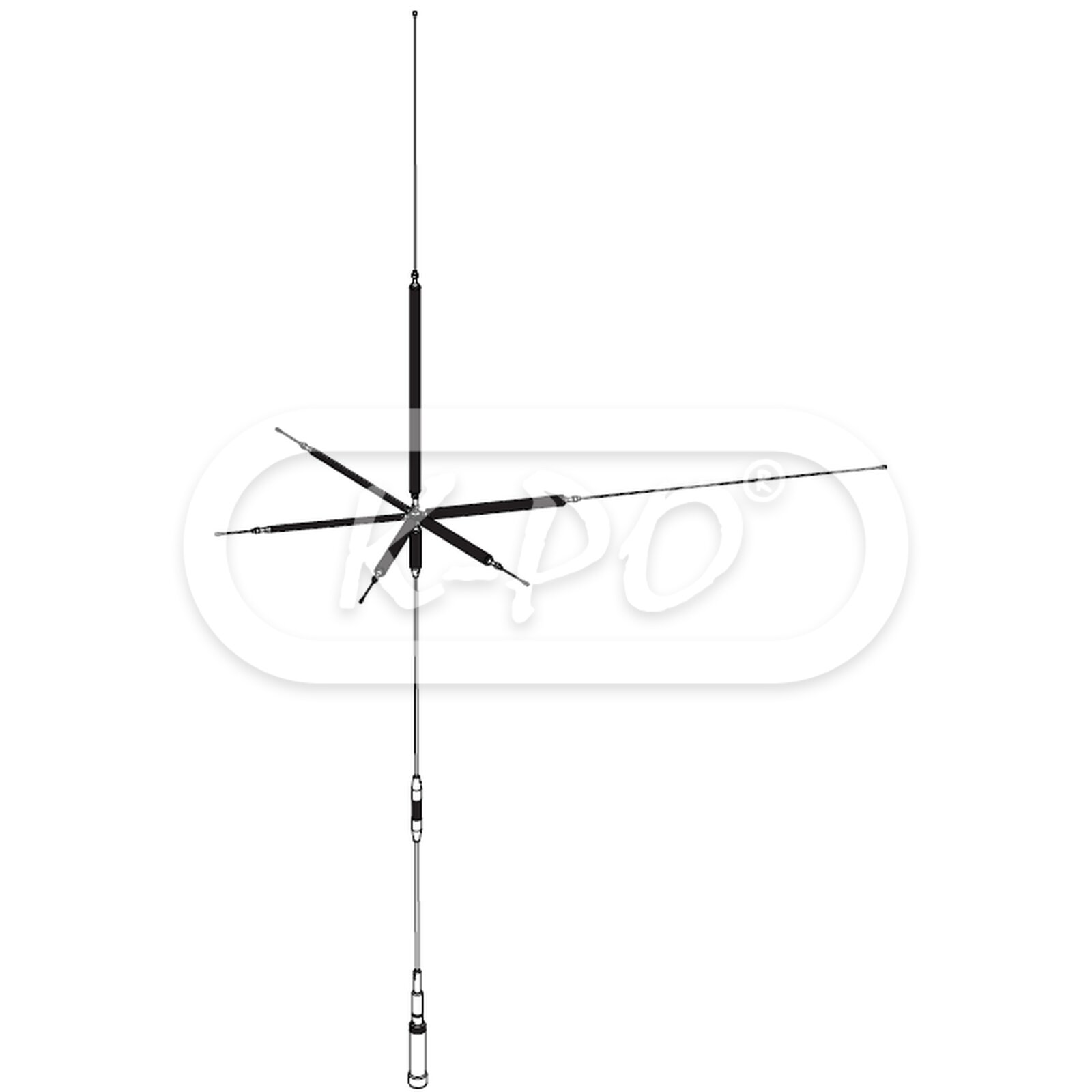

The Comet UHV-9 is a new 9 band vertical HF mobile antenna from Comet for use with 3.5 / 7 / 14 / 18 / 21 / 28 / 50 / 144 / 430 MHz.

• Foldable base element
• Extensive and clear installation manual
• Compact sized after disassembly, easy to take with you while travelling, packed only 60 cm long

Frequency range: 3.5 / 7 / 14 / 18 / 21 / 28 / 50 / 144 / 430 MHz

Out of stock - Longer delivery time

€199.95 (165.25 excl. 21% VAT)

Electrical data

• Electrical type: HF: 1/4 λ / 50 MHz: 1/4 λ / 144 MHz: 1/2 λ / 430 MHz: 2x 5/8 λ
• Gain: HF: 0 dBi / 50 MHz: 2.15 dBi / 144 MHz: 2.15 dBi / 430 MHz: 5.5 dBi
• VSWR: ≤ 1.5
• Maximum continuous power: 120 Watts (SSB)
• Impedance: 50 Ohm
• Polarization: Linear vertical

Mechanical data

• Height: Max. 2100 mm
• Weight: 540 - 900 gram
• Mounting type: On UHF-female (PL) connector (not included)
• Antenna connector: UHF-male (PL)

Inside the box

• Antenna: Yes
• Installation manual: English

Downloads

• Datasheet: UHV 9 Eng Manual ver2 All page
