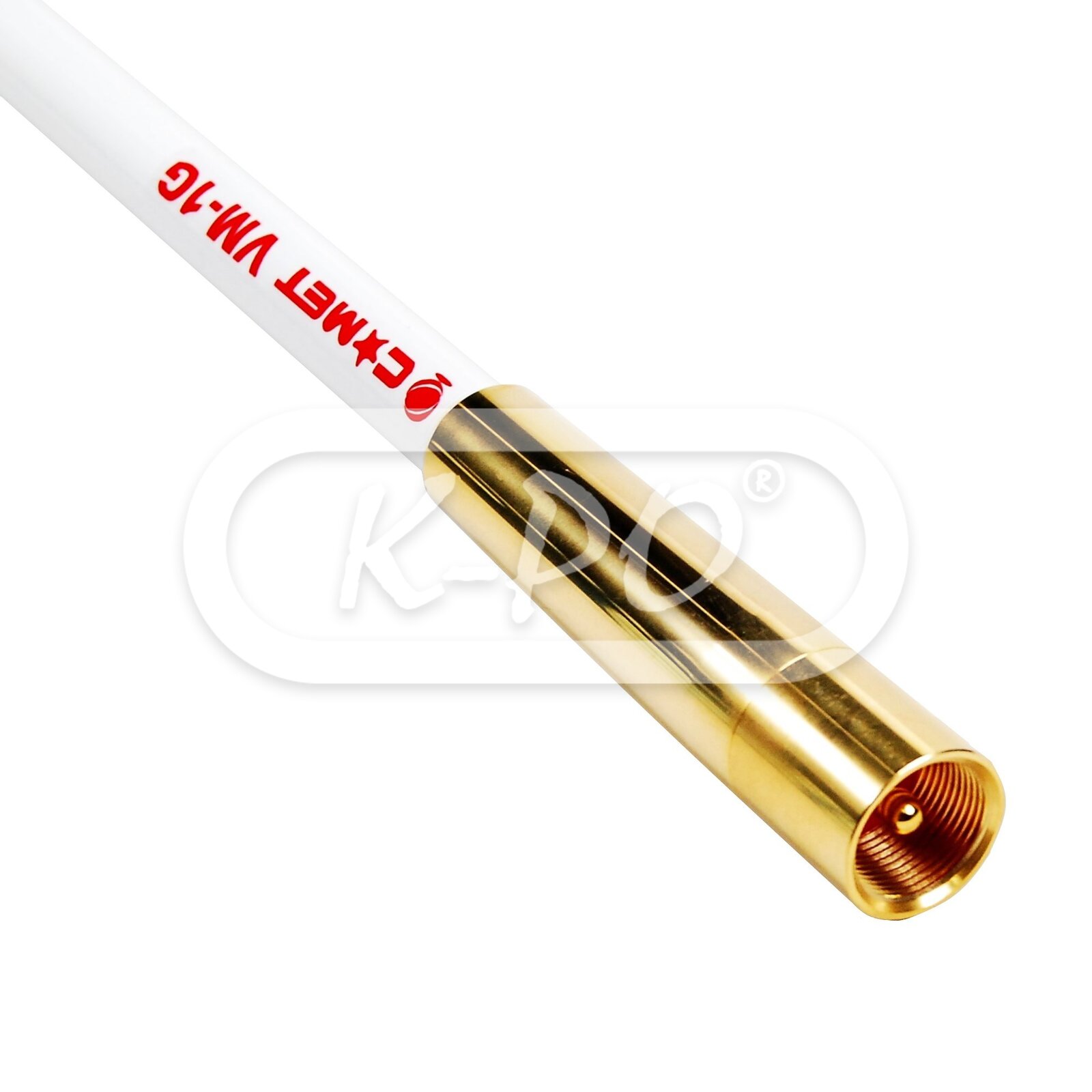

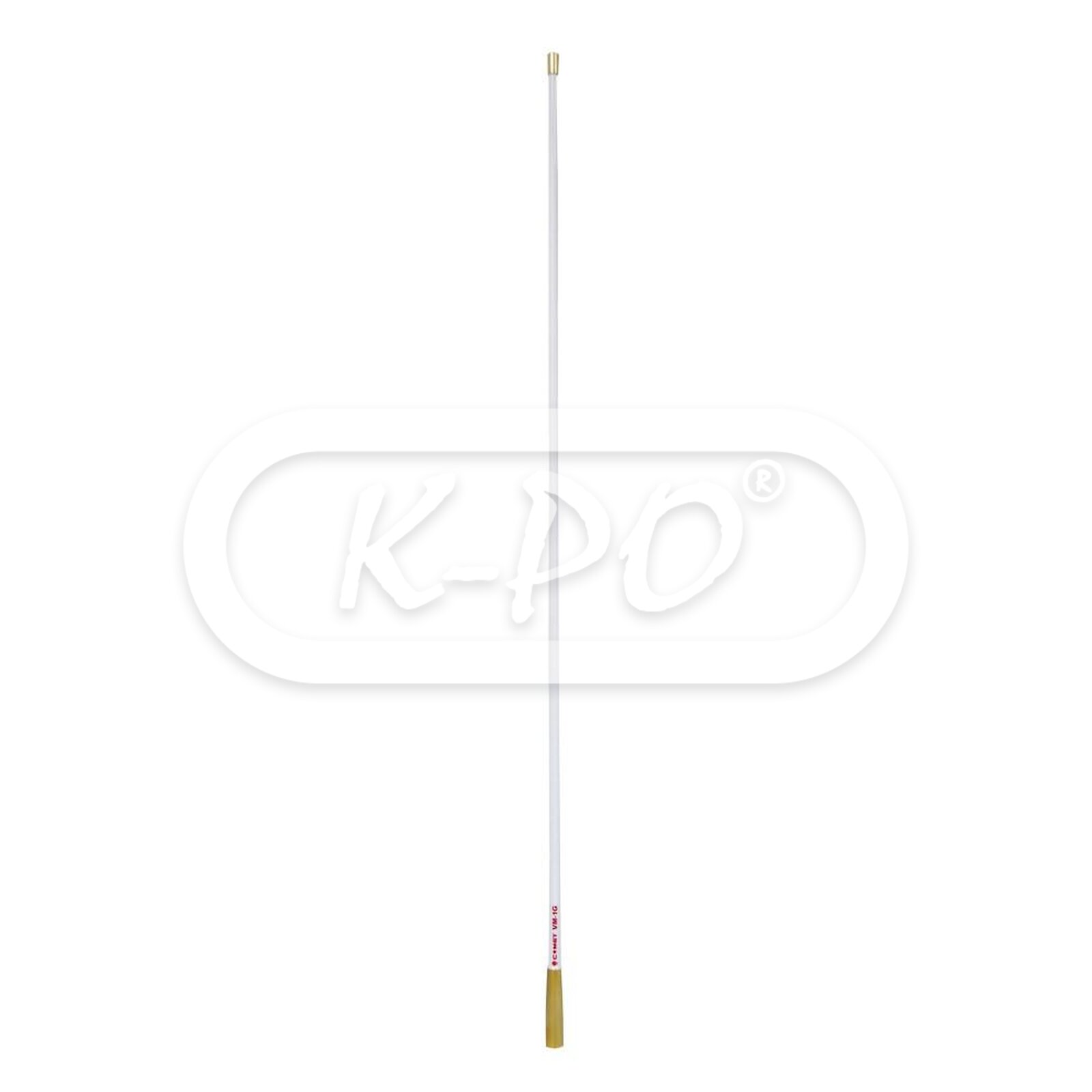

Comet - VM-1WG

Product code: 805045

Barcode: 4932273120986

High quality and strong fiberglass antenna in the color ‘white & gold’ for use on 144-146 / 430-440 MHz. Wide band reception on 100 - 170 / 350 - 470 MHz.

• Easy installation
• Can also be used as a mobile reception antenna
• Non radial type, less susceptible to antenna grounding
• Thin and lightweight fiberglass, excellent strength
• Waterproofness and weather resistance

Frequency range: 144 - 146 / 430 - 440 MHz

Shipped next business day - Stock: 2

€89.95 (74.34 excl. 21% VAT)

Electrical data

• Electrical type: 144 MHz: 1/2 λ / 430 MHz: 5/8 λ 2-step
• Gain: 144 MHz: 3.0 dBi / 430 MHz: 5.5 dBi
• Maximum continuous power: 60 Watts
• Impedance: 50 Ohm
• Polarization: Linear vertical

Mechanical data

• Max wind resistance: 216 km/h
• Height: 1050 mm
• Weight: 190 gram
• Mounting type: On UHF-female (PL) connector (not included)
• Antenna connector: UHF-male (PL)

Inside the box

• Antenna: Yes
• Installation manual: English
