CRT - 2000H

Product code: 601025

Factory code: TX 001025

Barcode: 3140650022063

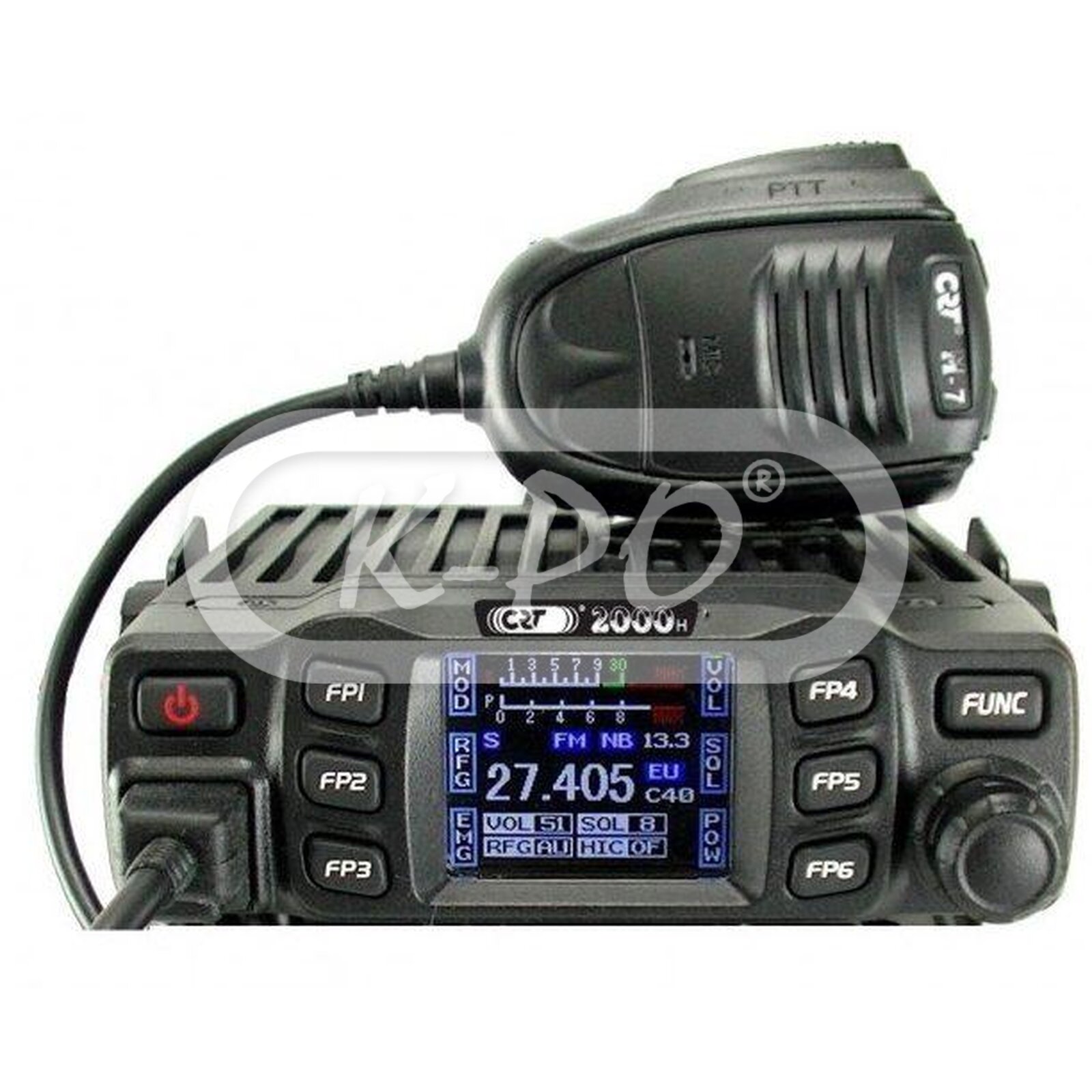

The CRT 2000H is a mobile CB radio suitable for 26.565-27405 MHz. The radio is equipped with a large multifunctional display and a microphone wit Up / Down function. Optional the radio can be programmed via computer with an programming cable.

*Note, the programming cable is optional and not included!

Frequency range: 26.965 - 27.405 MHz

Out of stock - Longer delivery time

€129.95 (107.4 excl. 21% VAT)

Features

Modulation: AM / FM
Multi-bands: Yes
Output power: 4 Watt
Channels: 40 AM / FM
Display type: LCD display
Noise blanker: Yes
Squelch: ASQ (Automatiq Squelch Systeem) / Manual squelch /
Emergency channel: Yes
Scan function: Yes
External speaker socket: Yes
S-meter: Yes
RF gain: Yes
TOT (time out timer): Yes
Dual watch: Yes
CTCSS: yes, 38 CTCSS
DCS: Yes, 104 DCS
Roger Beep: Yes
Memory: Yes, 4 channels

Electrical data

Voltage: 13,8 Volt
Operating temperature: -20° to +55° C
Operating mode: F3E (FM) / A3E (AM)
Frequency control: PLL synthesizer

Transmitter

Audio frequency response: 300 Hz - 3.0 kHz
Frequency allowance: ± 5.0 ppm
Drain: 2.0 A Max / Receive squelched 0.3 A / Vol max 0.8 A

Receiver

AM sensitivity: 1.0 µV for 10 dB
FM sensitivity: 1.0 µV for 10 dB
Frequency response: 300 Hz - 3.0 kHz
Adjacent channel selectivity: 60 dB
Maximum audio power: 3 Watt
Internal speaker: 8 Ohm, round
IF frequencies: Double conversion 1st 10.695 MHz / 2nd 455 kHz
Image rejection: 70 dB
Squelch: Less then 1 µV

Mechanical data

Length: 124 mm
Height: 39 mm
Width: 163 mm
Weight: 675 gram
Antenna connector: UHF (PL) female (SO-239)
Mike connector: RJ45 connector

Inside the box

Transceiver: 1 pcs
Microphone: 1 pcs
Fixing screws: 1 set
Mounting bracket: 1 pcs
User Manual: English, French
