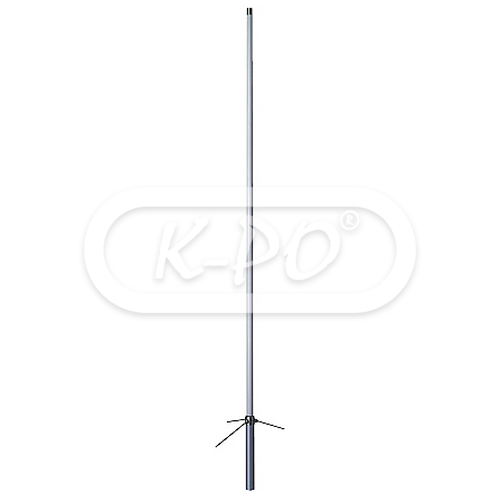

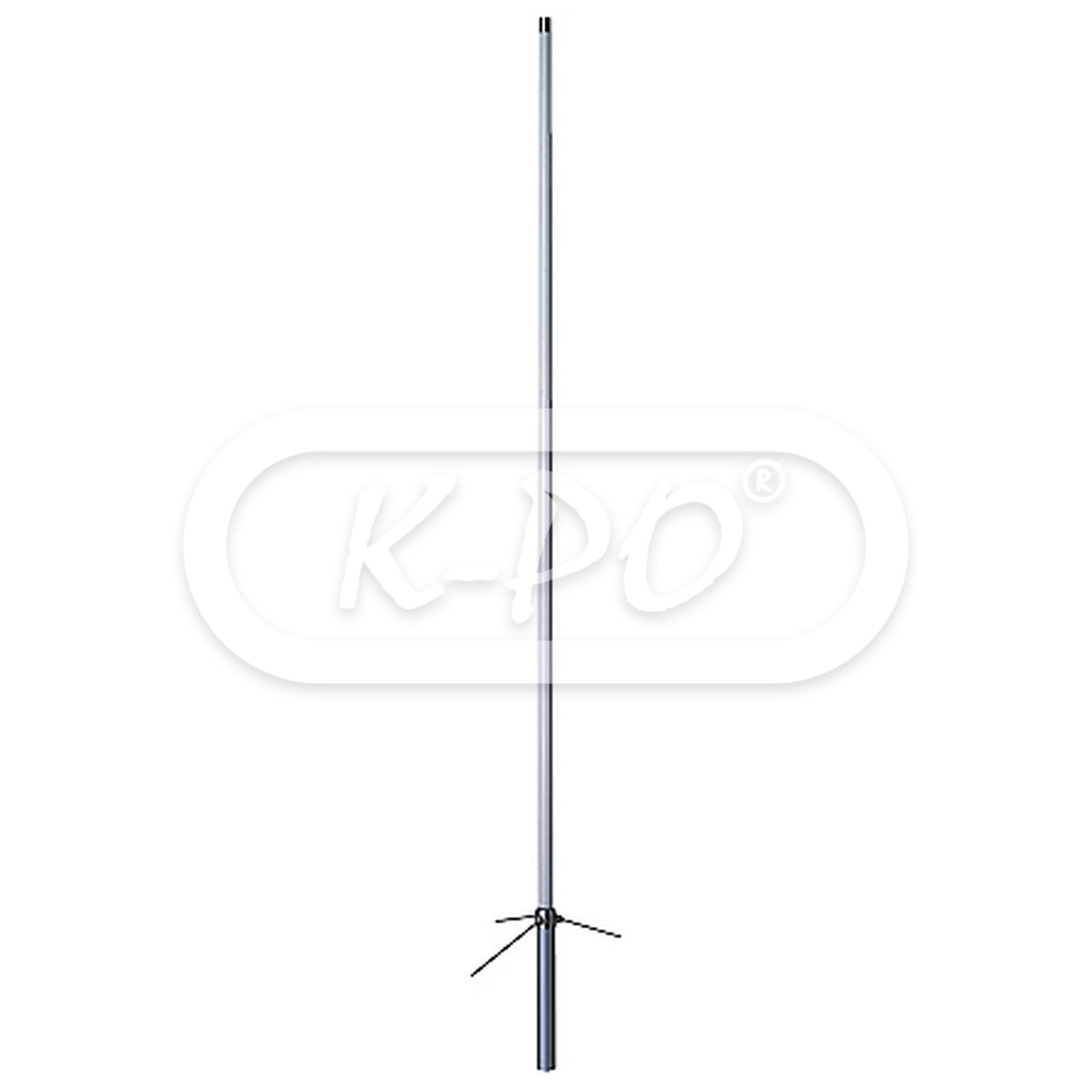

Diamond - X-5000N

Product code: 995000

The Diamond X-5000N is a premium dual-band antenna designed for the 144 MHz (2 meter), 430 MHz (70 cm) and 1200 MHz (23 cm) with a maximum power handling of 100 Watts.

Total length of 1.80 meter, with a FRP (Fiberglass Reinforced Plastic) outer shell for enhanced durability and wind resistance of up to 60 meters per second.

Ideal for both amateur radio enthusiasts and professional use, this antenna ensures reliable, long-distance communication with impressive gain and durability.

Frequency range: 144 / 430 MHz

Shipped next business day

€158.95 (131.36 excl. 21% VAT)

Electrical data

• Electrical type: 144 MHz: 5/8 λ C-load / 430 MHz: 3x5/8 λ C-load / 1200 MHz: 7x5/8 λ C-load
• Gain: 144 MHz: 4.5 dB / 430 MHz: 8.3 dB / 1200 MHz: 11.7 dB
• VSWR: ≤ 1.5
• Maximum continuous power: 100 Watts
• Impedance: 50 Ohm
• Polarization: Linear vertical

Mechanical data

• Materials: FRP (Fiberglass Reinforced Plastic), two parts
• Mast Ø: 30 - 62 mm
• Max wind resistance: 216 km/h (60m/sec)
• Height: 1800 mm
• Weight: 900 gram
• Mounting type: On mast
• Antenna connector: N-female
• Radial length: 190 mm

Inside the box

• Antenna: Yes
• Mounting parts: Yes
• Installation manual: English
