Diamond - X-50N

Product code: 990050

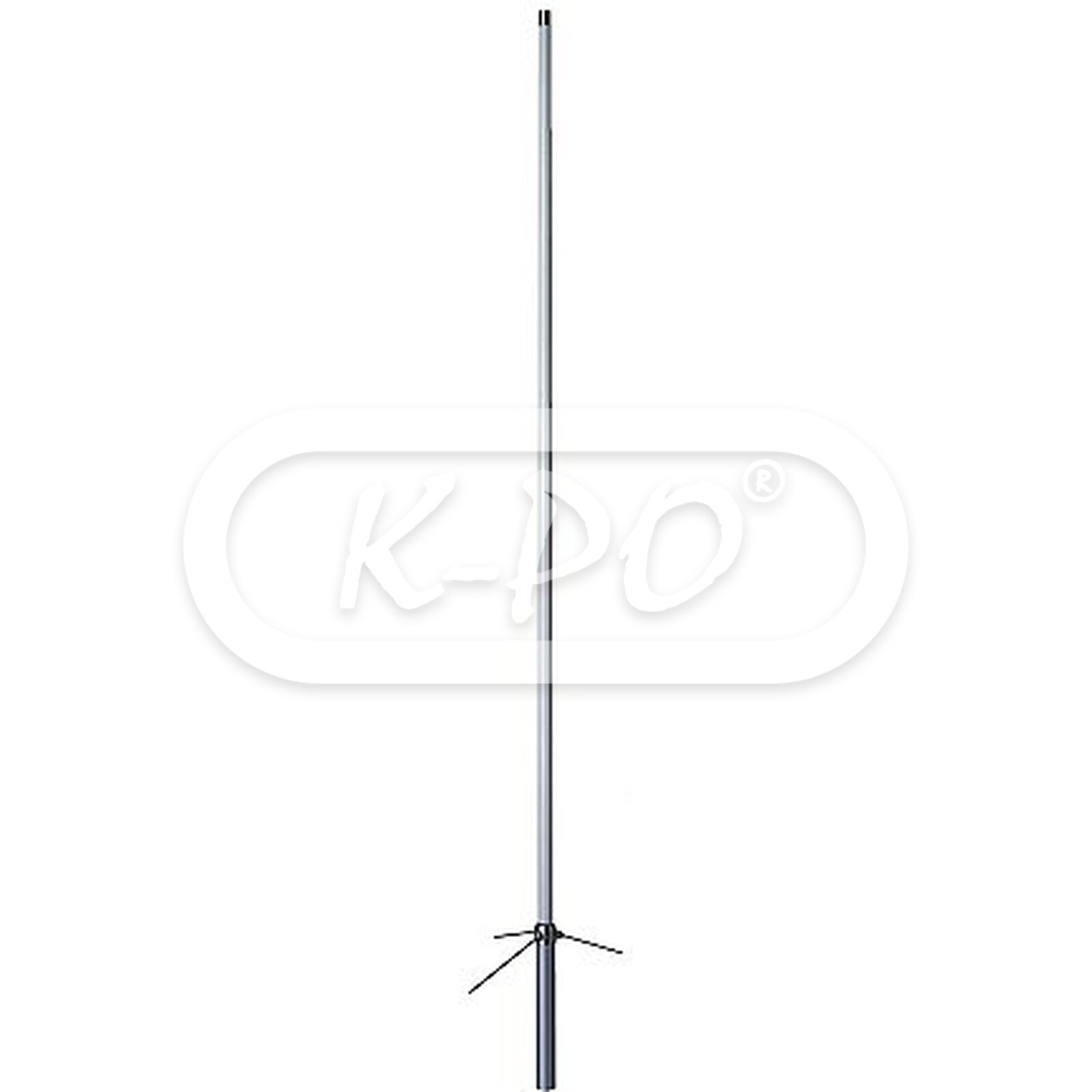

The Diamond X-50N is a dual-band antenna designed for the 144 MHz (2 meter) and 430 MHz (70 cm) with a maximum power handling of 200 Watts.

Total length of 1.70 meter, with a FRP (Fiberglass Reinforced Plastic) outer shell for enhanced durability and wind resistance of up to 60 meters per second.

Ideal for both amateur radio enthusiasts and professional use, this antenna ensures reliable, long-distance communication.

Frequency range: 144 / 430 MHz

Shipped next business day - Stock: 8

€74.95 (61.94 excl. 21% VAT)

Electrical data

• Electrical type: 144 MHz: 6/8 λ C-load / 430 MHz: 3x5/8 λ C-load
• Gain: 144 MHz: 4.5 dB / 430 MHz: 7.2 dB
• VSWR: ≤ 1.5
• Maximum continuous power: 200 Watts
• Impedance: 50 Ohm
• Polarization: Linear vertical

Mechanical data

• Mast Ø: 30 - 62 mm
• Max wind resistance: 216 km/h (60m/sec)
• Height: 1700 mm
• Weight: 900 gram
• Mounting type: On mast
• Antenna connector: N-female
• Radial length: 190 mm

Inside the box

• Antenna: Yes
• Mounting parts: Yes
• Installation manual: English
