Everhardt - TTL-3-PL White

Product code: 28012
Factory code: TTL-3-PL-WHITE
Barcode: 8718375102343

Everhardt 'Super Flex' series – made in Texas, USA

The TTL double trucker series are pre-tuned for the standard 40 CB channels. The ‘Super Flex’ antennas are top loaded helical wound around a1/4 inch fiberglass rod with ‘Super Flex’ feature to help prevent
breakage.

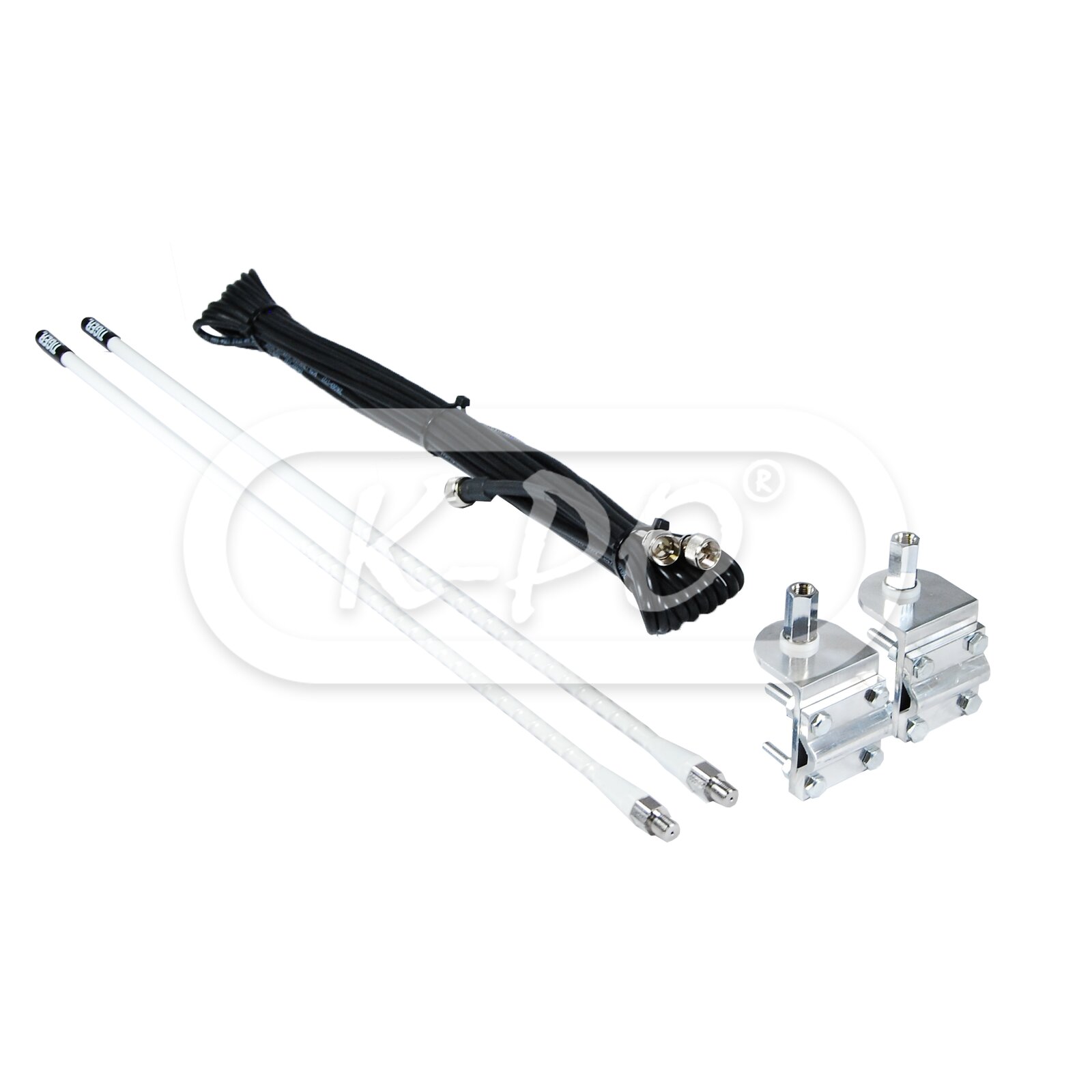

Supplied with an 18 foot co-phase cable and mirror mounts with stud mounts

Features:

  • 3/4 wave antenna
  • 1000 Watt ‘Talking Power’
  • 'Trim-to-Tune', tunable between 26 - 29 MHz
  • Exclusive ‘VibraSorb’ and ‘Super Flex’ anti-breakage design

Trim-to-Tune:

  • Remove the antenna cap
  • Remove the antenna foil till the wire coil is visible
  • Pull out the wire carefully and trim it only a bit and push it back
  • Put the antenna cap back
  • Measure the SWR and repeat the procedure till you have a good SWR
Frequency range: 26- 29 MHz tunable
Shipped next business day
€79.94 (66.07 excl. 21% VAT)

Electrical data

  • Electrical type: Top loaded / 3/4 λ antenna
  • VSWR: <1.5:1 (40 channels)
  • Power peak: 1000 Watt
  • Impedance: 50 Ohm
  • Polarization: Linear vertical
  • Cable: Yes
  • Cable length: 550 cm

Mechanical data

  • Materials: Fiberglass
  • Height: 900 mm
  • Mounting type: On 3/8 female (stud) mount

Inside the box

  • Antenna: Yes
  • Radio connector: UHF (PL) male
  • Mounting parts: Yes
  • Antenna cable: Yes
