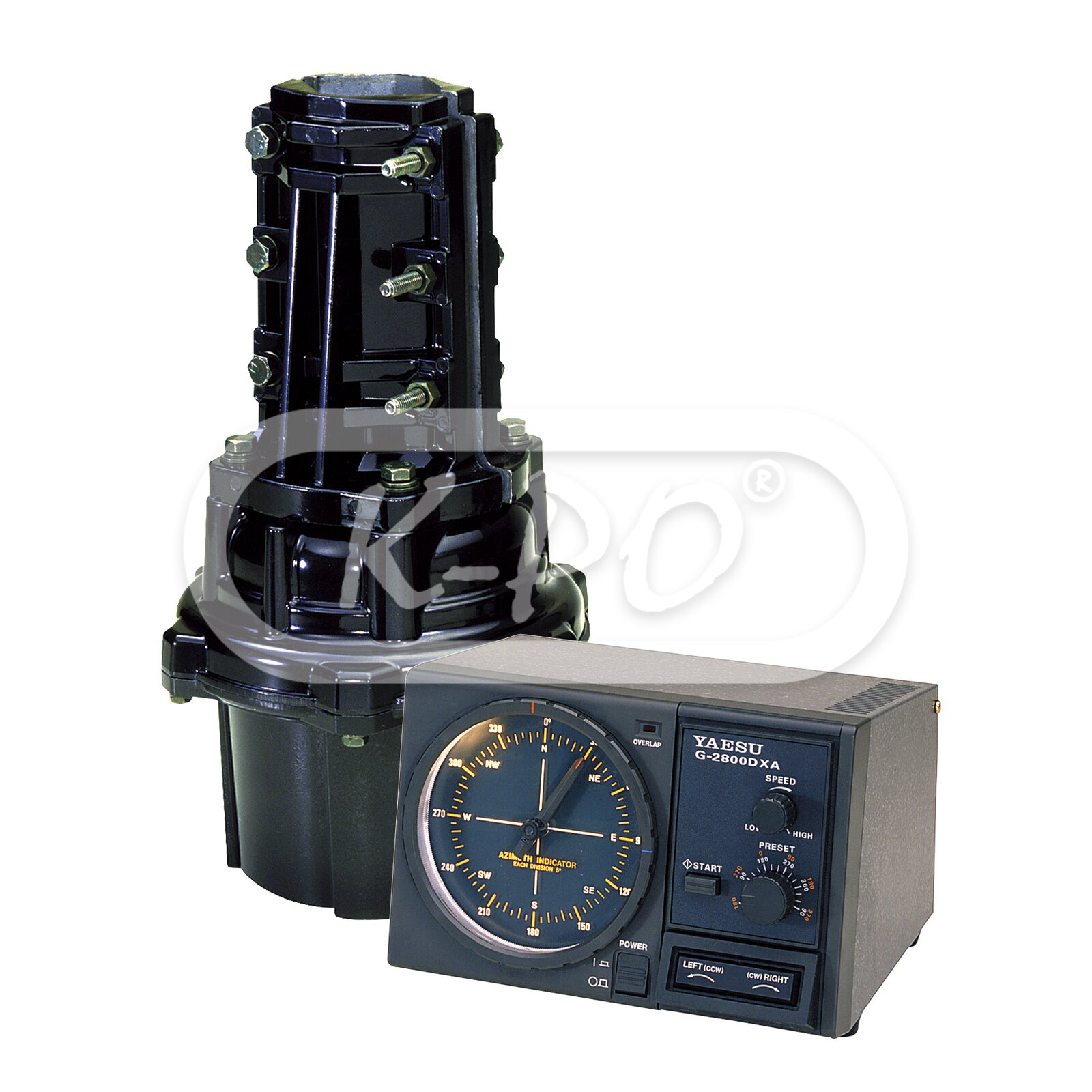

Electrical data

• Power supply voltage: 220 V
• Rotator voltage: 11 - 24 Volt
• Power supply current consumption: 1.5 A
• Operating temperature (Rotator): -20℃ to +40℃
• Operating temperature (Controller): 0℃ to +40℃
• 360° Rotation time (Non loaded): 120 ± 10 sec to 50 ± 5 sec (Variable)
• Rotation range: 450° ±3
• Rotation torque: 800 to 2,500 kgf-cm
• Braking torque: 25,000 kgf-cm
• Maximum vertical load: Coninuous: 300 kg or less / Momentary: 1200 kg
• Braking type: Mechanical and electrical stoppers
• Antenna K coefficient: 950 or less
• Maximum continuous duty: 3 minutes
• Type of rotor: Azimuthal

Mechanical data

• Wind loading area: Pole type: 1.0 m² x 0.8 m or less / Tower type: 3.0 m² or less
• Mast diameter: Ø 48 to 63 mm
• Diamater (Rotator): Ø 186 mm
• Height (Rotator): 345 mm
• Weight (Rotator): ±6500 gram
• Length (Controller): 193 mm
• Height (Controller): 130 mm
• Width (Controller): 200 mm
• Weight (Controller): ±3800 gram

Inside the box

• Controller unit: 1 pcs
• Rotor unit: 1 pcs
• Mast clamp: 1 pair
• 7-pin round plug (with rubber boot): 1 set
• 6-pin rectangular plug: 1 set
• M8 x 95 mm socket head cap screw: 1 pcs
• M8 x 18 mm hex bolts: 4 pcs
• M8 x 30 mm hex bolts: 4 pcs
• M8 x 70 mm hex bolts: 6 pcs
• Split washers: 14 pcs
• Flat washers: 10 pcs
• M8 nuts: 7 pcs
• Installation manual: English
