HamKing - BU-55

Product code: 6110
Factory code: 6110
Barcode: 8718375101308

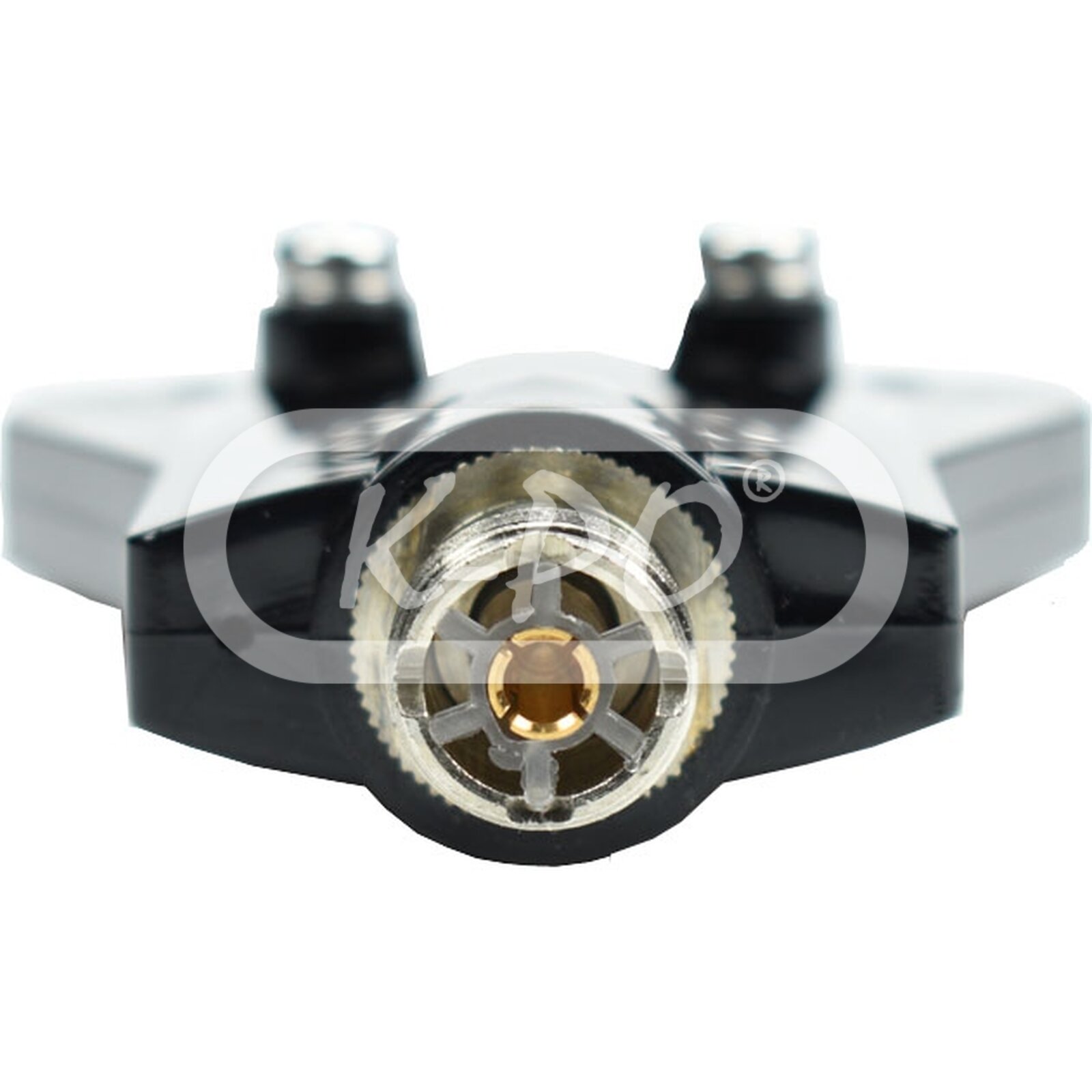

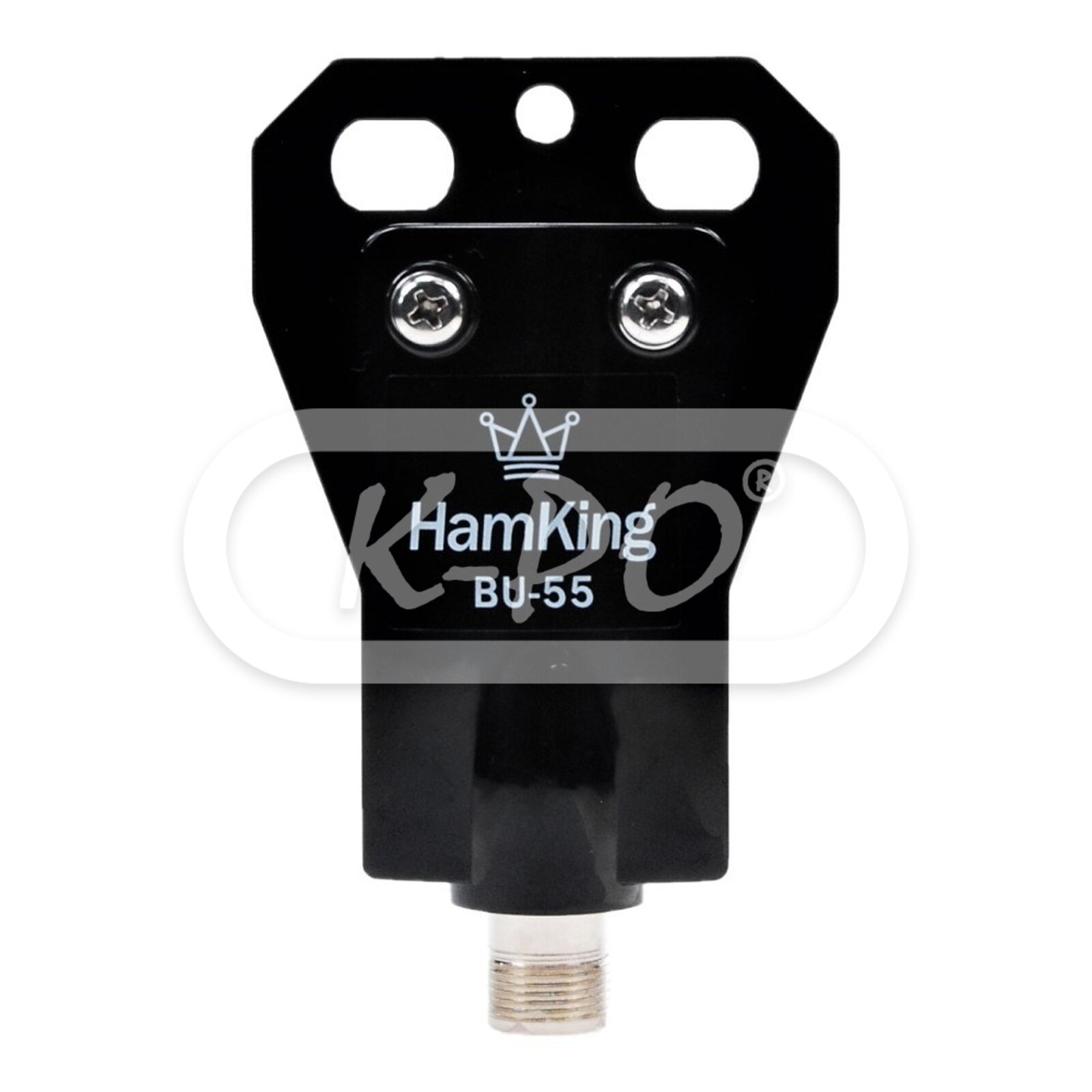

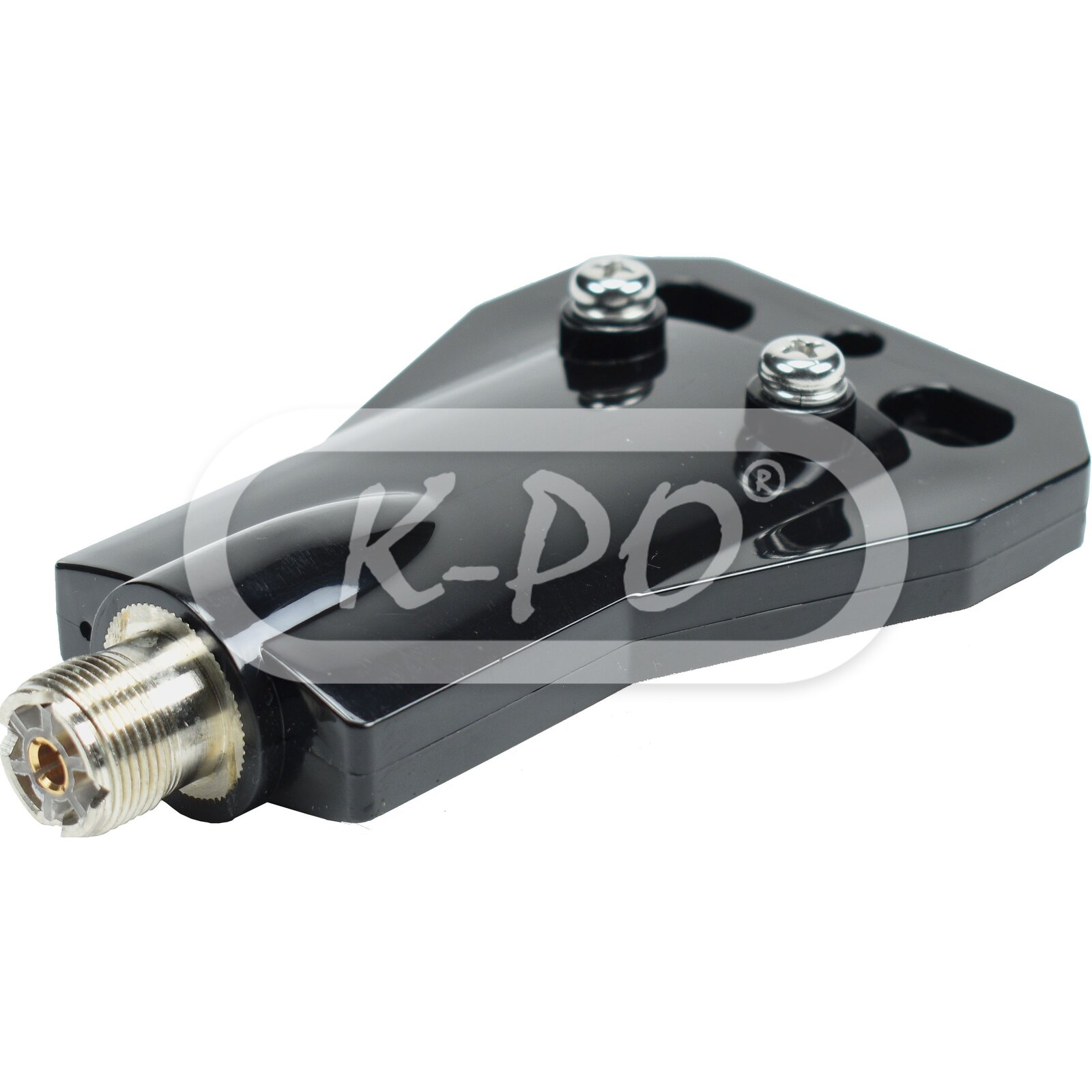

The HamKing BU-55 1:1 voltage balun can be used to create your own wire antenna or as a replacement in an existing antenna. The BU-55 can be used from 3 to 75 MHz. Maximum power is 500 watts PEP.

Frequency range: 3 - 75 MHz
Out of stock - Longer delivery time
€27.95 (23.1 excl. 21% VAT)

Electrical data

  • Power peak: 500 Watts
  • VSWR: 1.1
  • Impedance: 50 Ohm
  • Frequency band: HF

Mechanical data

  • Connector(s) type in: UHF (PL) female
  • Length: 115 mm
  • Height: 70 mm
  • Width: 25 mm
  • Weight: 110 gram
