HamKing - MK-90B

Product code: 6122

Factory code: 6122

Barcode: 8718375101766

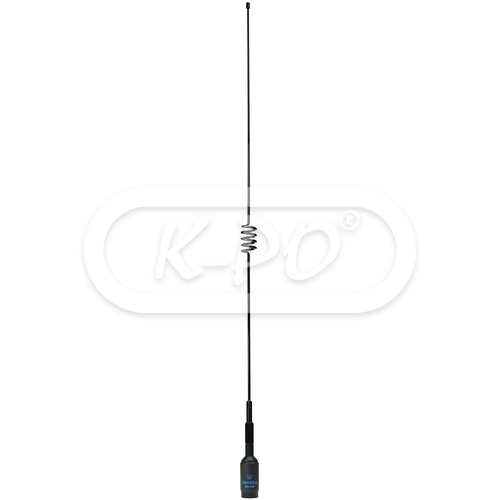

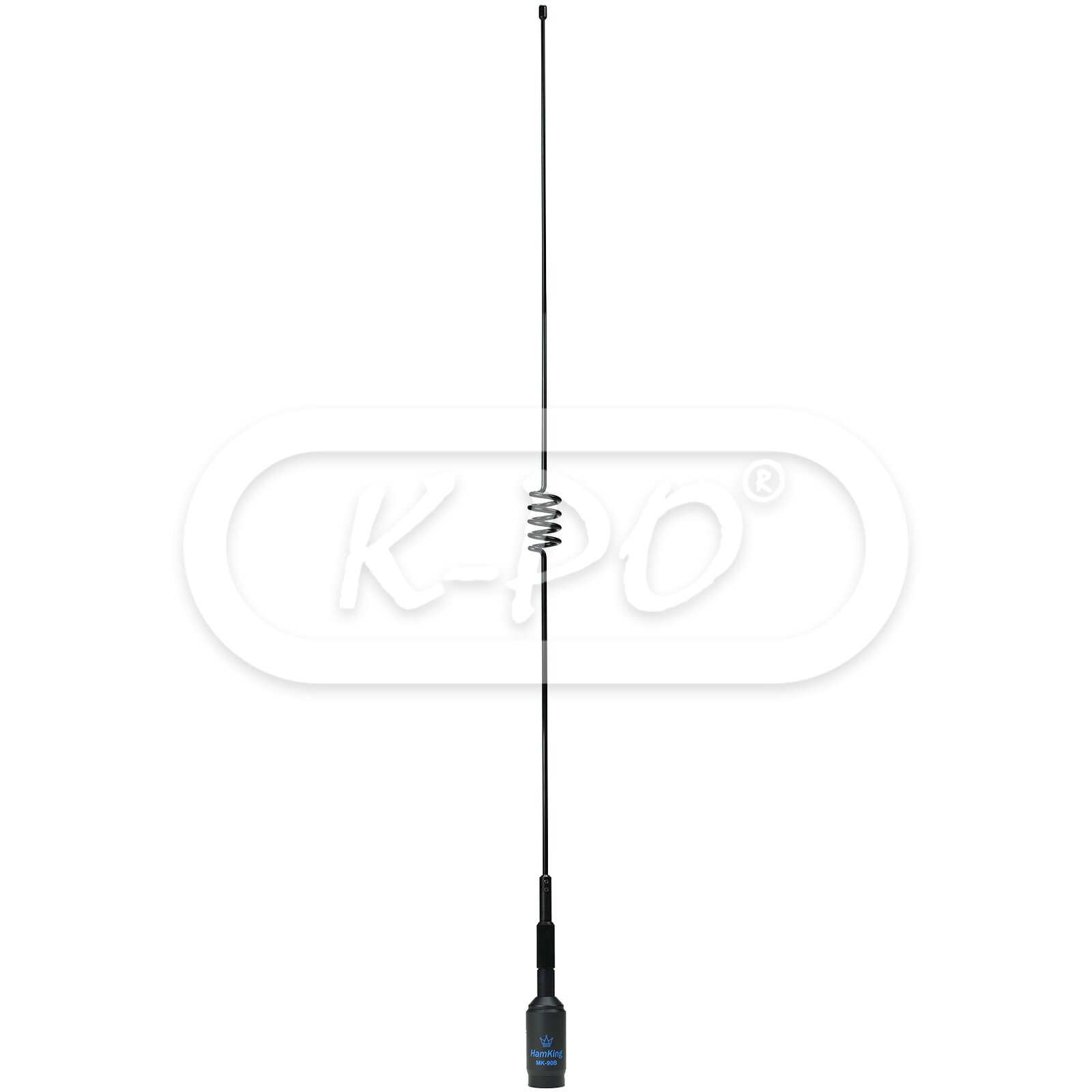

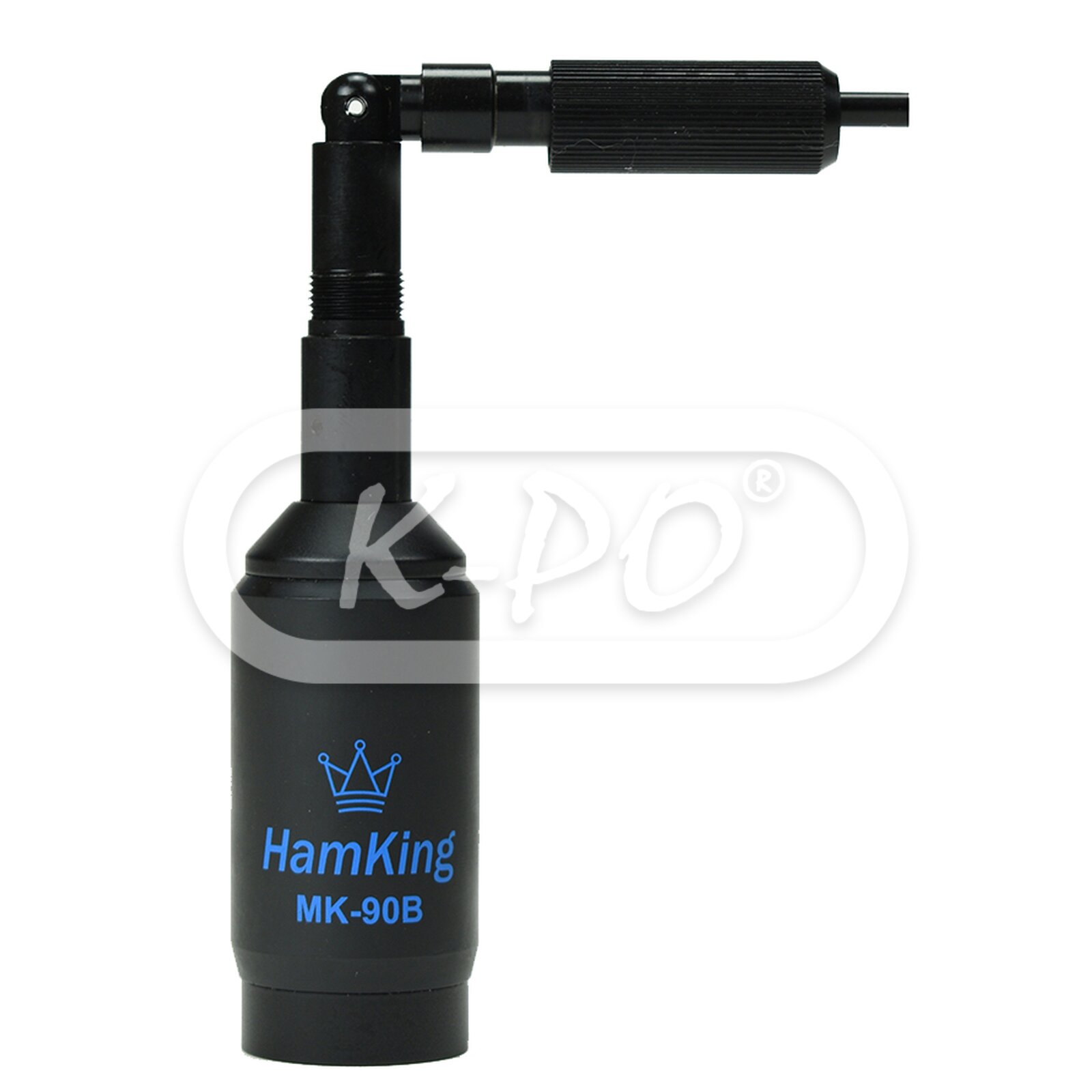

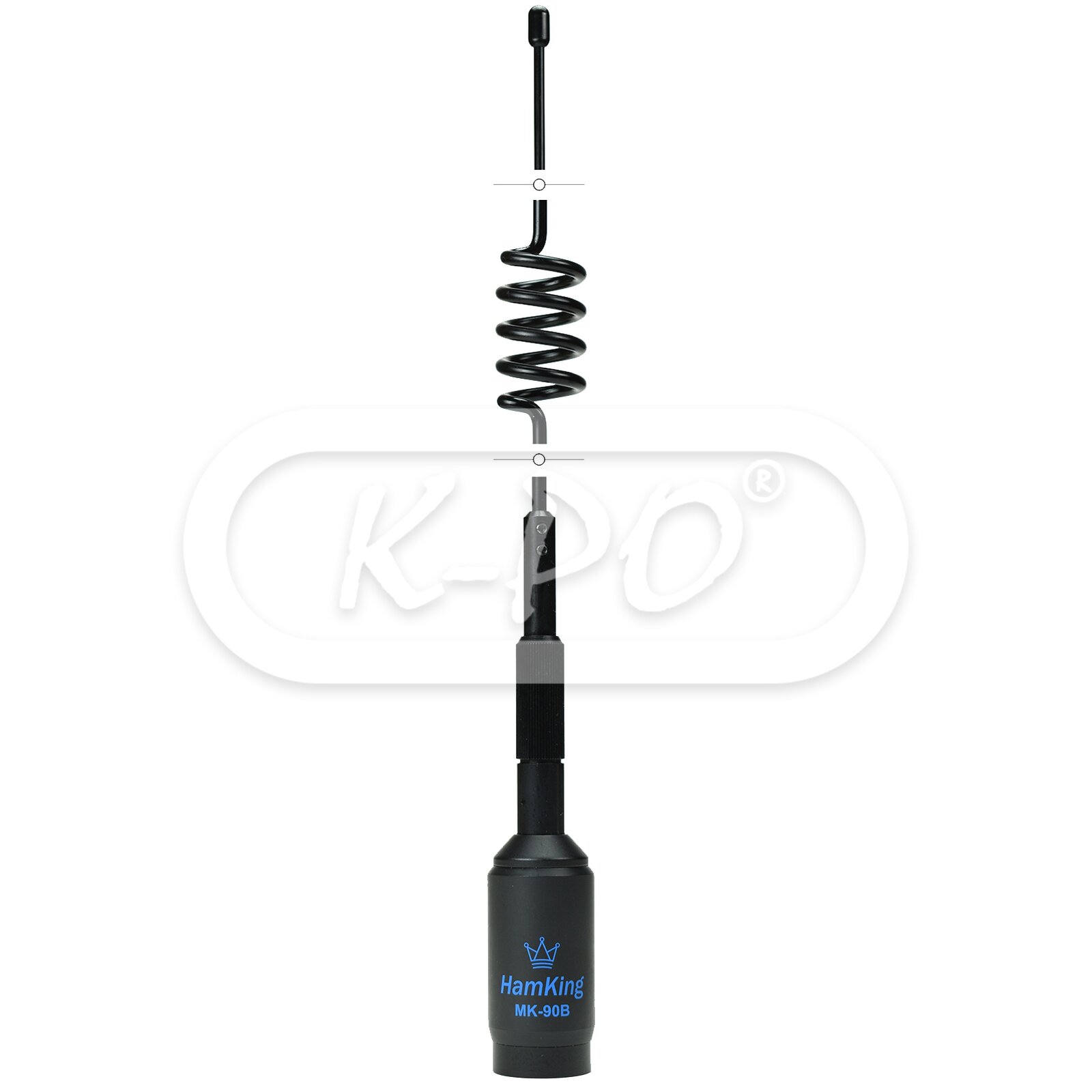

The HamKing MK-90B is a heavy duty pre-tuned mobile antenna, for best performance on 144 MHz and 430 MHz. With a maximum power handling of 350 watts on 144 MHz and 250 watts on 430 MHz. The whip is tiltable above the coil.

Frequency range: 144 / 430 MHz

Out of stock - Longer delivery time

€49.95 (41.28 excl. 21% VAT)

Electrical data

• Electrical type: 144 MHz: 1/2 λ / 430 MHz: 5/8 λ
• Gain: 144 MHz: 3.0 dBi / 430 MHz: 5.5 dBi
• VSWR: ≤ 1.5
• Bandwidth: 144 MHz: 1/2 λ / 430 MHz: 5/8 λ
• Maximum continuous power: 144 MHz: 350 Watts / 430 MHz: 250 Watts
• Impedance: 50 Ohm
• Polarization: Linear vertical

Mechanical data

• Height: 890 mm
• Weight: 470 gram
• Mounting type: On UHF-female (PL) connector (not included)

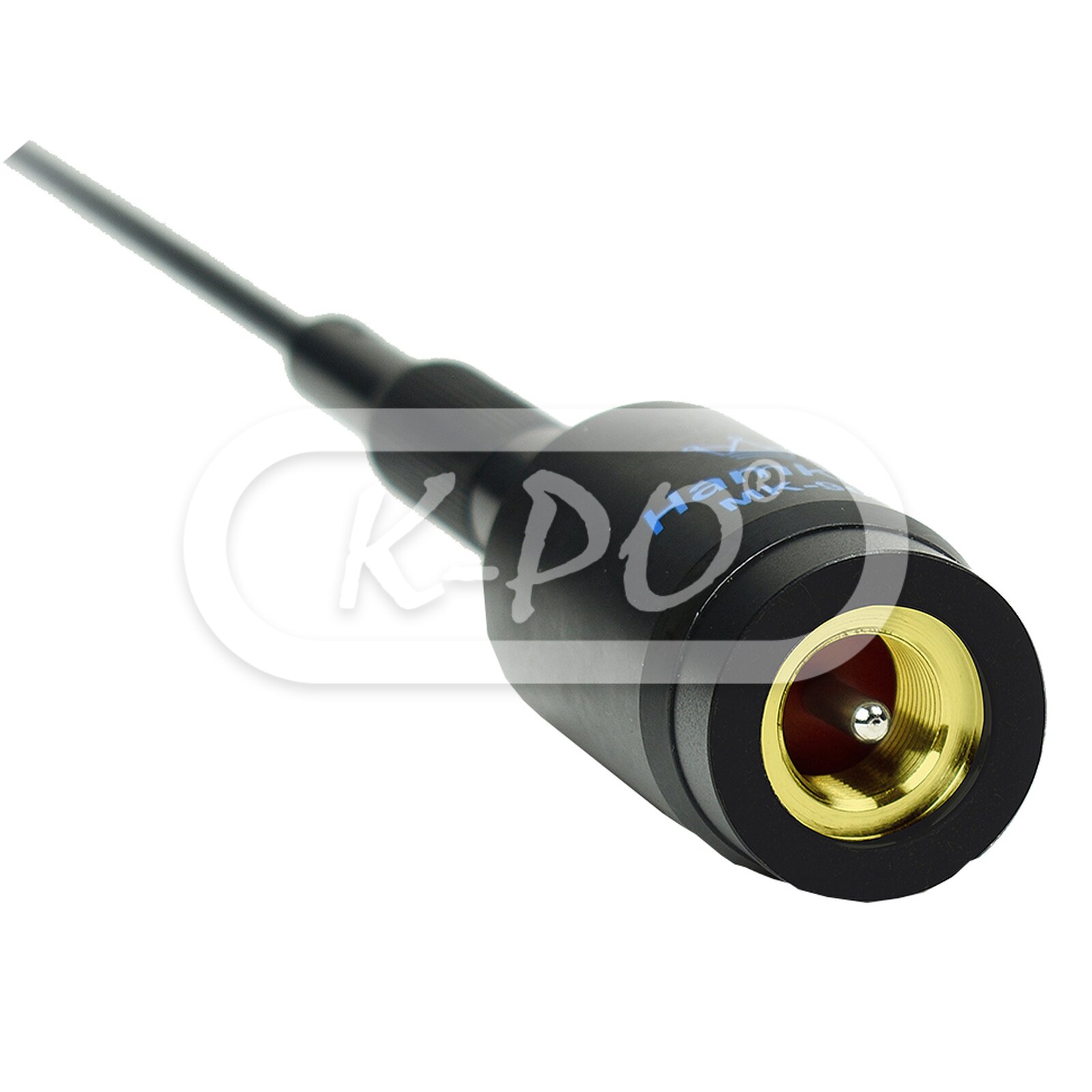

• Antenna connector: UHF-male (PL)
• Color: Black

Inside the box

• Antenna: Yes
• Installation manual: English
