HamKing - SG-7900

Product code: 6103

Factory code: 6103

Barcode: 8718375101230

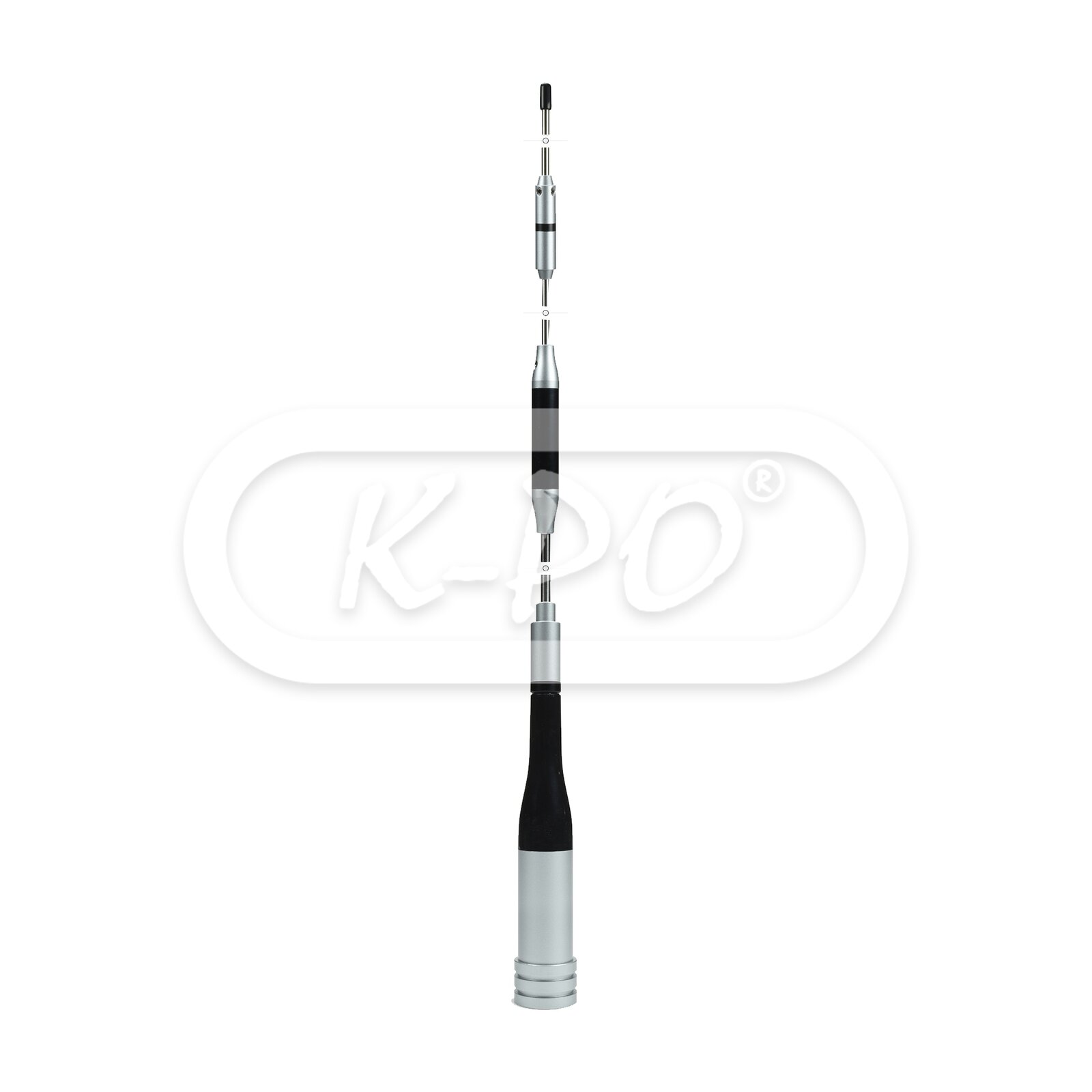

The HamKing SG-7900 is a pre-tuned mobile antenna, for best performance on 144 MHz and 430 MHz. Sometimes a minor VSWR adjustment can be useful, which can be done by moving the antenna up/down at the base end. Length: 153 cm (app. 60"). Max. power: 150 Watts.

Frequency range: 144 / 430 MHz

Out of stock - Longer delivery time

€44.95 (37.15 excl. 21% VAT)

Electrical data

• Electrical type: 144 MHz: 7/8 λ double C-Load radialless / 430 MHz: 3x 5/8 λ C-Load radialless
• Gain: 144 MHz: 5.0 dBi / 430 MHz: 7.6 dBi
• VSWR: ≤ 1.5
• Maximum continuous power: 150 Watts
• Impedance: 50 Ohm
• Polarization: Linear vertical

Mechanical data

• Height: 1530 mm
• Weight: 480 gram

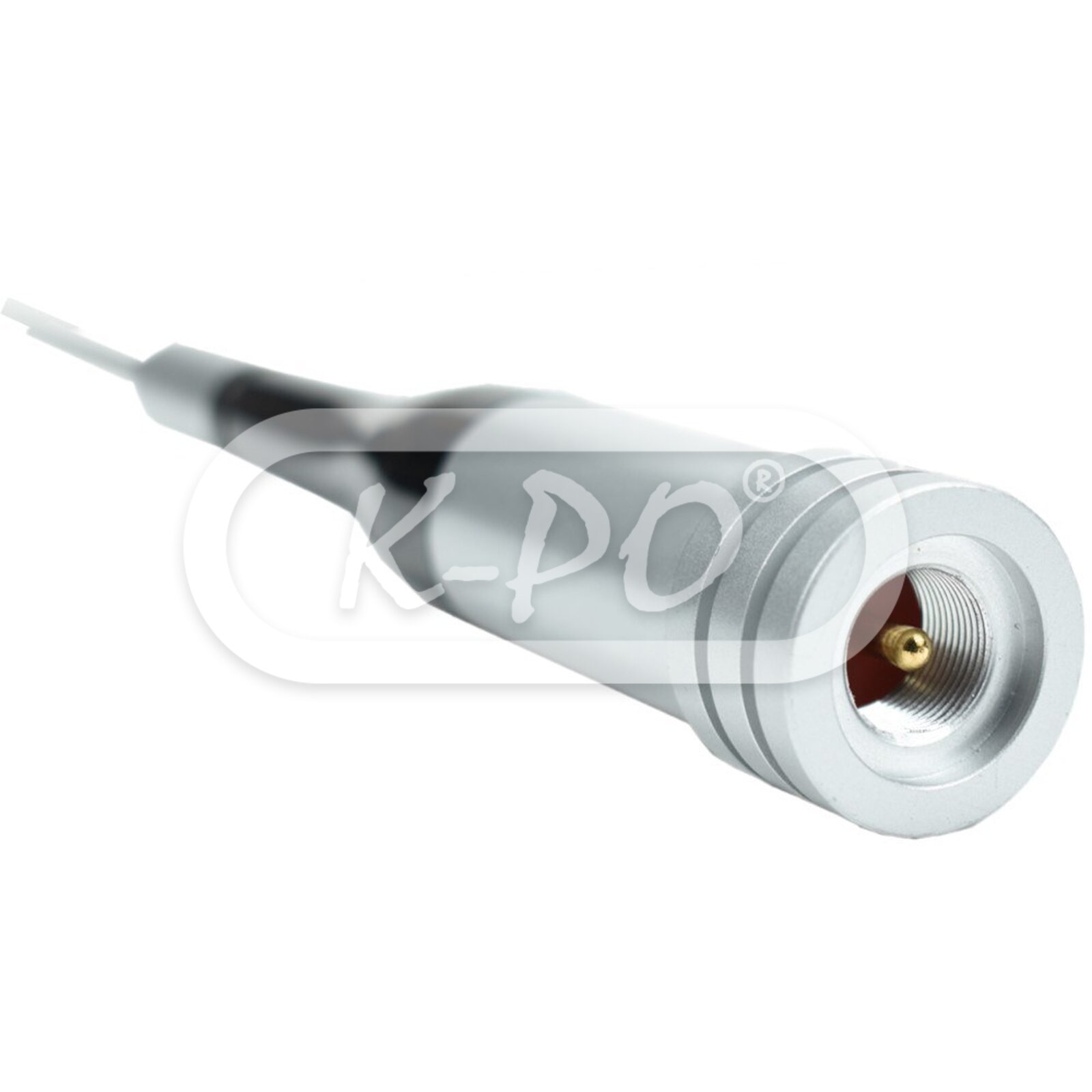

• Mounting type: On UHF-female (PL) connector (not included)
• Antenna connector: UHF-male (PL)

Inside the box

• Antenna: Yes
• Installation manual: English
