HamKing - V-2000-2N

Product code: 6116

Factory code: 6116

Barcode: 8718375101629

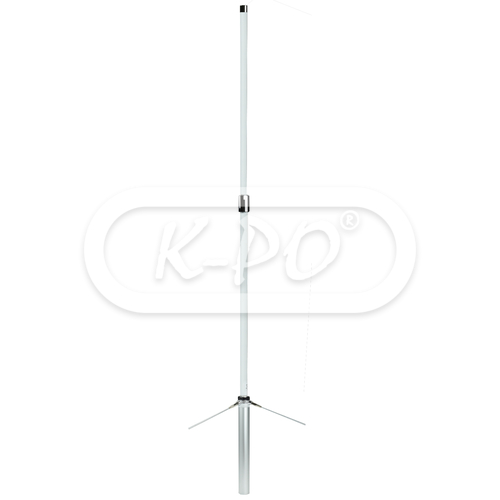

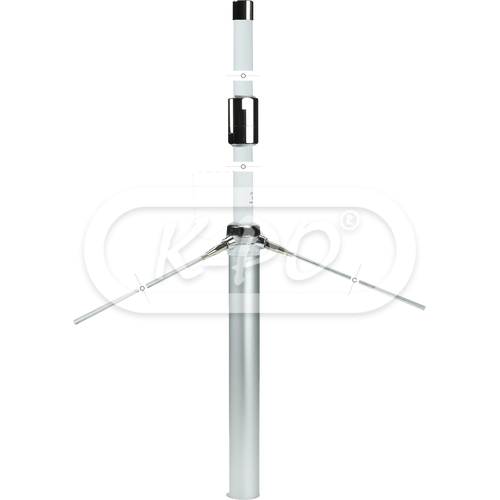

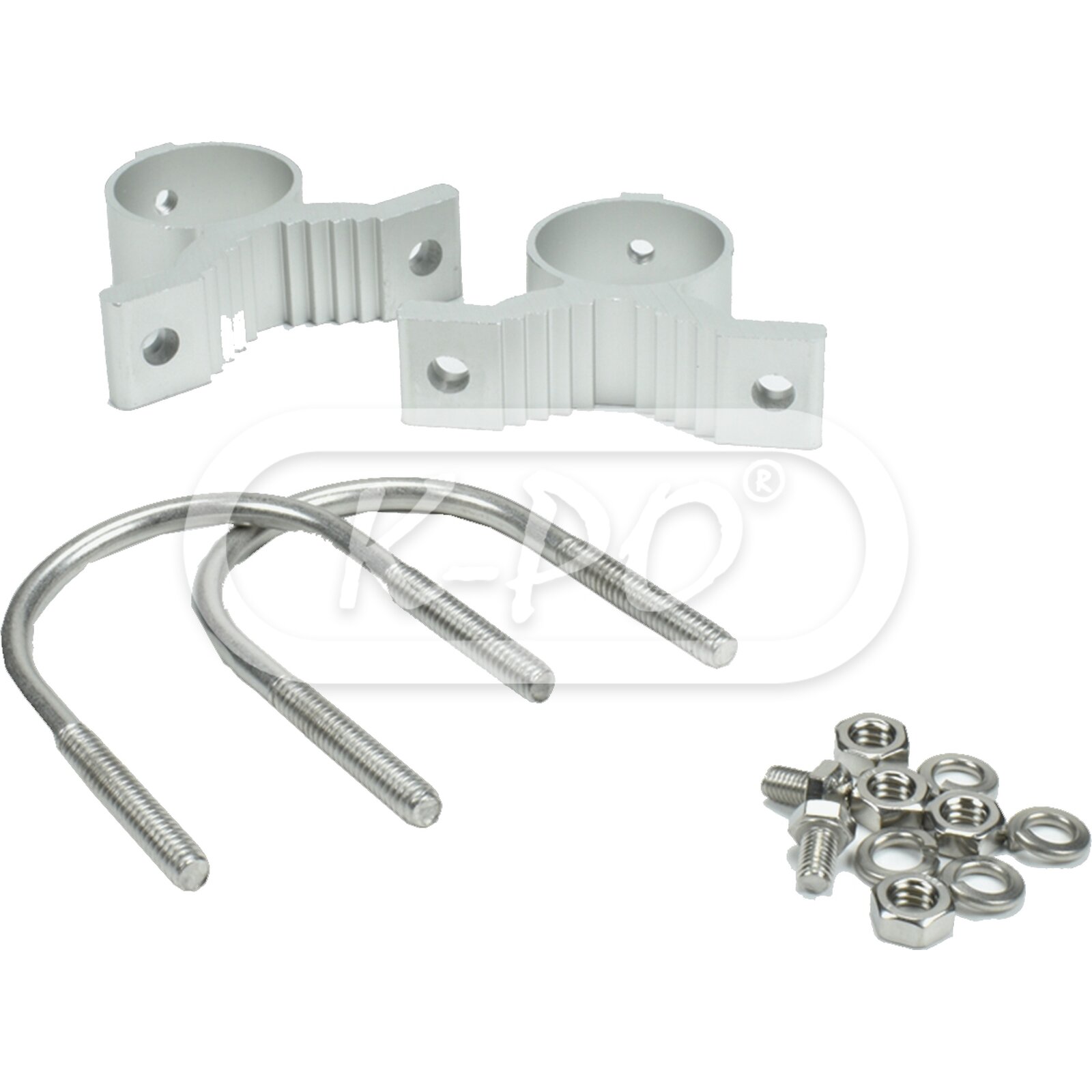

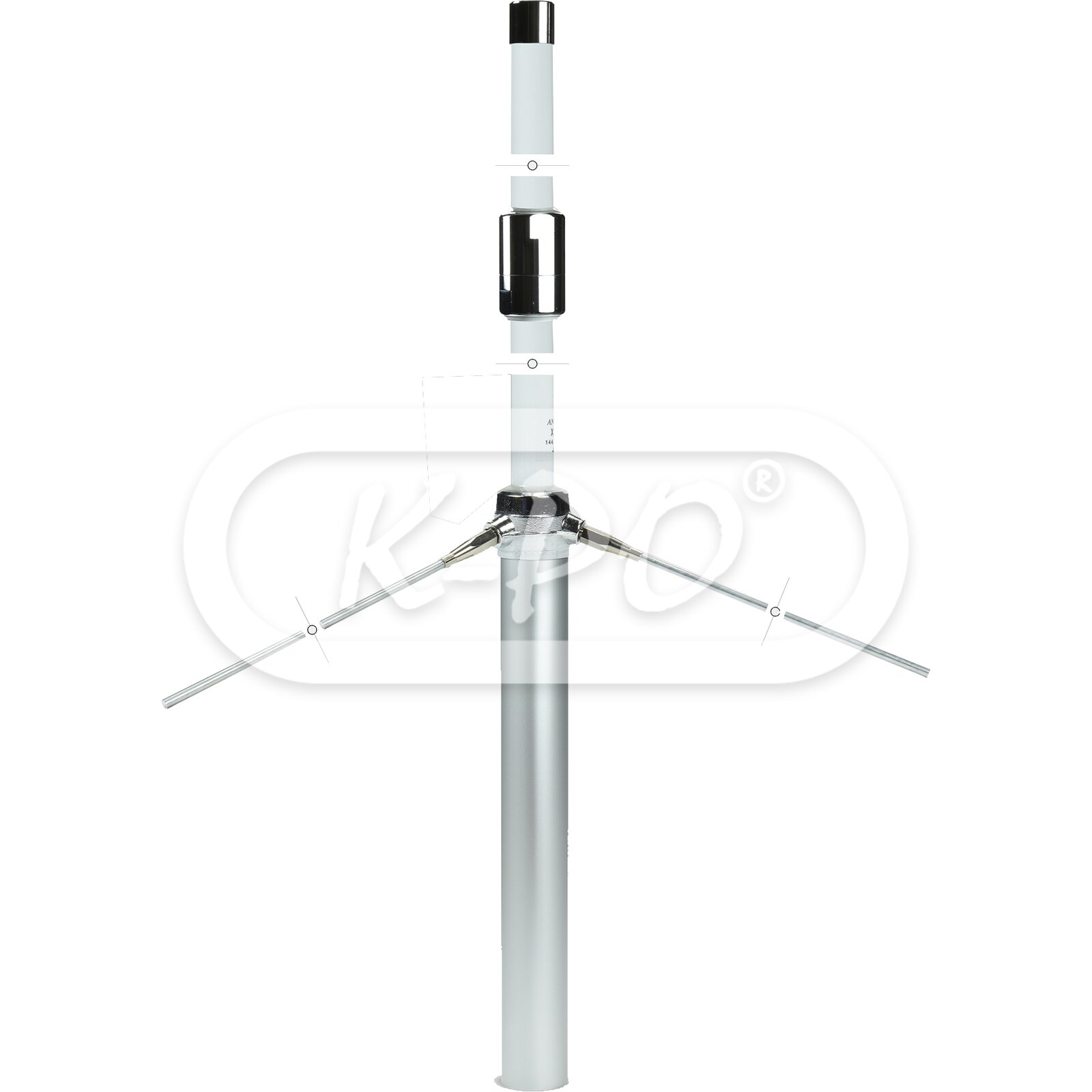

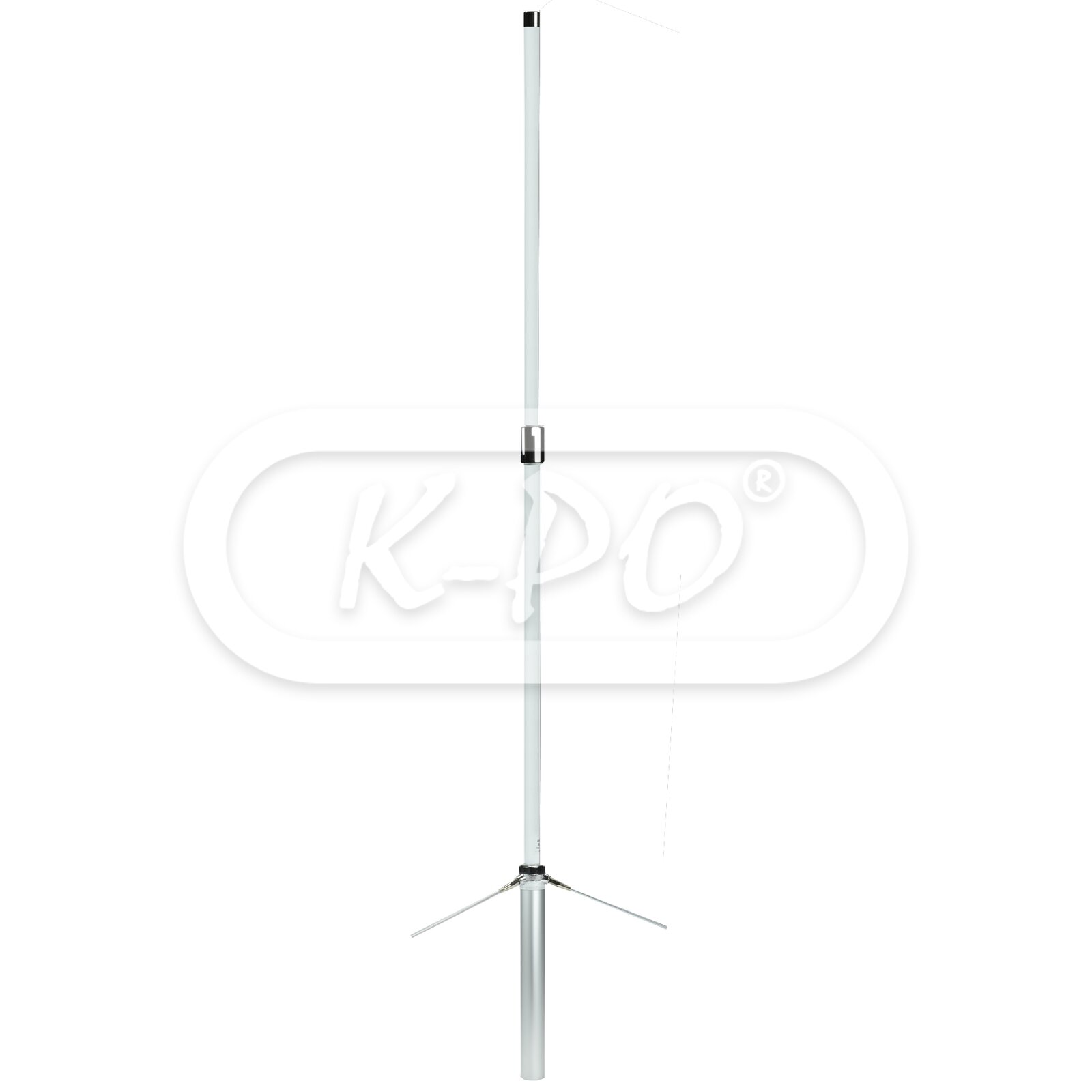

The HamKing V-2000-2N vertical antenna for 50 MHz (2.15 dBi gain), 144 MHz (6.2 dBi gain) and 430 MHz (8.4 dBi gain) consists of a fibre glass rod construction, which will be delivered pre-tuned and fully weatherproofed. Mast mounting brackets are included. Fitted with a low loss ‘N’-connector for best performance. Maximum power: 150 watts.

Frequency range: 50 / 144 / 430 MHz

Shipped next business day

€99.96 (82.61 excl. 21% VAT)

Electrical data

• Electrical type: 50 MHz: 50 λ / 144 MHz: 2x5/8 λ / 430 MHz: 4x5/8 λ
• Gain: 50 MHz: 2.15 / 144 MHz: 6.2 dBi / 430 MHz: 8.4 dBi
• VSWR: ≤ 1.5
• Maximum continuous power: 200 Watts
• Impedance: 50 Ohm
• Polarization: Linear vertical

Mechanical data

• Mast Ø: 30 - 48 mm
• Max wind resistance: 180 km/h
• Height: 2500 mm
• Weight: 1200 gran
• Mounting type: On mast

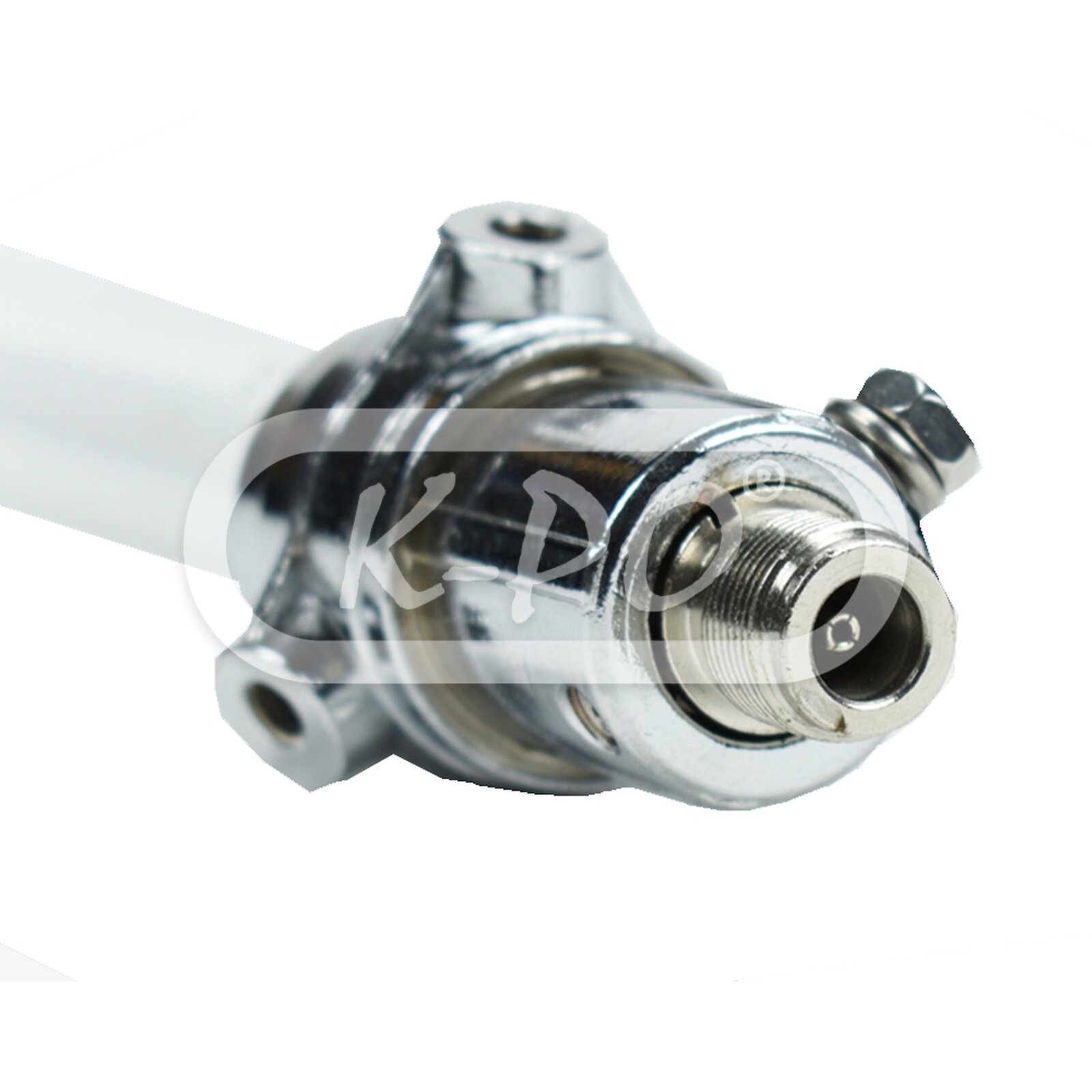

• Antenna connector: N-female

Inside the box

• Antenna: Yes
• Mounting parts: Yes
• Installation manual: English
