HamKing - WTM-05

Product code: 6129

Barcode: 8718375103111

With the HamKing WTM-05 window feed-through, you no longer need to drill holes to bring your coaxial cable from the outside to the inside.

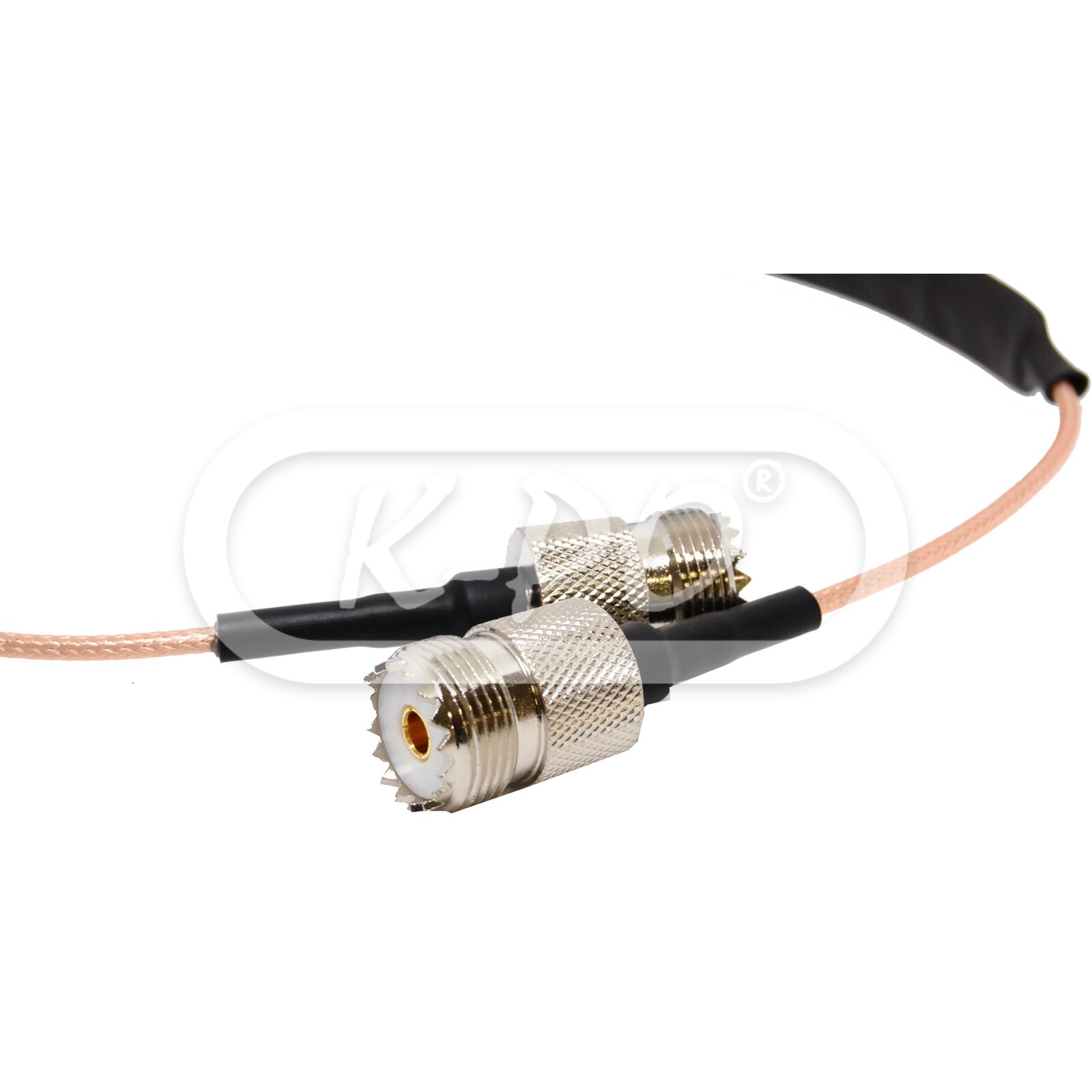

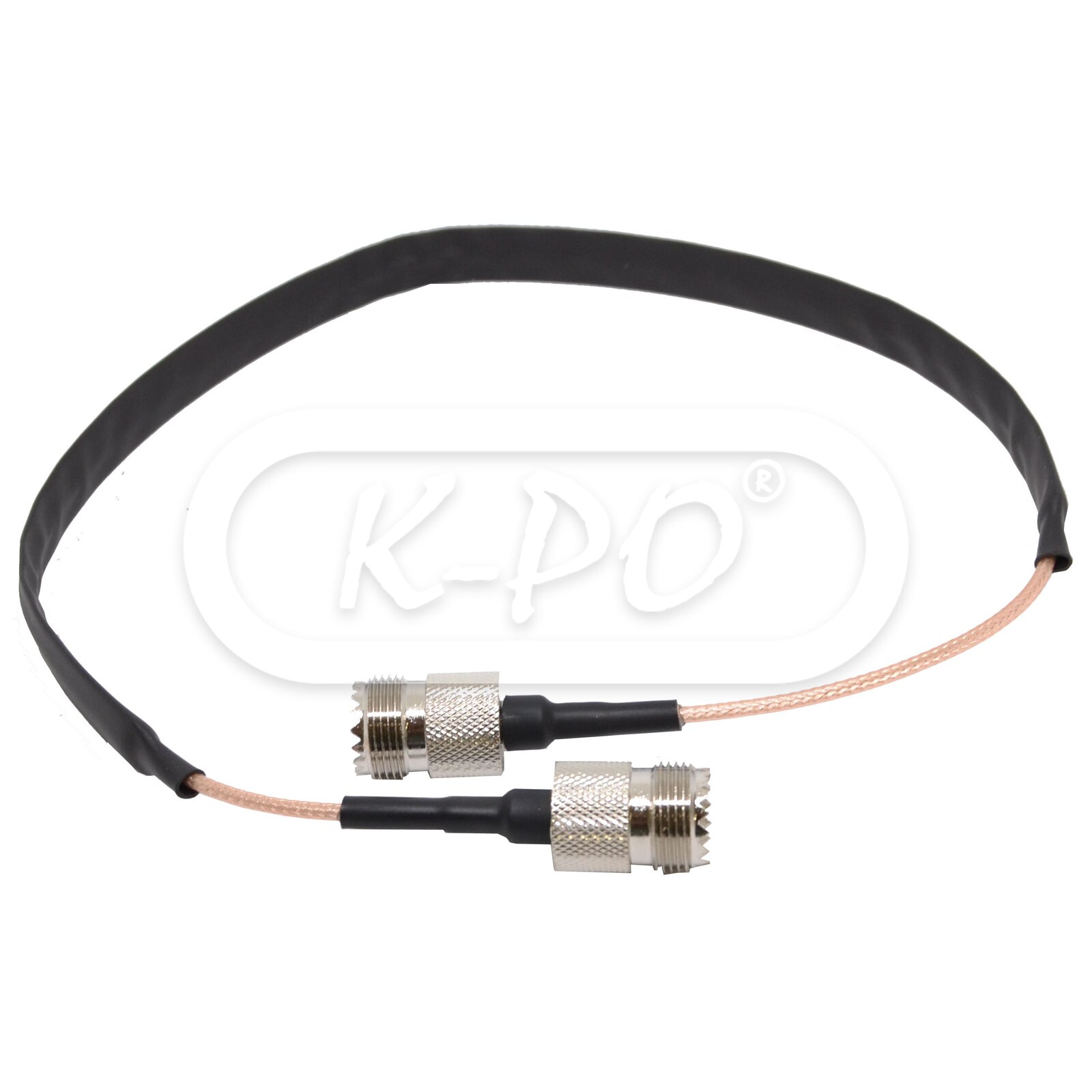

The WTM-05 is made of a 3 mm thick RG-316 PTFE 0.5 meter long coaxial cable with two UHF (PL) female connectors.

Frequency range: Up to 1000 MHz

Shipped next business day - Stock: 6

€28.94 (23.92 excl. 21% VAT)

Mechanical data

Length: ± 50 cm
Weight: ± 60 gram
Max. power: 0-50 MHz: 700 Watts (PEP) / 144 MHz: 200 Watts (FM) / 1 GHz: 100 Watts (FM)
Impedance: 50 Ohm
Connector: 2x UHF (PL) female
