Himunication - HM130 Yellow (ATIS)

Product code: 48125

Barcode: 6970344030008

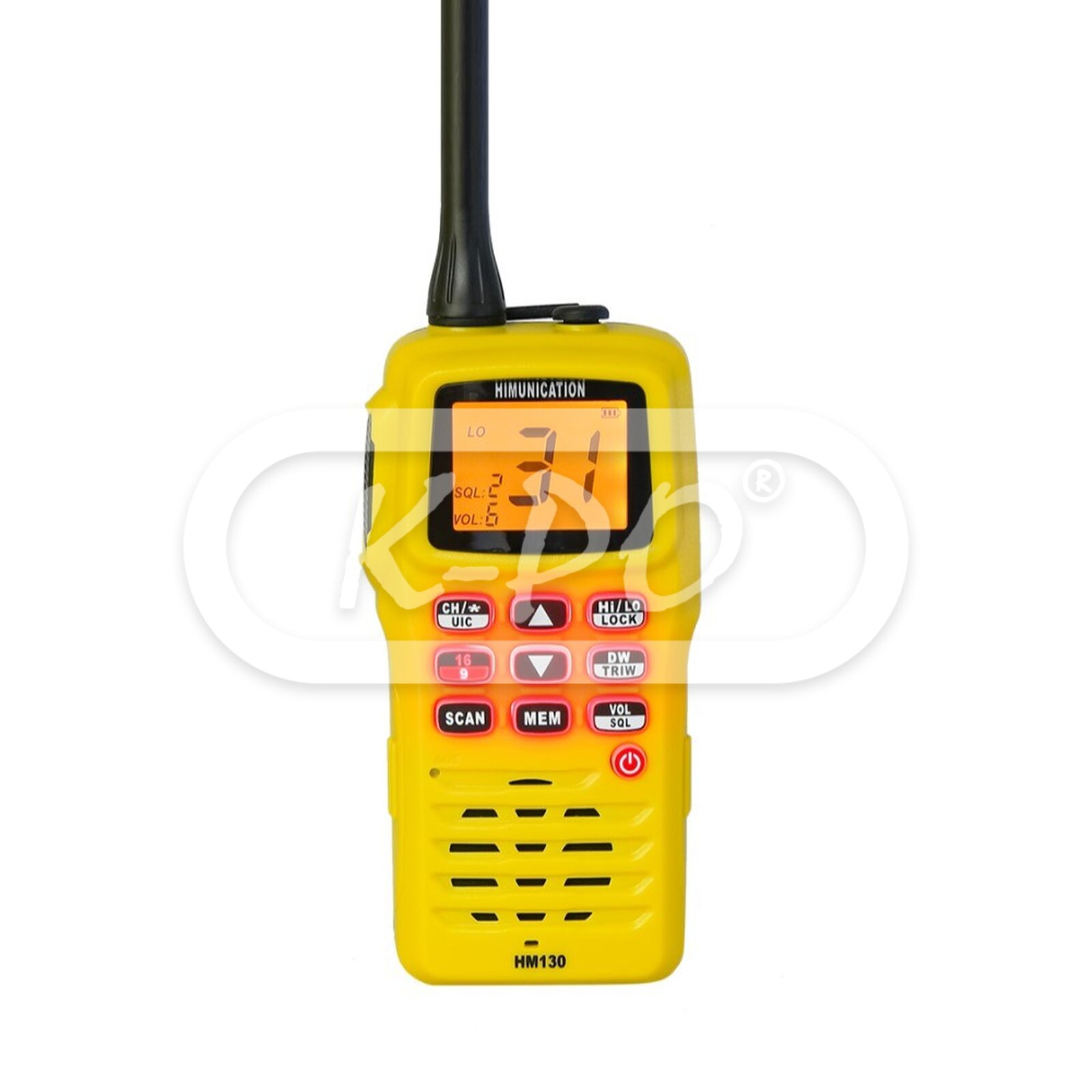

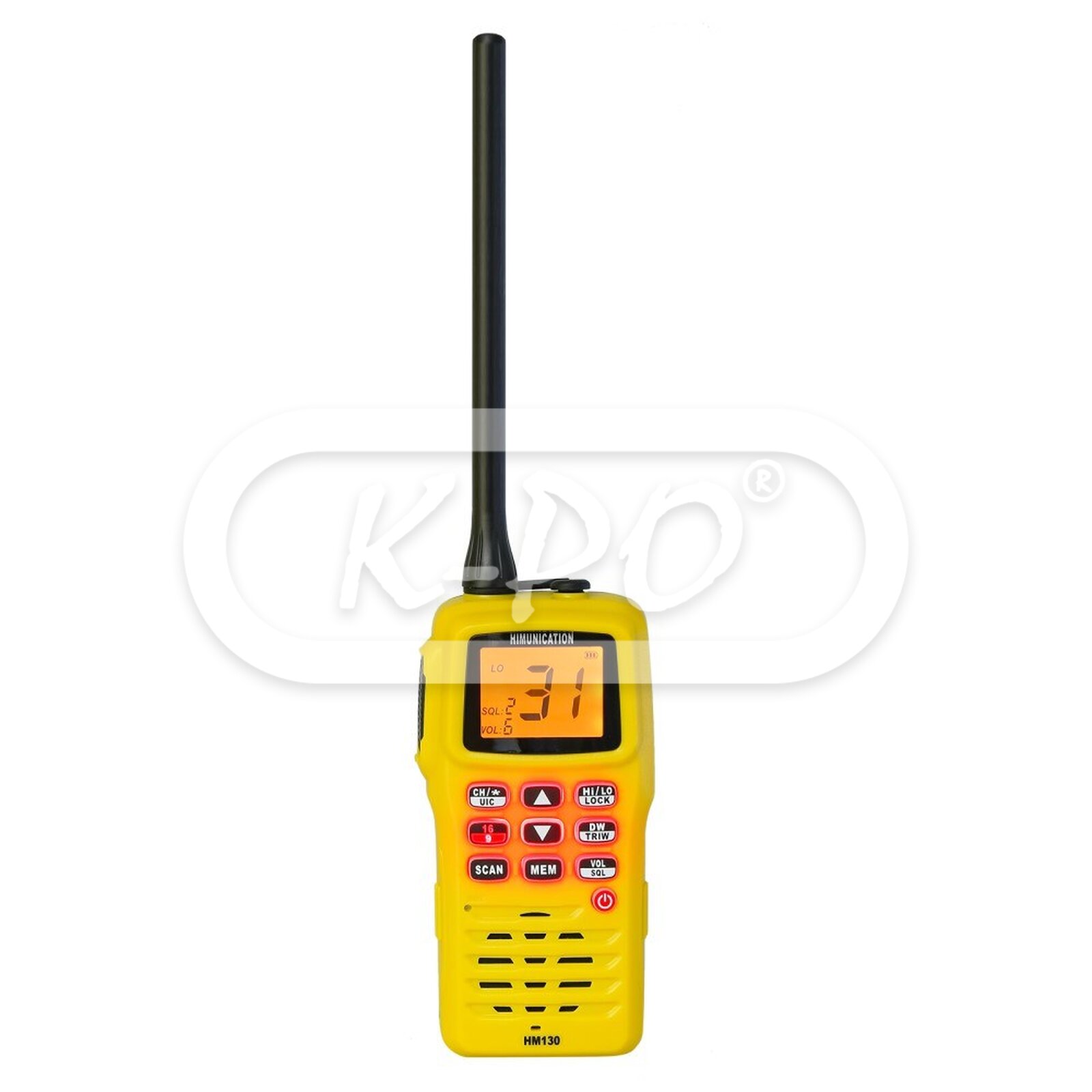

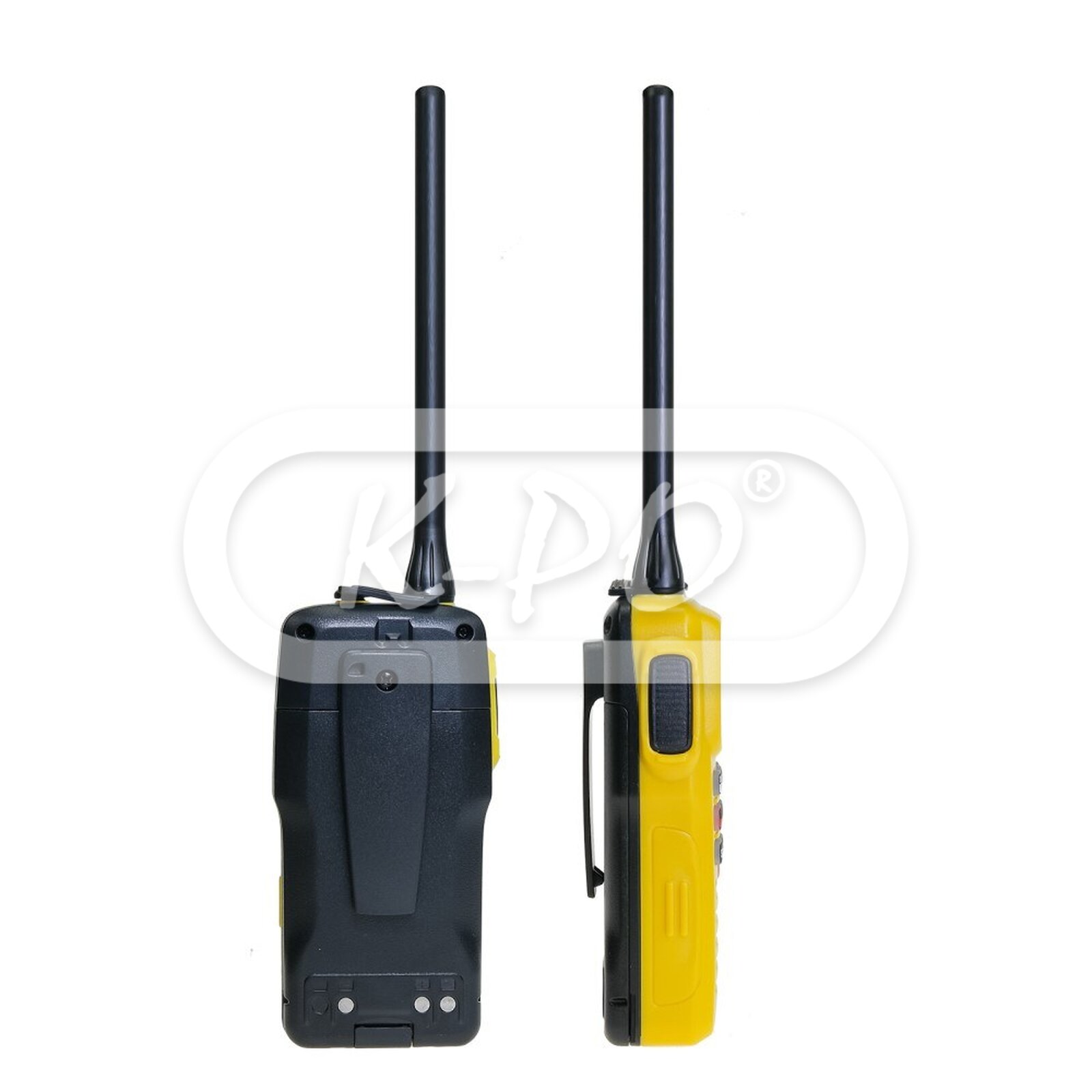

The Himunication HM130 Yellow with ATIS is a semi professional handheld VHF marine radio.

Frequency range: Transmit: 156.025 to 162.425 MHz / Receive: 156.025 to 163.275 MHz

Note - Discontinued

€ -- (Discontinued)

Features

• Float and flash: Yes
• Channel 31: Yes
• 5/1 Watts switchable power: Yes
• 16/9 channel switch: Yes
• Private channel facility: Yes
• Dual and tri watch: Yes
• Display: LCD with background light
• Priority channel scan: Yes
• High/low power selection: Yes
• ATIS: Yes, one-time programmable by keypad

Electrical data

• Channels: 56 INT channels / 52 USA channels / 59 Canada channels / 10 Weather channels (only for USA) / 99 Private channels
• Frequency stability: ±5 PPM
• Operating temperature (Celsius): -20 to +55 °C
• Battery lifetime: (TX 5% / RX 5% / Stand-by 90%): ≥ 8 hours

Transmitter

• Power output (Watts): 5 / 1 Watt
• Modulation: FM (16K0G3E)
• Channel spacing: 25 KHz
• Oscillate mode: PLL
• Normal working voltage: 7.4 V (with Li-Polymer battery)
• Low limit working voltage: 6.8 V
• Built-in speaker: Yes
• Memory: EEPROM

Mechanical data

• Length: 130 mm
• Height: 56 mm
• Width: 30 mm
• Weight: 250 gram
• Antenna connector: SMA

Inside the box

• Battery: Li-Polymer 1700 mAh

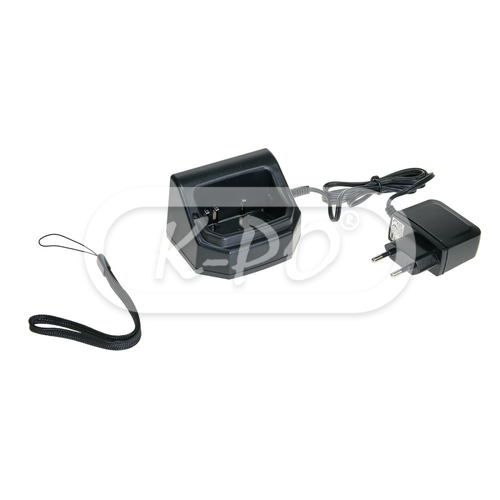

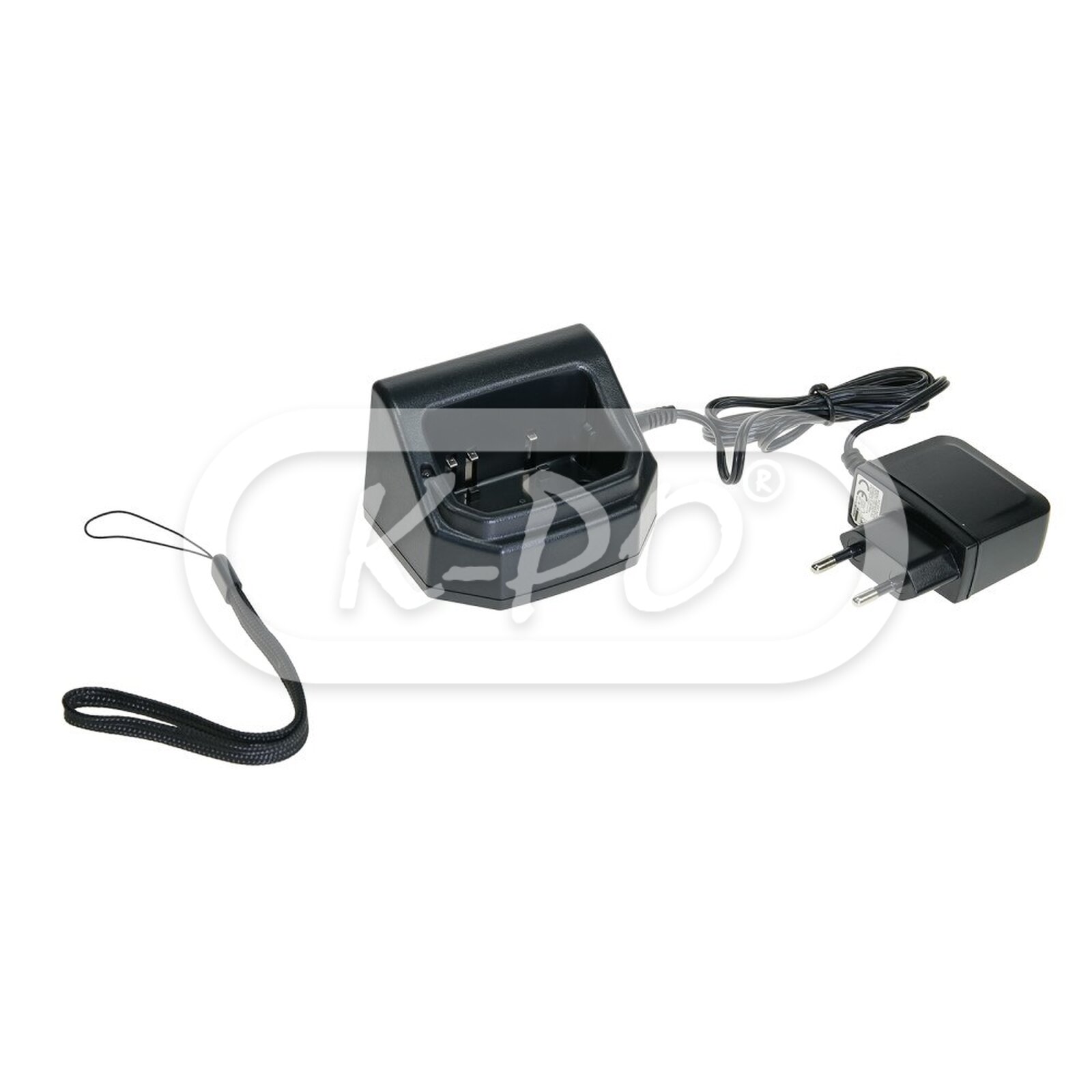

• Charger: AC 100 - 240V / DC 12 V desktop charger
• Wrist strap: Yes
• Installation manual: English
• Hi-gain flexible antenna: Yes
• Belt clip: Yes

Downloads

• Datasheet: HM130 Instruction manual WM
