JCD - 201M interface cable Kenwood

Product code: 401211

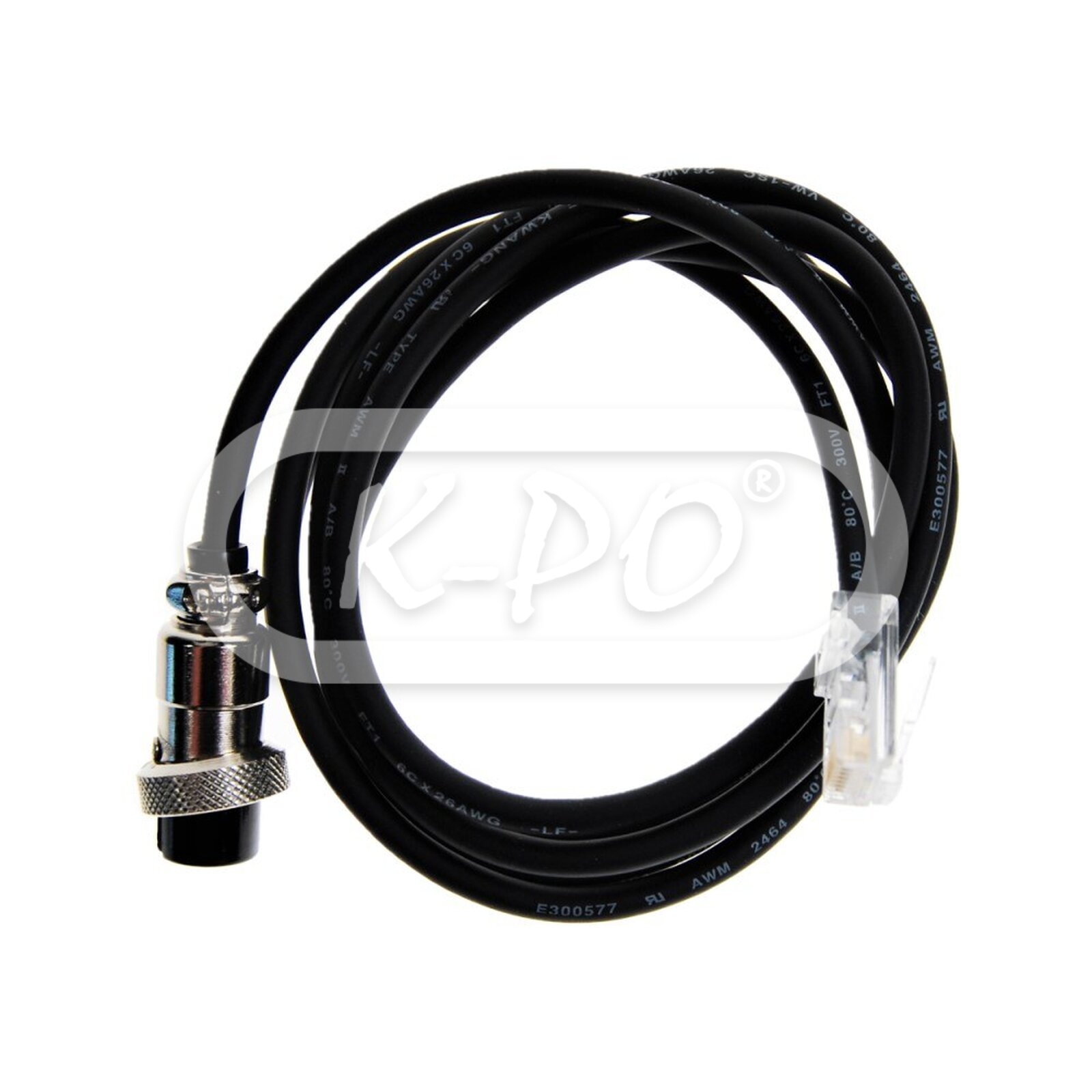

Interface cable for connecting Kenwood transceivers to the JCD-201M 8P and JCD-201 8P HF-proof microphones.

Please note that the round 8-pin connector is attached to the microphone, while the RJ-45 connector is connected to the radio.

Always check carefully if your transceiver is compatible with your version of the JCD-201M microphone. We are not responsible for any damage caused due wrong usage (or wiring) of the microphone to your microphone or transceiver.

Shipped today
€18.95 (15.66 excl. 21% VAT)

Features

  • Up: Pin 1
  • DC: Pin 2
  • Ground: Pin 3
  • PTT: Pin 4
  • Mic ground: Pin 5
  • Mic audio: Pin 6
  • Not connected: Pin 7
  • Down: Pin 8
