K-PO - AV-DL 200 M K-PO - AV-DL 200 M

K-PO - AV-DL 200 M

Product code: 90200
Barcode: 8718375100387

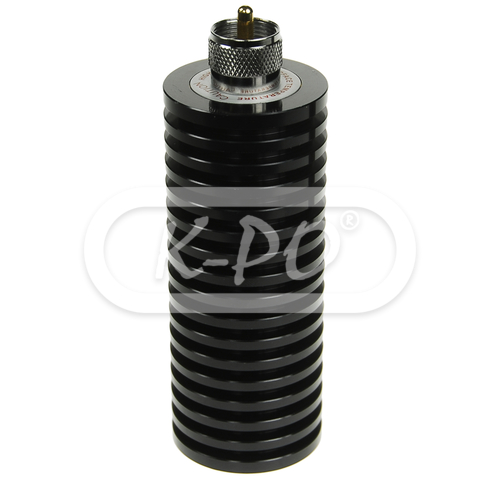

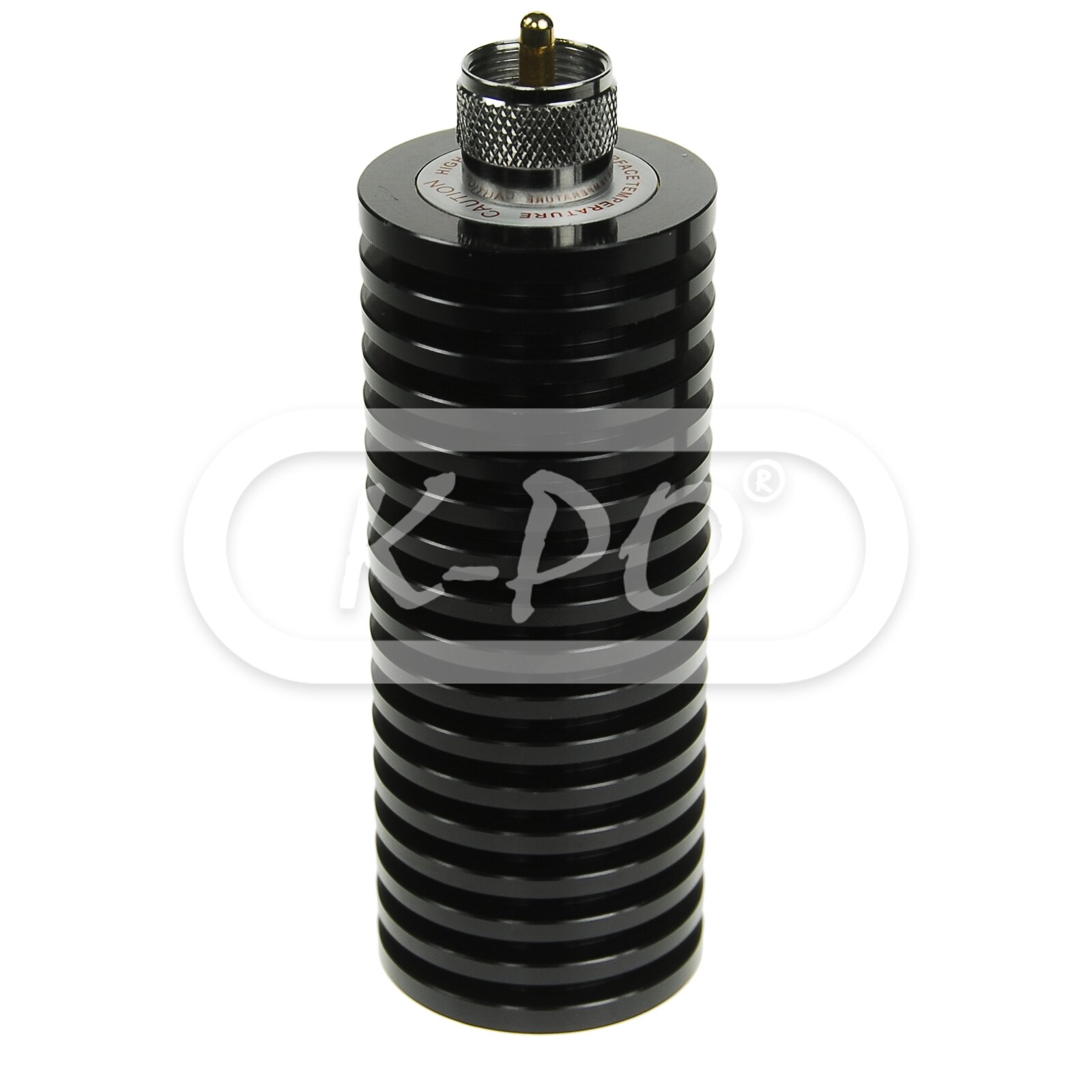

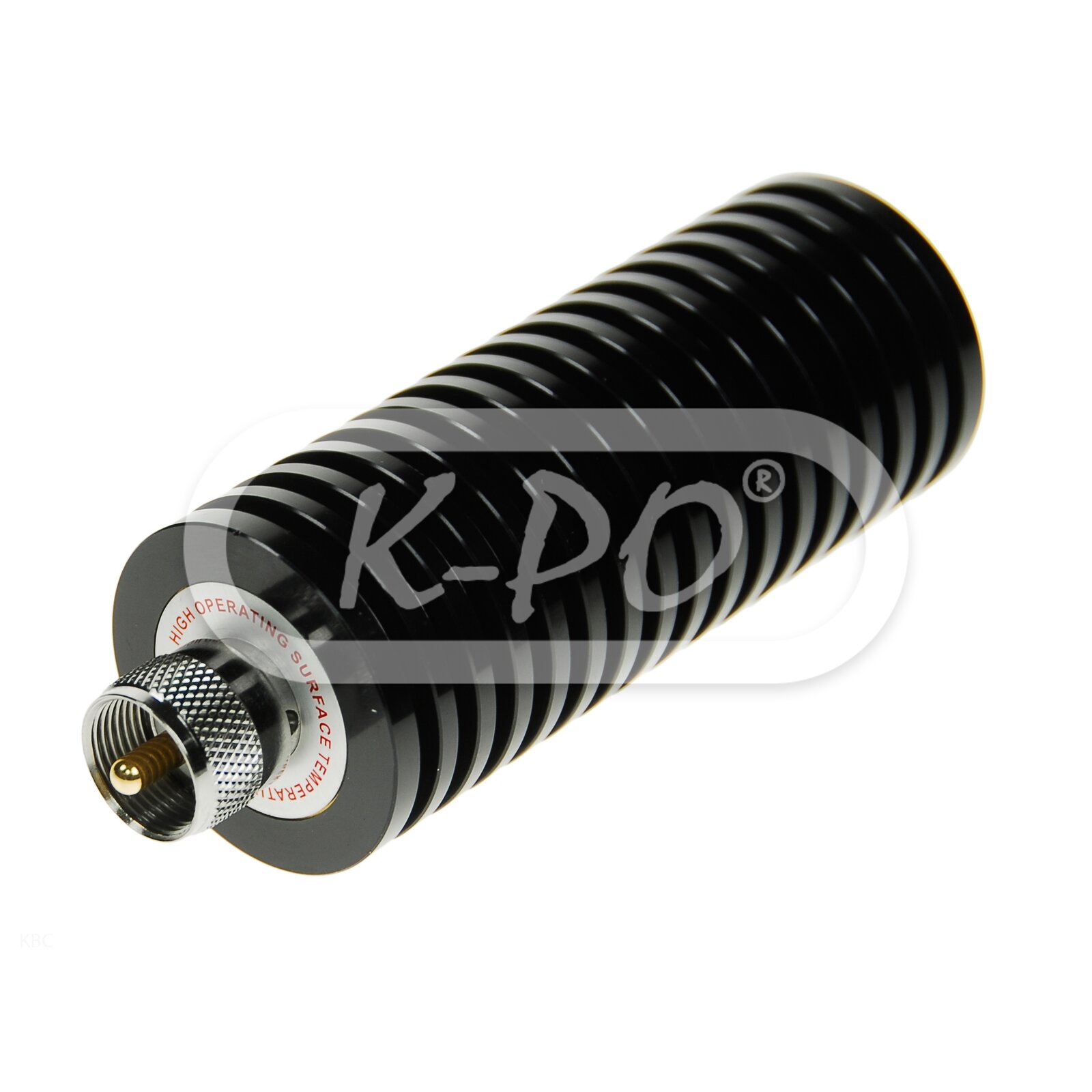

The K-PO AV-DL 200 M is a dummy load suitable for 1.0 GHz and equipped with a UHF (PL) male connector. The dummy load can you use at 35 Watts continues and 200 Watts peak.

Frequency range: Up to 1 GHz
Out of stock - Longer delivery time
€59.96 (49.55 excl. 21% VAT)

Electrical data

  • Maximum continuous power: 35 Watts
  • Power peak: 200 Watts (5 sec on 60 sec off)
  • VSWR: >=1.16 at full range
  • Impedance: 50 Ohm

Mechanical data

  • Connector(s) type in: UHF (PL) male
  • Length: 145 mm
  • Height: 45 mm
  • Width: 45 mm
  • Weight: 375 gram
