K-PO - HF-2500 K-PO - HF-2500

K-PO - HF-2500

Product code: 7464

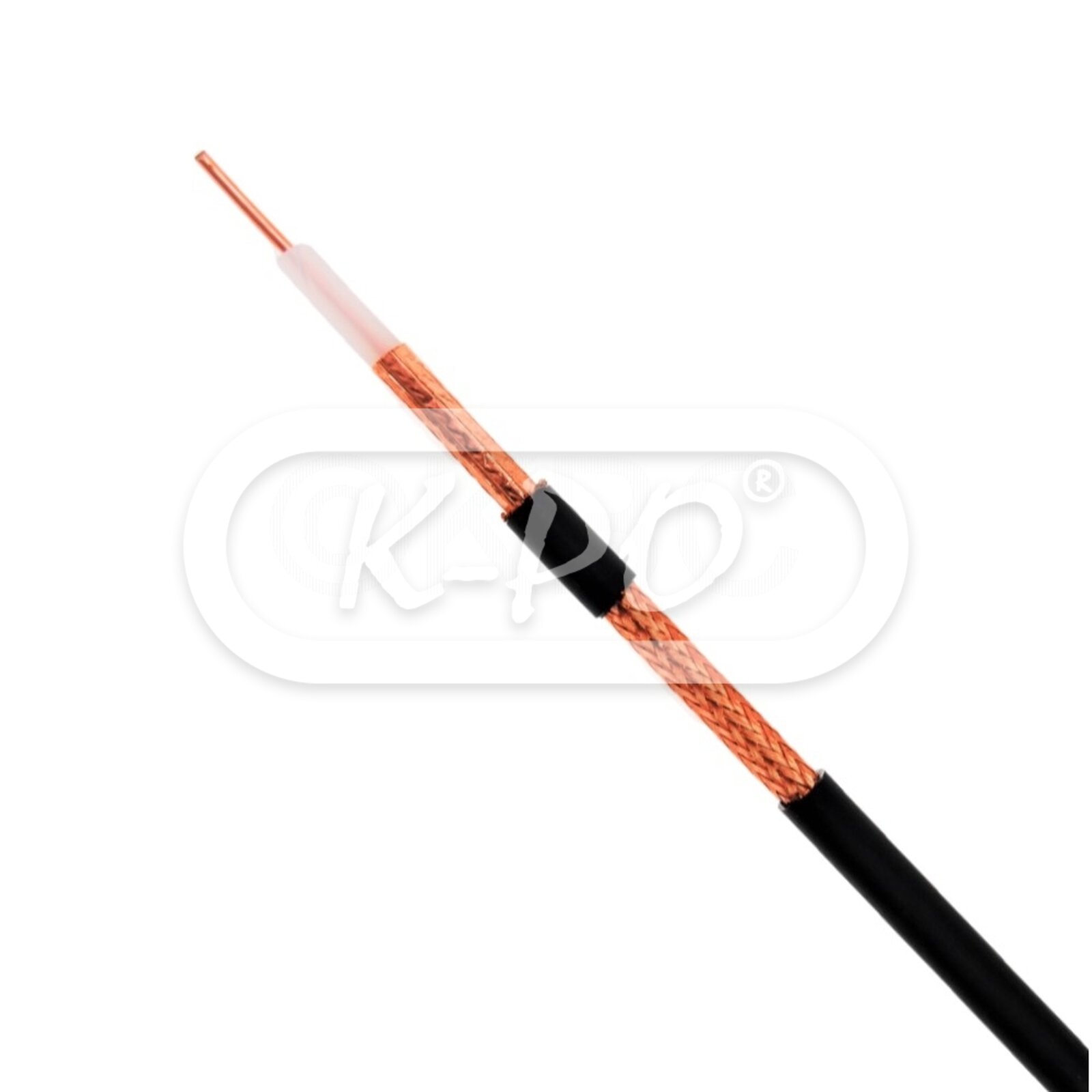

The K-PO HF-2500 is a high quality low loss coax cable with CPR/ECA classification. The cable is comparable to Aircell 7 cable with similar specifications.

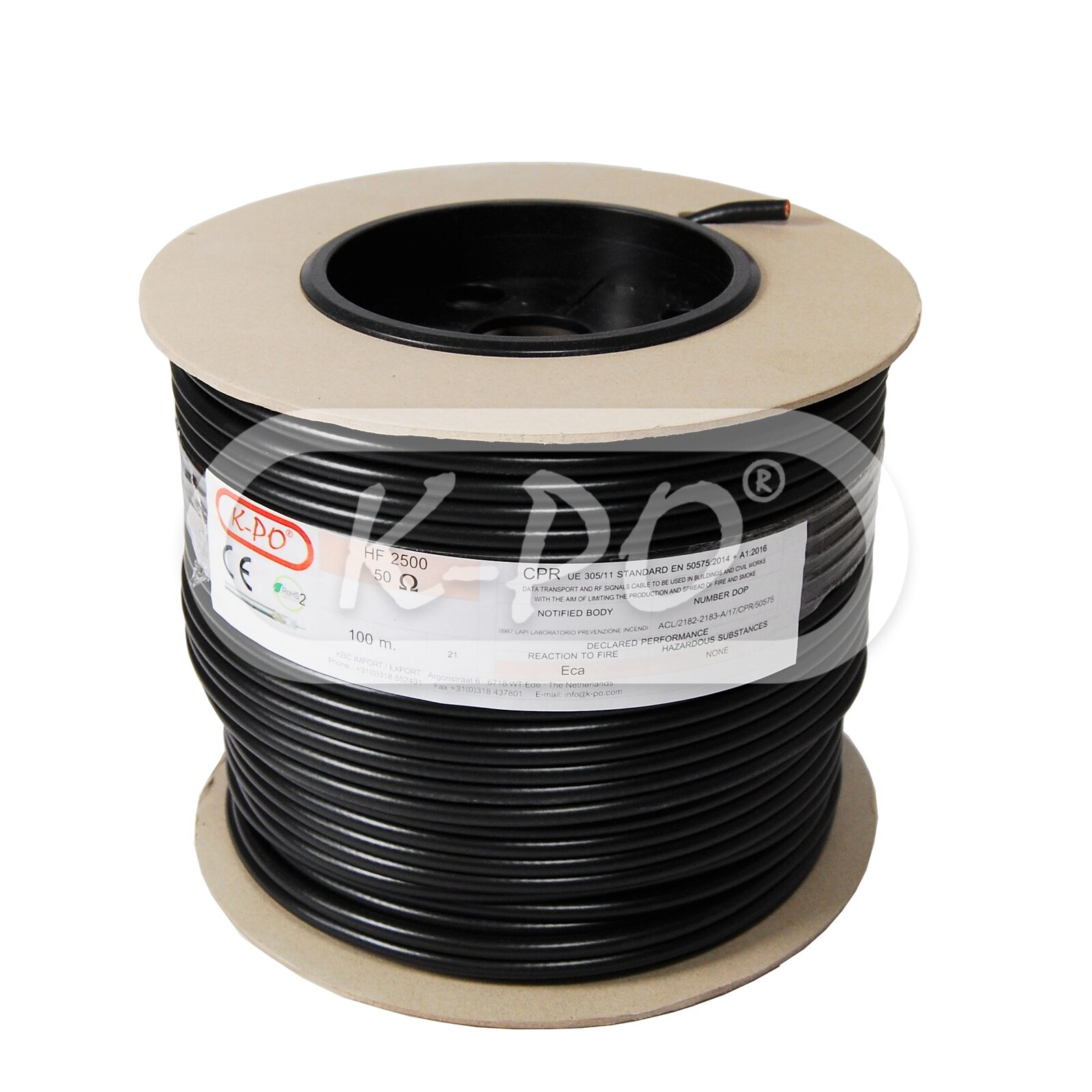

100 meter on roll, made in Europe.

Out of stock - Longer delivery time
€179.95 (148.72 excl. 21% VAT)

Features

  • Plain copper inner conductor: 7 x 0,65 mm
  • Low density polyethylene dielectric: ø 5,00 ± 0,10 mm
  • Plain copper outer conductor: h. 18 mm
  • Percentage coverage: 100%
  • Sheath color: Black - RAL 9004
  • Copper weight: 3.47 kg (100m)
  • Cable weight: 7.1 kg (100m)
  • Impedance: 50 ±2 Ohm
  • Capacitance: 80 pF/m
  • Velocity ratio: 84%
  • Inner conductor resistance: 7,8 Ohm/Km
  • Temperature range: -30°C to +70°C

    Attenuations dB/100m

  • 5 MHz: 1.5 dB
  • 10 MHz: 2.0 dB
  • 30 MHz: 3.3 dB
  • 50 MHz: 4.2 dB
  • 150 MHz: 7.2 dB
  • 220 MHz: 8.8 dB
  • 450 MHz: 12.9 dB
  • 600 MHz: 15,0 dB
  • 800 MHz: 17.7 dB
  • 900 MHz: 18,5 dB
  • 1000 MHz: 19.7 dB
  • 1500 MHz: 24.7 dB
  • 1800 MHz: 27.3 dB
  • 2000 MHz: 29.5 dB
  • 2500 MHz: 32.6 dB
  • 3000 MHz: 36.4 dB
  • 5200 MHz: 50.8 dB
  • 5800 MHz: 54.1 dB
