K-PO - N1 MAG SMA male

Product code: 5348

Factory code: 5348

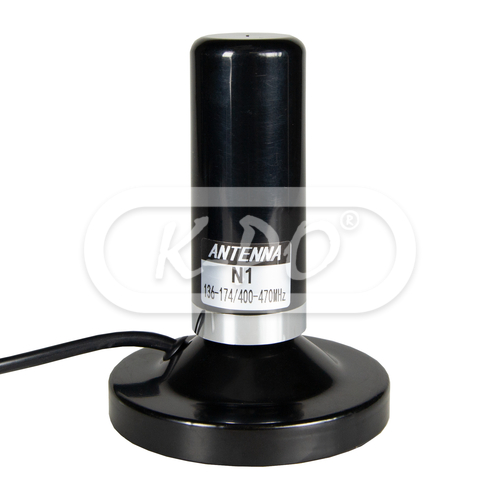

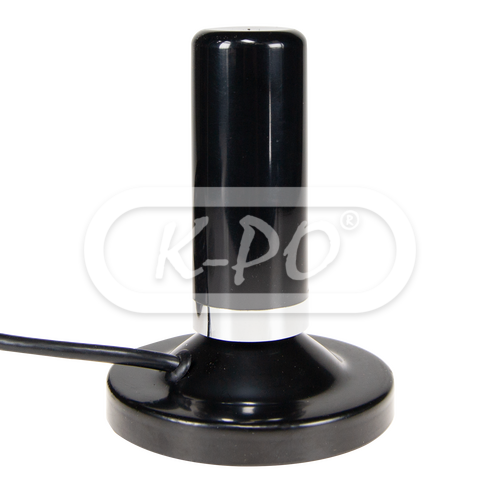

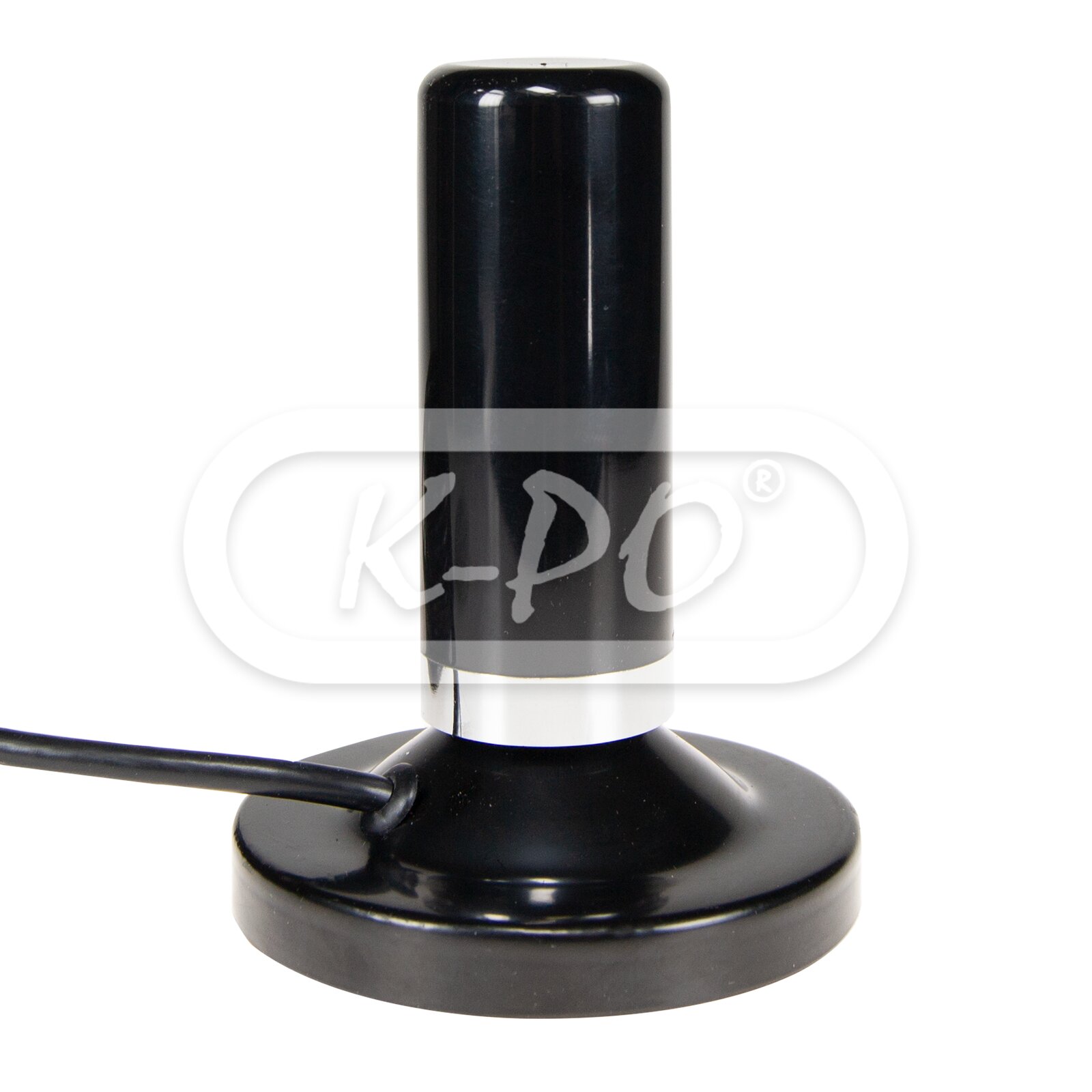

K-PO N1 MAG plug and play dual band magnet antenna with SMA male connector.

Frequency range: 144 / 430 MHz

Shipped next business day

€25.95 (21.45 excl. 21% VAT)

Electrical data

• Gain: 2.5 dBi
• Maximum continuous power: 60 Watts
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Cable: Yes
• Cable length: 4 meter / RG 58

Mechanical data

• Height: 90 mm

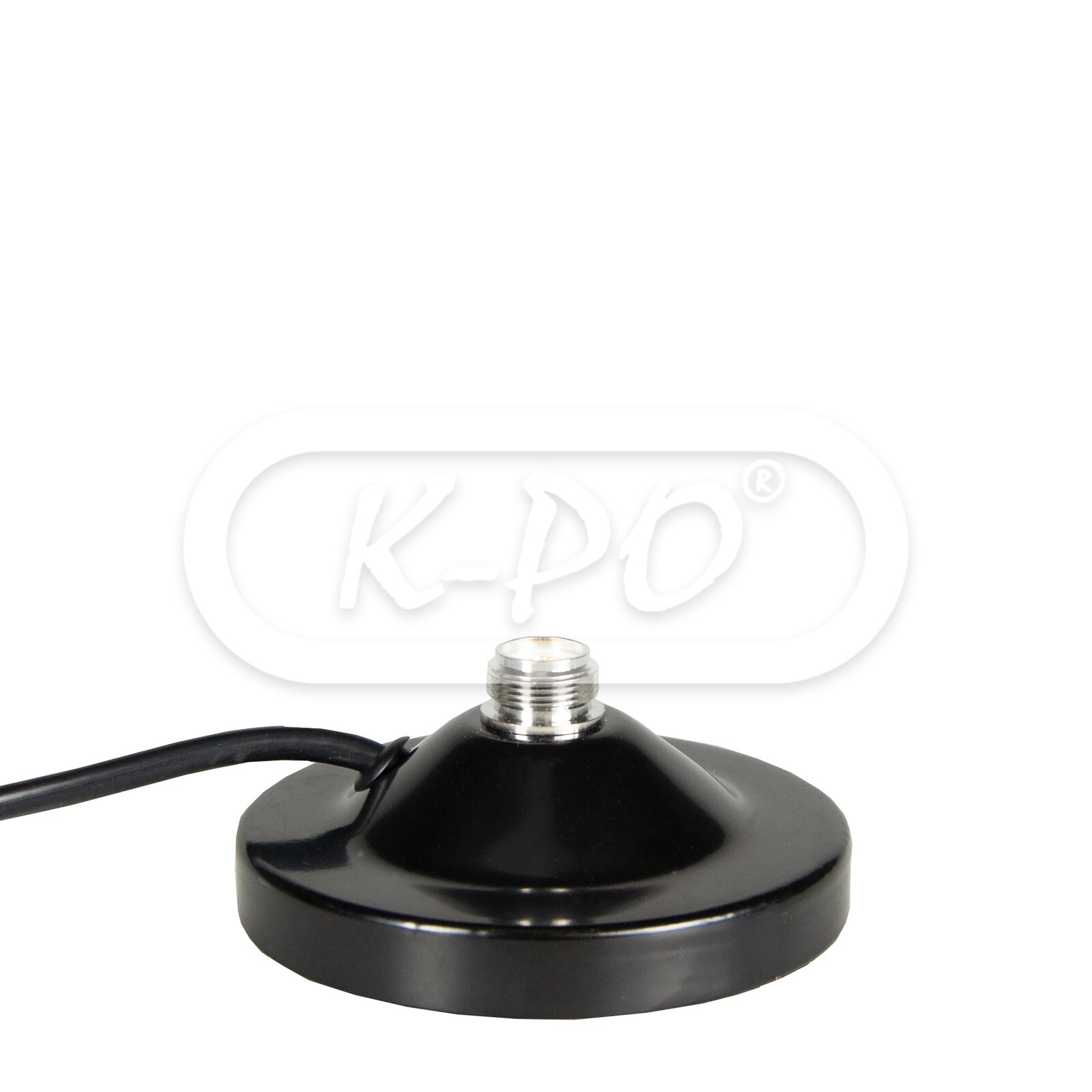

• Mounting type: Magnet
• Magnet Ø: 90 mm
• Antenna Ø: 35 mm

Inside the box

• Antenna: Yes

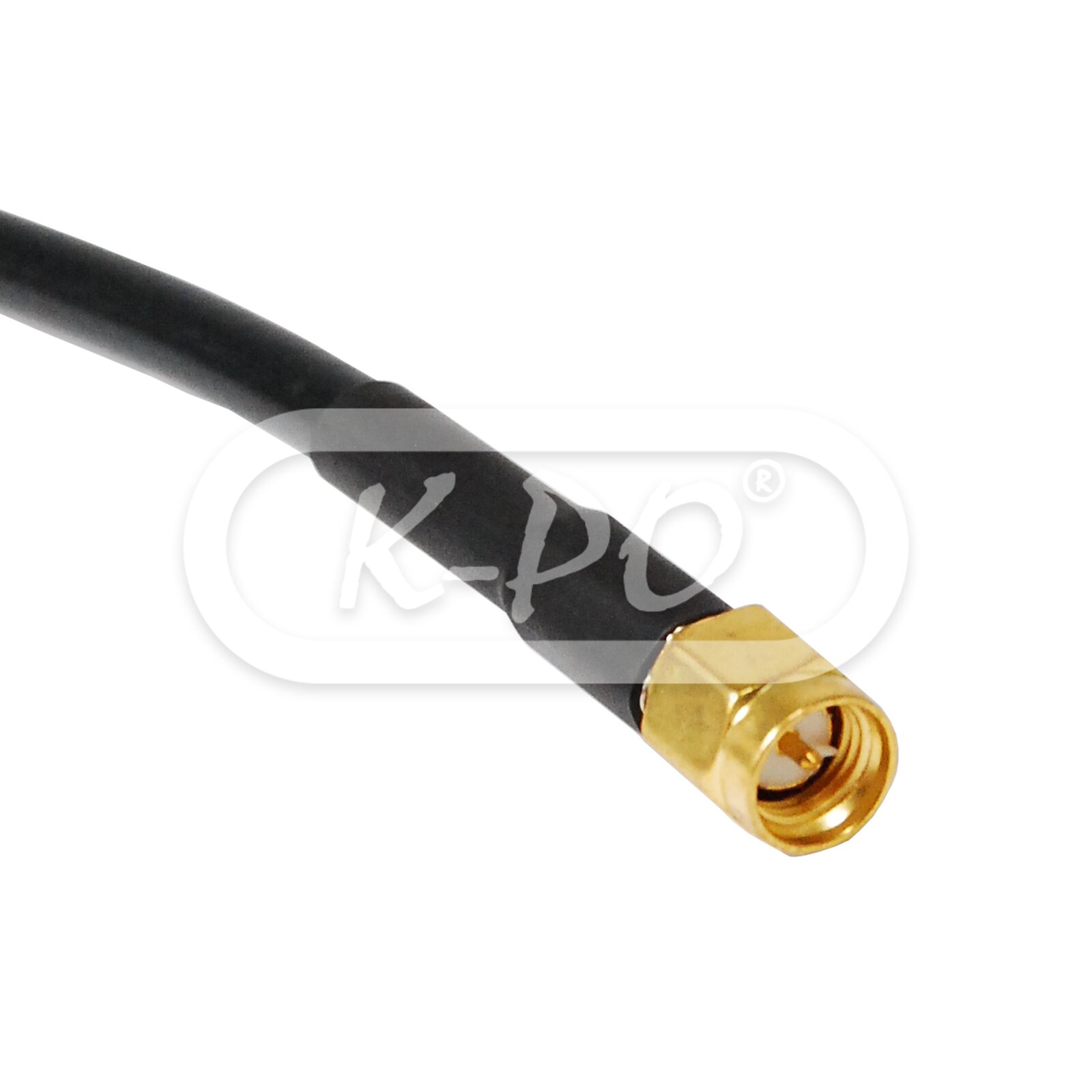

• Radio connector: SMA-male
• Antenna cable: Yes
