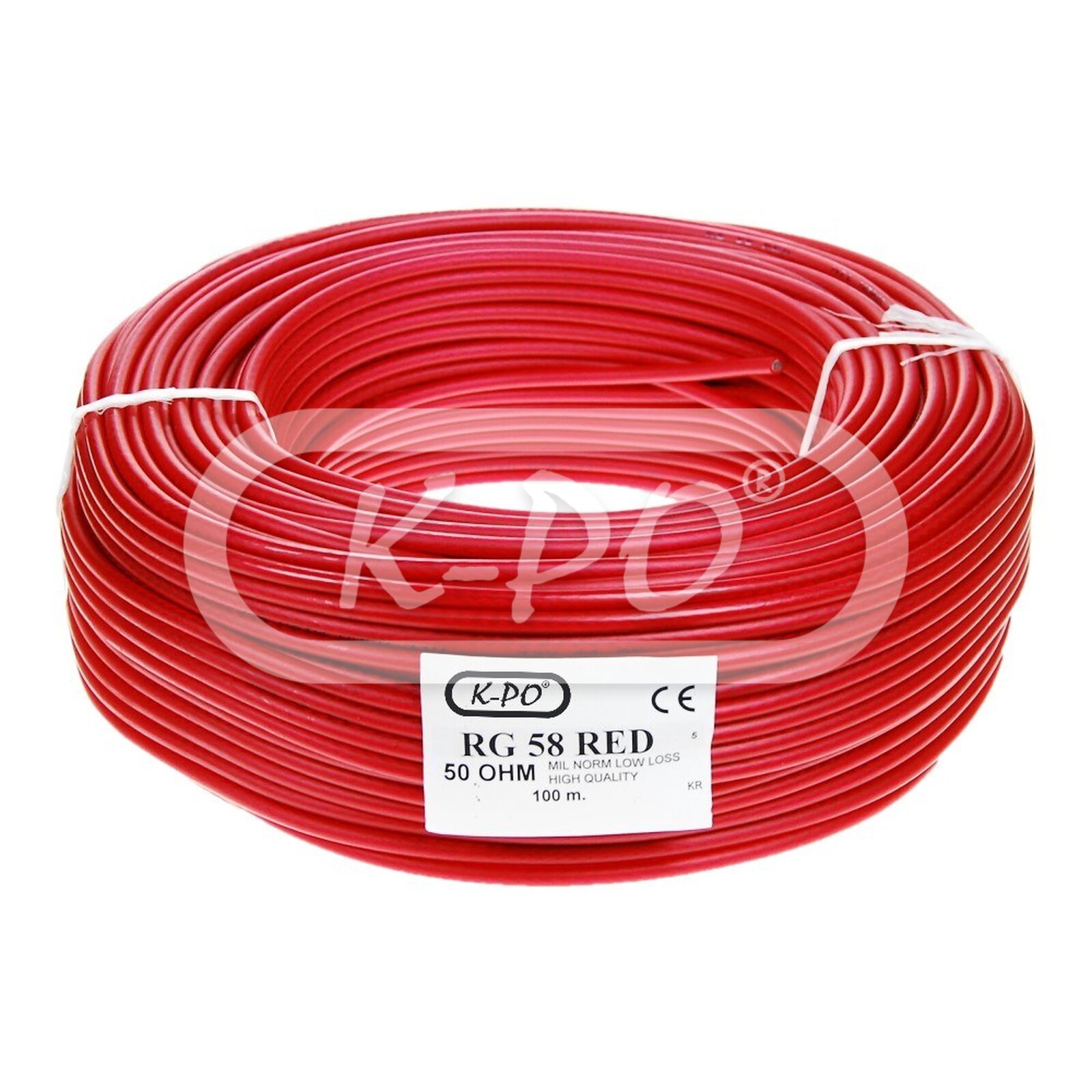

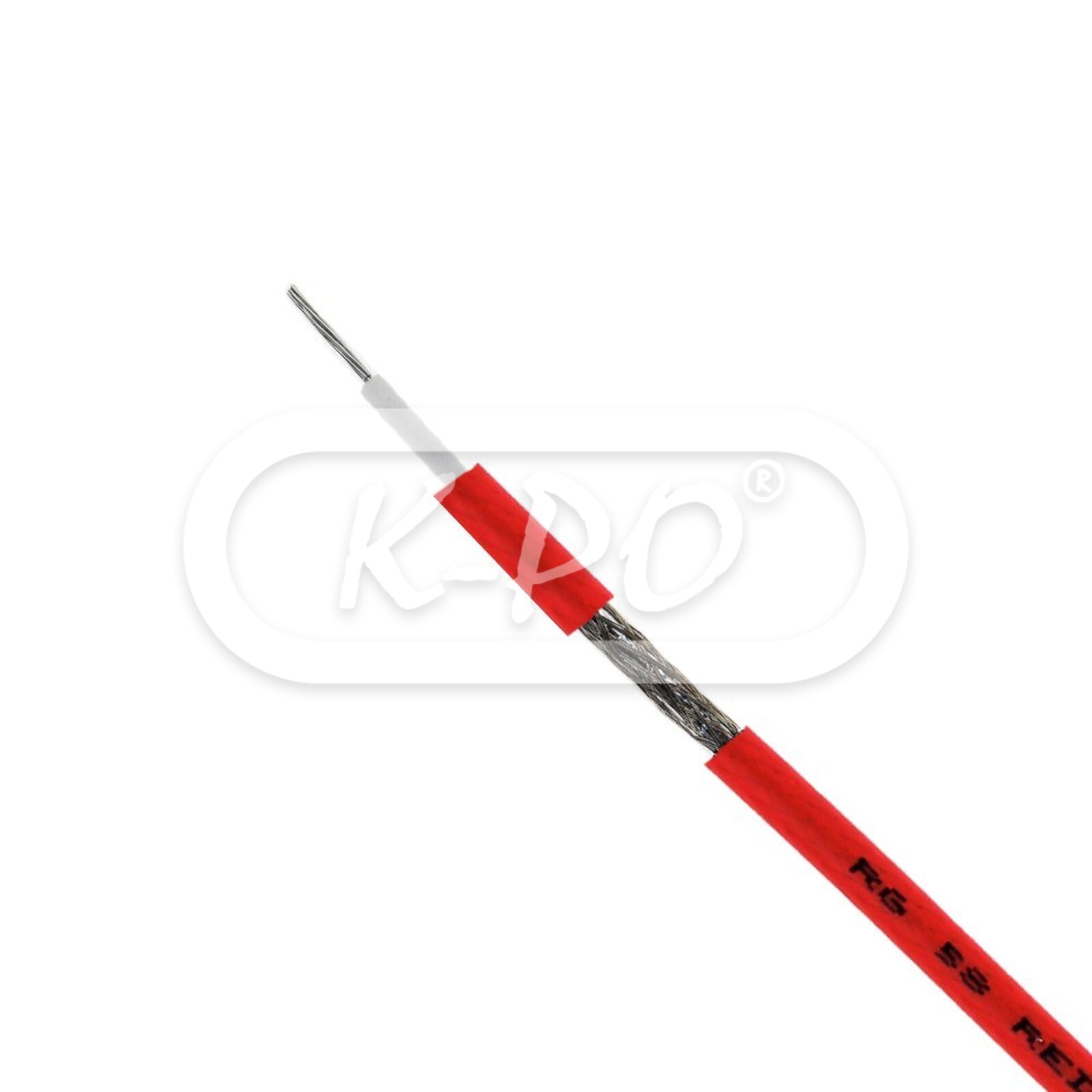

K-PO - RG 58 RED MIL-C-17 K-PO - RG 58 RED MIL-C-17

K-PO - RG 58 RED MIL-C-17

Product code: 4071

The RG 58 RED MIL-C-17 is a high quality MIL-type coax cable with CPR/FCA classification.

100 meter on roll.

Shipped next business day
€88.95 (73.51 excl. 21% VAT)

Features

  • Plain copper inner conductor: 19 x 0,18 mm
  • Low density polyethylene dielectric: ø 2,95 ± 0,10 mm
  • Percentage coverage: 95%
  • Sheath color: Red kristal
  • Copper weight: 1.87 kg (100m)
  • Cable weight: 3.83 kg (100m)
  • Impedance: 50 Ohm
  • Capacitance: 100 pF/m
  • Velocity ratio: 66%
  • Inner conductor resistance: 36,5 Ohm/Km
  • Temperature range: -30°C to +70°C
  • Tinned copper outer conductor: 112 x 0,13 mm

    Attenuations dB/100m

  • 5 MHz: 2.9 dB
  • 10 MHz: 4.3 dB
  • 50 MHz: 10.2 dB
  • 150 MHz: 18.2 dB
  • 220 MHz: 22.8 dB
  • 450 MHz: 33.0 dB
  • 600 MHz: 38.9 dB
  • 800 MHz: 45.8 dB
  • 900 MHz: 48.9 dB
  • 1000 MHz: 67.0 dB
