K-PO - RS-102 K-PO - RS-102 K-PO - RS-102 K-PO - RS-102 K-PO - RS-102

K-PO - RS-102

Product code: 600102
Barcode: 8718375102411

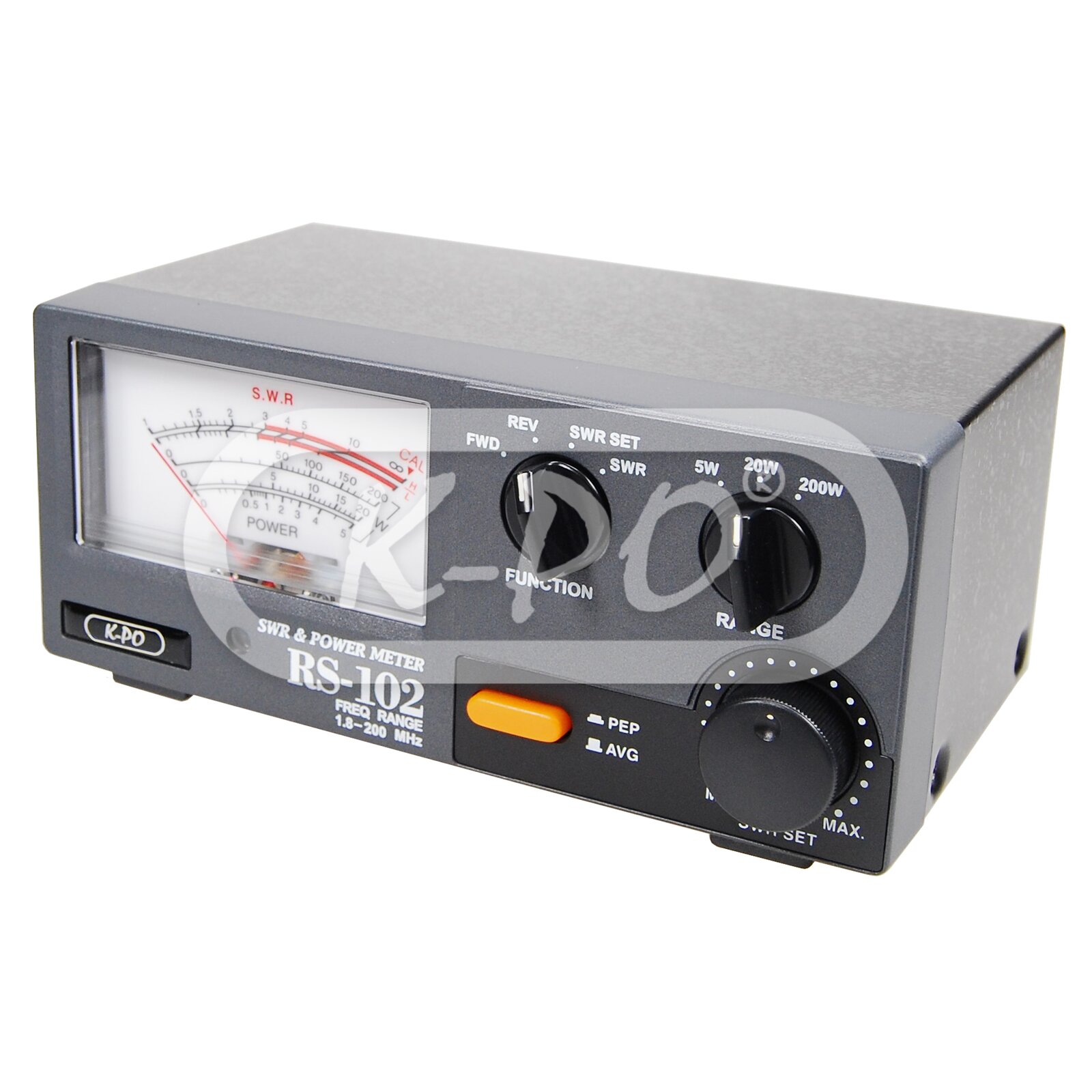

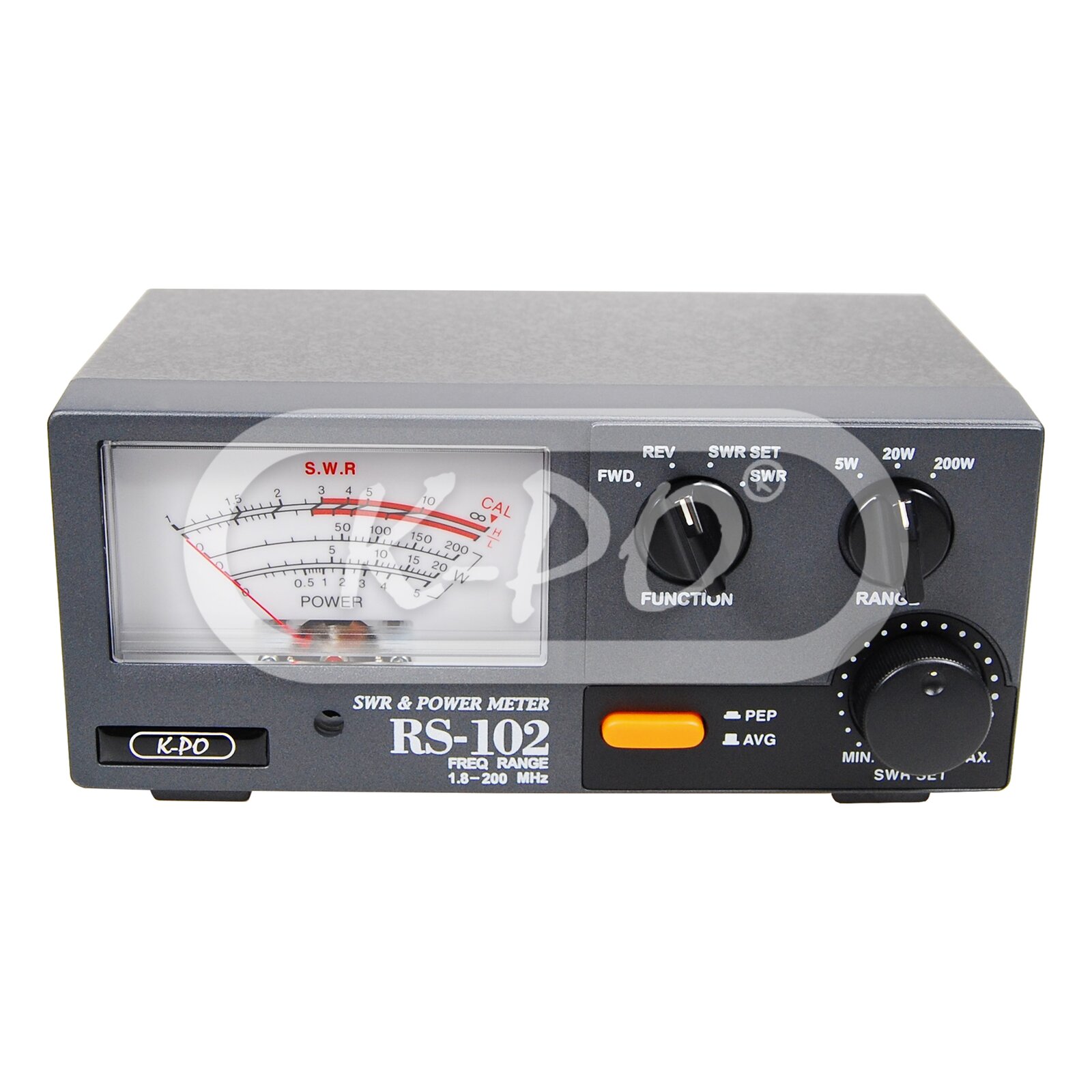

The K-PO RS-102 is a highly accurate SWR and Power meter for 1.8 - 200 MHz. For measuring Forward Power, Reflected Power and SWR. AVG / PEP switch to select average power or SSB / PEP. Maximum power handling of 200 Watts.

Made by Nissei, Taiwan.

Frequency range: 1.8 - 200 MHz
Shipped next business day
€89.95 (74.34 excl. 21% VAT)

Electrical data

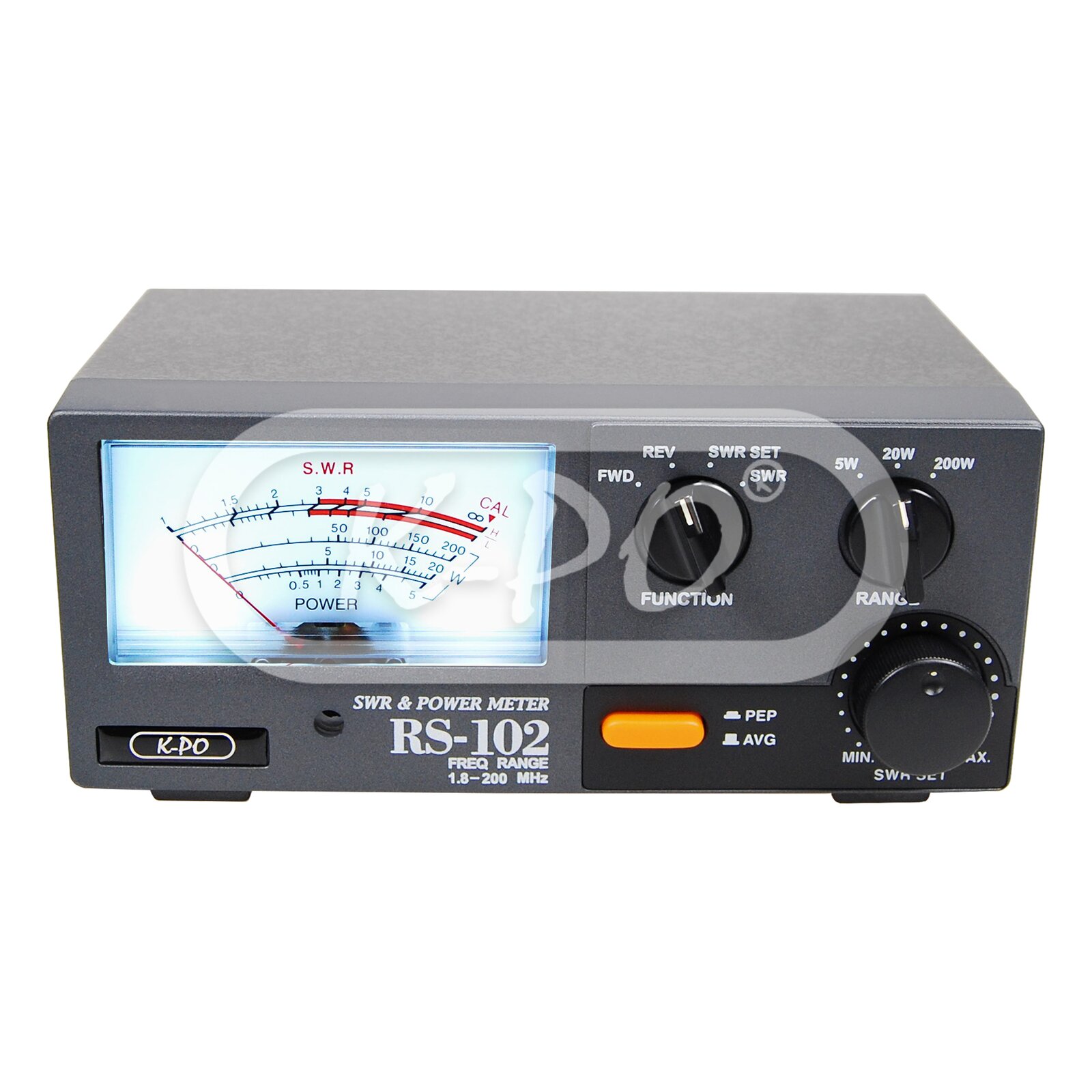

  • Backlight display / meter: Yes
  • Impedance: 50 Ohm
  • Power range: 5 / 30 / 200 Watts
  • Accuracy: 5 Watts: (AVG) ± 10%, (PEP) ± 15% / 20 - 200 Watts: (AVG) ± 5%, (PEP) ± 10%
  • Minimum Power for SWR: 3 Watts
  • Insertion loss: less than 0.1dB
  • Testing function: SWR and Power (FWD and REF / AVG and PEP)
  • Voltage: 13.8 Volt, for display lightning only
  • Power supply for display lightning: Yes

Mechanical data

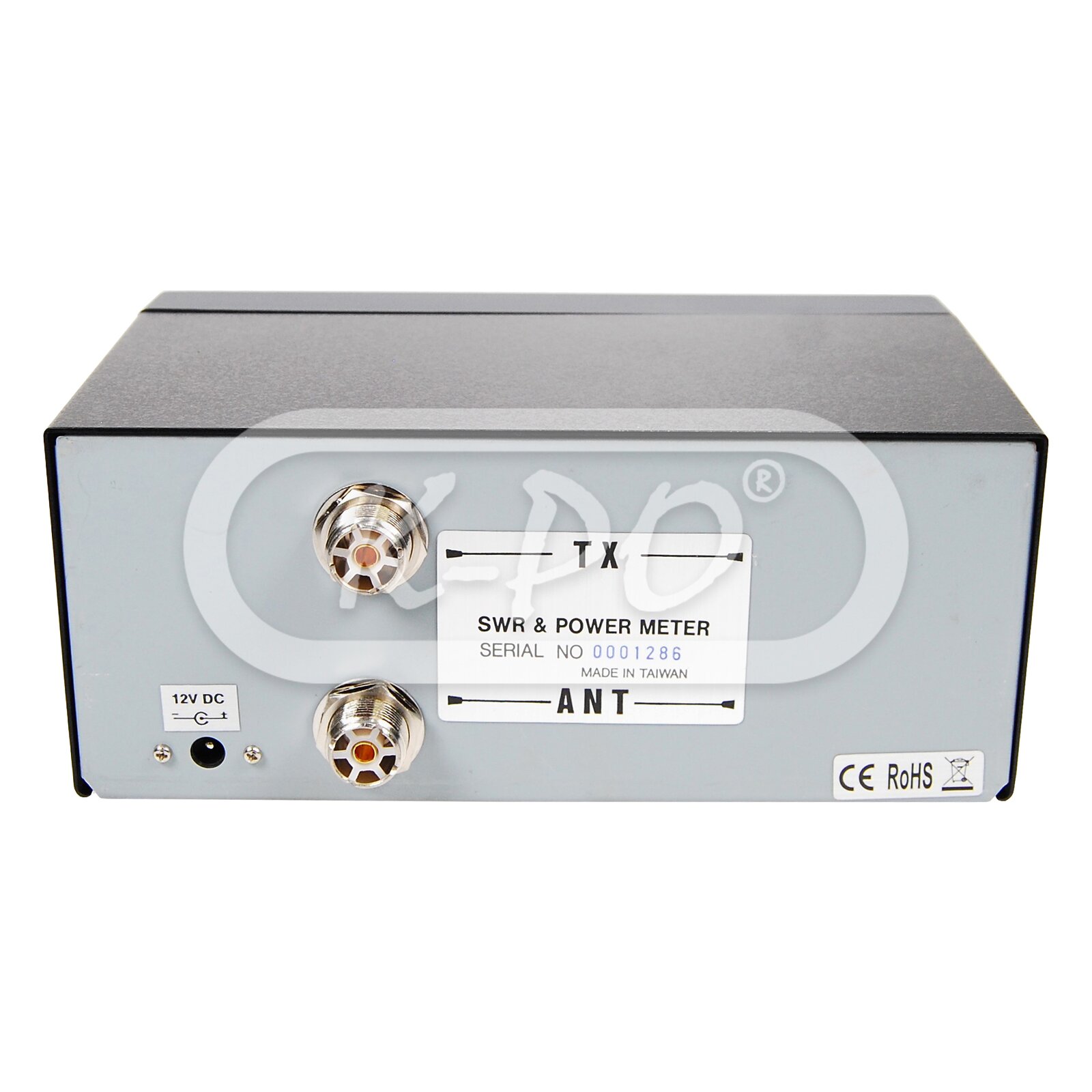

  • Input connector: UHF (PL) female
  • Output connector: UHF (PL) female
  • Length: 135 mm
  • Height: 85 mm
  • Width: 90 mm
  • Weight: 790 gram

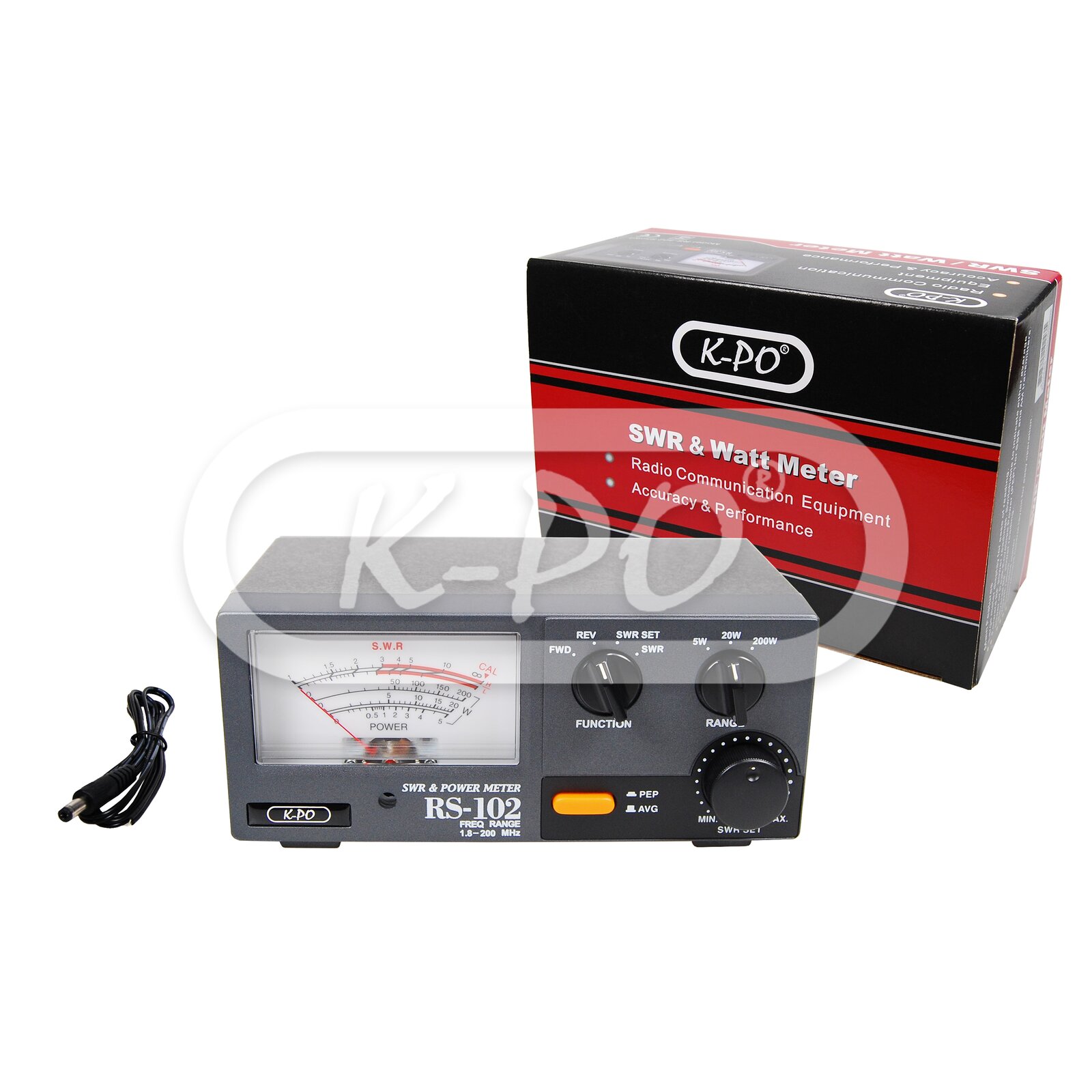

Inside the box

  • Meter: Yes
  • DC power cable: Yes
  • Installation manual: English

Downloads
