K-PO - RS-40

Product code: 900540
Barcode: 8781375102163

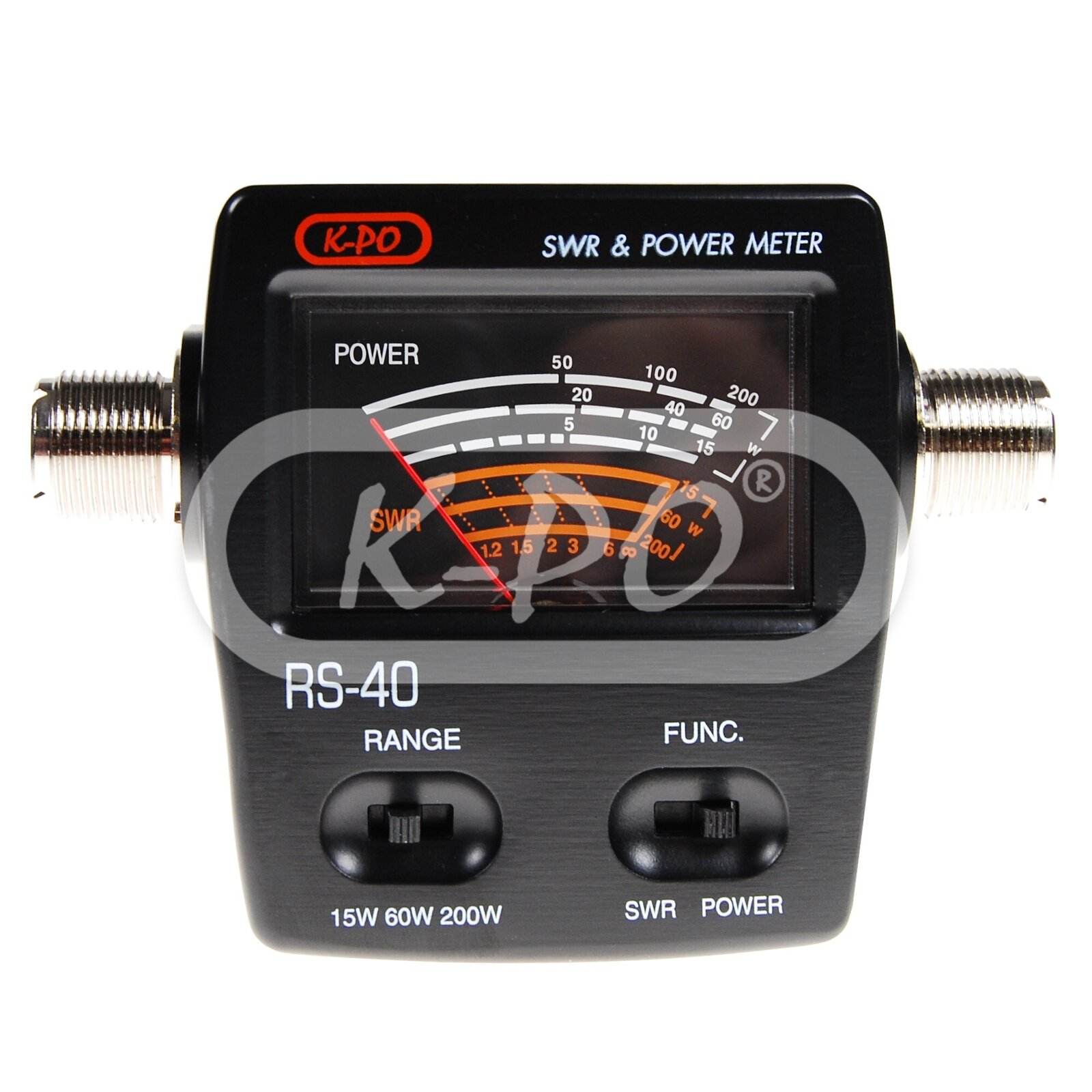

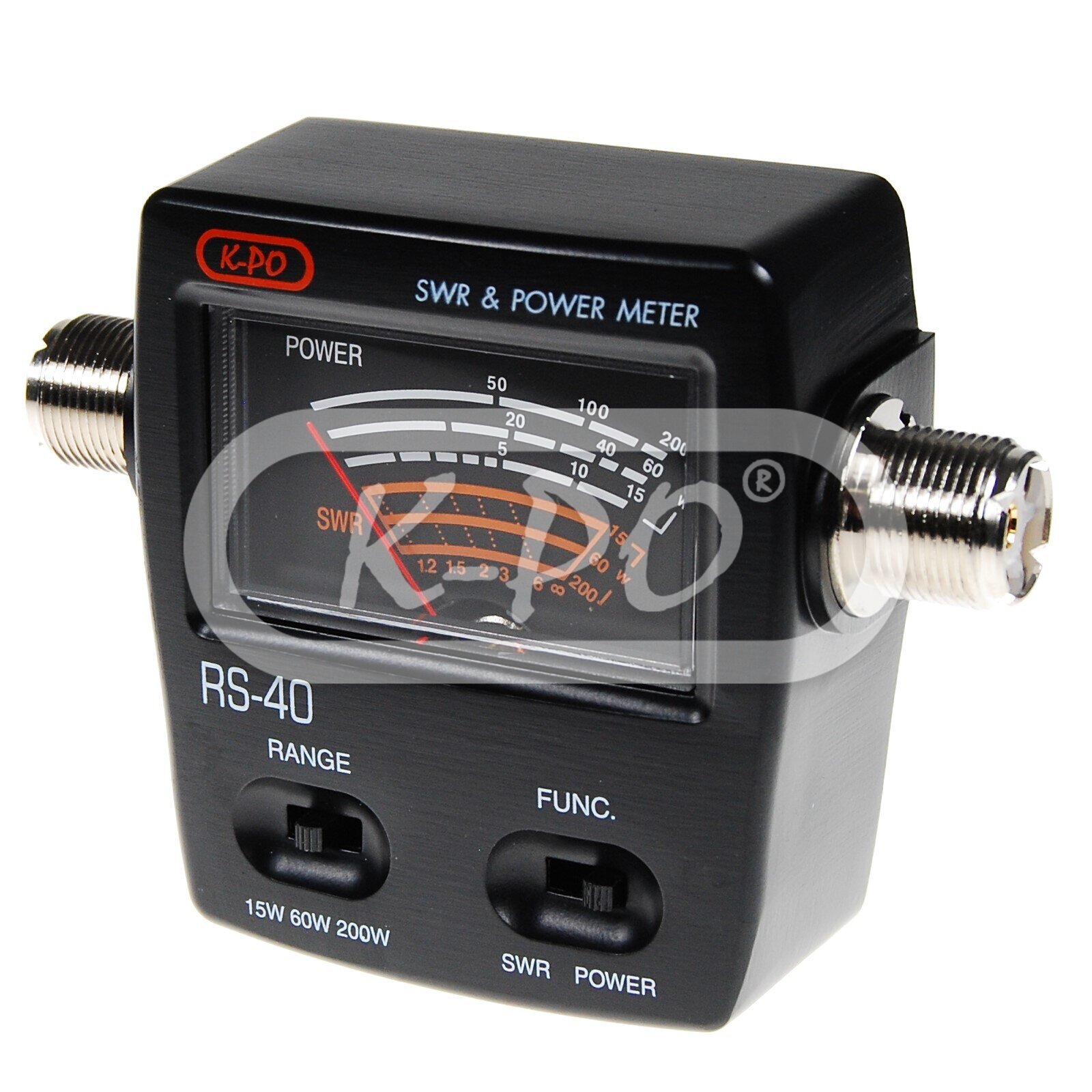

The K-PO RS-40 is a compact SWR and Power meter for the 2 meter and 70 cm band. On the clear analogue meter you can read out easily the SWR of your antenna or the output power of your radio. Output power measuring till 200 Watts.

Made by Nissei, Taiwan.

Frequency range: 140 - 150 / 430 - 450 MHz
Shipped next business day - Stock: 5
€49.95 (41.28 excl. 21% VAT)

Features

  • Meter: Clear analogue meter
  • Reading: Direct read out without calibration
  • Insertion loss: Low insertion loss structure, can be connected permanently in your setup

Electrical data

  • Impedance: 50 Ohm
  • Power range: 15 / 60 / 200 Watts
  • Accuracy: 15 Watts: ± 10% (AVG) / 60 - 200 Watts: ± 5% (AVG)
  • Minimum Power for SWR: 3 Watt
  • Insertion loss: 0.3 dB or lower
  • Testing function: SWR and Power (FWD)

Mechanical data

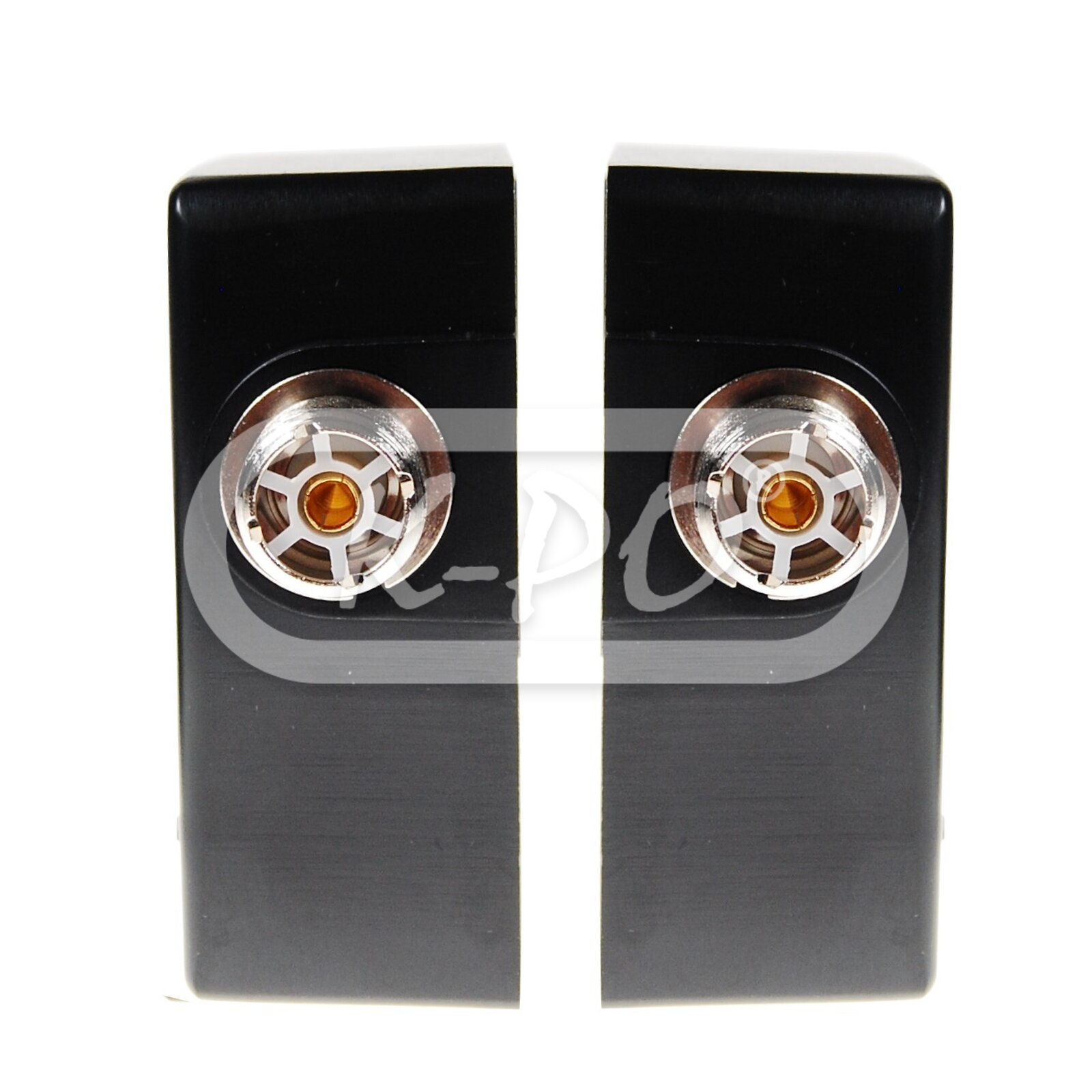

  • Input connector: 70 mm
  • Length: 70 mm
  • Height: 30 mm
  • Width: 78 mm
  • Weight: 180 gram

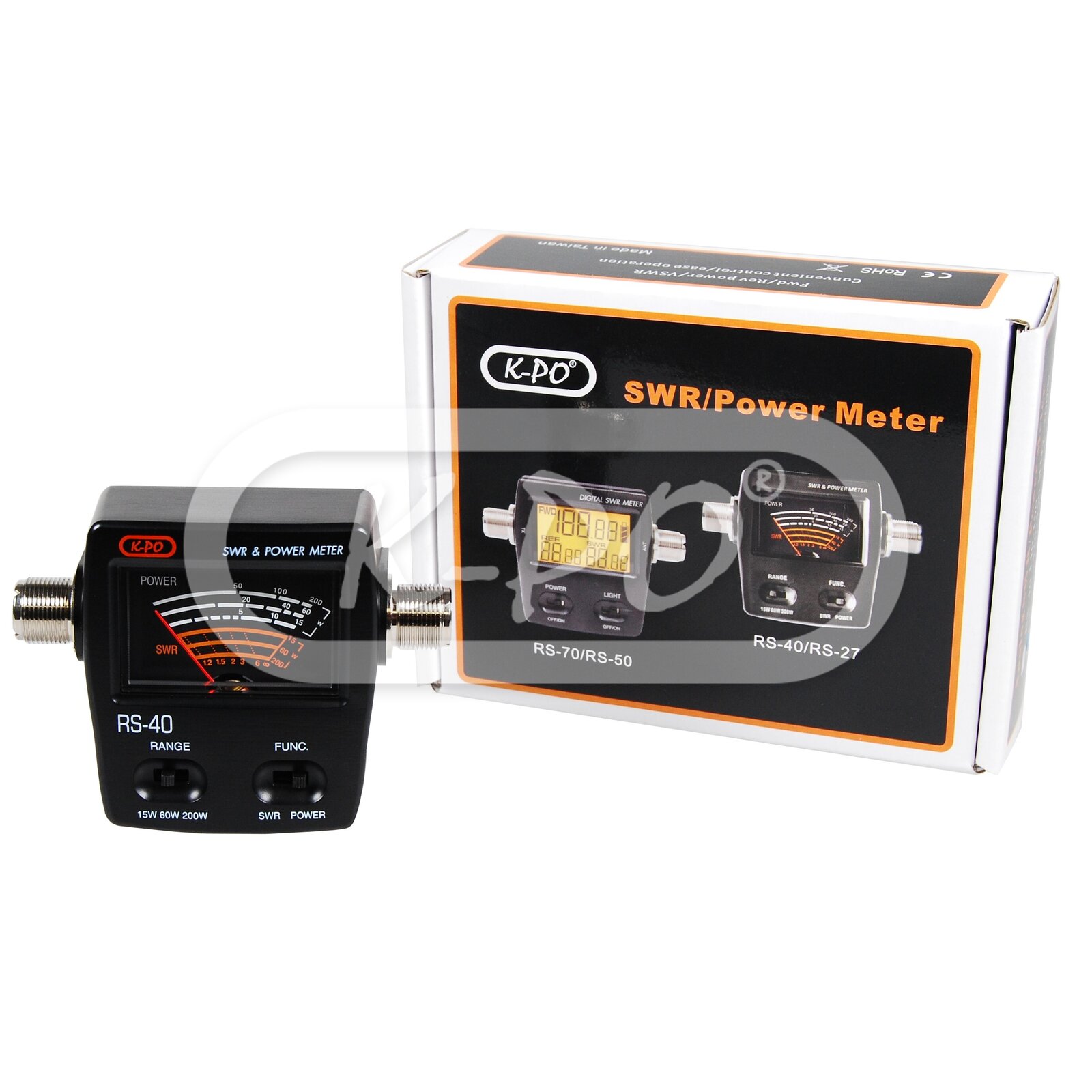

Inside the box

  • Meter: Yes
  • Installation manual: English
