K-PO - RS-50 K-PO - RS-50 K-PO - RS-50 K-PO - RS-50 K-PO - RS-50

K-PO - RS-50

Product code: 900550
Barcode: 8781375102163

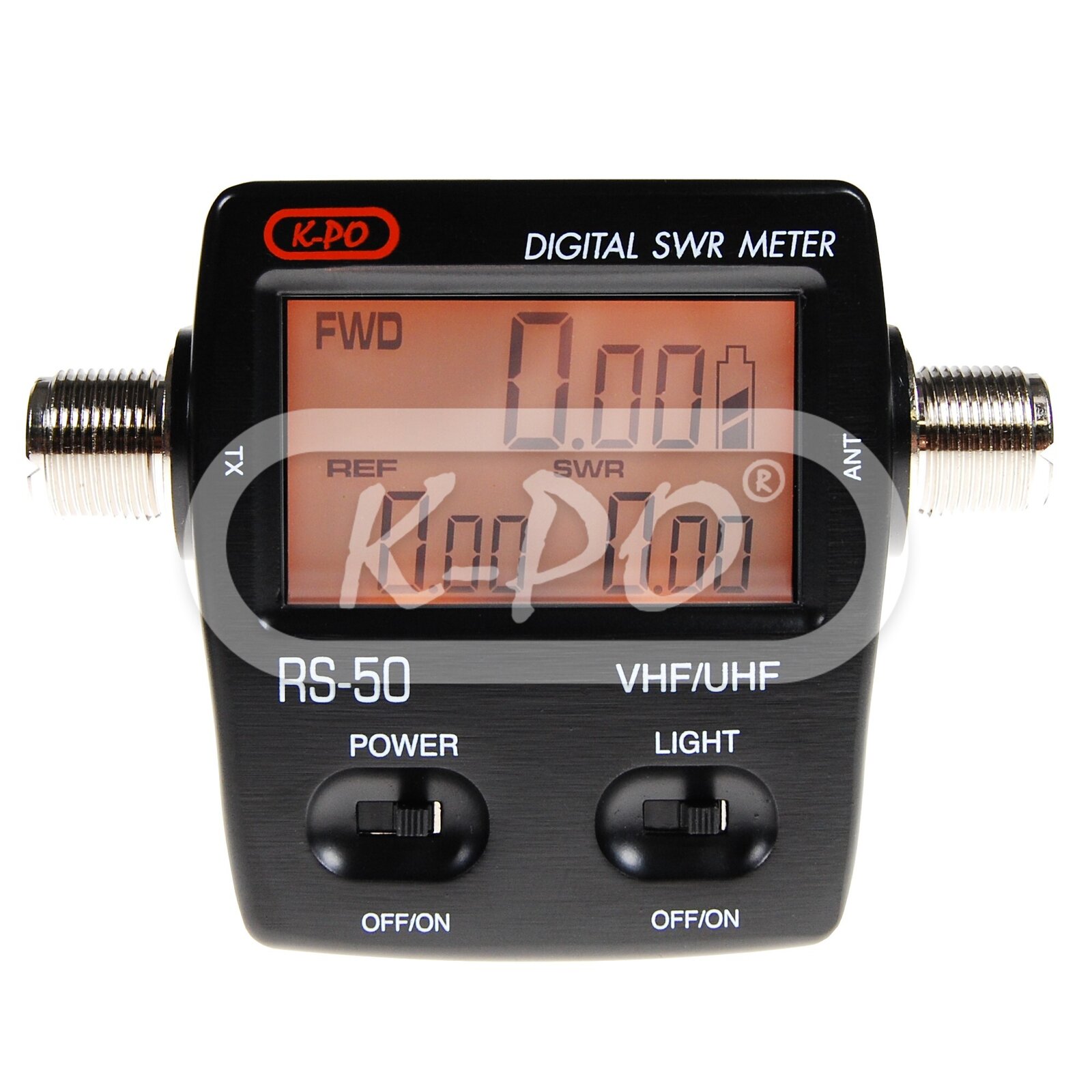

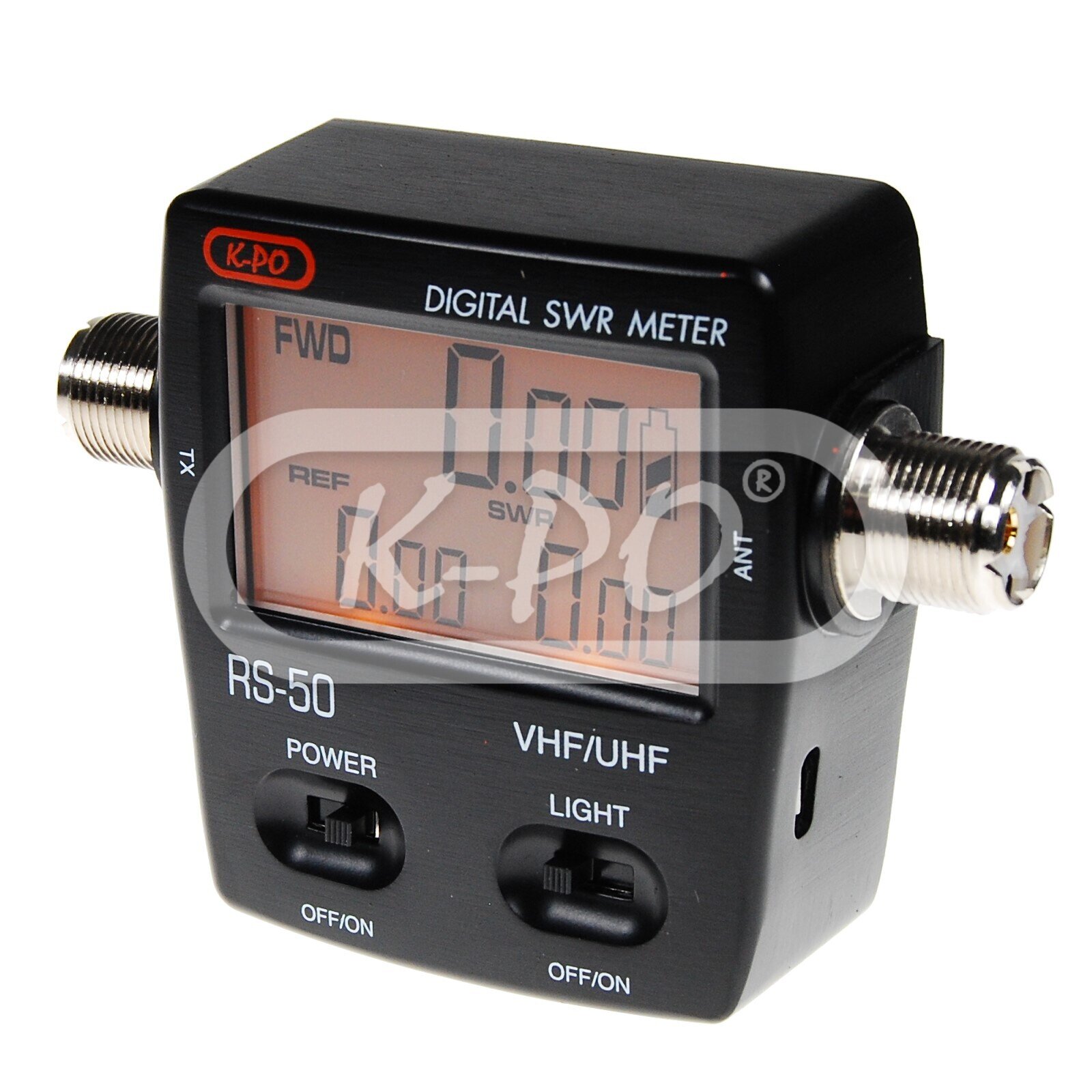

The K-PO RS-50 is a compact SWR and Power meter with a clear digital LCD display for 140-170 and 430-470 MHz, including the 2 meter and 70 cm bands. You can read out simultaneously the SWR, Forward and Reflected Power. For use with analogue and FDMA modulations. Continuous power read out only, no PEP / SSB power measurement. Output power measuring till 120 Watts.

Made by Nissei, Taiwan.

Frequency range: 140 - 170 / 430 - 470 MHz
Shipped next business day
€89.95 (74.34 excl. 21% VAT)

Features

  • Meter: Clear LCD backlit display
  • Reading: Direct read out of Forward Wower, Reflected Power and SWR

Electrical data

  • Backlight display / meter: Yes
  • Impedance: 50 Ohm
  • Power range: 0 - 120 Watts
  • Accuracy: ± 5% (AVG)
  • Minimum Power for SWR: 1 Watt
  • Insertion loss: 0.3 dB or lower
  • Testing function: SWR and Power (FWD and REF / AVG and PEP)
  • Maximum power: 120 Watts
  • Power supply: 2x AAA batteries (not included) or micro-USB port (5V / 2.0A) (not for charging the batteries, the meter has no built-in charger)

Mechanical data

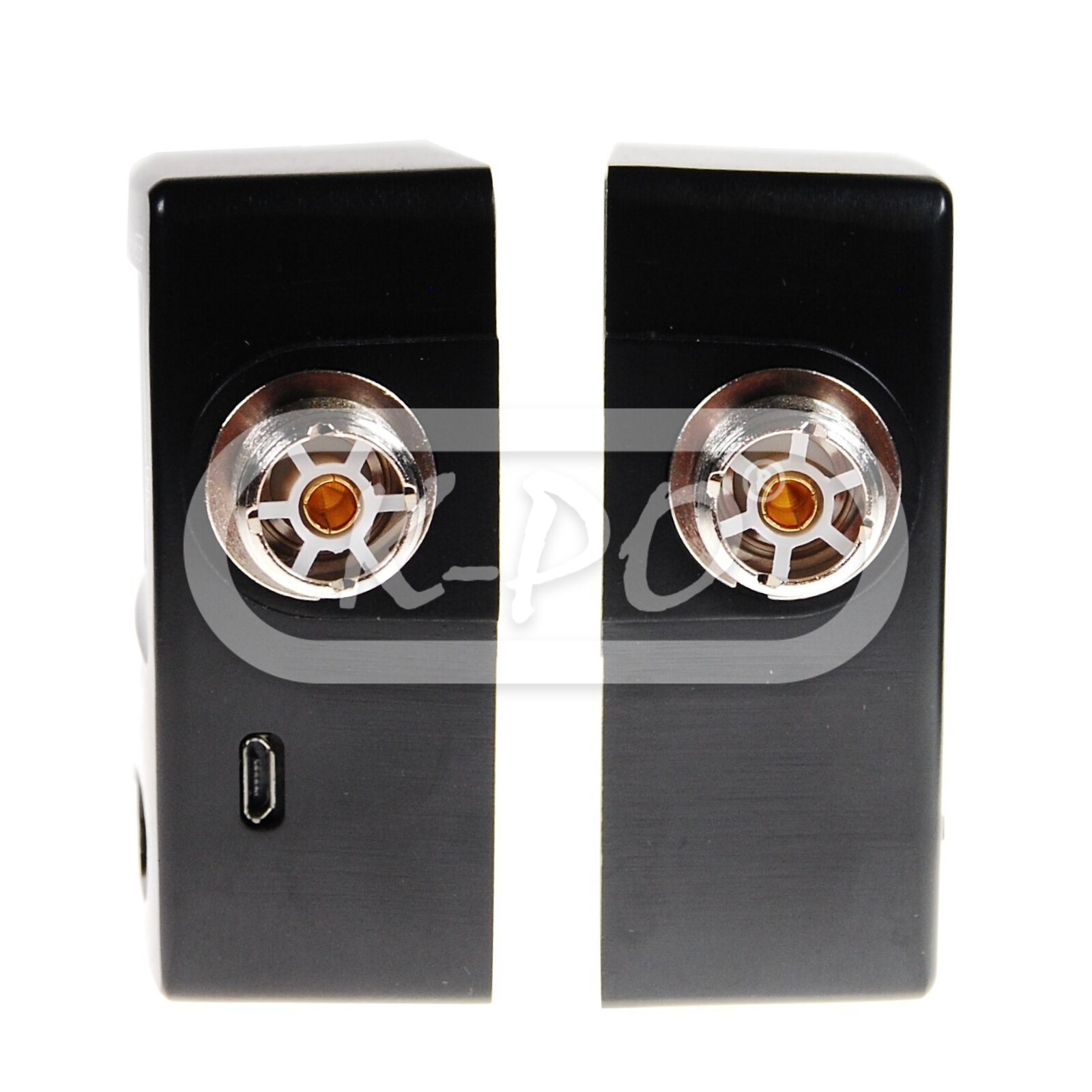

  • Input connector: UHF (PL) female
  • Output connector: UHF (PL) female
  • Length: 70 mm
  • Height: 30 mm
  • Width: 78 mm
  • Weight: 220 gram

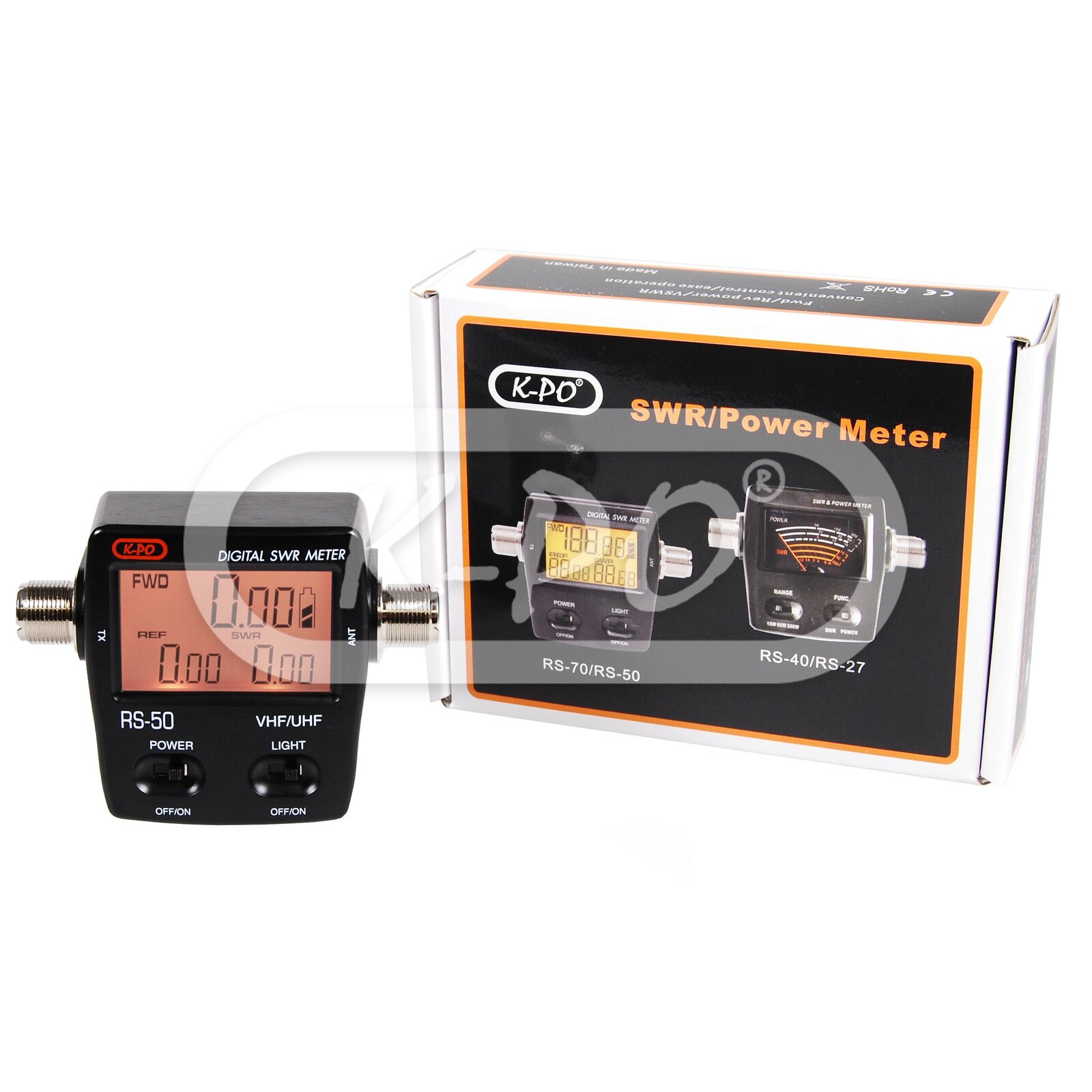

Inside the box

  • Meter: Yes
  • Installation manual: English
  • USB cable: Yes, micro USB
