K-PO - SX-40

Product code: 900040
Barcode: 8718375100202

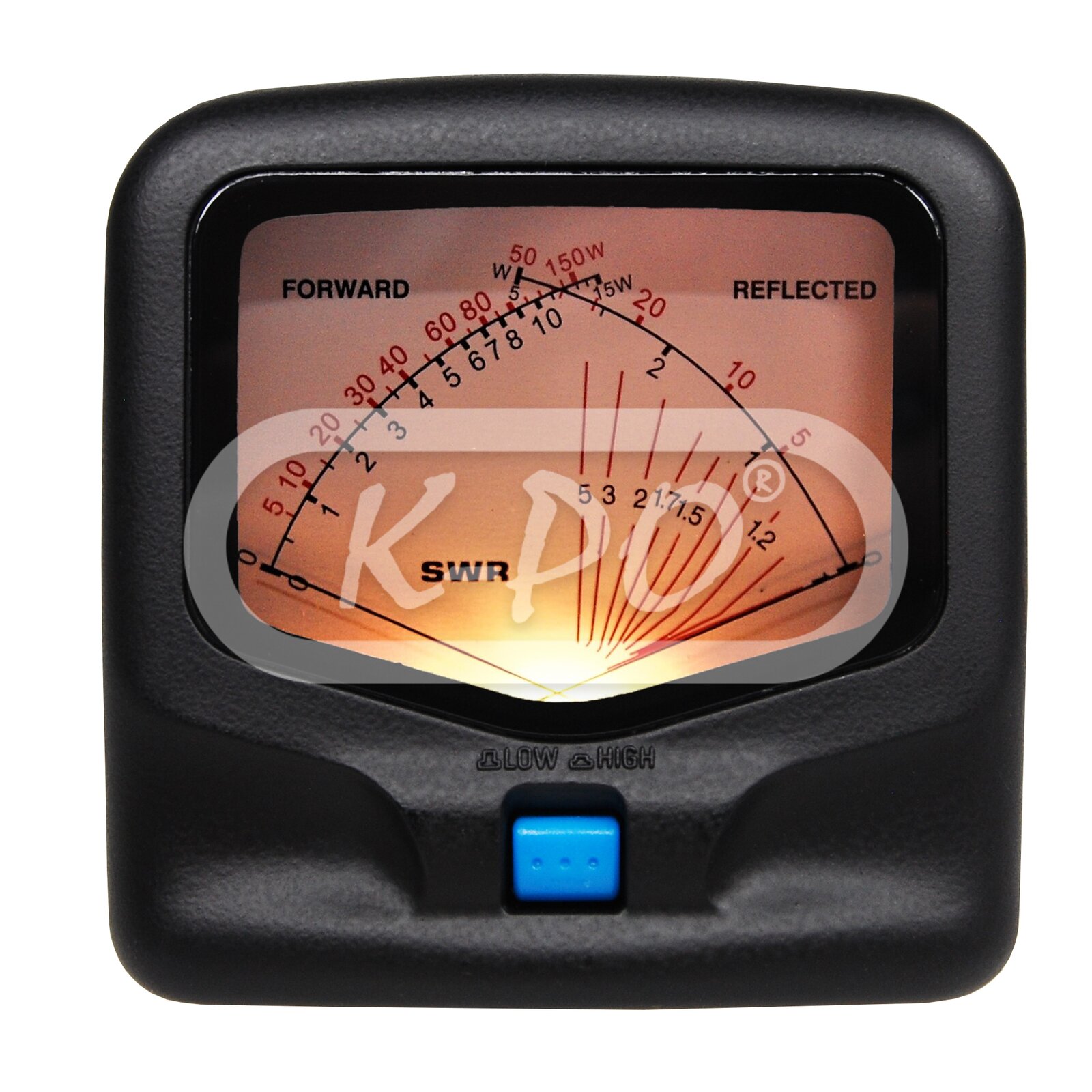

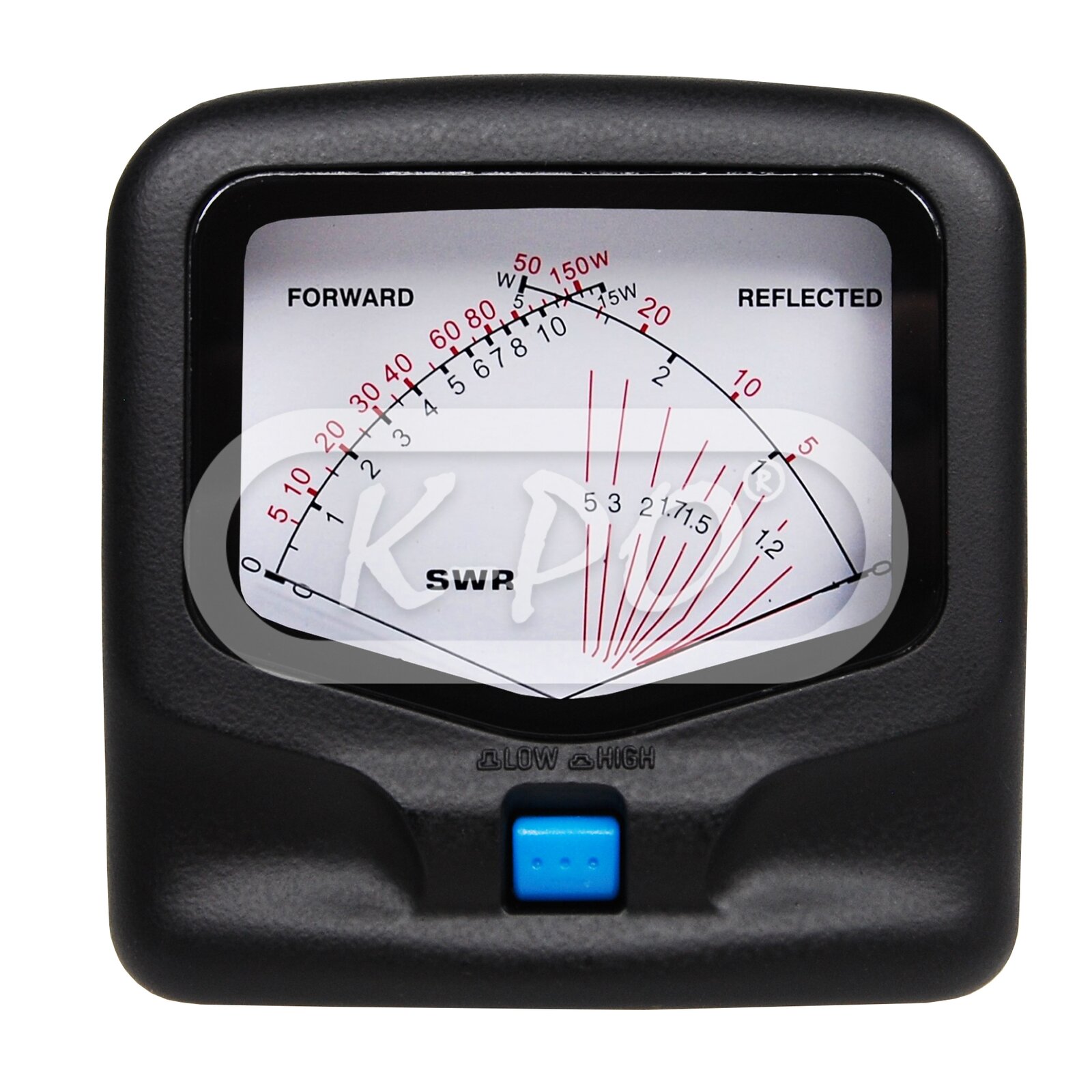

The K-PO SX-40 is a compact SWR and Power meter with a frequency range of 140 - 525 MHz. Featuring cross needle design for measuring SWR and output power simultaneously. Compact size makes it very useful for testing mobiles as well as base station installation.

Frequency range: 140 - 525 MHz
Out of stock - Longer delivery time
€59.94 (49.54 excl. 21% VAT)

Electrical data

  • Backlight display / meter: Yes
  • Impedance: 50 Ohm
  • Power range: 15 / 150 Watts
  • Accuracy: ± 10%
  • Minimum Power for SWR: 1 Watt
  • Testing function: SWR and Power (FWD and REF)
  • Voltage: 13.8 Volt, for display lightning only

Mechanical data

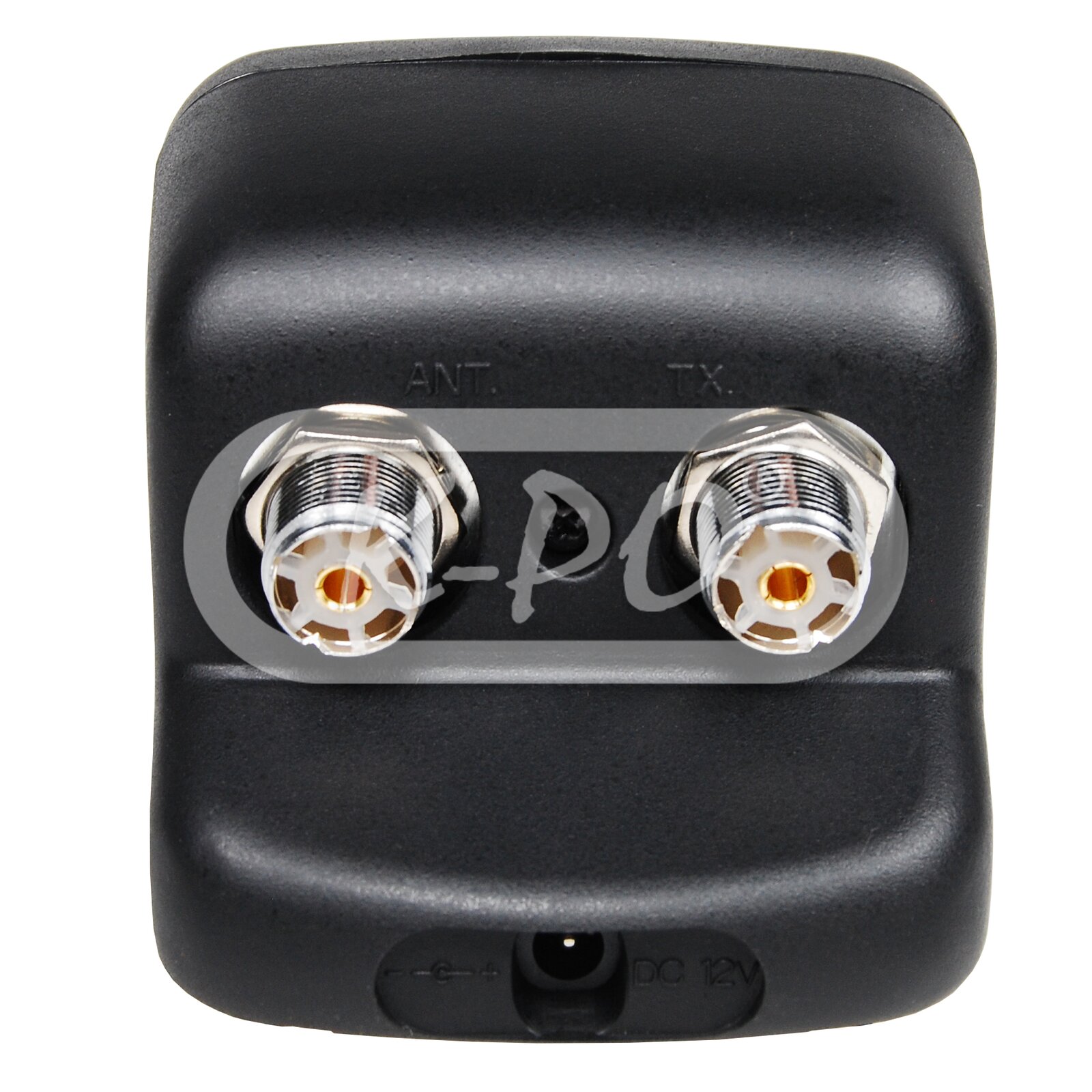

  • Input connector: UHF (PL) female
  • Output connector: UHF (PL) female
  • Length: 95 mm
  • Height: 87 mm
  • Width: 85 mm
  • Weight: 280 gram

Inside the box

  • Meter: Yes
  • DC power cable: Yes
  • Installation manual: English
