K-PO - SX-600N

Product code: 900601
Barcode: 8718375100233

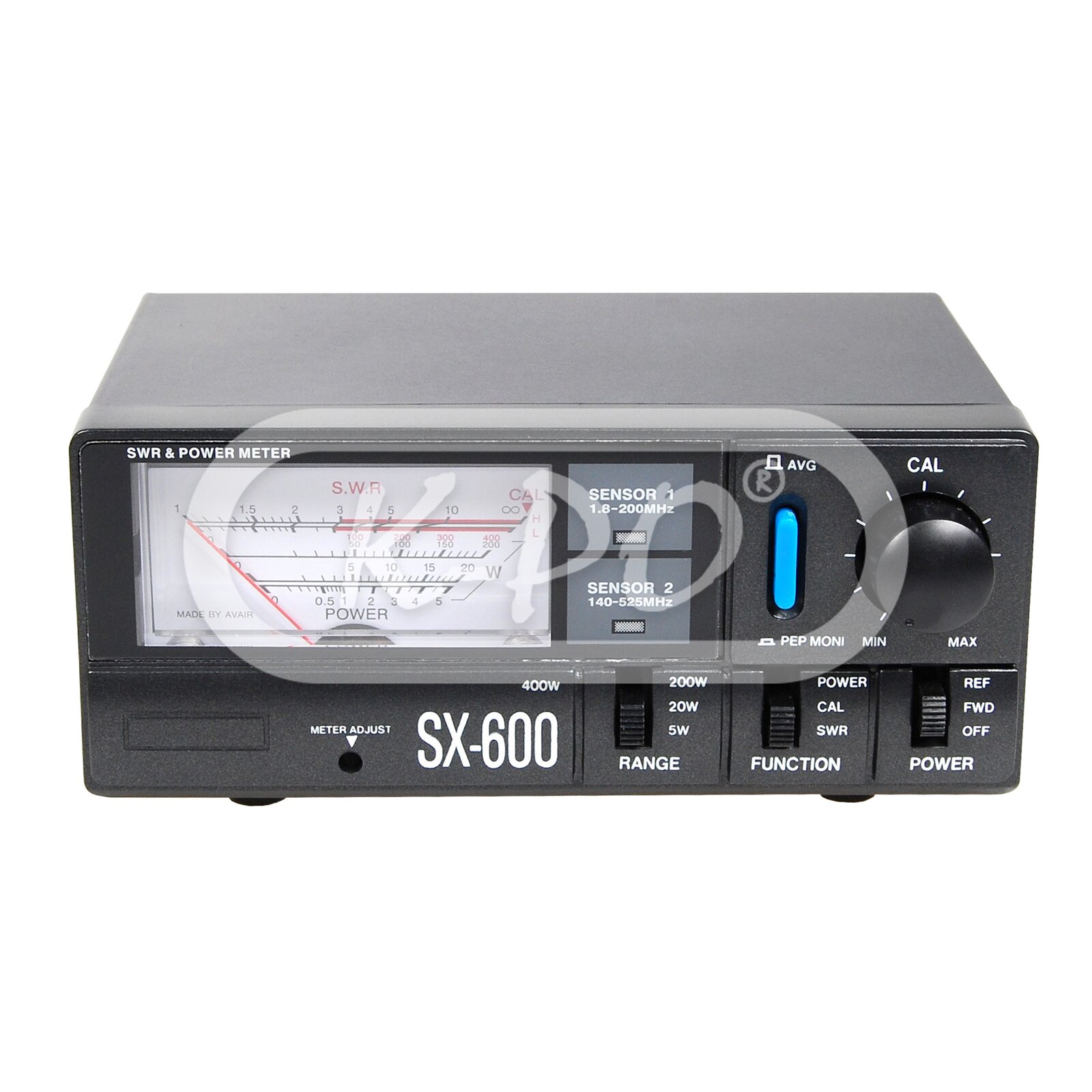

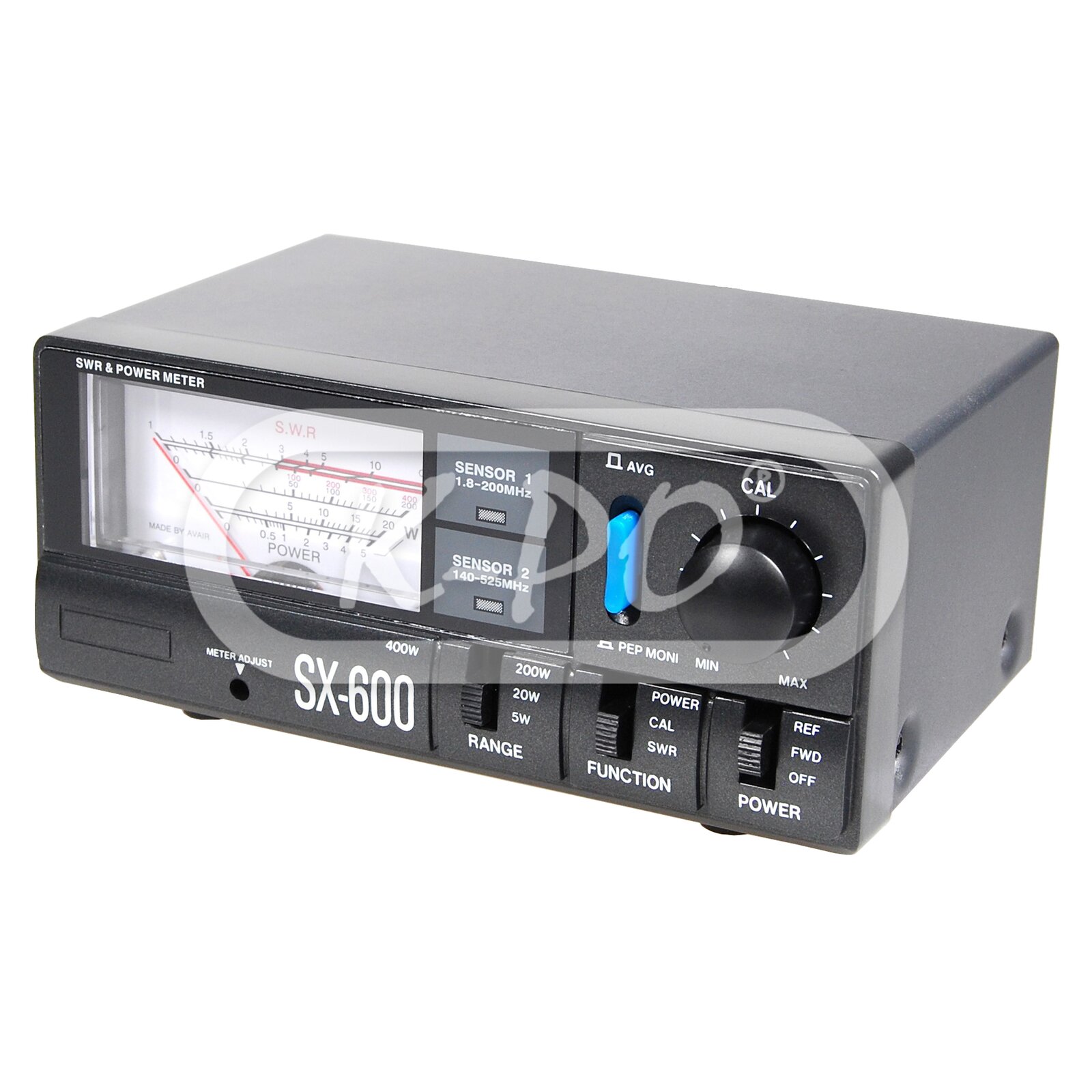

The K-PO SX-600 measures Forward Power, Reflected Power and SWR. Two frequency modes, S1: 1.8 - 160 and S2: 140 - 525 MHz, each with their own set of connectors on the backside. AVG / PEP switch to select average power or SSB / PEP.

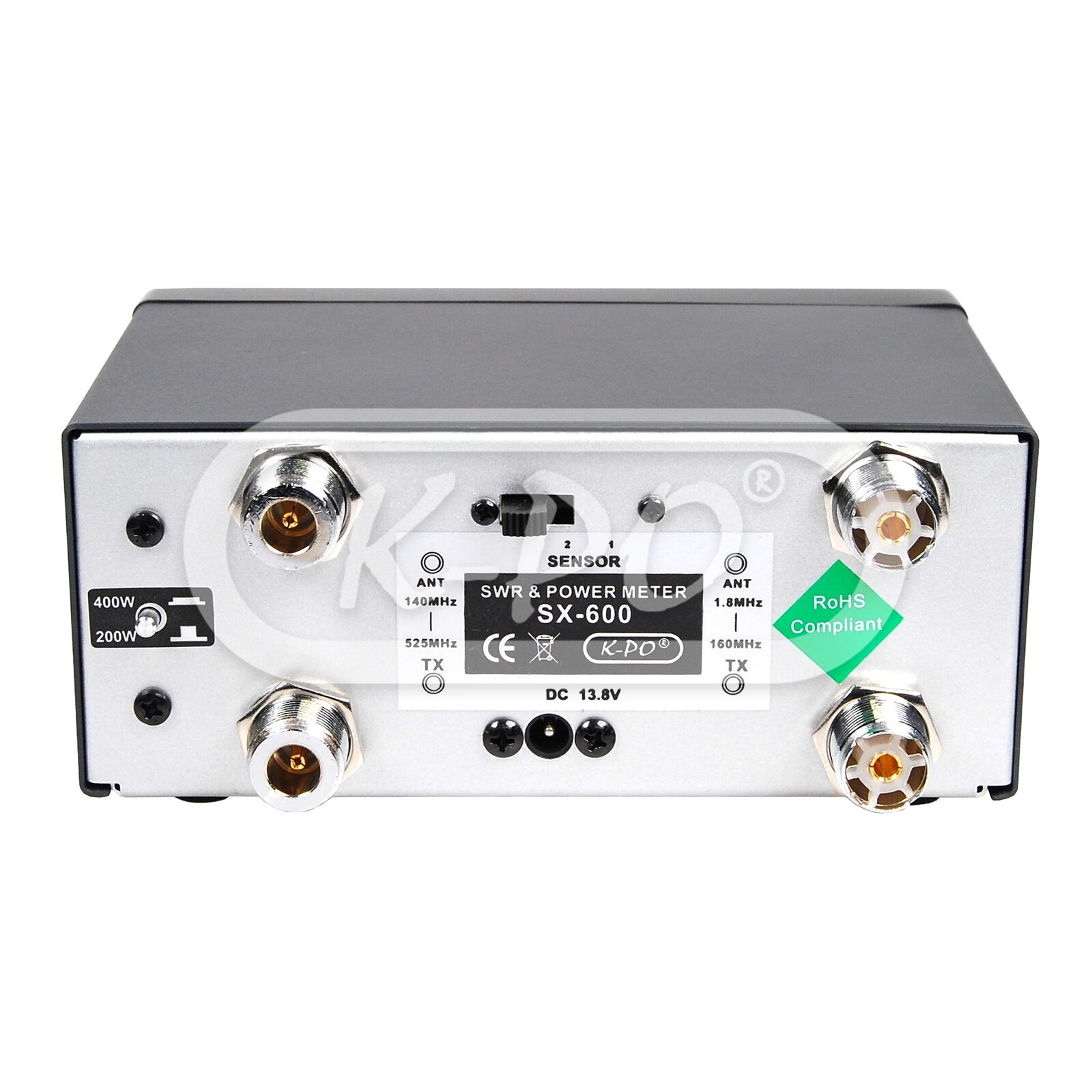

The 'N' version has 1x UHF-female input connector and 1x UHF-female output connector for (S1) 1.8 - 160 MHz and 1x N-female input connector and 1x N-female output connector for (S2) 140 - 525 MHz.

It's compact size makes this meter useful for testing both base and mobile installations and for permanent installation in your setup.

Frequency range: 1.8 - 160 / 140 - 525 MHz
Out of stock - Longer delivery time
€104.94 (86.73 excl. 21% VAT)

Electrical data

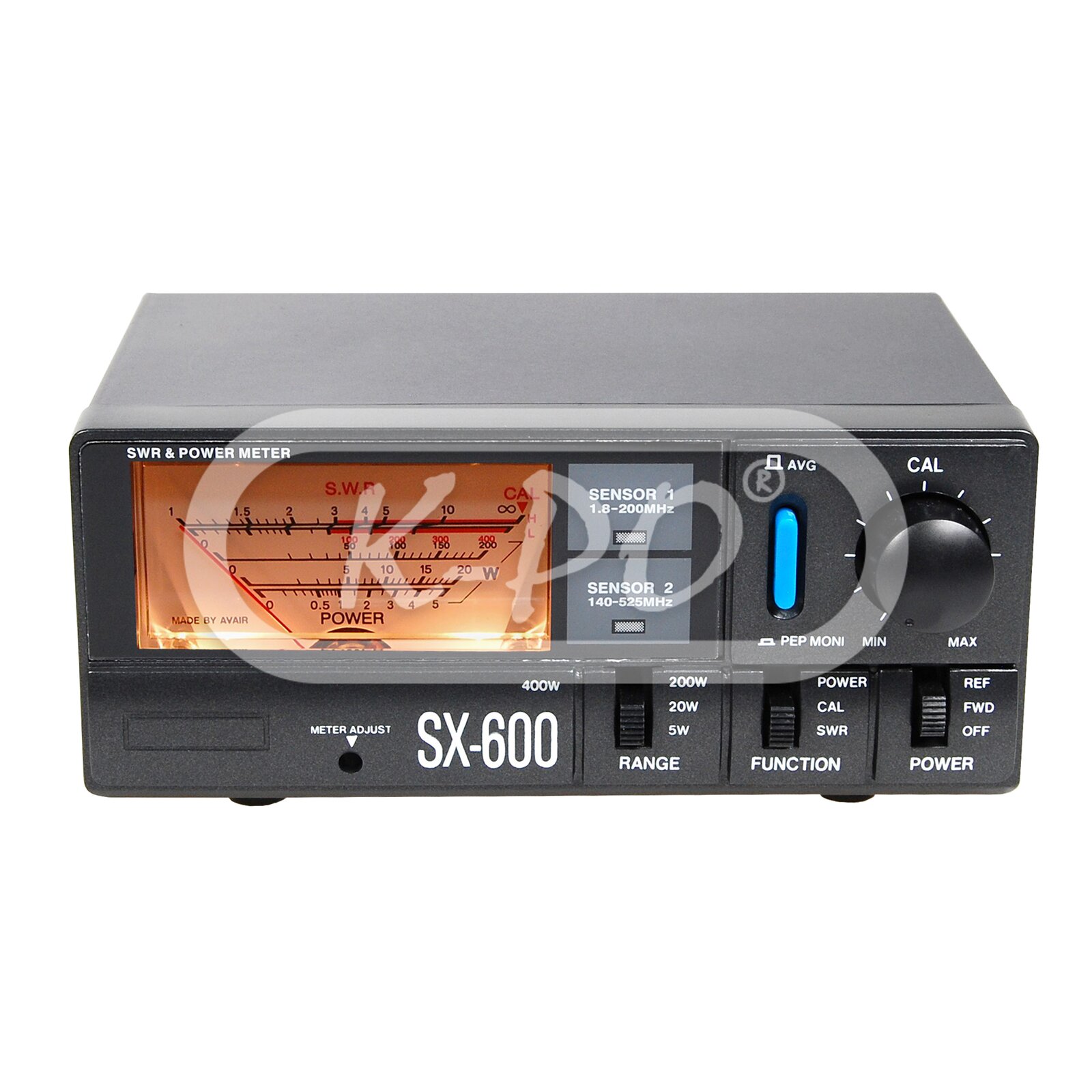

  • Backlight display / meter: Yes
  • Impedance: 50 Ohm
  • Power range: 5 / 20 / 200 / 400 Watts
  • Accuracy: 5 Watts: ± 5% / 20 Watts: 7.5% / 200 Watts: ± 10% / 400 Watts: ± 12.5%
  • Minimum Power for SWR: 0.5 Watt
  • Insertion loss: 0.2 dB
  • Testing function: SWR and Power (FWD and REF / AVG and PEP)
  • Voltage: 13.8 Volt, for display lightning only
  • 200 / 400 Watts power switch: Yes, on backside
  • Maximum power handling: 400 Watts 25 sec on, 35 sec off

Mechanical data

  • Input connector: 1.8 - 160 MHz: UHF (PL) female / 140 - 525 MHz: N female
  • Output connector: 1.8 - 160 MHz: UHF (PL) female / 140 - 525 MHz: N female
  • Length: 150 mm
  • Height: 65 mm
  • Width: 100 mm
  • Weight: 720 gram

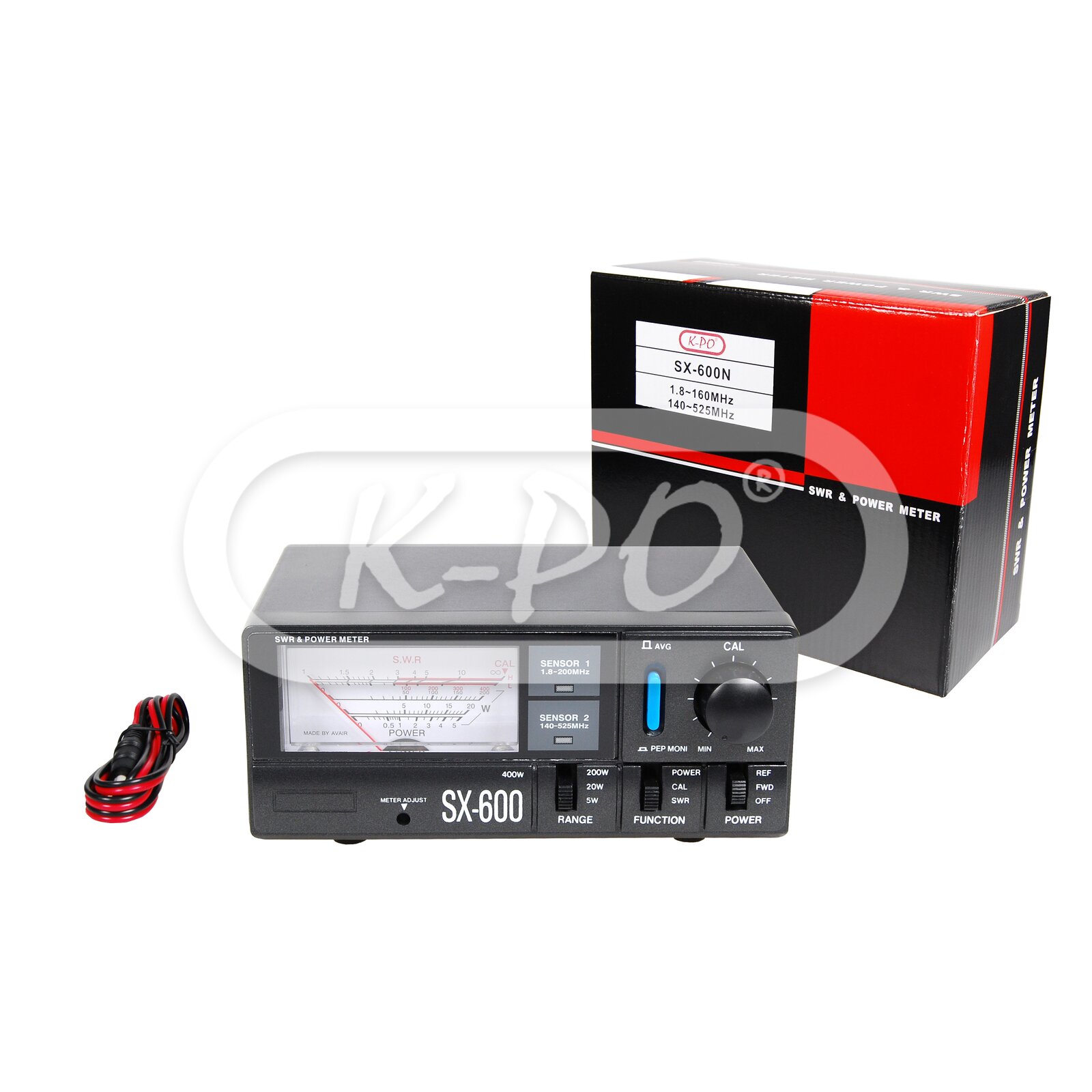

Inside the box

  • Meter: Yes
  • DC power cable: Yes
  • Installation manual: English
