Maas - KCB-H-1000

Product code: 483081
Factory code: 3081
Barcode: 4250158731493

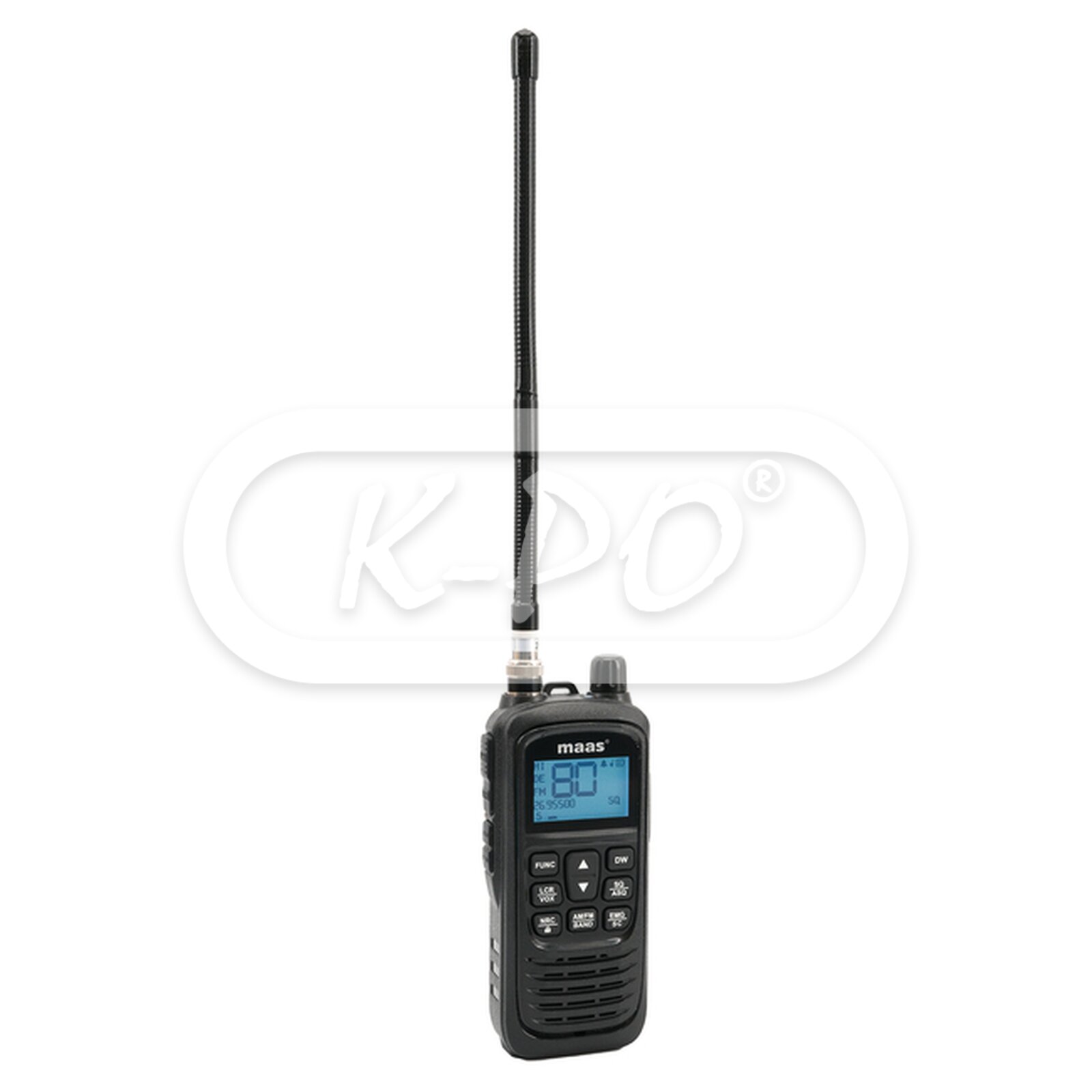

The Maas KCB H-1000 is a modern CB multistandard handheld radio with a rich set of features. It can be operated in many EU countries by simply switching to the appropriate standard. Furthermore, it features NRC, a noise reduction system that noticeably improves playback. Both manual noise squelch (SQL) and automatic noise squelch (ASQ) are also available.

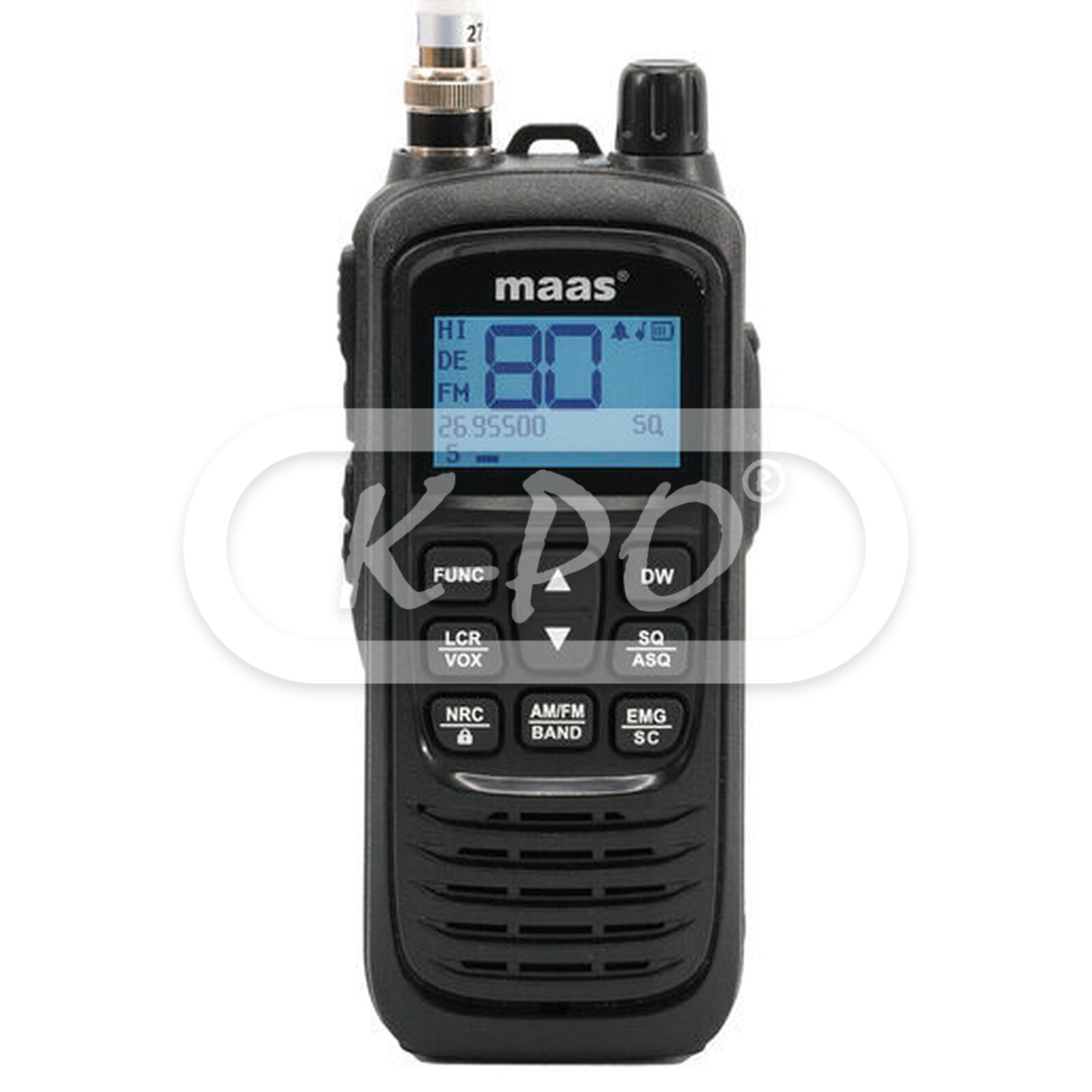

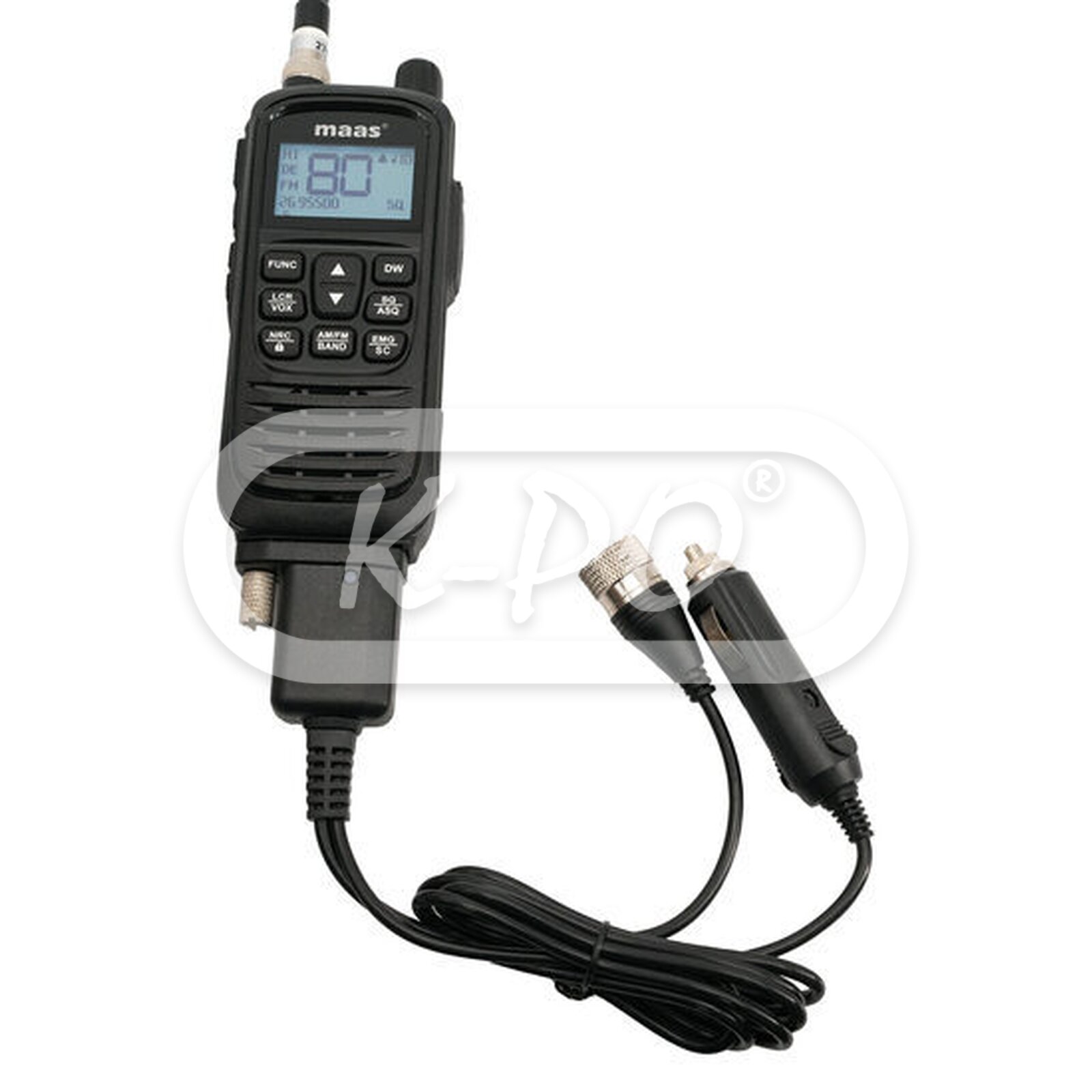

The user-friendly menu structure and the large illuminated display enable easy operation. The included car adapter can quickly transform the Maas KCB H-1000 into a full-fledged mobile radio with the option to connect an external antenna. The USB-C port also allows you to charge the device using common USB 5V adapters or the included 230V or 12V charger.

The external connector for speaker microphones and headsets complies with the "K" standard (Kenwood double-jack plug). This provides a wide range of accessories, or you can use an appropriate microphone adapter to connect table microphones or handheld microphones from mobile radios to the Maas KCB H-1000.

Frequency range: 26,965 MHz - 27,405 MHz
Shipped next business day - Stock: 7
€119.95 (99.13 excl. 21% VAT)

Features

  • Modulation: AM/FM
  • Multi-bands: Yes
  • Output power: 4 Watt
  • Channels: 40 AM / FM
  • Display type: LCD display
  • VOX Function: Yes
  • Squelch: Automatic squelch / Manual squelch /
  • Emergency channel: Yes
  • Keypad lock: Yes
  • Scan function: Yes
  • External speaker socket: Yes
  • S-meter: Yes
  • Dual watch: Yes
  • Car socket connector: Yes
  • USB-C socket: Yes
  • Low battery indicator: Yes

Mechanical data

  • Length: 154 mm
  • Height: 42 mm
  • Width: 70 mm
  • Weight: 356 gram
  • Antenna connector: BNC

Electrical data

  • Voltage: 7,4 Volt
  • Operating temperature: -26 °C ~ +80 °C
  • Frequency tolerance:: ±300 Hz
  • Consumption:: < 1.3 A
  • Frequency response:: 300–3000 Hz
  • Distortion:: < 8%
  • Impedance:: 50 Ohm
  • Reception sensitivity:: 0.25 uv @ 12 dB
  • Interference rejection:: 60 dB
  • Audio power:: 1 W
  • Operating temperature:: –26 °C ~ +80 °C

Inside the box

  • Transceiver: 1 pcs
  • User Manual: English, German, Spanish, French
  • Antenna:: Yes
  • Battery pack:: Yes
  • Belt clip:: Yes
  • USB-C charging cable:: Yes

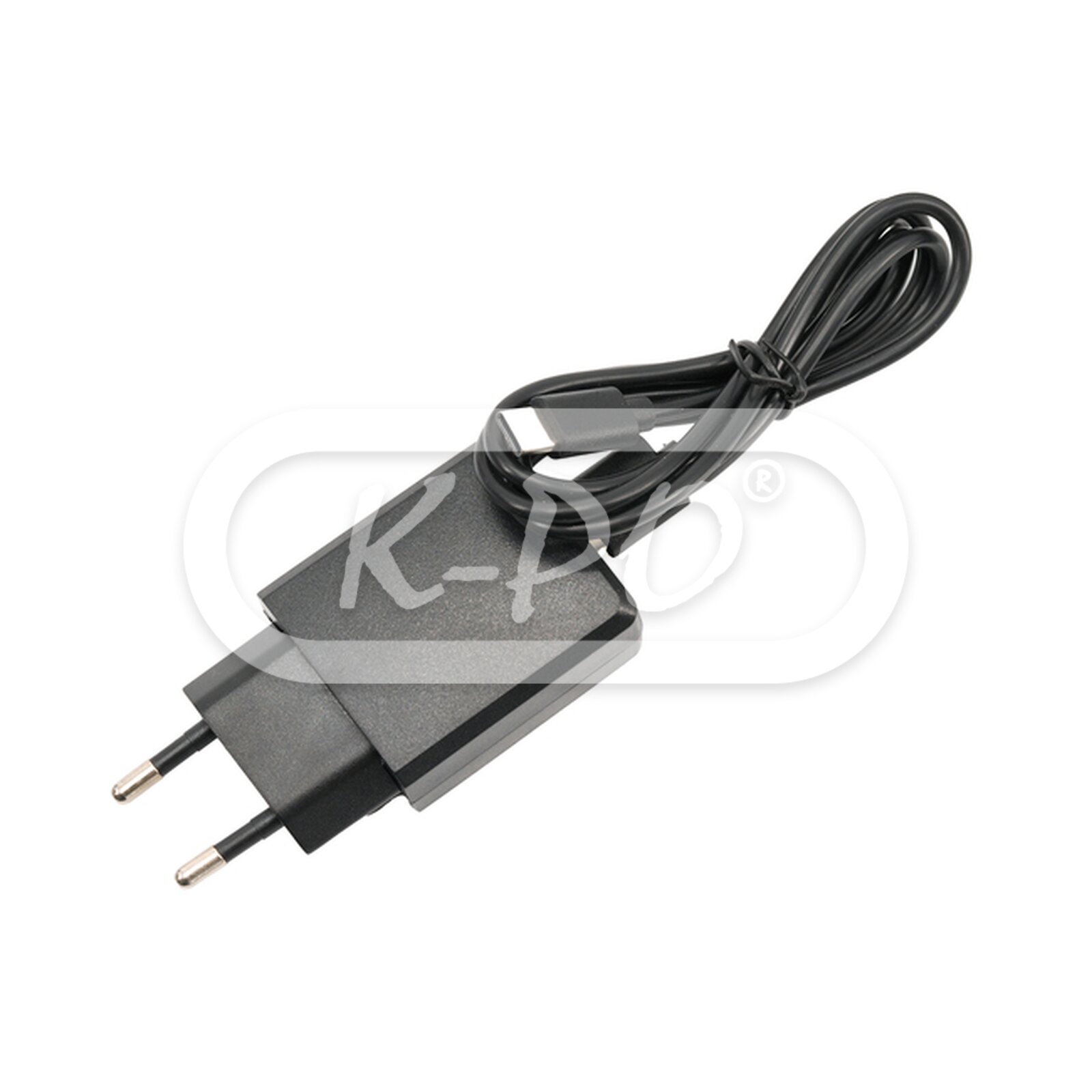

  • AC (EU) wall charger: 5V / 2A USB:: Yes

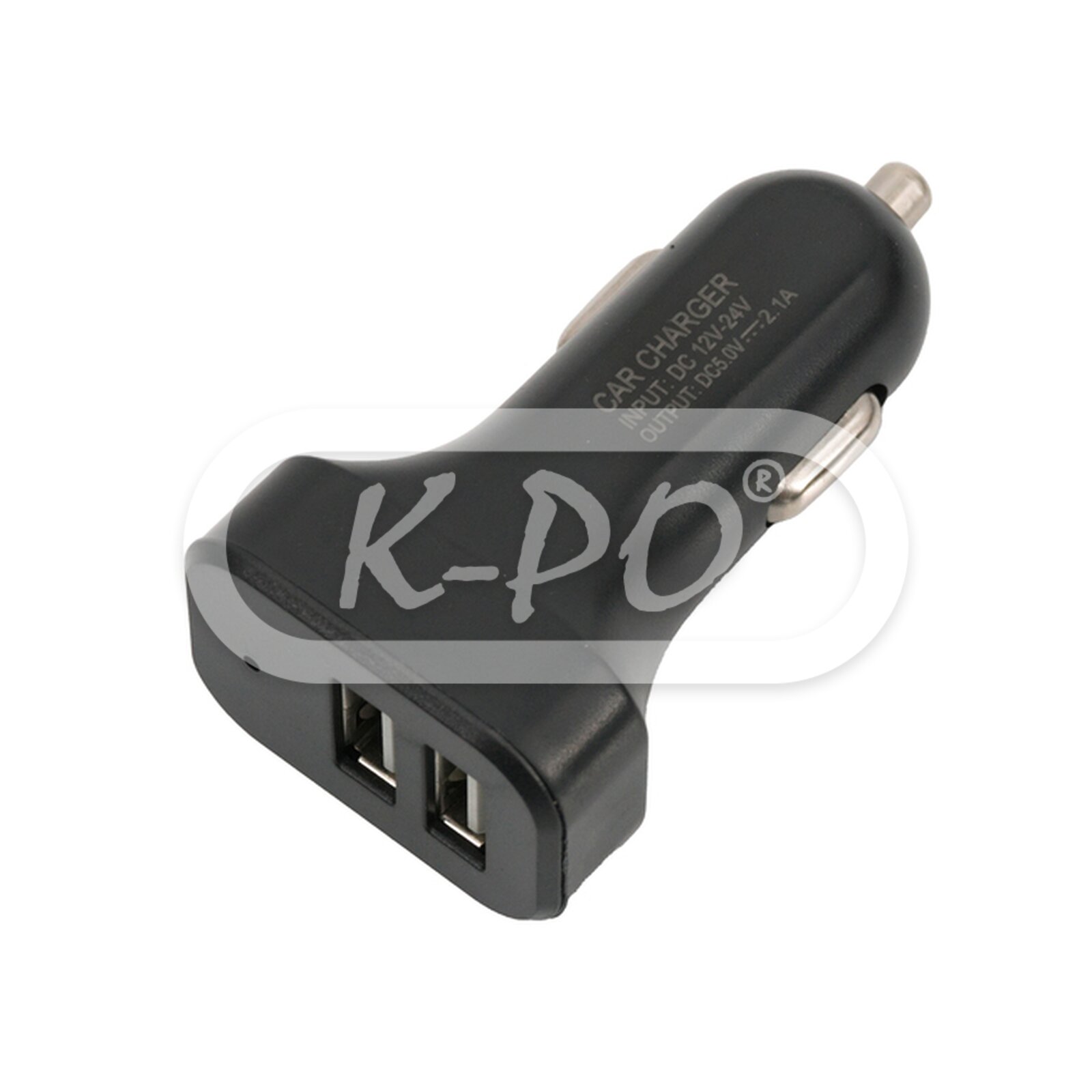

  • Cigarette lighter adapter 12V/5V USB:: Yes
