Maas - RS-1000

Product code: 101024
Barcode: 4250158701939

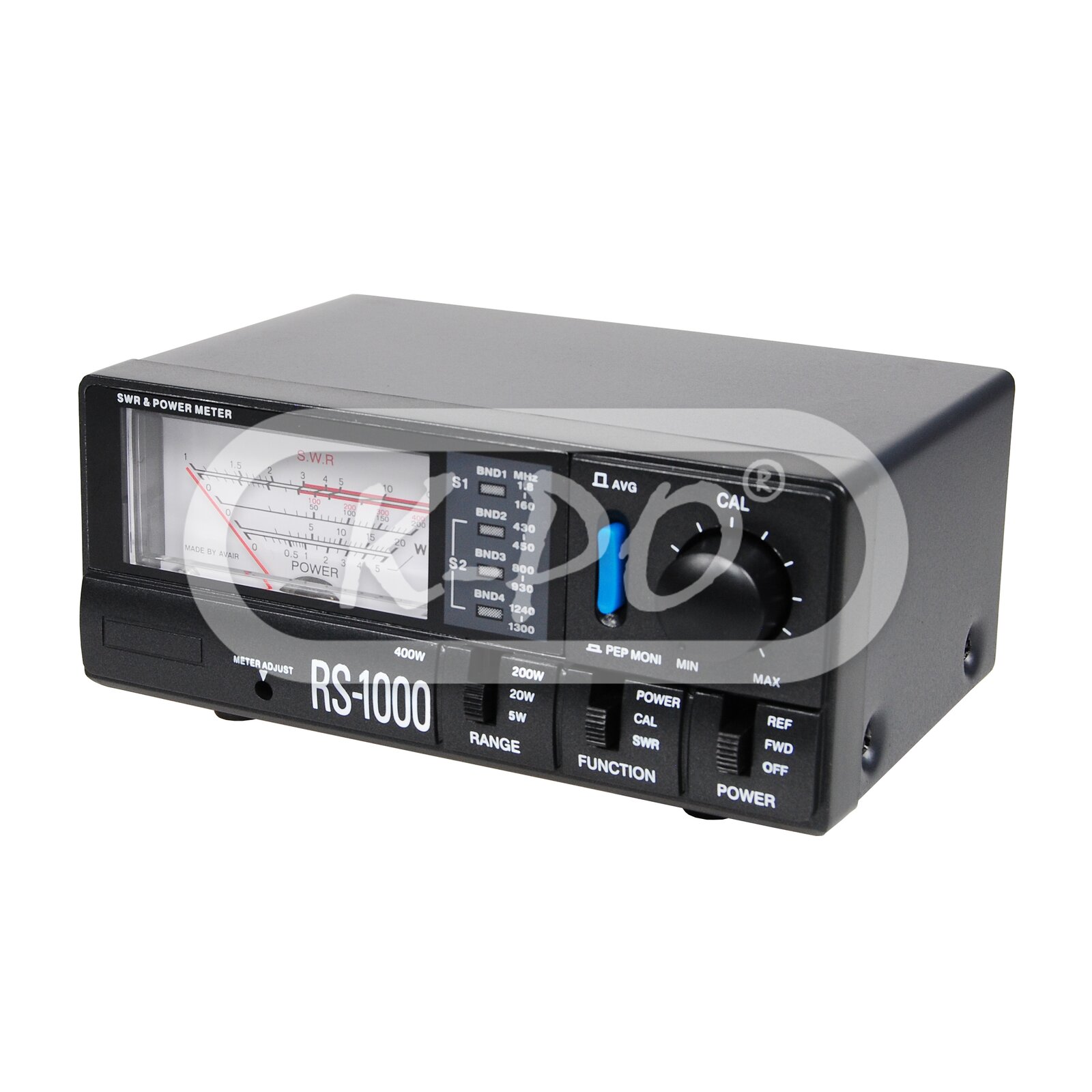

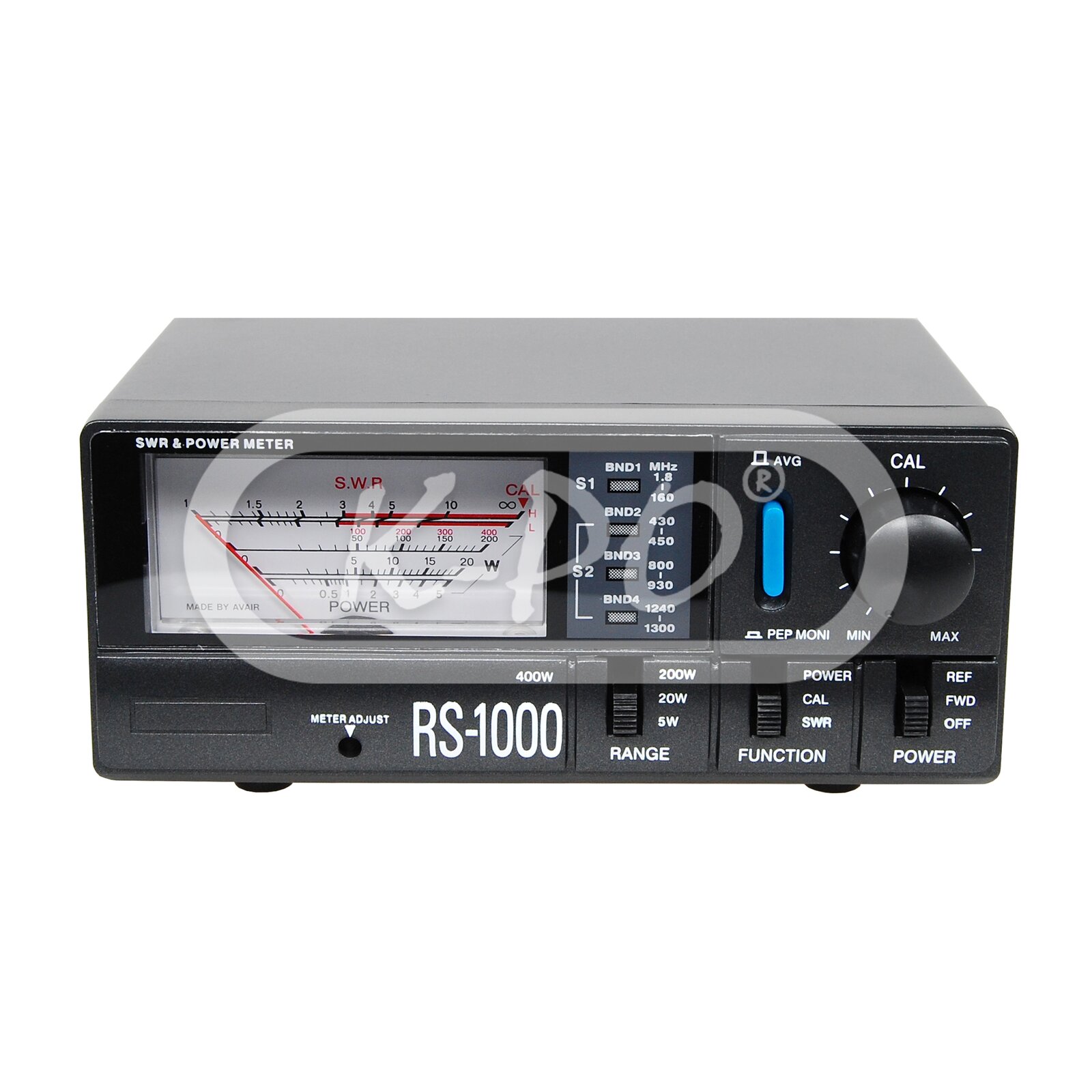

The Maas RS-1000 is the most fully equipped model in this series. It measures Forward Power, Reflected Power and SWR. Two frequency modes, S1: 1.8 - 160 and S2: 430 - 450 MHz / 800 - 930 MHz / 1240 - 1300 MHz, each with their own set of connectors on the backside. The meter automatic recognizes the frequency range in S2 mode.

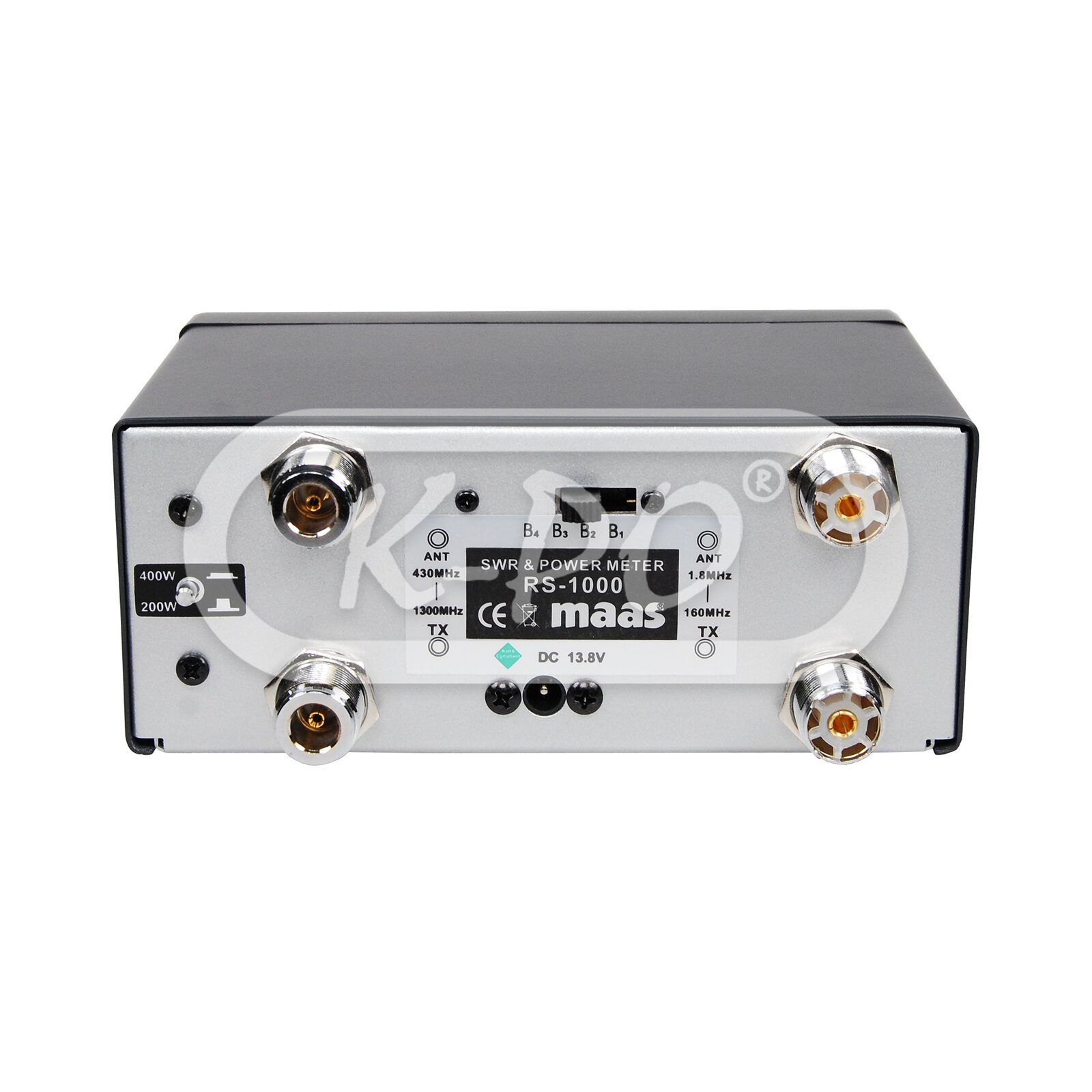

The meter has 1x UHF-female input connector and 1x UHF-female output connector for S1 mode and 1x N-female input connector and 1x N-female output connector for S2 mode.

It's compact size makes this meter useful for testing both base and mobile installations and for permanent installation in your setup.

Frequency range: 1.8 - 160 / 430 - 450 / 800 - 930 / 1240 - 1300 MHz
Out of stock - Longer delivery time
€128.95 (106.57 excl. 21% VAT)

Electrical data

  • Backlight display / meter: Yes
  • Impedance: 50 Ohm
  • Power range: 1.8 - 160 MHz: 5 / 20 / 200 / 400 Watts / 430 - 1300 MHz: 200 Watts
  • Accuracy: 5 Watts: ± 5%, / 20 Watts: ± 7.5% / 200 Watts: ± 10% / 400 Watts: ± 12.5%
  • Minimum Power for SWR: 0.5 Watt
  • Insertion loss: 1.8 - 160 MHz: 0.2 dB / 430 - 1300 MHz: 0.3 dB
  • Testing function: SWR and Power (FWD and REF / AVG and PEP)
  • Voltage: 13.8 Volt, for display lightning only
  • 200 / 400 Watt power switch: Yes, on backside for S1 (1.8 - 160 MHz) mode only
  • Maximum power handling S1: 400 Watts 25 sec on, 35 sec off
  • Maximum power handling S2: 200 Watts 25 sec on, 35 sec off

Mechanical data

  • Input connector: 1.8 - 160 MHz: UHF (PL) female / 430 - 1300 MHz: N female
  • Output connector: 1.8 - 160 MHz: UHF (PL) female / 430 - 1300 MHz: N female
  • Length: 150 mm
  • Height: 65 mm
  • Width: 100 mm
  • Weight: 730 gram

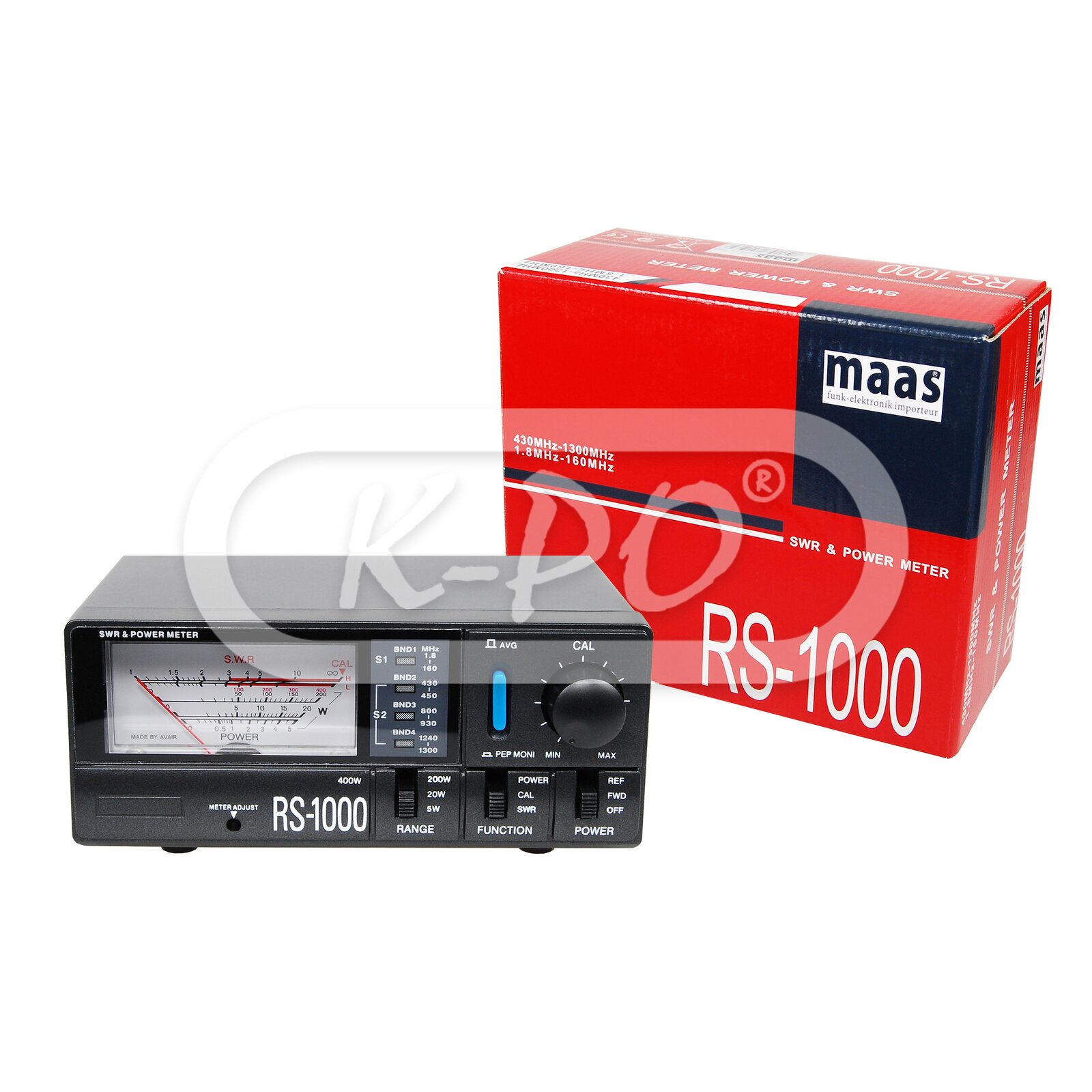

Inside the box

  • Meter: Yes
  • DC power cable: Yes
  • Installation manual: English
