Maas - RX-20

Product code: 101148

Barcode: 4250158701892

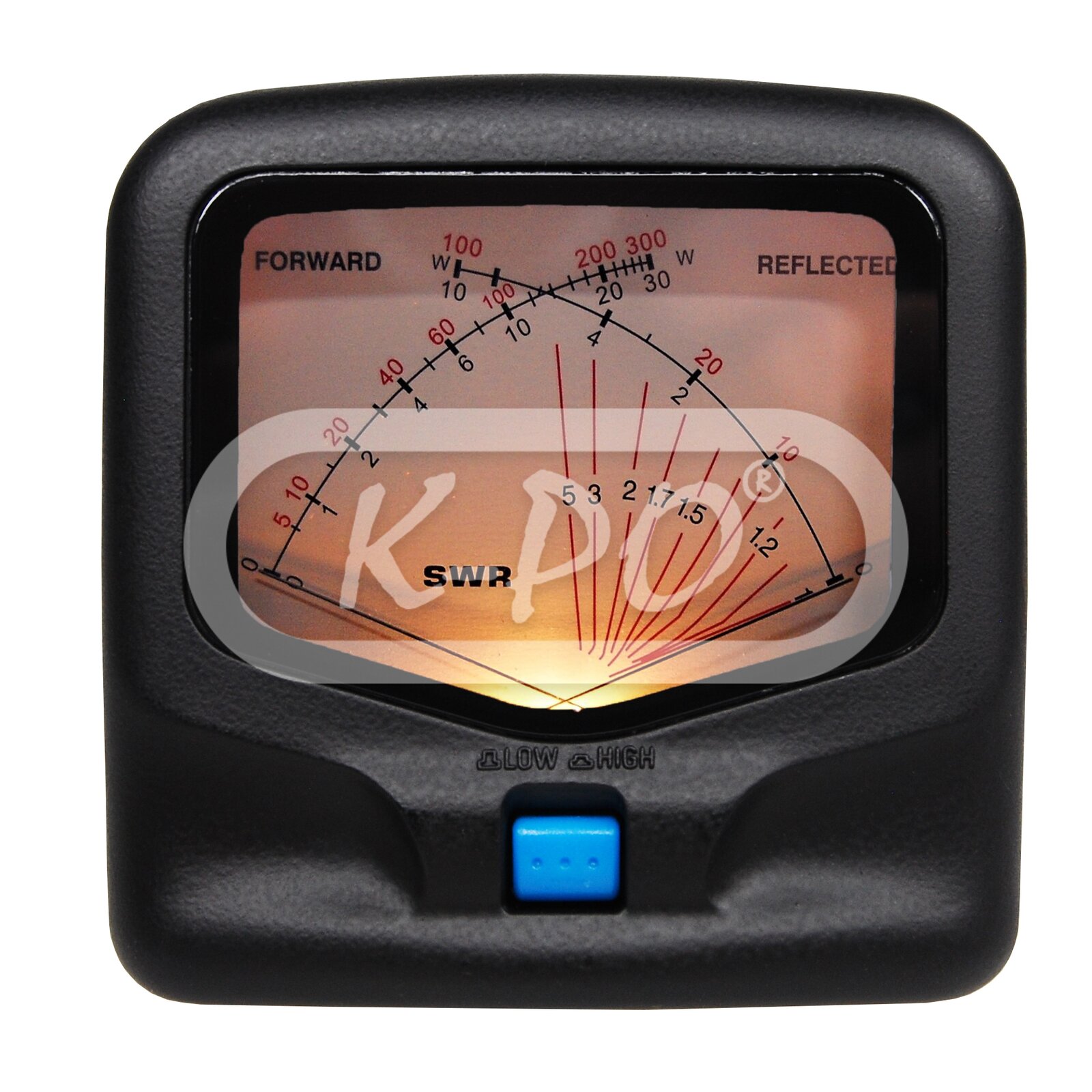

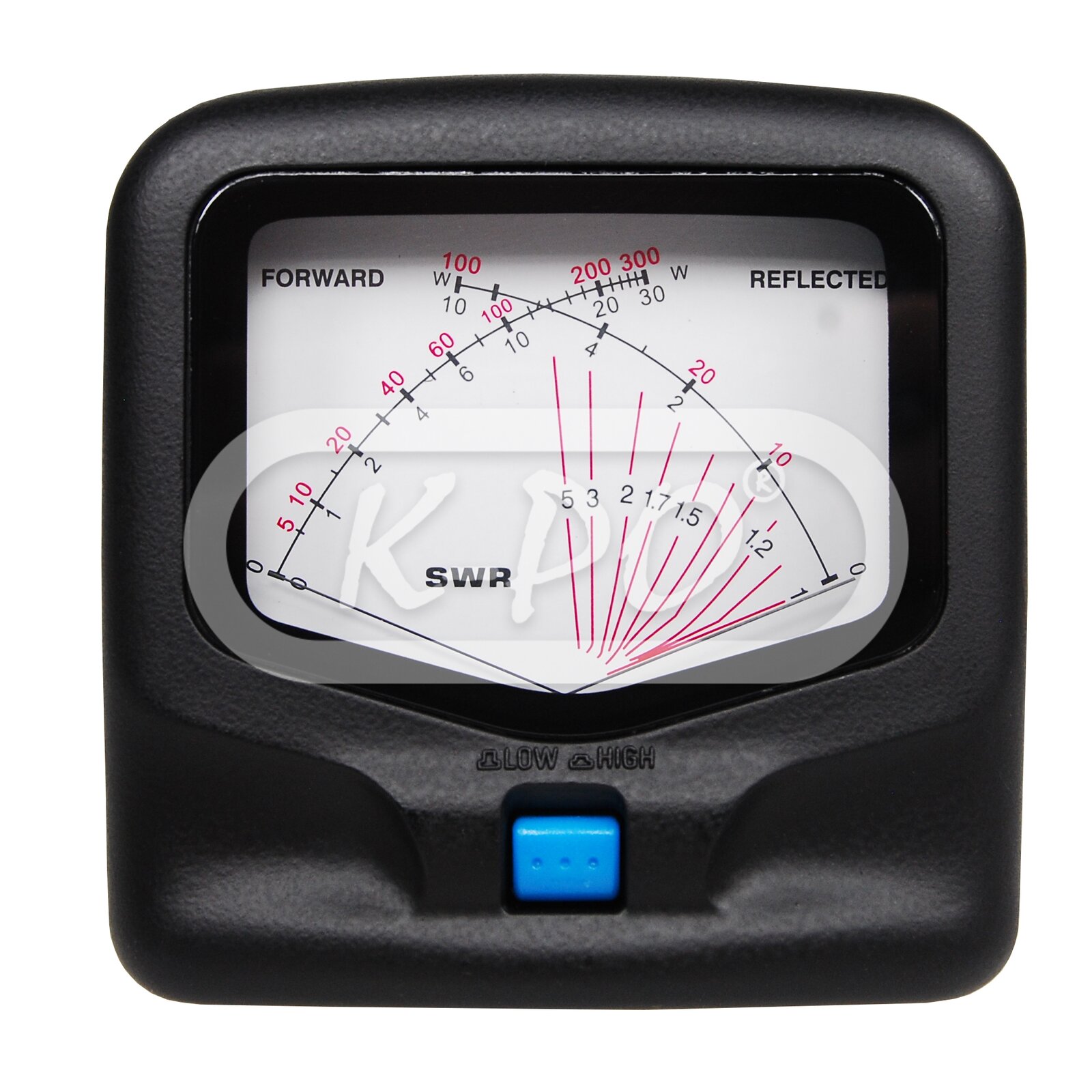

The Maas RX-20 is a compact SWR / PWR meter with a frequency range of 1.8 - 200 MHz. Featuring cross needle design for measuring SWR and output power simultaneously. Compact size makes it very useful for testing mobiles as well as base station installation.

Frequency range: 1.8 - 200 MHz

Out of stock - Longer delivery time

€59.94 (49.54 excl. 21% VAT)

Electrical data

• Backlight display / meter: Tes
• Impedance: 50 Ohm
• Power range: 30 / 300 Watts
• Accuracy: ± 10%
• Minimum Power for SWR: 2 Watt
• Testing function: SWR and Power (FWD and REF)
• Voltage: 13.8 Volt, for display lightning only

Mechanical data

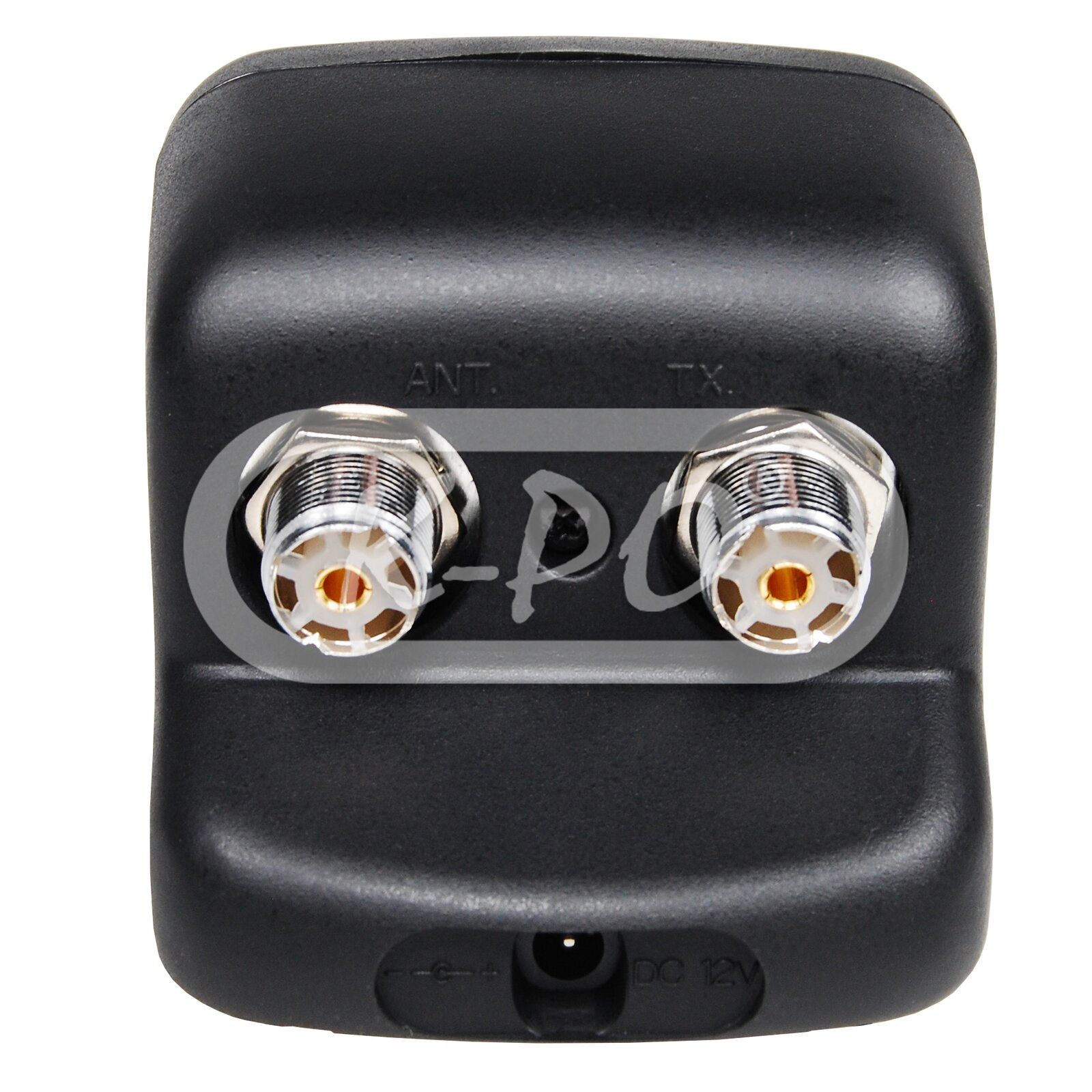

• Input connector: UHF (PL) female
• Output connector: UHF (PL) female
• Length: 95 mm
• Height: 87 mm
• Width: 85 mm
• Weight: 290 gram

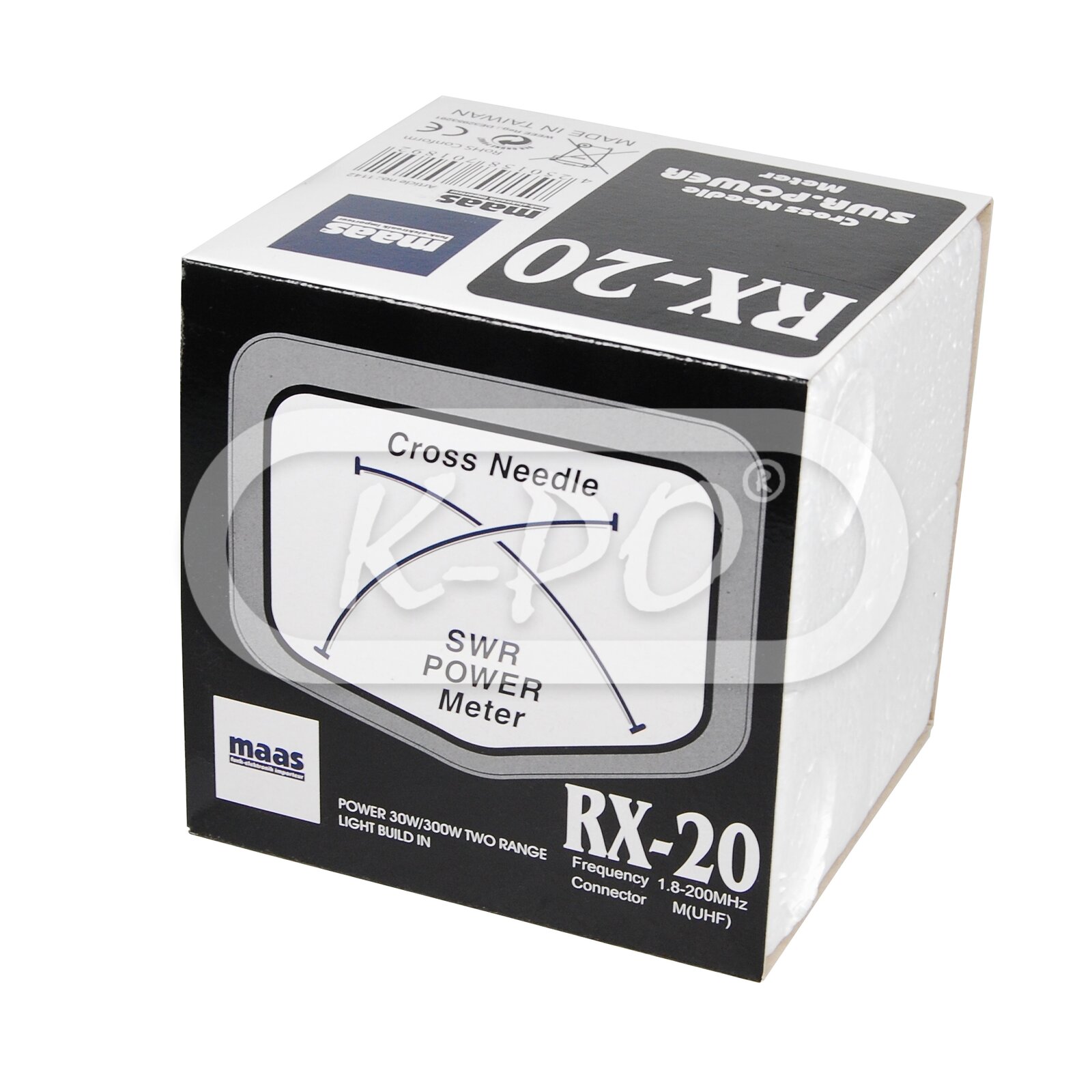

Inside the box

• Meter: Yes
• DC power cable: Yes
• Installation manual: English
