Maas - RX-200

Product code: 101201
Factory code: 1201
Barcode: 4250158705814

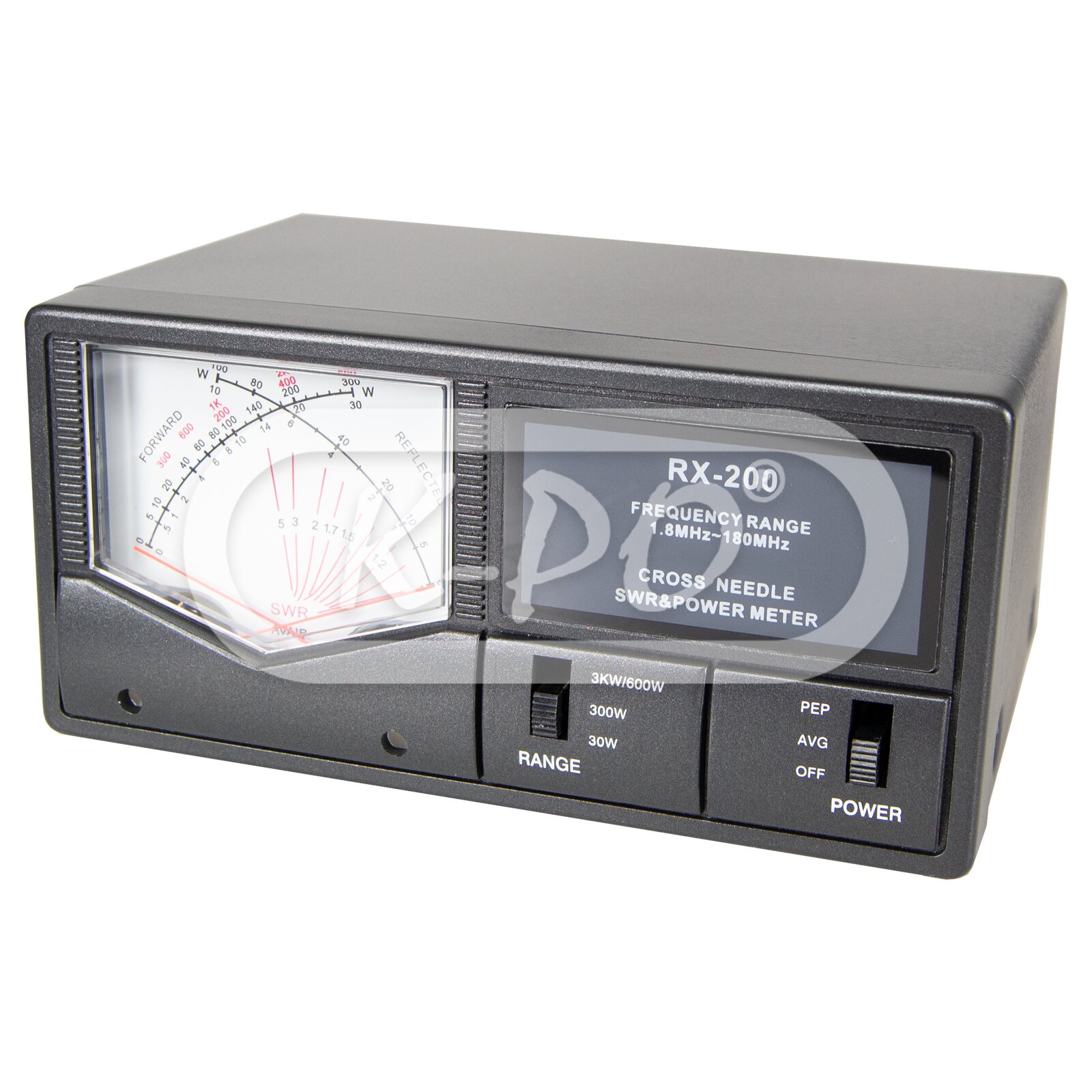

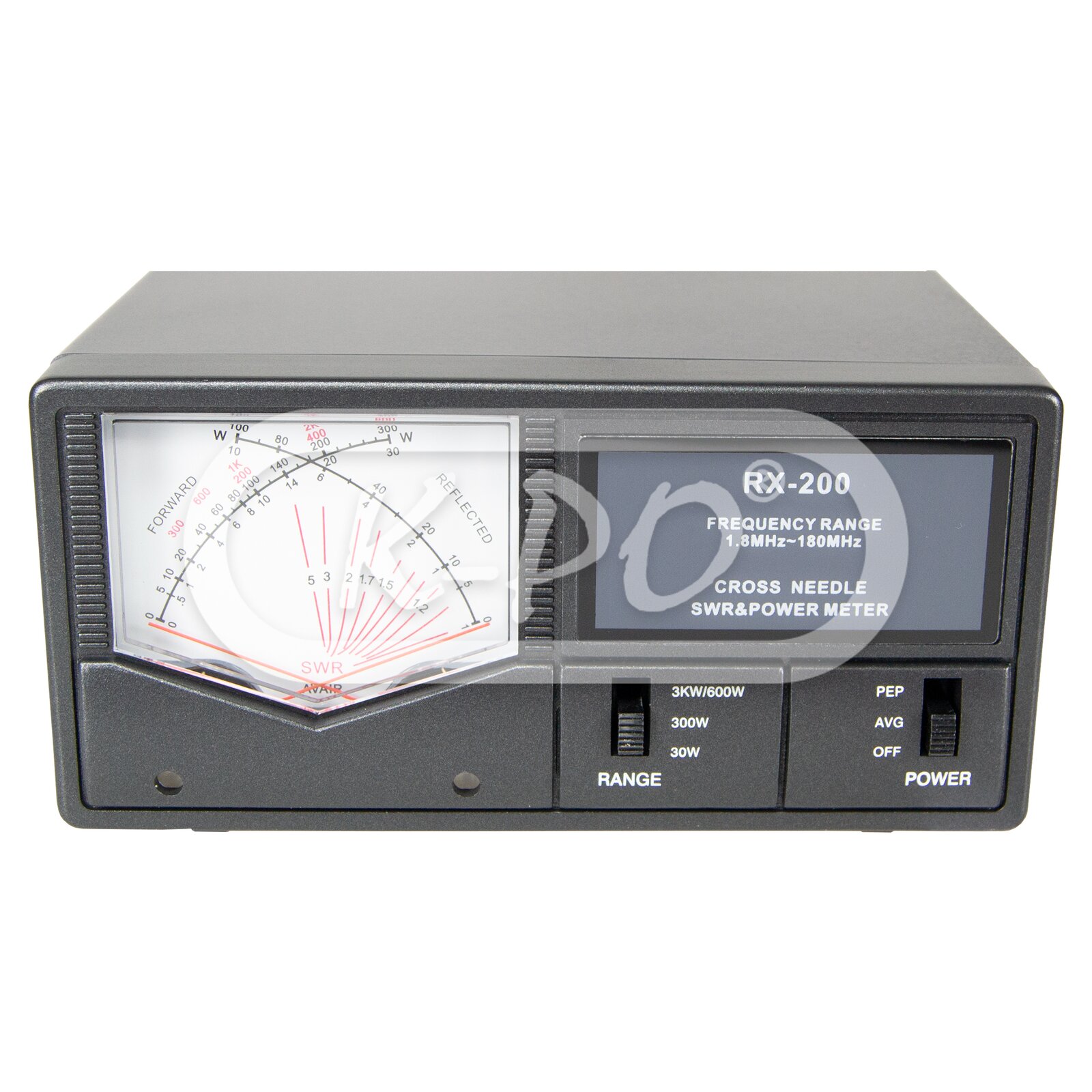

The Maas RX-200 is a cross needle meter and measures Forward Power, Reflected Power and SWR simultaneously. AVG / PEP switch to select average power or SSB / PEP. Frequency range of 1.8 - 160 MHz.

The meter is very user-friendly which makes it useful for testing both base and mobile installations and for permanent installation in your setup.

Frequency range: 1.8 - 160 MHz
Out of stock - Longer delivery time
€104.94 (86.73 excl. 21% VAT)

Electrical data

  • Backlight display / meter: Yes
  • Impedance: 50 Ohm
  • Power range: 30 / 300 / 3000 Watts
  • Accuracy: 30 Watts: ± 5% / 300 Watts: ± 5% / 3000 Watts: ± 7.5%
  • Minimum Power for SWR: 0.5 Watt
  • Insertion loss: 0.2 dB
  • Testing function: SWR and Power (FWD and REF / AVG and PEP)
  • Voltage: 13.8 Volt, for display lightning only
  • Continuous power rating: 300 Watts CW/SSB
  • Maximum power handling: 3 kW 15 sec / 2 kW 30 sec / 1 kW 60 sec

Mechanical data

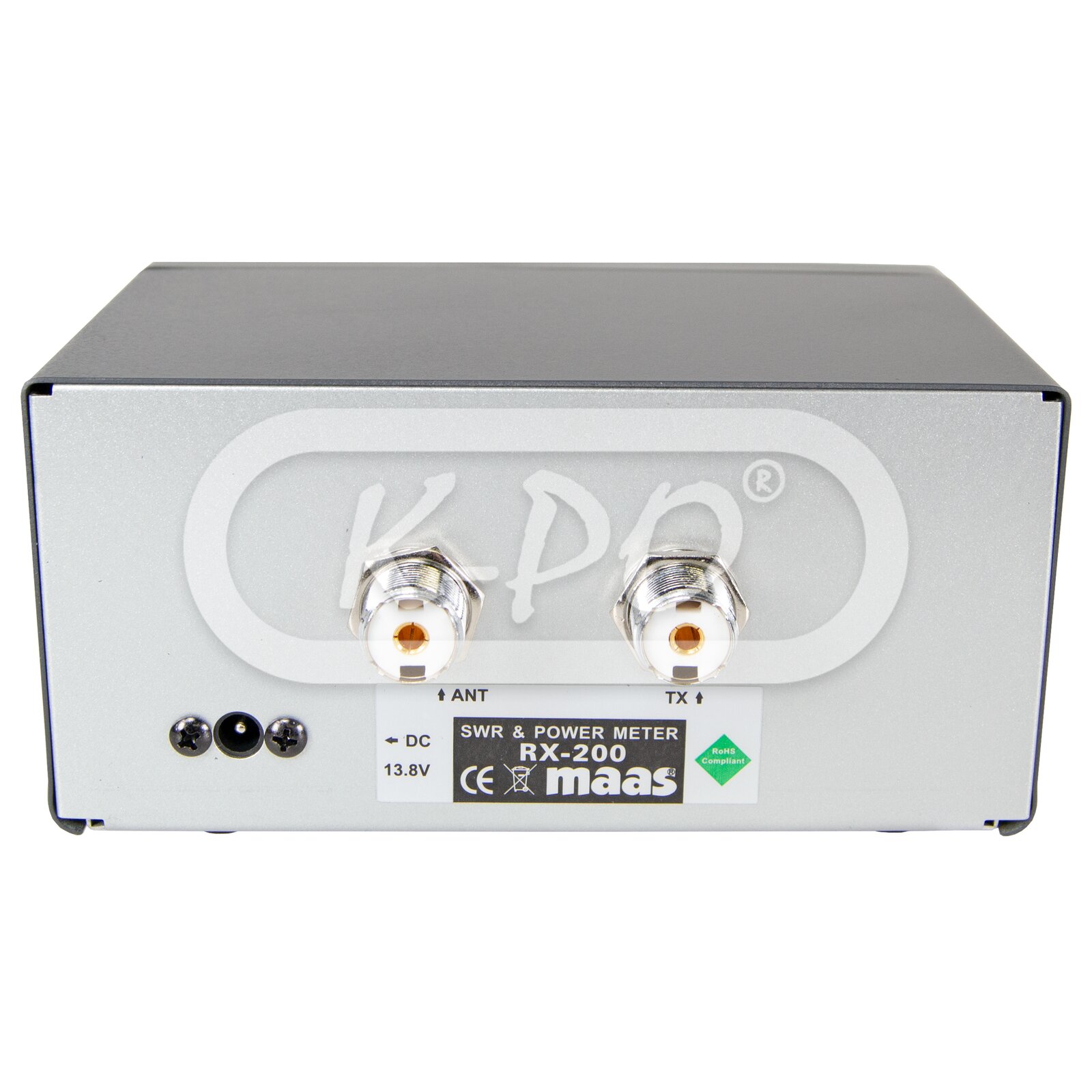

  • Input connector: UHF (PL) female
  • Output connector: UHF (PL) female
  • Length: 150 mm
  • Height: 65 mm
  • Width: 100 mm
  • Weight: 630 gram

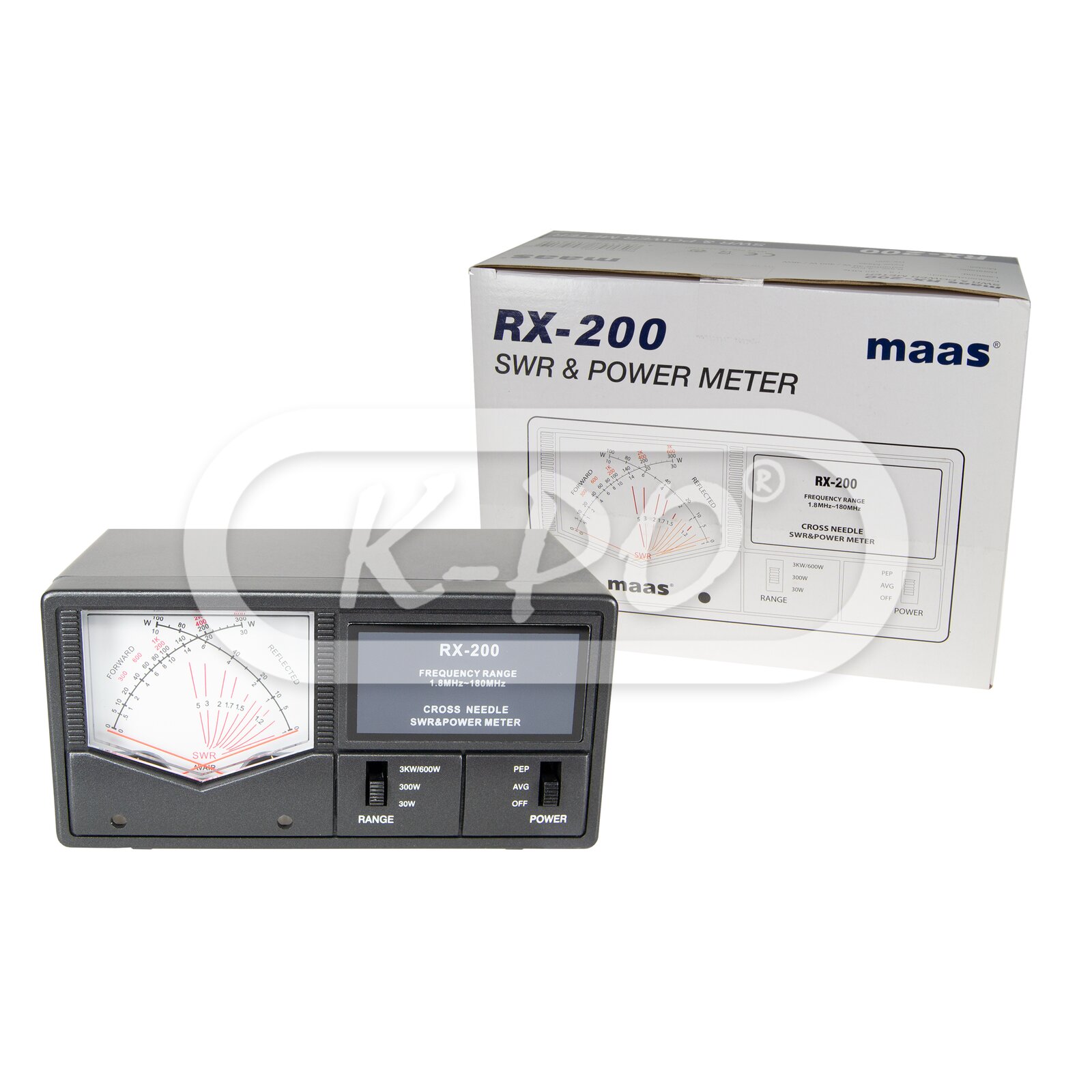

Inside the box

  • Meter: Yes
  • DC power cable: Yes
  • Installation manual: English
