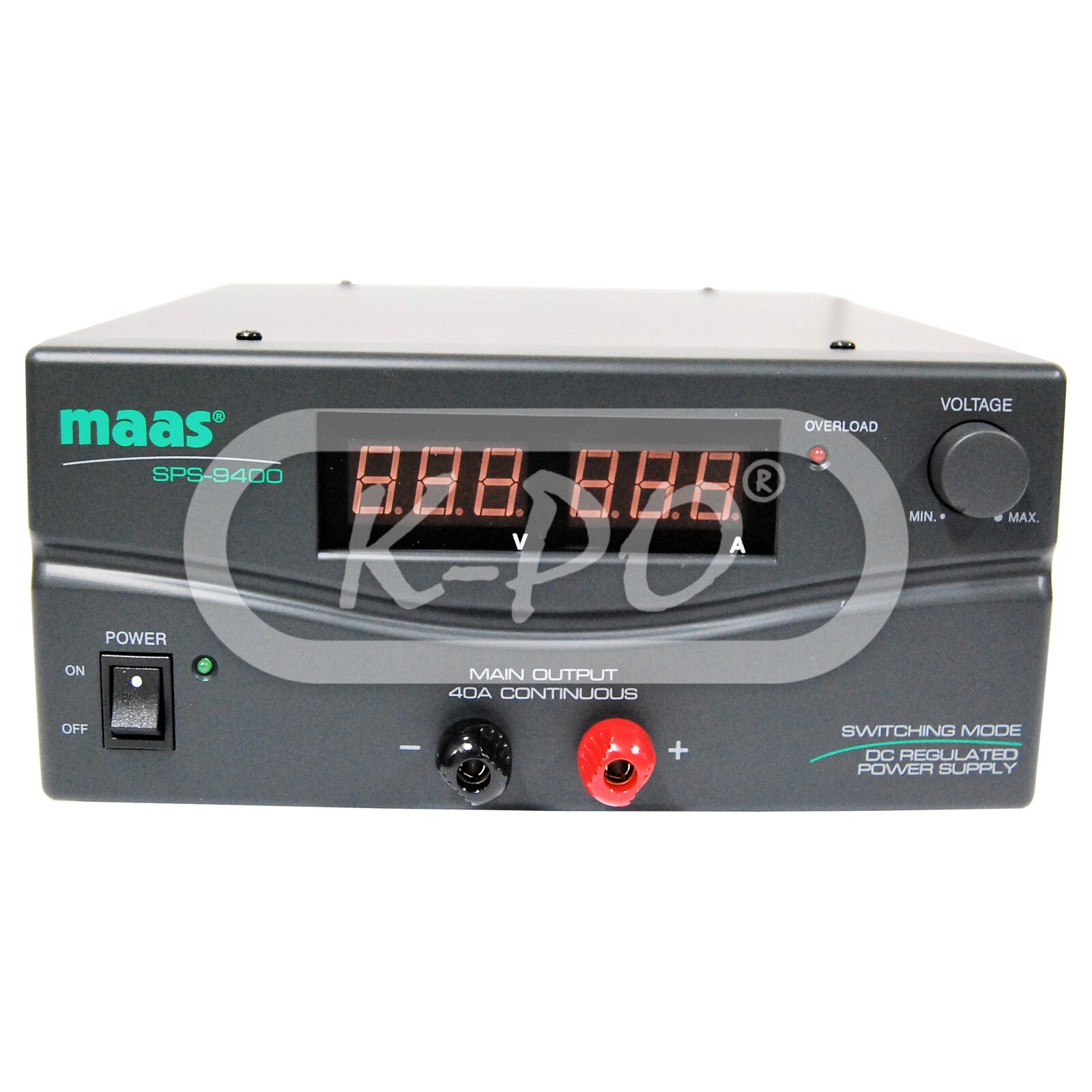

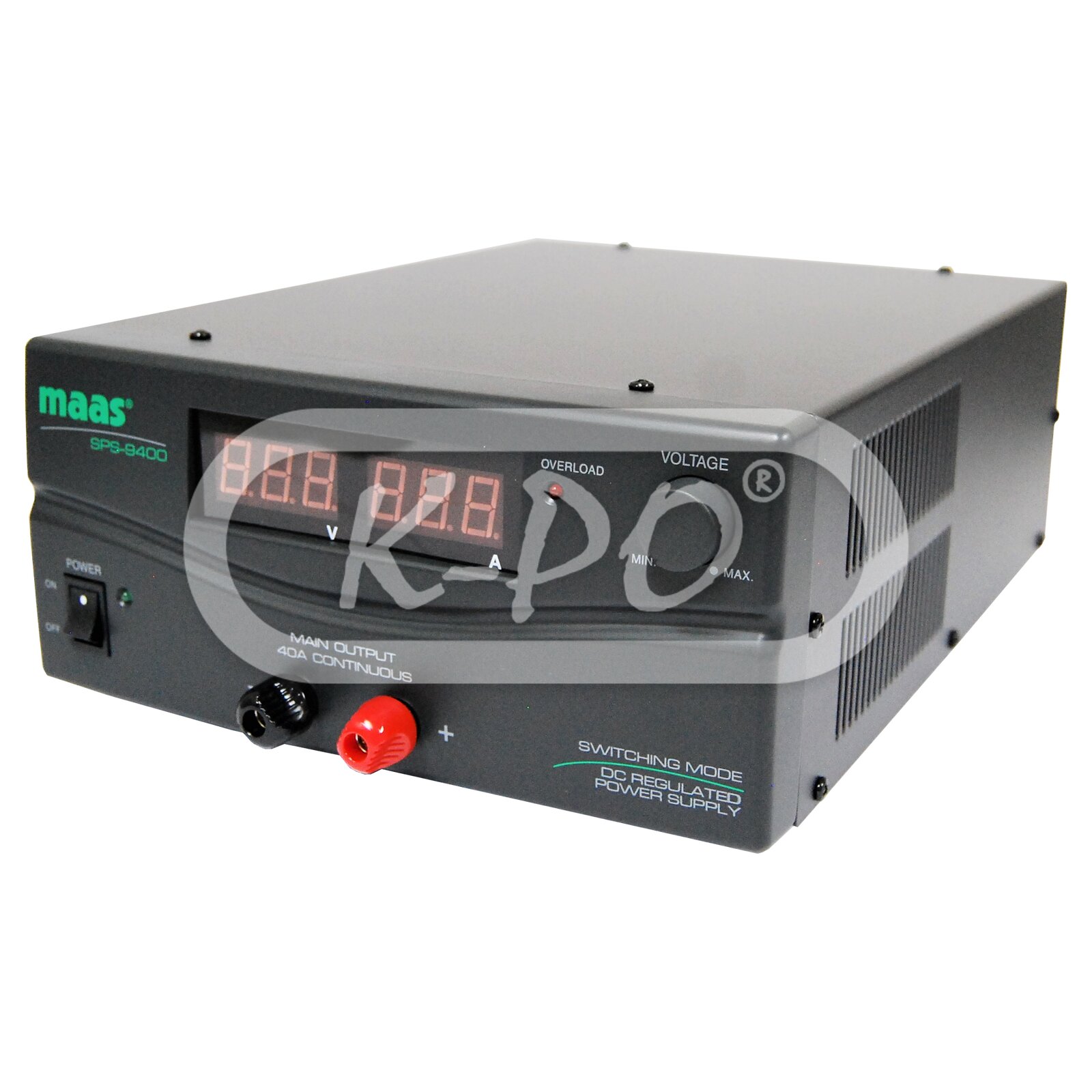

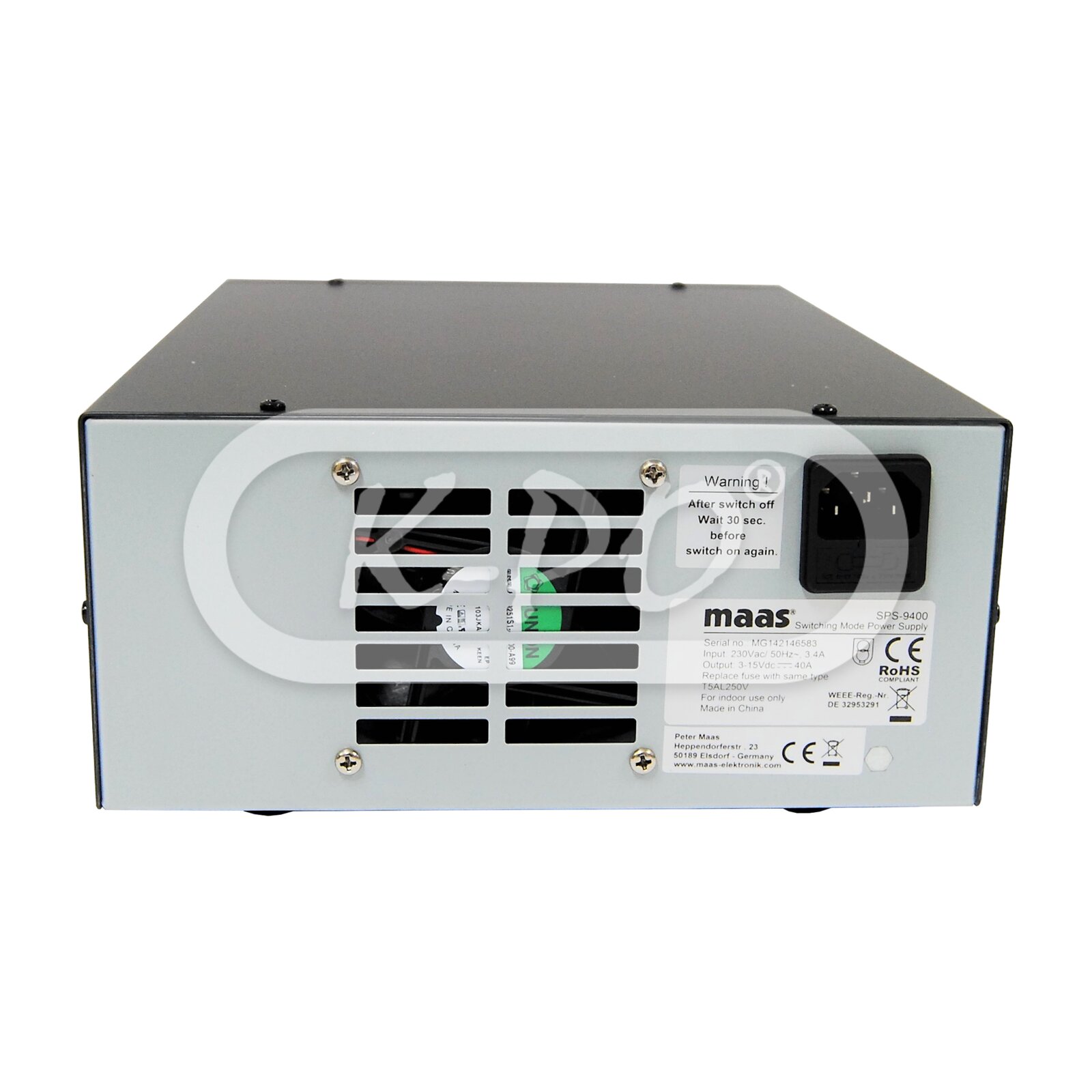

Maas - SPS-9400

Product code: 9400

Barcode: 4250158701168

The Maas SPS-9400 is a power high power switching mode. They are suitable for a wide range of uses, such as radio equipment. The power supply has a variable output from 3 to 15 Volt. The SPS-9400 can be used for equipment till 40A continuous 43A short.

Shipped next business day - Stock: 1

€259.94 (214.83 excl. 21% VAT)

Electrical data

• Input voltage: 230 Volt / 50 Hz /
• Output voltage: 13.8 Volt
• Adjustable output voltage: 3-15 Volt
• Continuous load: 40A
• Peak load: 43A
• Ripple voltage: 50mVp-p at rated load
• Display indicator: Voltage / ampère
• Background light: Yes
• Fan: Yes
• Short circuit protection: Yes
• Overload protection: Yes
• Rated output power: 600W
• Cooling method: Thermostatic control fan

Mechanical data

• Length: 220 mm
• Height: 110 mm
• Width: 300 mm
• Weight: 3500 gram

Inside the box

• Power supply: Yes

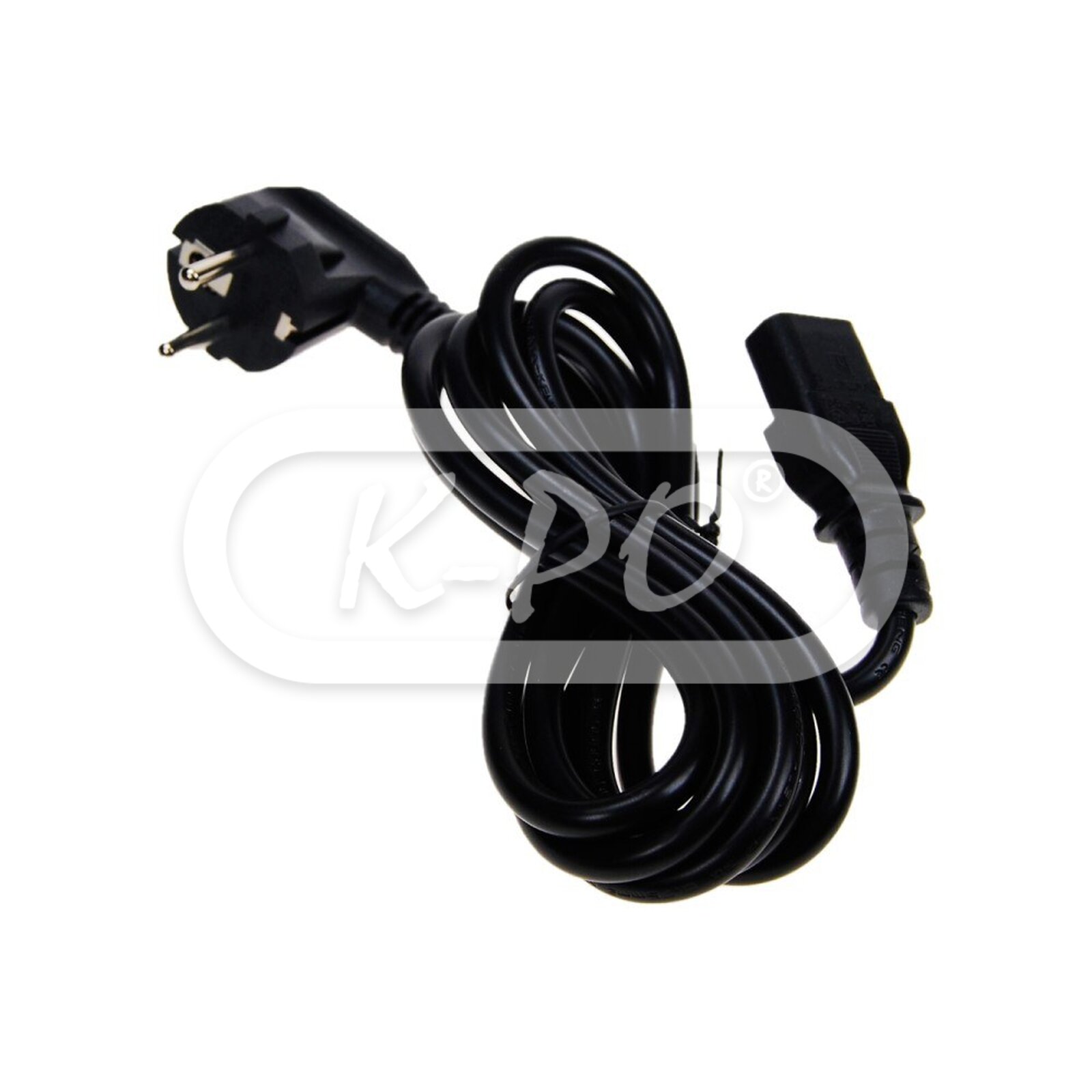

• AC cord: Yes
• User manual: English
