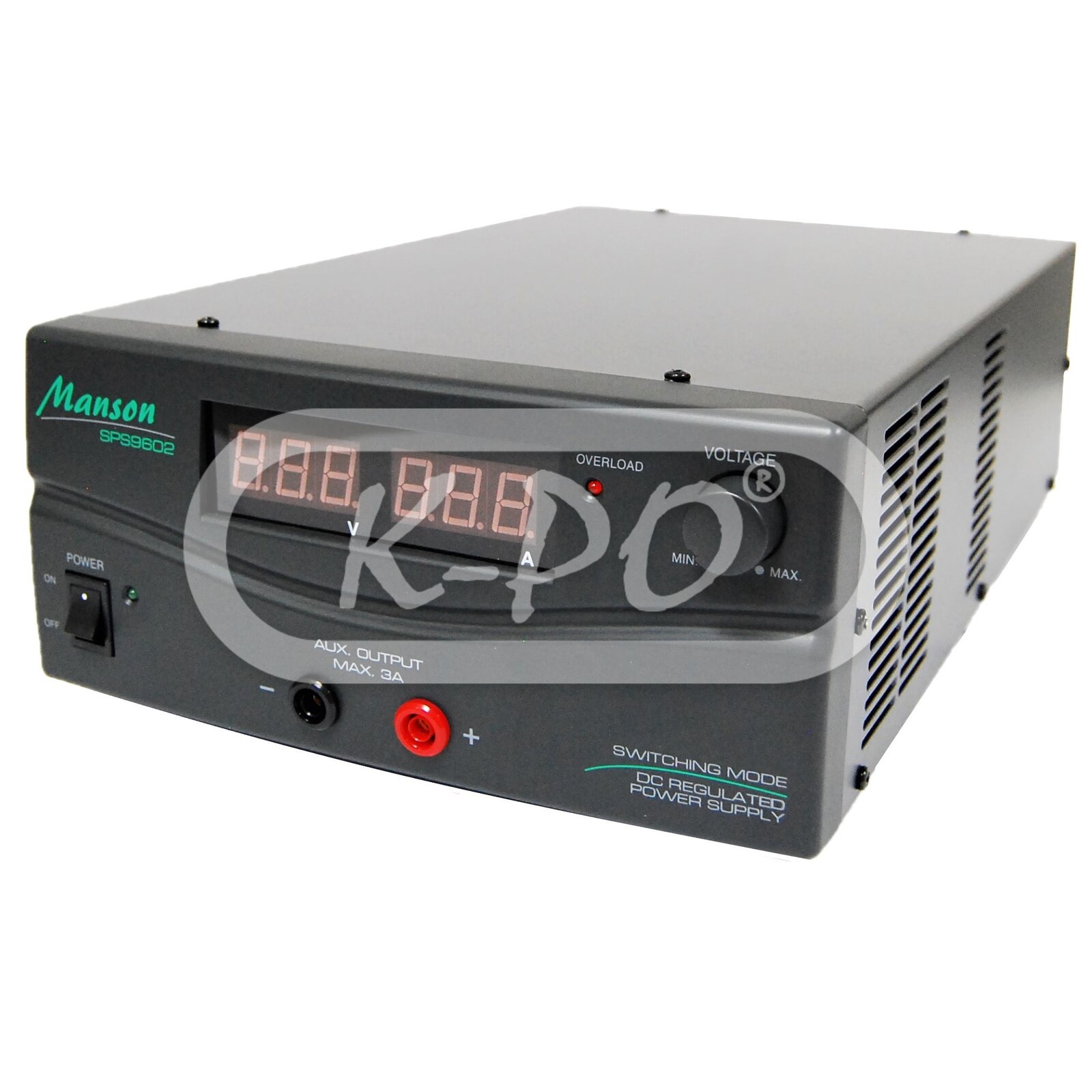

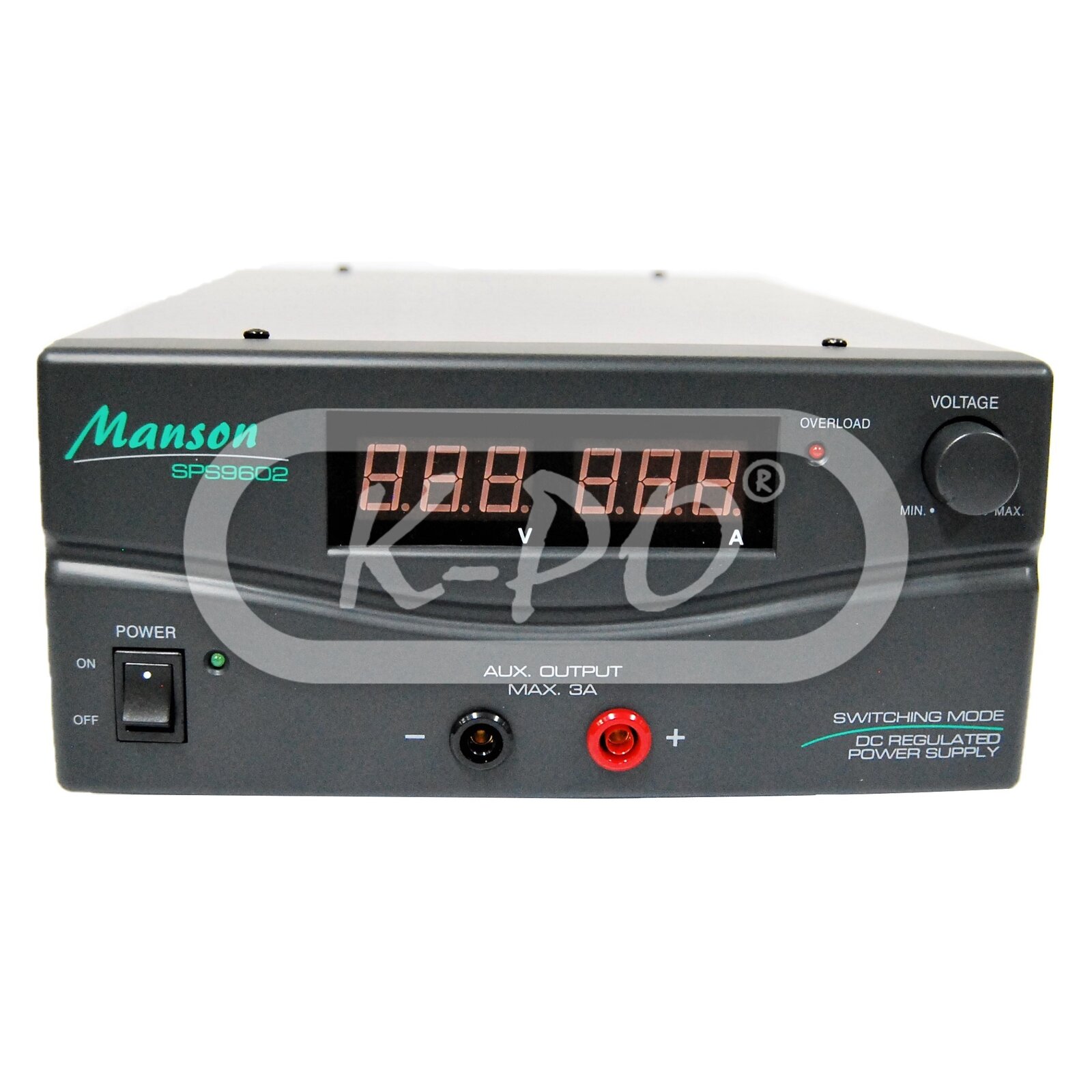

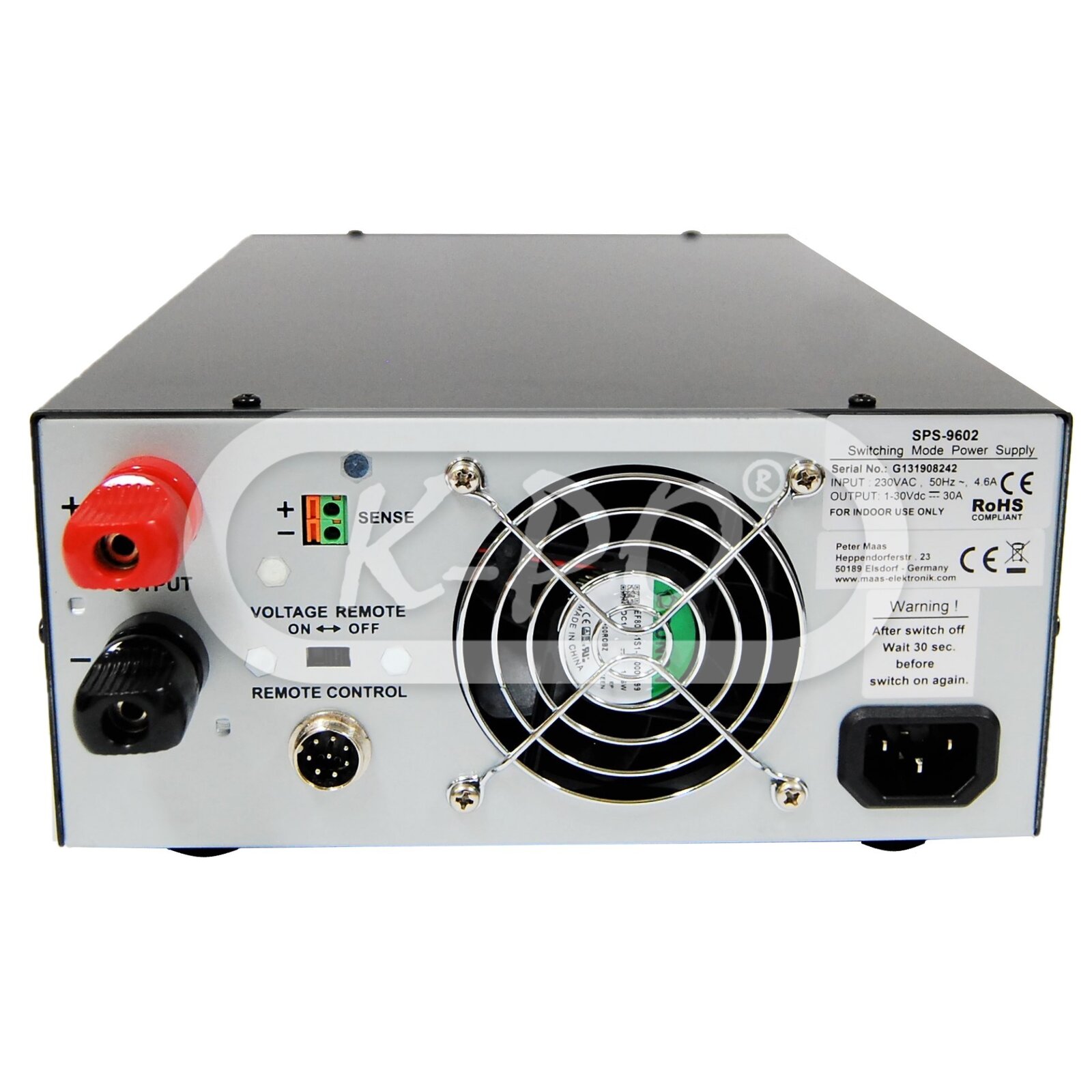

Manson - SPS-9602

Product code: 1424

The Manson SPS-9602 is a power high power switching mode. They are suitable for a wide range of uses, such as radio equipment. The power supply has a variable output from 1 to 30 Volt. The SPS-9602 can be used for equipment till 30A continuous.

Note - Price on request

€ -- (Price on request)

Electrical data

• Input voltage: 230 Volt / 50 Hz /
• Output voltage: 13.8 Volt
• Adjustable output voltage: 1-30 Volt
• Continuous load: 30A
• Ripple voltage: ≤40mVp-p
• Display indicator: Voltage / ampère
• Background light: Yes
• Fan: Yes
• Short circuit protection: Yes
• Overload protection: Yes
• Rated output power: 900W
• Cooling method: Thermostatic control fan

Mechanical data

• Length: 220 mm
• Height: 110 mm
• Width: 360 mm
• Weight: 5800 gram

Inside the box

• Power supply: Yes

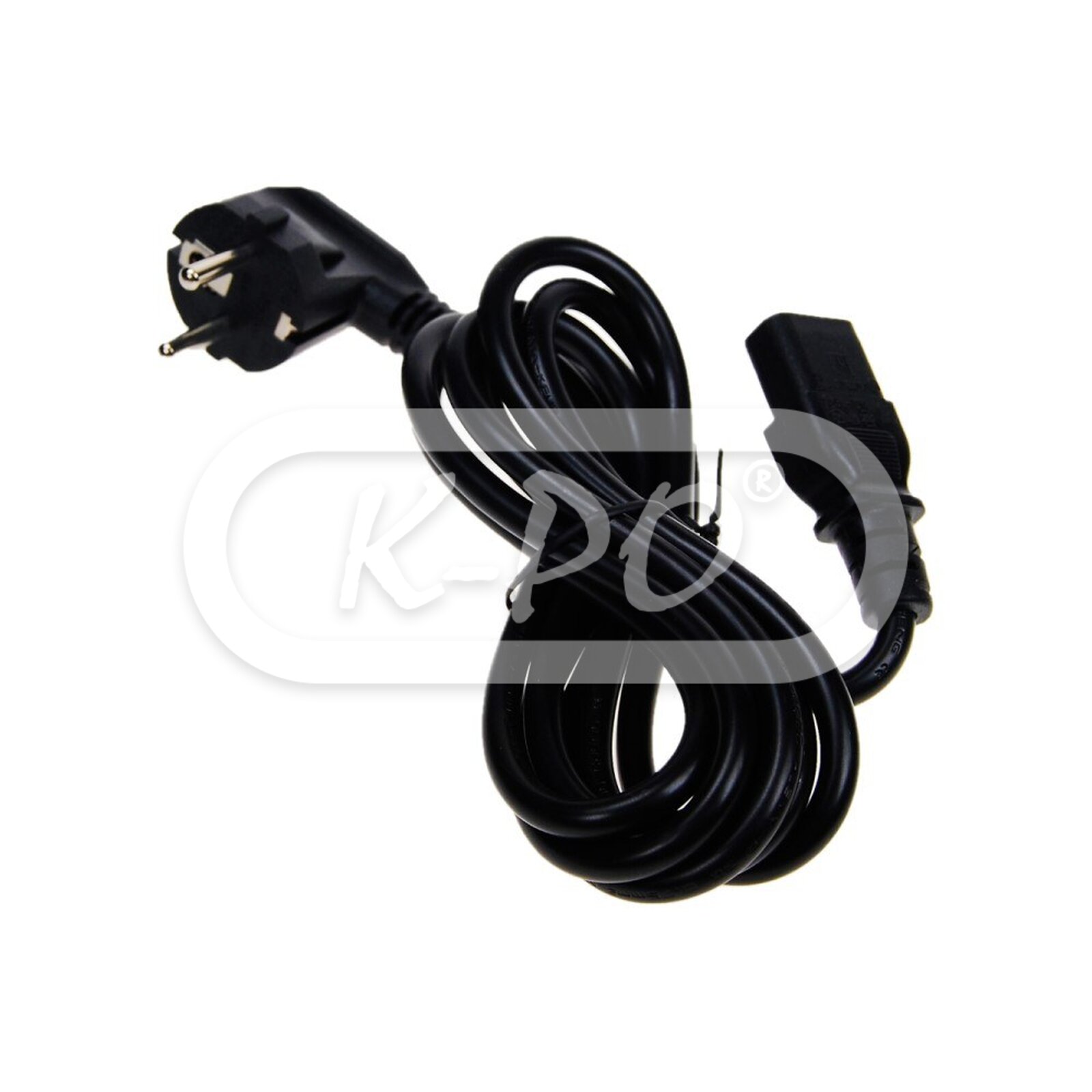

• AC cord: Yes
• User manual: English

Downloads

• Datasheet: User manual
