Maytel - Helmet Clip Intercom

Product code: 68000
Barcode: 8718375103326

The Helmet Clip Intercom is a high-end, professional intercom system that provides full-duplex communication for up to 10 full-duplex users (1 main + 9 users)*, unlimited Push-to-Talk users, and unlimited listeners only.

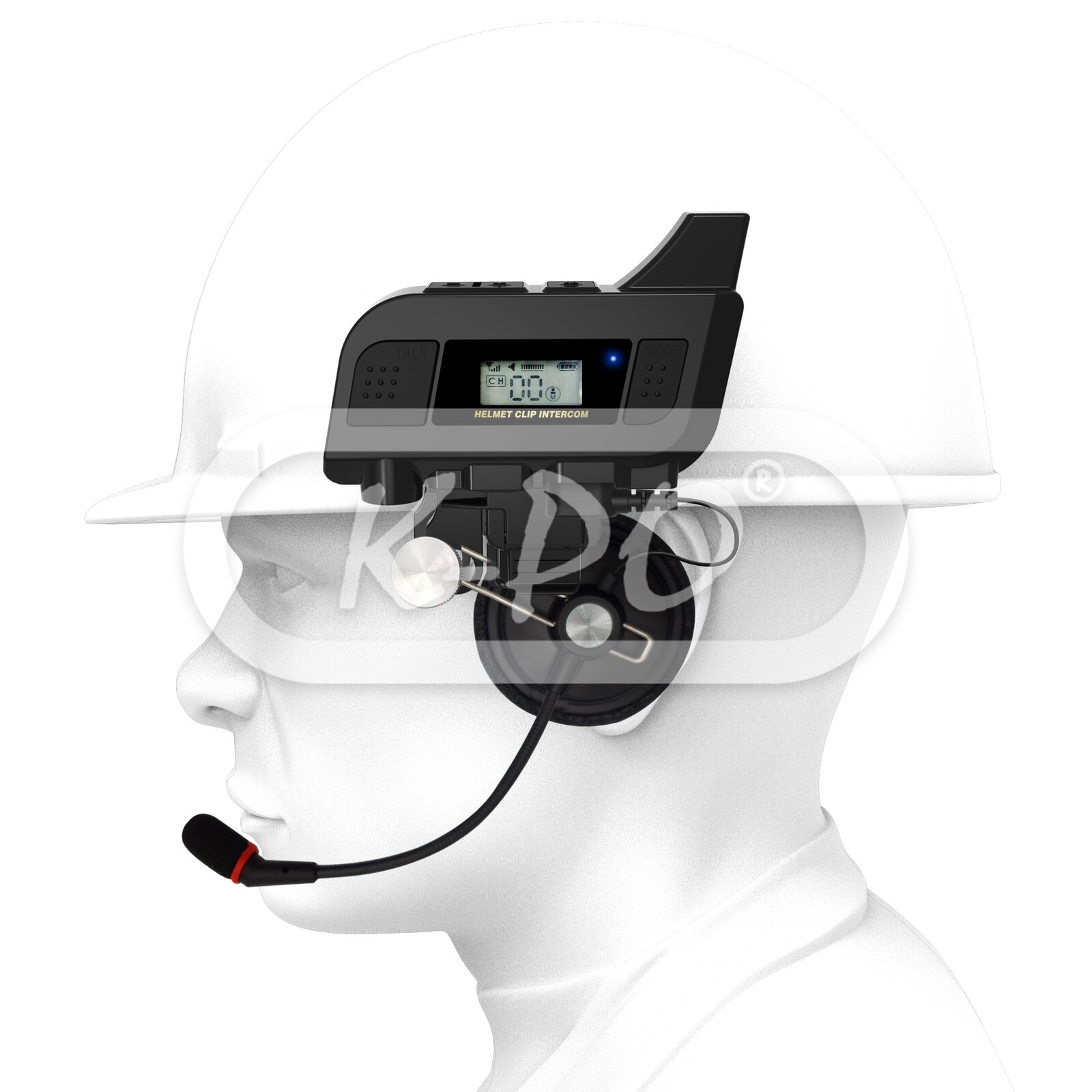

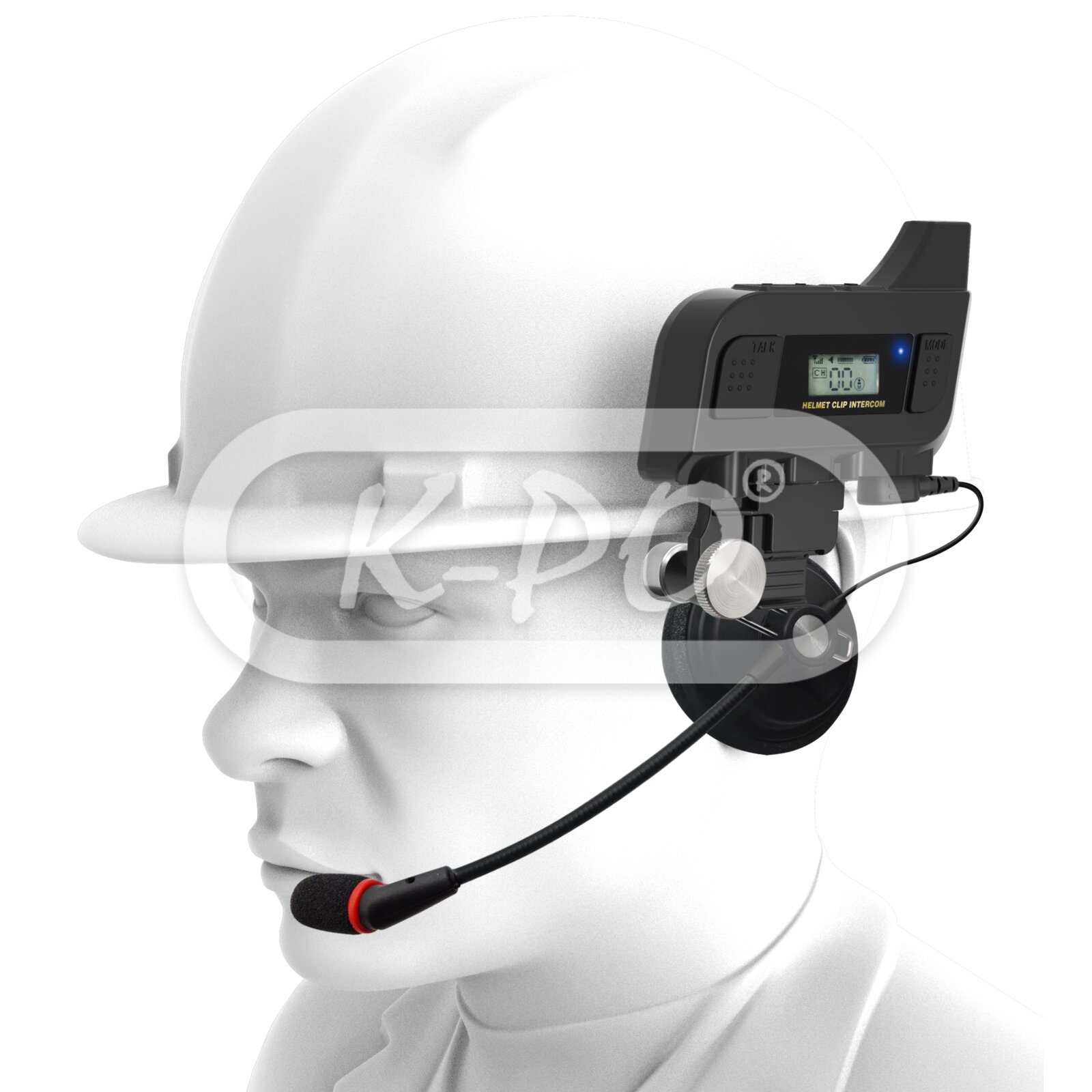

It can be used directly with regular construction helmets. With optional accessories, it is also compatible with other types of construction helmets, headband-style headsets, and headwear, such as baseball caps.

With additional accessories, the Helmet Clip Intercom can be connected directly to Peltor Listen Only headsets and earmuffs that use the Peltor FLX2 audio connector.

With the supplied clip and optional clips, installing the Helmet Clip Intercom is fast, easy, and convenient, and it can be easily removed and exchanged with others.

The DSP dynamic noise-cancelling microphone ensures crystal-clear sound quality and filters out noise up to 95 dB, making it highly effective in noisy environments and on construction sites. The microphone can be easily muted by pressing the large mute (talk) button on the Clip Intercom.

The full-duplex operating time is approximately 8 hours. Easily and quickly recharge your Helmet Clip Intercom with the modern USB-C charging system. A durable USB-A to angled USB-C charging cable is included.

Other key features include long-distance coverage (subject to environmental factors), four operating modes, up to 40 different user groups, side-tone selection, ID selection, microphone sensitivity adjustment, and more.

For complete information about the Helmet Clip Intercom, refer to the user manual available in the "Downloads" section at the bottom of this product page.

*Depending on the selected operating mode, the maximum number of full-duplex users may vary between 1 main + 8 to 9 users.

Helmet is not included; it is for illustration purposes only.

Frequency range: 2.4 GHz
Shipped today
€599.95 (495.83 excl. 21% VAT)

Features

  • Display: LCD
  • Operating modes: Standard / Roaming / Repeater / Relay
  • Full duplex users: 1 main + 8 to 9 users
  • Push-to-Talk users: Unlimited
  • Liseting only users: Unlimited
  • Noise cancelling function: Yes, DSP up do 95 dB
  • Volume adjustment: Yes, 0~8 levels
  • Groups: Up to 40
  • ID selection: Yes
  • Side tone selection: Yes, S1~S5/SF (Off)
  • Microphone sensitivity level selection: Yes, 1~8 levels
  • Security code selection: Yes
  • Operating time: Approximately 8 hours
  • USC-C charging: Yes

Electrical data

  • Frequency range: ISM 2402~2480 MHz
  • Radio interface: GFSK modulation
  • Voice coded: 16 bit / 8 kHz
  • RX sensitivity: -95 dBm

Mechanical data

  • Length: 100 mm
  • Height: 69 mm
  • Width: 32 mm
  • Weight: 98 gram
  • Waterproof: IP54

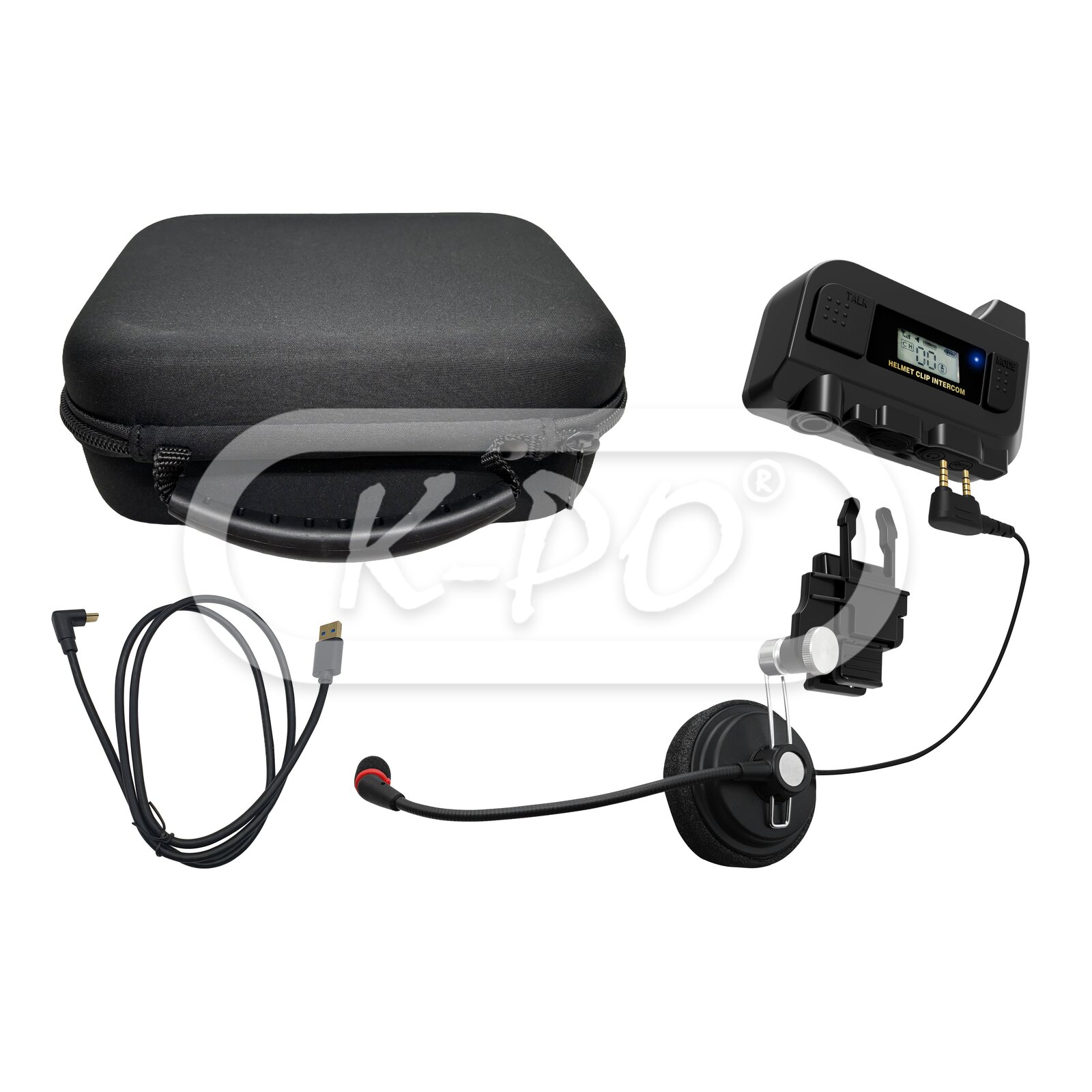

Inside the box

  • Helmet Clip Intercom HC-2.4G: 1 pc

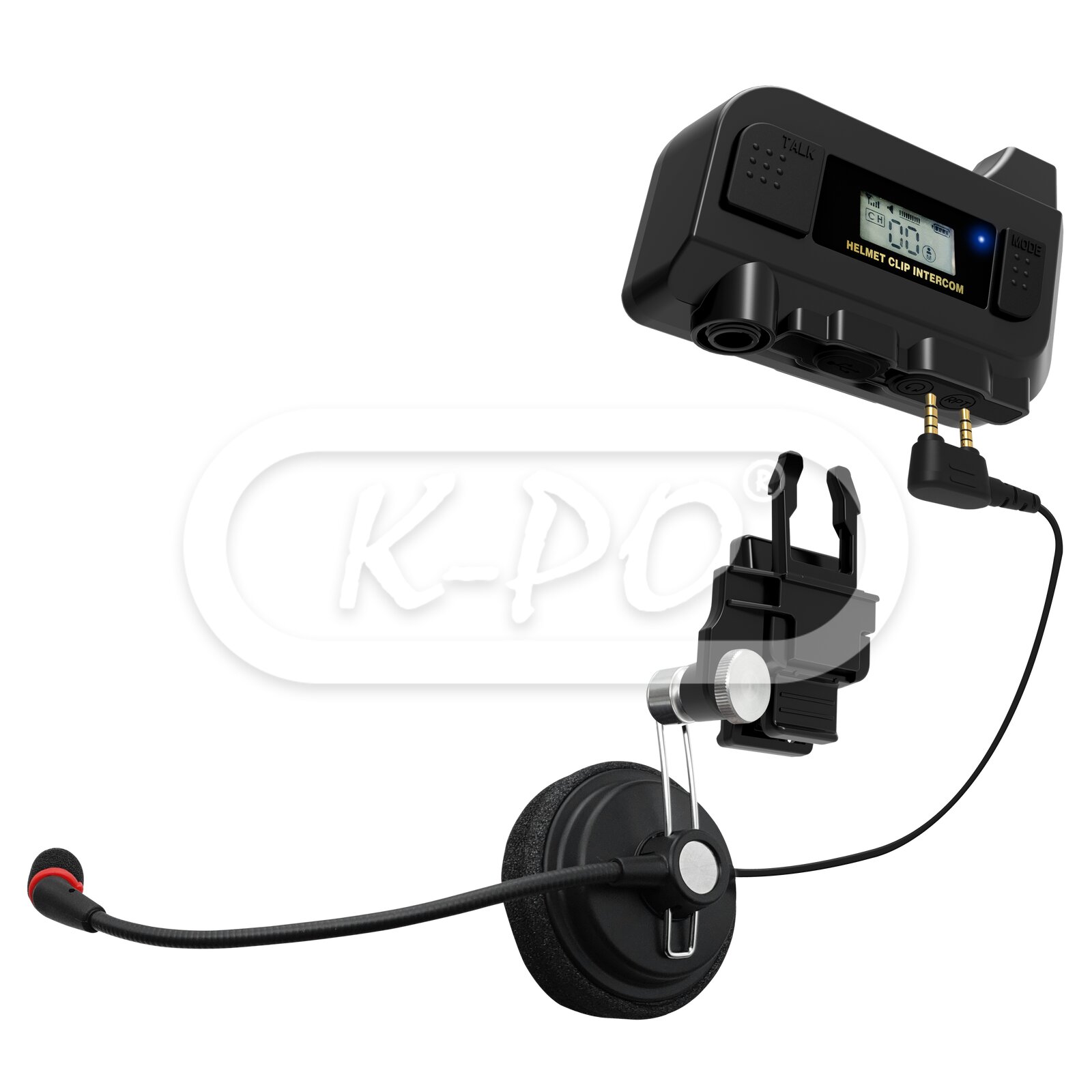

  • HPB-01LG / left ear speaker pad + boom microphone: 1 pc
  • HC-RH01 / regular helmet intercom + speaker pad clip: 1 pc
  • UC-05 / USB-C charging cable: 1 pc
