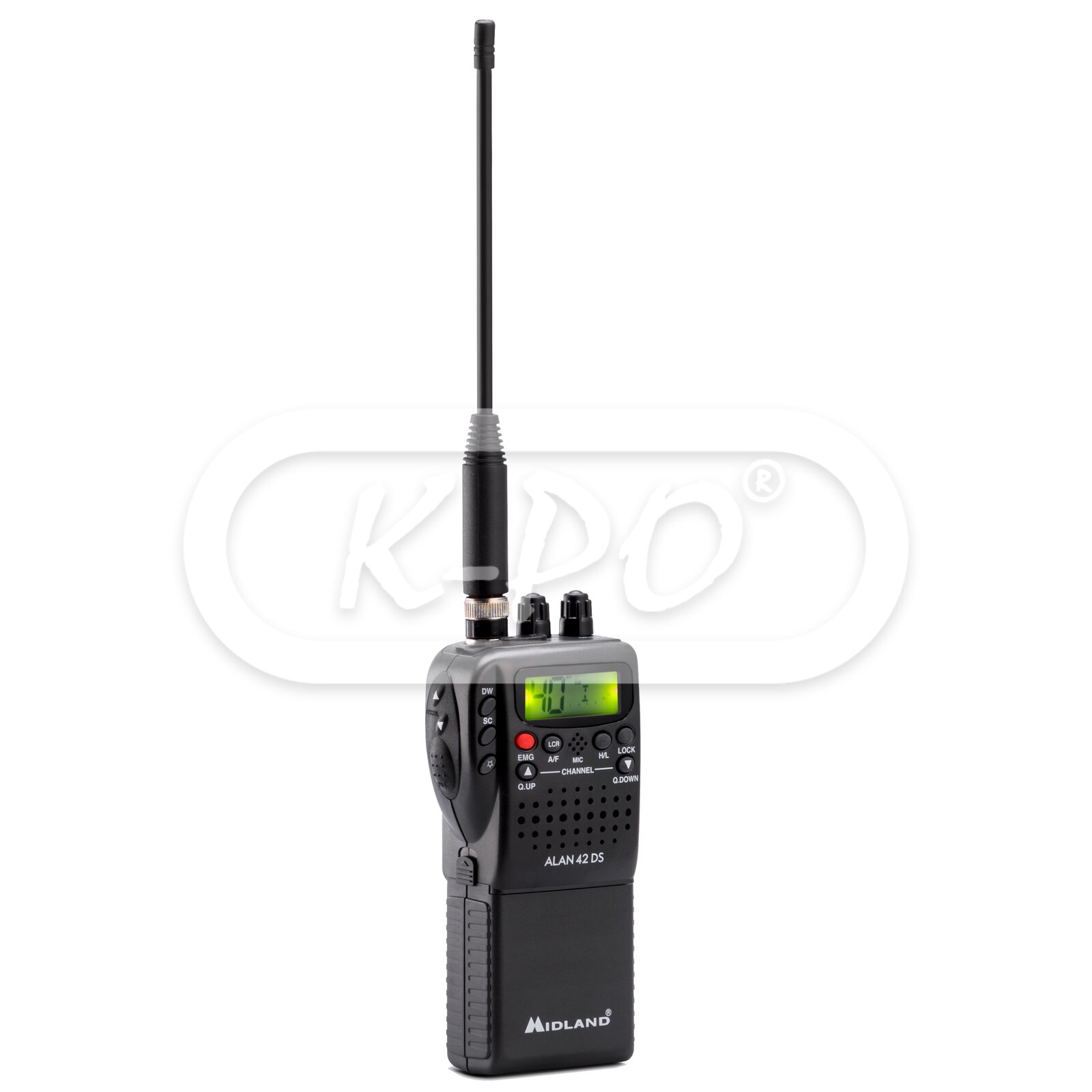

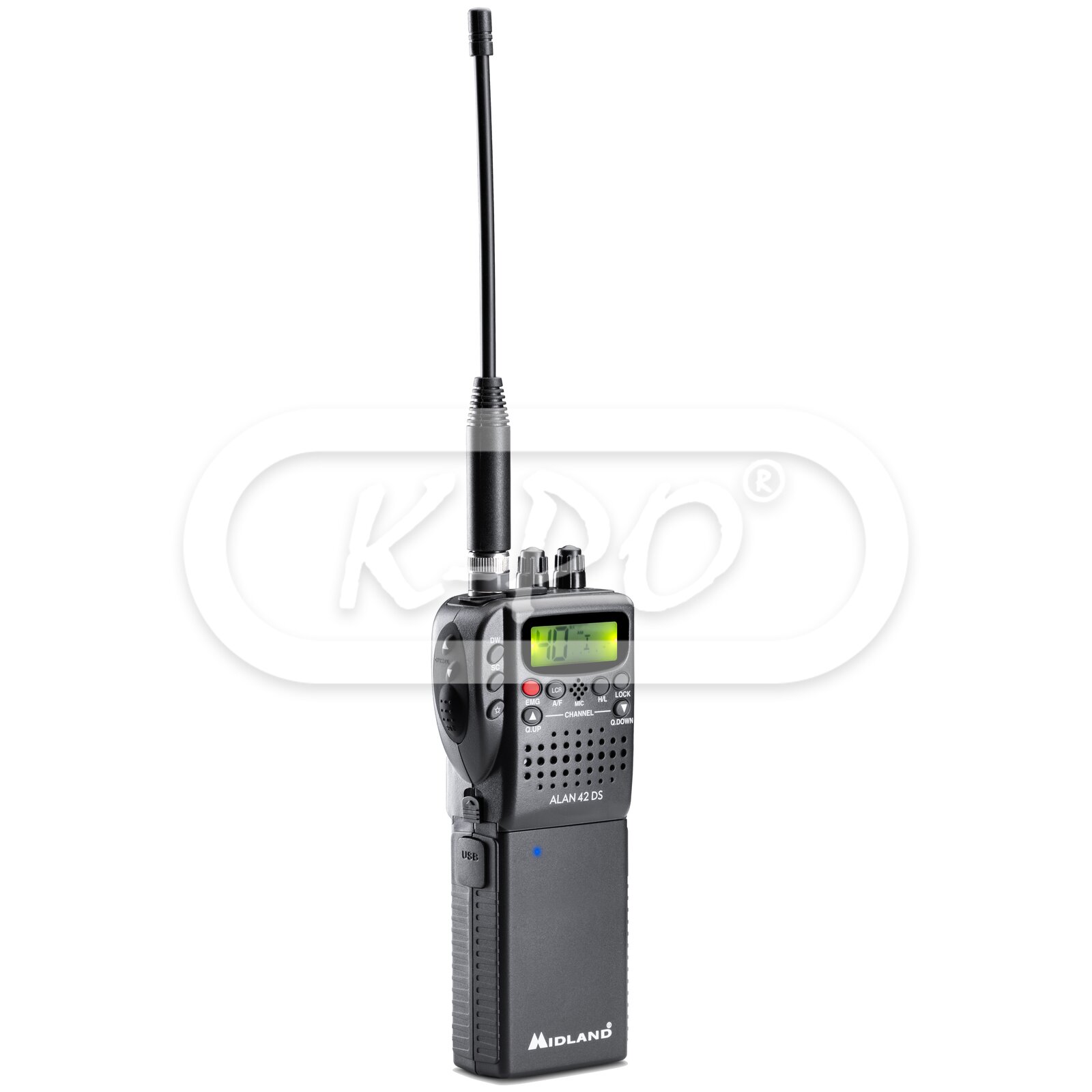

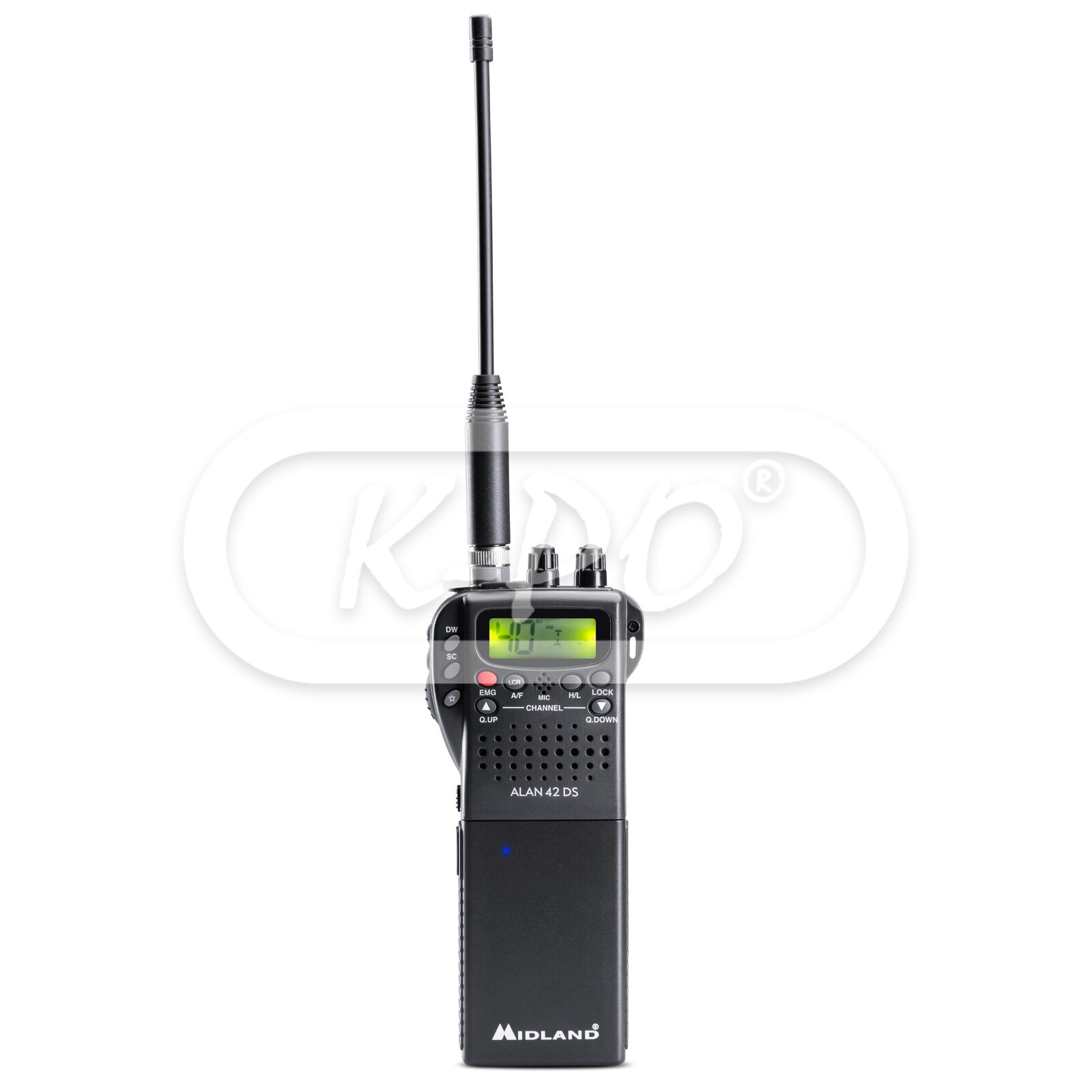

Midland - Alan 42 DS Lithium edition

Product code: 126704

Factory code: C1267.04

Barcode: 8011869206450

The new Midland Alan 42 DS lithium edition is the evolution of Midland's portable CB transceiver par excellence, the Alan 42 DS. The premium-level audio experience guaranteed by digital squelch, ANL and noise blanker filters that eliminate disturbances caused by external sources or by the vehicle, is comined with all the advantages of the 2800 mAh lithium-ion battery pack: the autonomy of used is doubled and recharging is 10 times faster.

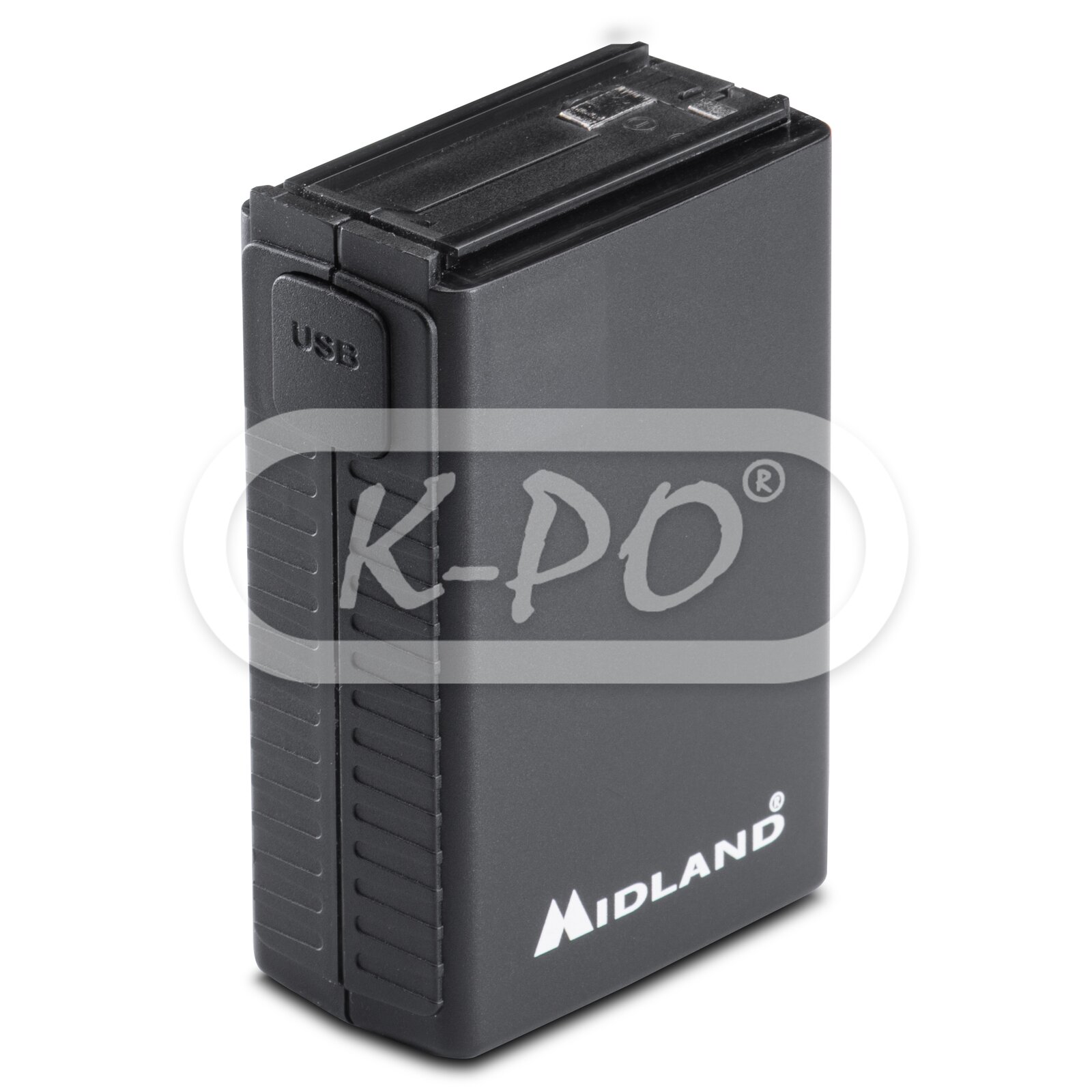

The big news is the integration of the 2800 mAh lithium-ion battery pack which guarantees a doubled life cycle and greater capacity compared to rechargeable AA batteries (1800 mAh). The USB C port makes the power system efficient and universal: with the USB C to USB C cable, full charge is reached in a maximum of 2 hours (10x faster than AA batteries) wherever you want, without the need for a wall power supply. The LEDs on the model make it easier to understand the progress of the charge and indicate its completion.

A brand new power supply system that also has a positive impact on the weight of Midland Alan 42 DS Lithium edition, makes it light (182 gram) and perfect to always keep on hand.

Frequency range: 26.965 - 27.405 MHz

Shipped today - Stock: 4

€209.95 (173.51 excl. 21% VAT)

Features

Modulation: AM / FM
Multi-bands: Yes
Output power: 1-4 Watt / duty cycle 10%
Channels: 40 AM / FM
Display type: Backlight
Display colors: Green
USB: Yes
Noise blanker: Yes
Squelch: Digital squelch
Emergency channel: Yes
Keypad lock: Yes
Hi/Lo power: Yes
Scan function: Yes
Quick channel selection: Yes
External speaker socket: Yes
S-meter: Yes
Dual watch: Yes
Car socket connector: Yes
Battery capacity: Li-ion 2800 mAh
Fast recharge: Yes, with USB C cable full charge in 2 hours

Electrical data

Voltage: 13,8 Volt
Operating mode: F3E (FM) / A3E (AM)
Frequency tolerance: 0.005%

Transmitter

Audio frequency response: 300 Hz - 3 kHz
Modulation AM: 90% (±5%)
Modulation FM: dev. 2.0 kHz
Harmonic suppression: More than 70 dB
Drain: 900 mA

Receiver

AM sensitivity: 0.5 µV
FM sensitivity: 0.25 µV
Frequency response: 300 Hz - 2.4 kHz
Adjacent channel selectivity: more than 60 dB
Maximum audio power: 0.5 Watt (10% distortion)
Internal speaker: 8 Ohm, round
Squelch range: 0.25 V - 500 μV
Distortion at 1000 μV: 3%
Spurious response: more than 60 dB
Drain with save mode on: 45 mA
Drain with save mode off: 100 mA

Mechanical data

Length: 70 mm
Height: 165 mm
Width: 30 mm
Weight: 185 gram (without batteries)
Antenna connector: BNC / UHF (PL) female (SO-239) /
Accessory connector: 2 pin Standard Icom (S)

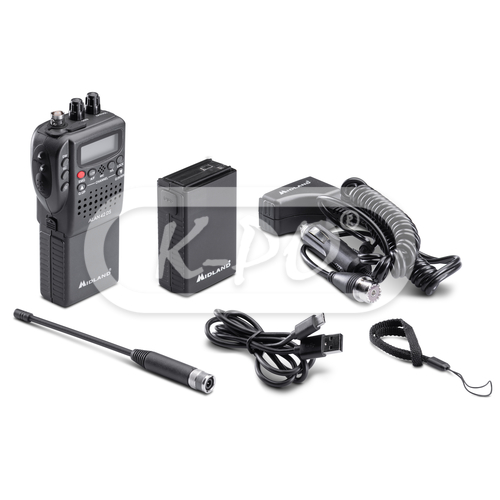

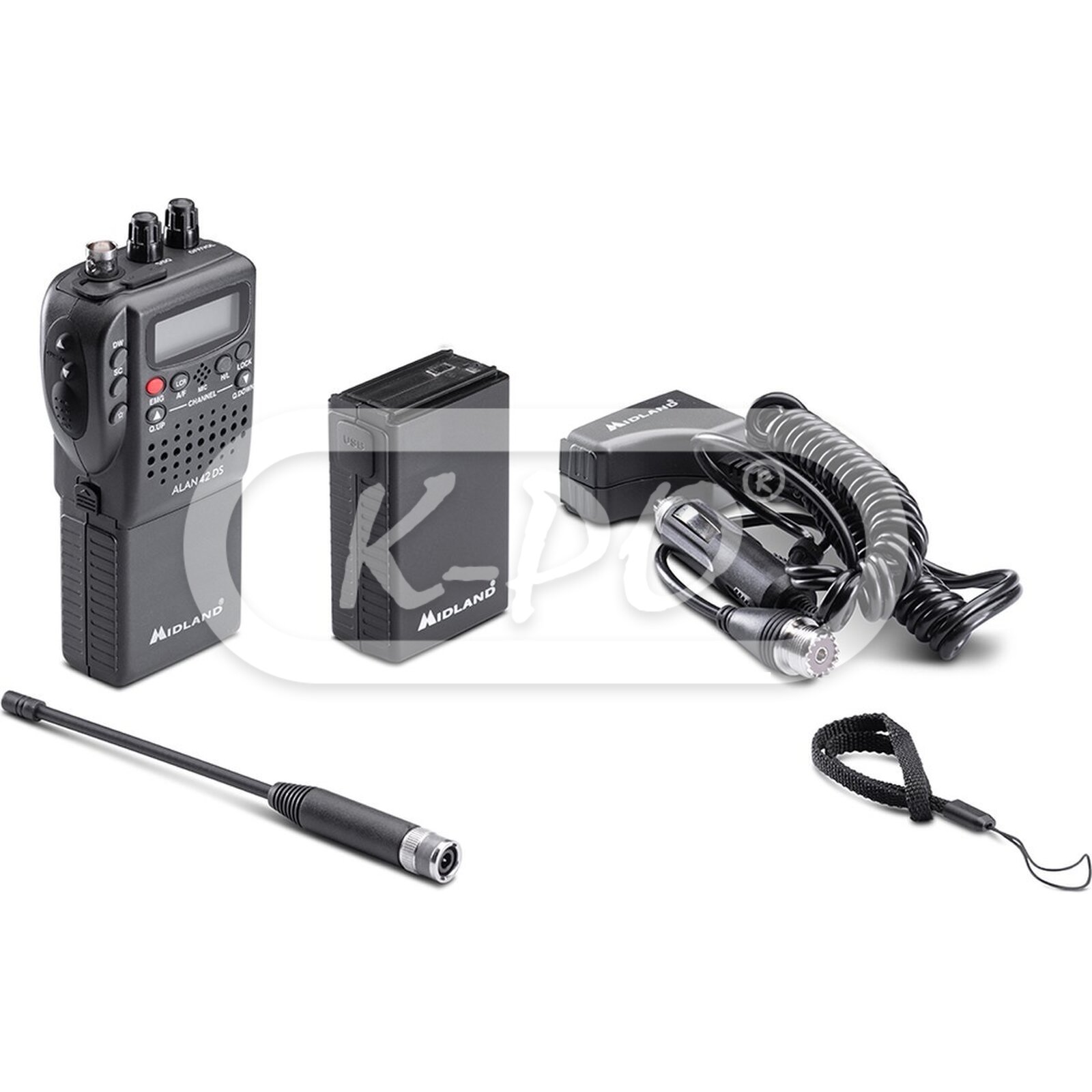

Inside the box

Transceiver: 1 pcs
Power lead: 12 Volt cigarette lighter plug
User Manual: English, German, Spanish, Italian, French, Polish, Romania
Battery: Yes, Li-ion 2800 mAh
Battery holder for 6 AA Alkaline batteries (batteries not included): 1 pcs

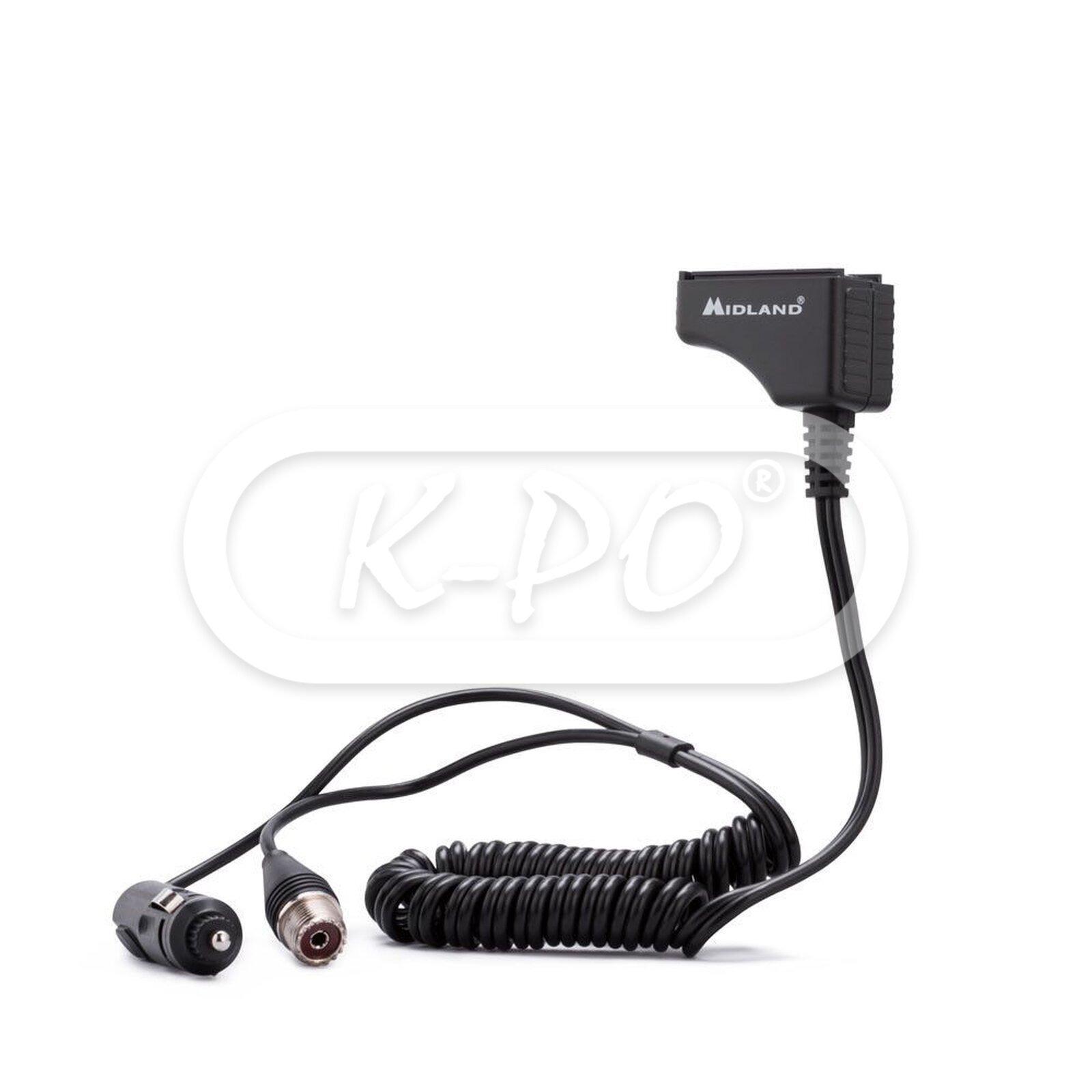

Car adapter with cigarette lighter plug and external SO 239 antenna socket: 1 pcs
Antenna: 1 pcs
Wrist strap: 1 pcs
