Midland - Alan 48 PRO pack

Product code: 7100014
Factory code: 7100014

The Midland Alan 48 PRO Pack offers you all accessories that are needed to install the Midland 48 Pro in your truck, construction vehicle, or agricultural machinery.

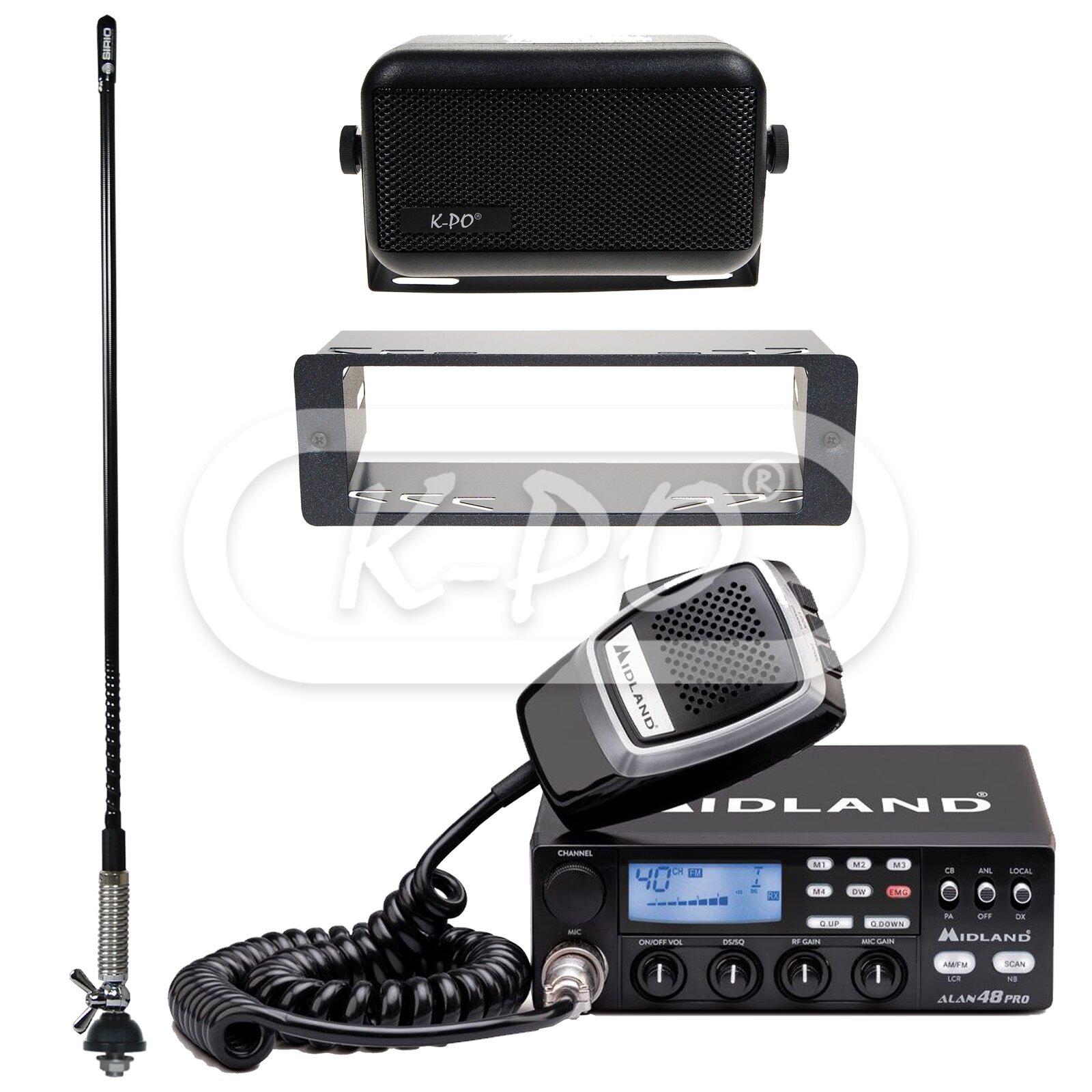

The package includes:

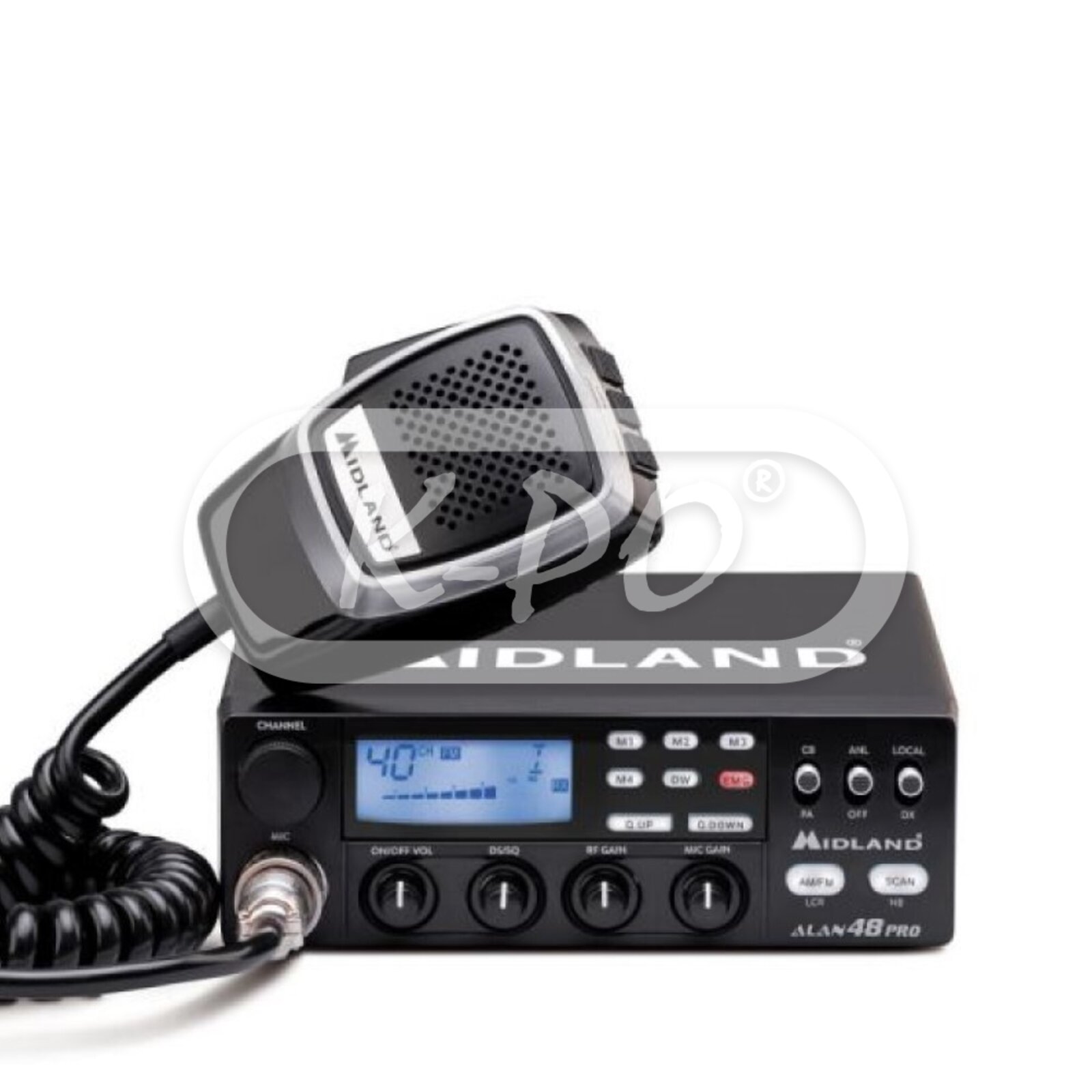

  • Midland Alan 48 Pro: One of the most popular CB radios, compatible with 12V and 24V systems.

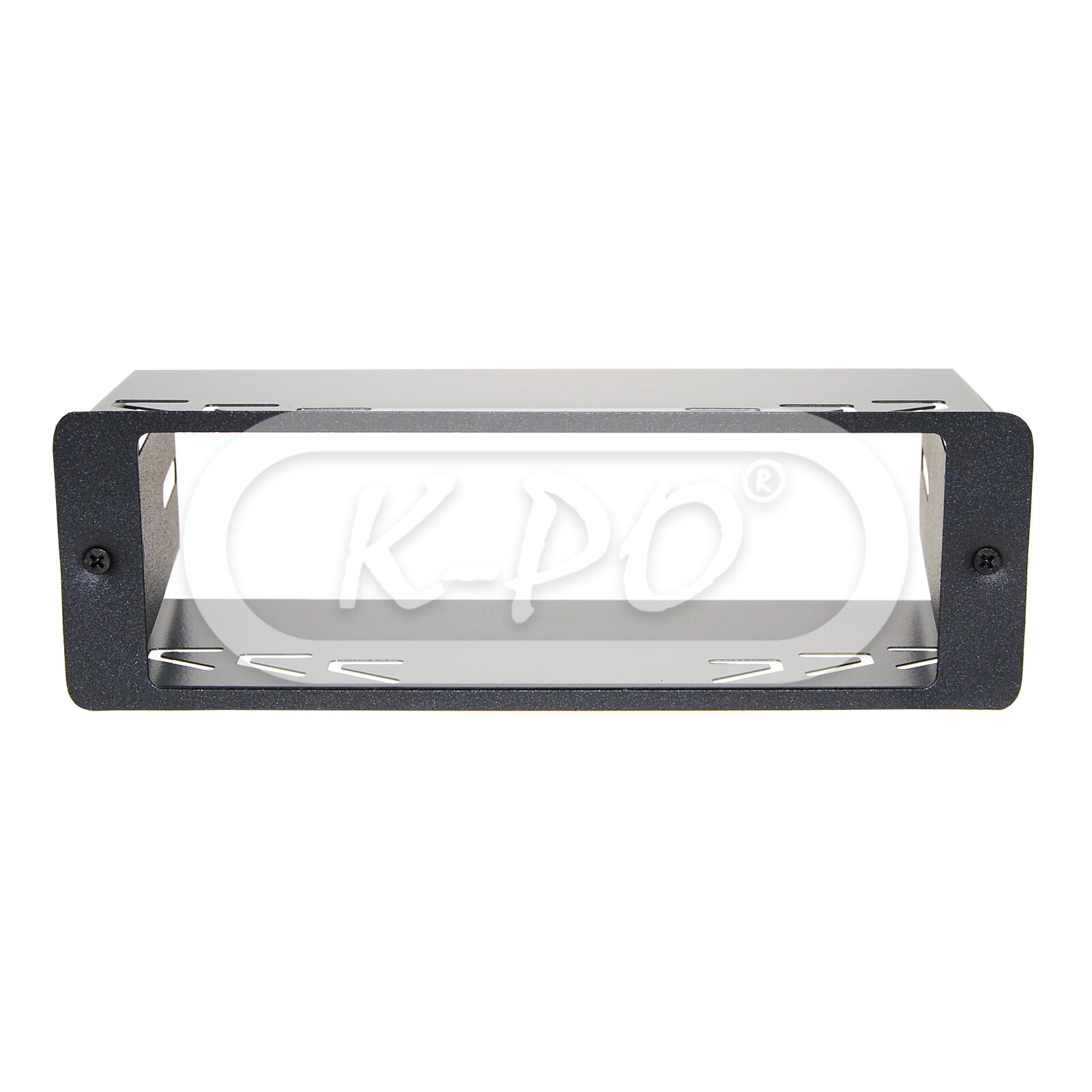

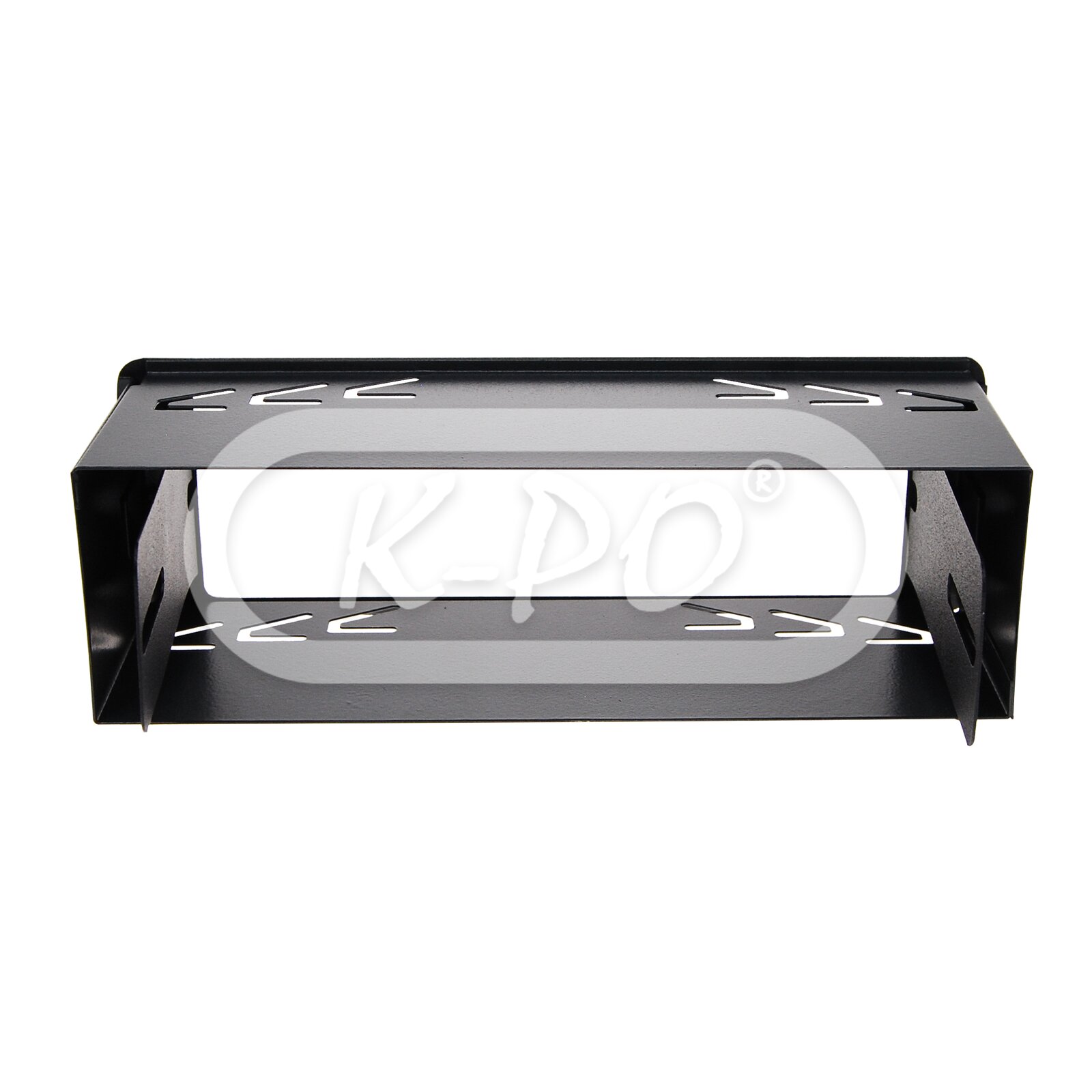

  • K-PO DIN mount 30885: To built in your Midland Alan 48 Pro easily into one of your 1-DIN spaces.

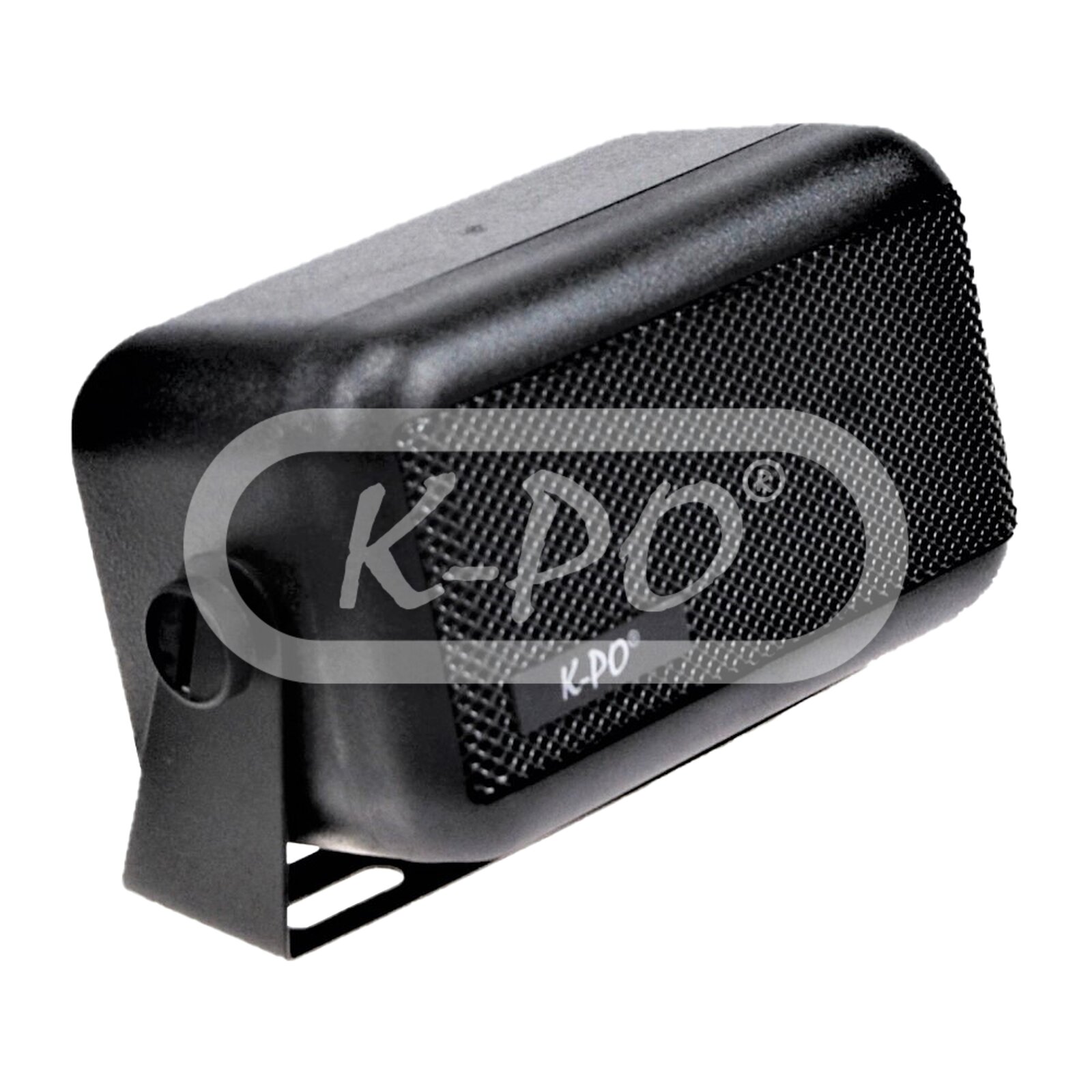

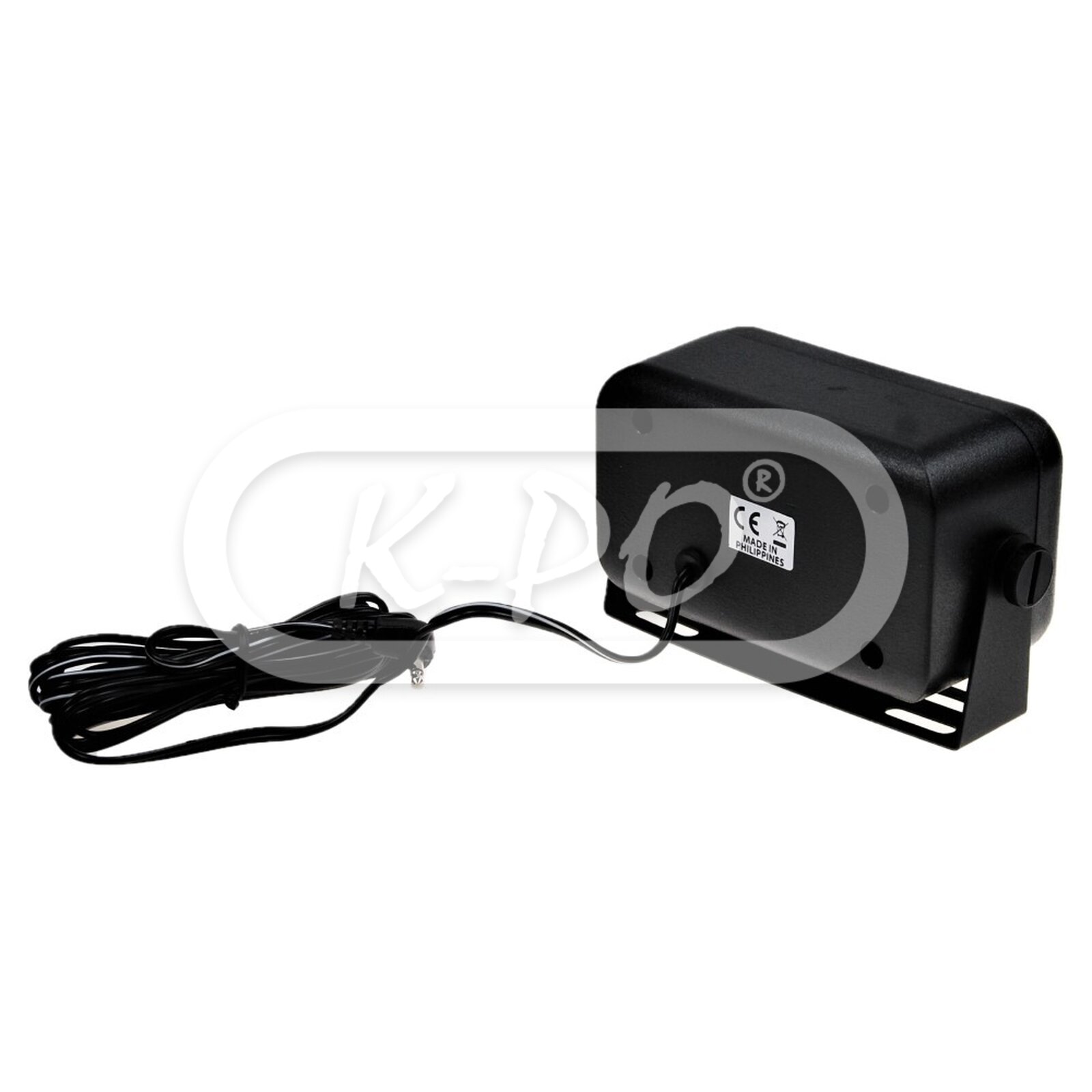

  • K-PO CS 558 speaker: High quality extension speaker for a superior sound quality.

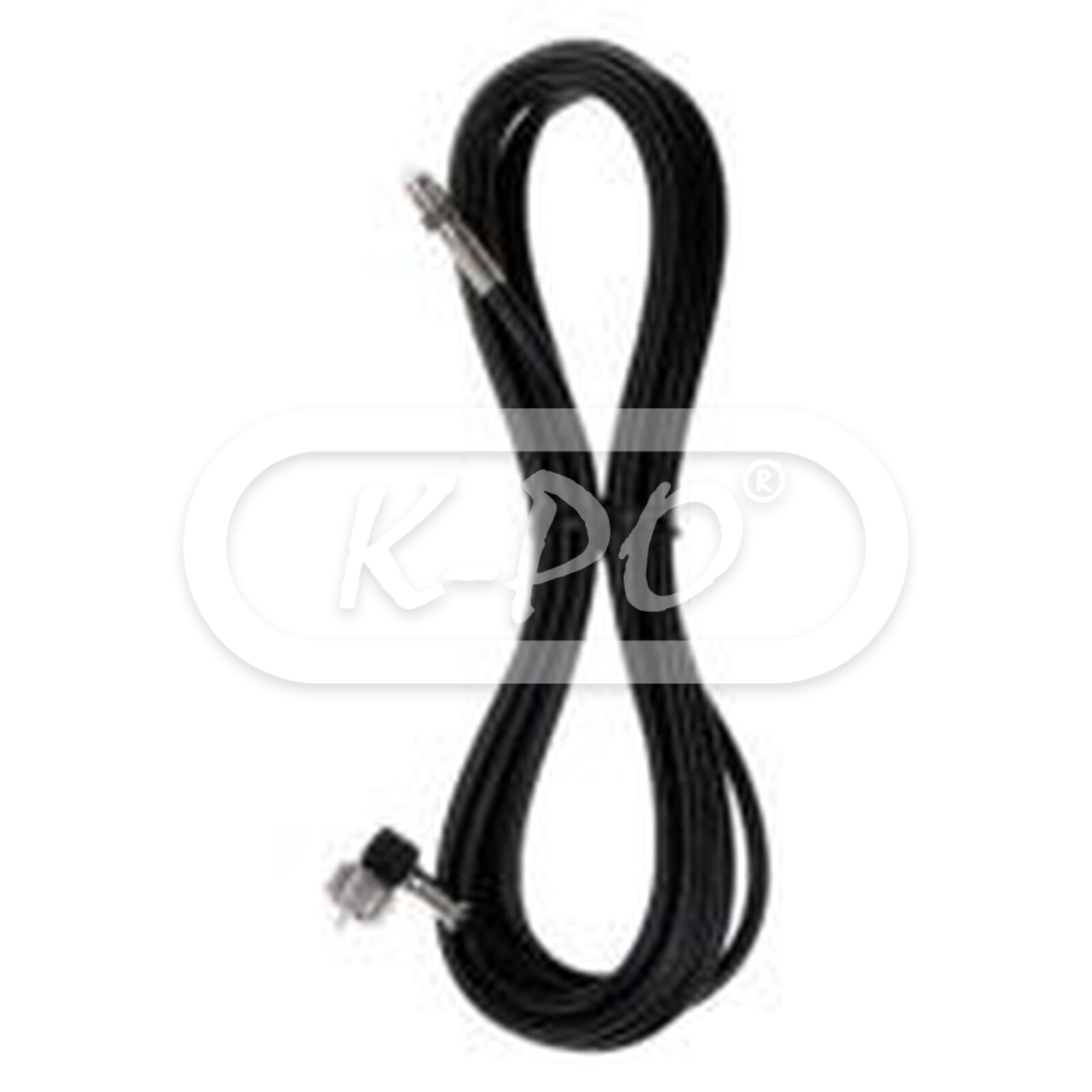

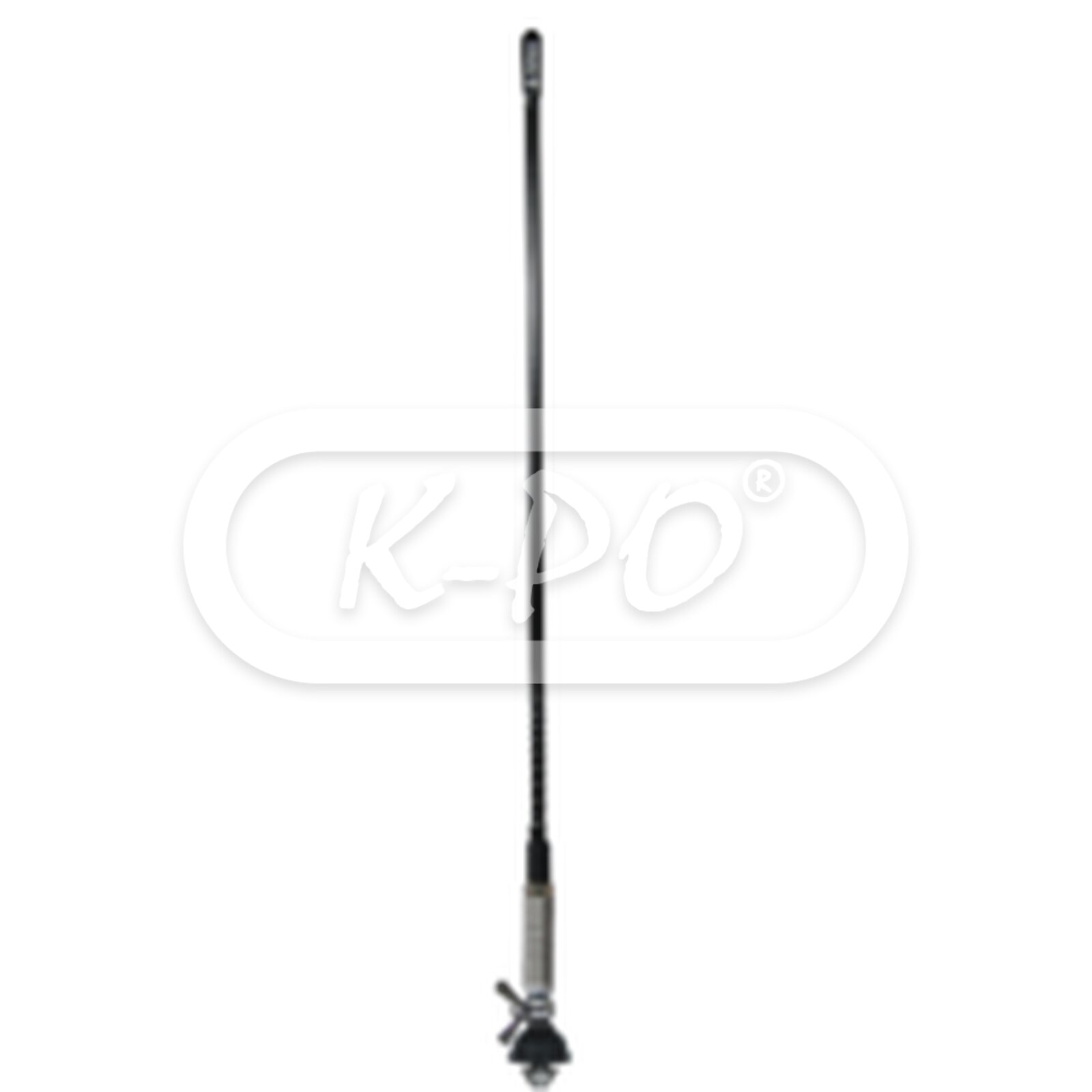

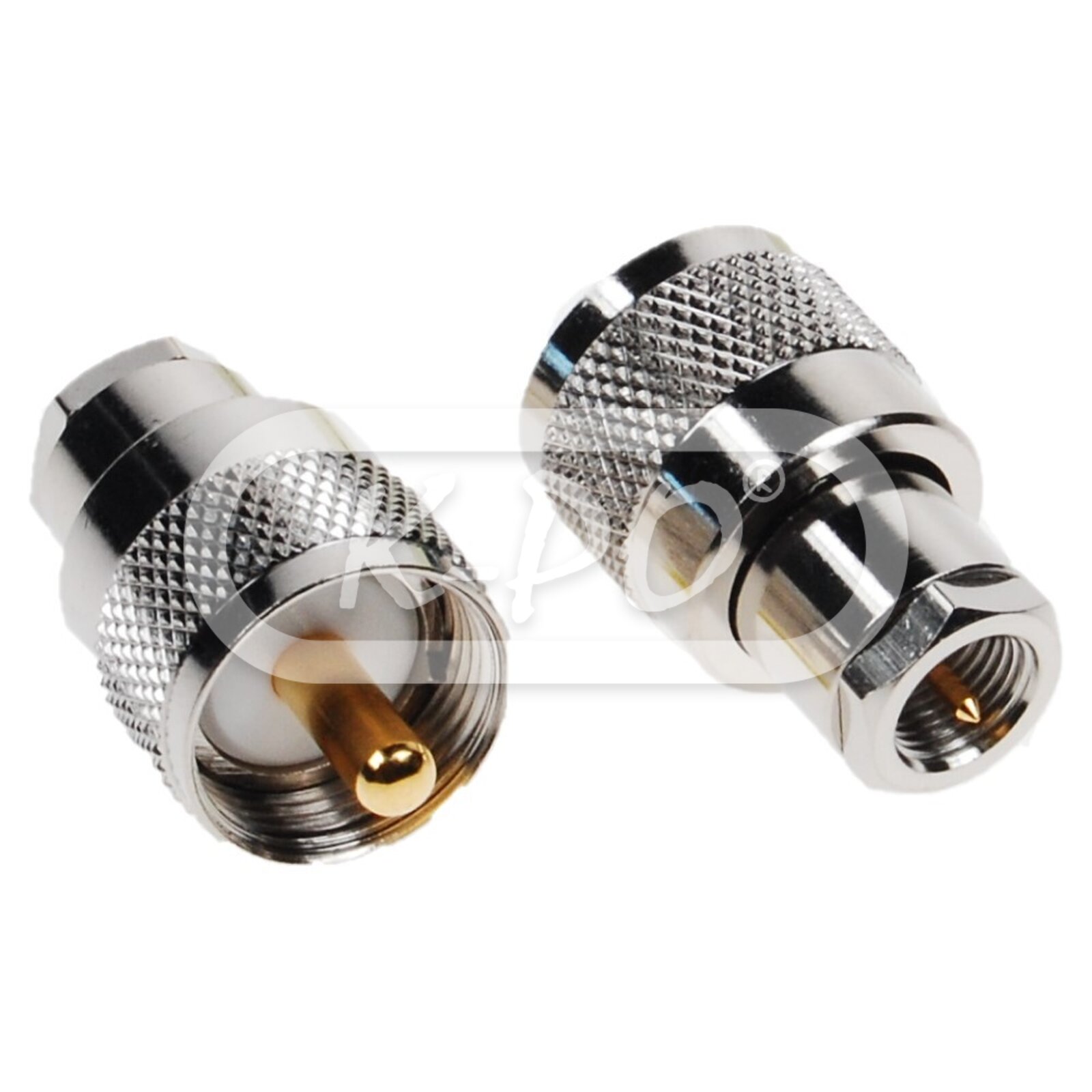

  • Sirio T4 27 CB antenna: The Sirio T4 27 is one of the most used CB antennas and gives a better performance in most situations. Tunable top screw to fine-tune the antenna, with a protective rubber cap. Included is a FME-UHF connector for easy, solder-free, installation.

You can find the full product information for each item included in the Midland Alan 48 PRO pack in the related products section at the bottom of this product page.

Frequency range: 26.965 - 27.405 MHz
Shipped today
€199.95 (165.25 excl. 21% VAT)

Features

  • Modulation: AM / FM
  • Multi-bands: Yes
  • Output power: 4 Watt / Duty cycle 10% @ 13.8V DC
  • Channels: 40 AM / FM
  • Display type: Backlight
  • Display colors: Blue
  • Noise blanker: Yes
  • Squelch: Digital squelch / Manual squelch /
  • Emergency channel: Yes
  • Keypad lock: Yes
  • Scan function: Yes
  • Memory channels: Yes
  • Quick channel selection: Yes
  • External speaker socket: Yes
  • External S-meter socket: Yes
  • External PA socket: Yes
  • S-meter: Yes
  • MIC gain: Yes
  • RF gain: Yes
  • TOT (time out timer): Yes
  • Dual watch: Yes

Electrical data (radio)

  • Voltage: 13,8 Volt / 24 Volt
  • Operating temperature: -10° to +55° C
  • Operating mode: F3E (FM) / A3E (AM)
  • Frequency control: PLL synthesizer
  • Frequency tolerance: 0.002 %

Transmitter

  • Audio frequency response: 300 Hz - 3 kHz
  • Modulation AM: from 85% to 95%
  • Modulation FM: 1.8 kHz to ± 0.2 kHz
  • Harmonic suppression: Less than -54 dBm
  • Drain: 13.8 Volt: 1.6 A max. / 24 Volt: 1.6 A max.

Receiver

  • AM sensitivity: 0.7 µV for 10 dB
  • FM sensitivity: 0.7 µV for 20 dB SINAD
  • Frequency response: 300 Hz - 2.5 kHz
  • Adjacent channel selectivity: 60 dB
  • Maximum audio power: 2 Watt
  • Internal speaker: 8 Ohm, round
  • Receiving system: Dual conversion superheterodyne
  • IF frequencies: Double conversion 1st 10.695 MHz / 2nd 455 kHz
  • Audio distortion: Less than 8% @ 1 kHz
  • Image rejection: 60 dB
  • Conducted spurious: Less than -57 dB
  • Squelch: Adjustable, threshold less than 1 µV,

Mechanical data (radio)

  • Length: 136 mm
  • Height: 51 mm
  • Width: 156 mm
  • Weight: 820 gram
  • Antenna connector: UHF (PL)
  • Mike connector: 6 pin connector

Mechanical data (din mount)

  • Mounting: Bending points
  • Material frame: Metal
  • Material front: Metal
  • Height: 52 mm
  • Width: 154 mm

Electrical data (speaker)

  • Nominal power 3 Watts
  • Maximum Power: 5 Watts
  • Impedance: 8 Ohm

Mechanical data (speaker)

  • Length: 140 mm
  • Height: 80 mm
  • Width: 60 mm
  • Weight: 280 gram
  • Mounting bracket: Yes
  • Cable: Yes
  • Cable length: 200 cm
  • Connector: Mono plug 3.5 mm (angled)

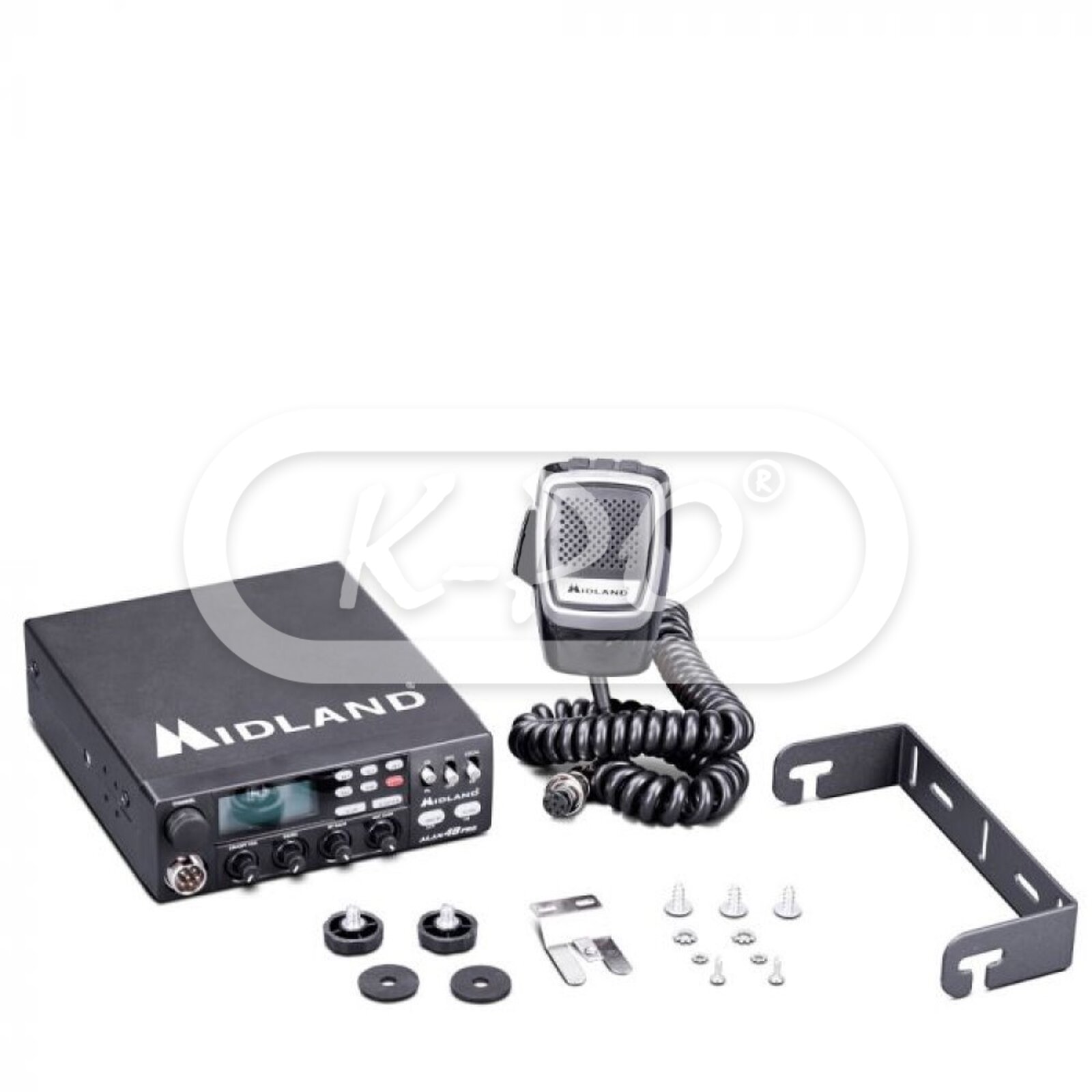

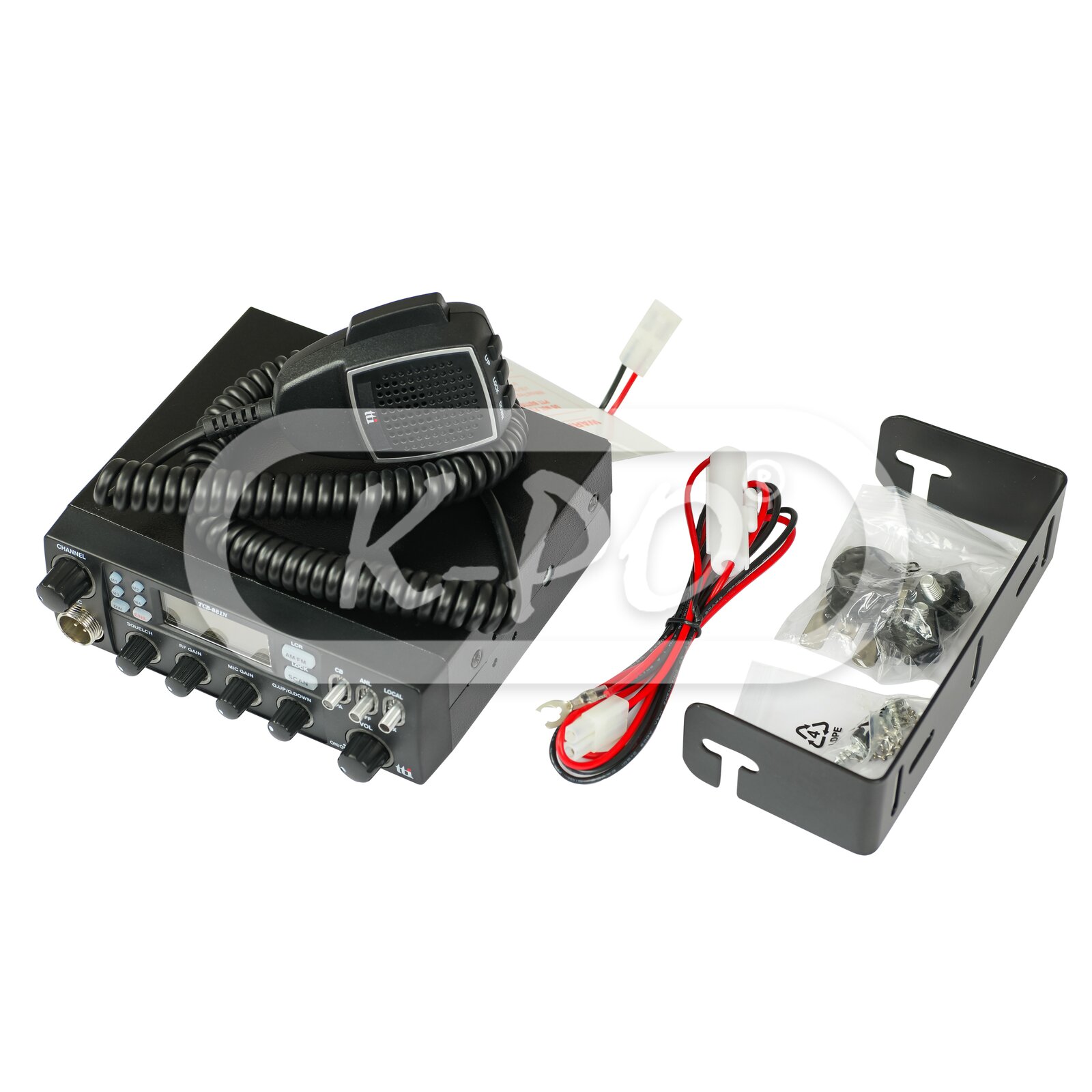

Inside the box

  • Transceiver: 1 pcs
  • Microphone: 1 pcs
  • Fixing screws: 1 set
  • Mounting bracket: 1 pcs
  • Power lead: 1 pcs
  • User Manual: English, Italian, French, Romania, Russian, Spanish
  • DIN mount: Yes
  • K-PO CS 558 speaker: Yes
  • Sirio T4 FME + Connector: Yes
