Midland - Alan 78 Pro

Product code: 42316

Factory code: C423.16

Barcode: 8011869202483

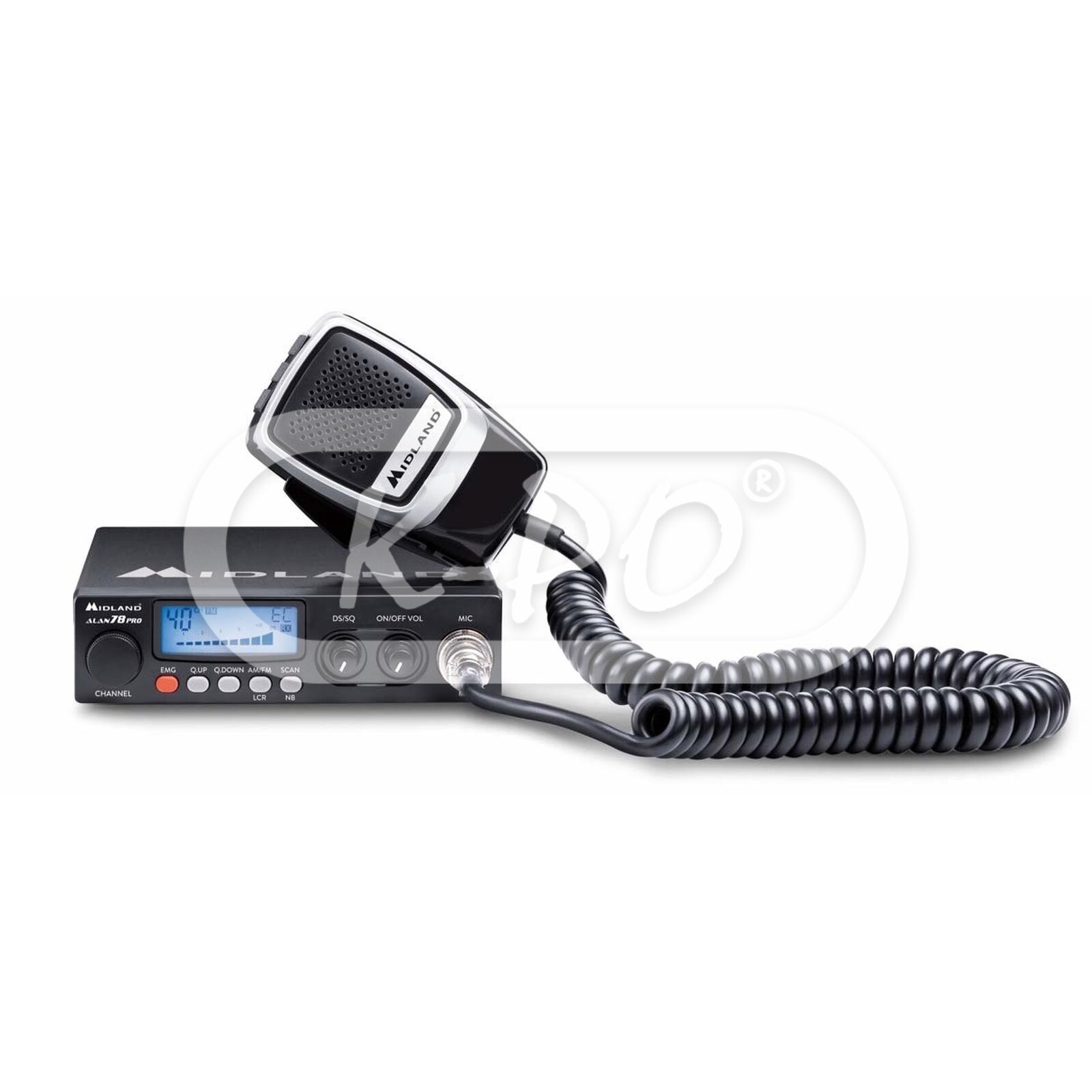

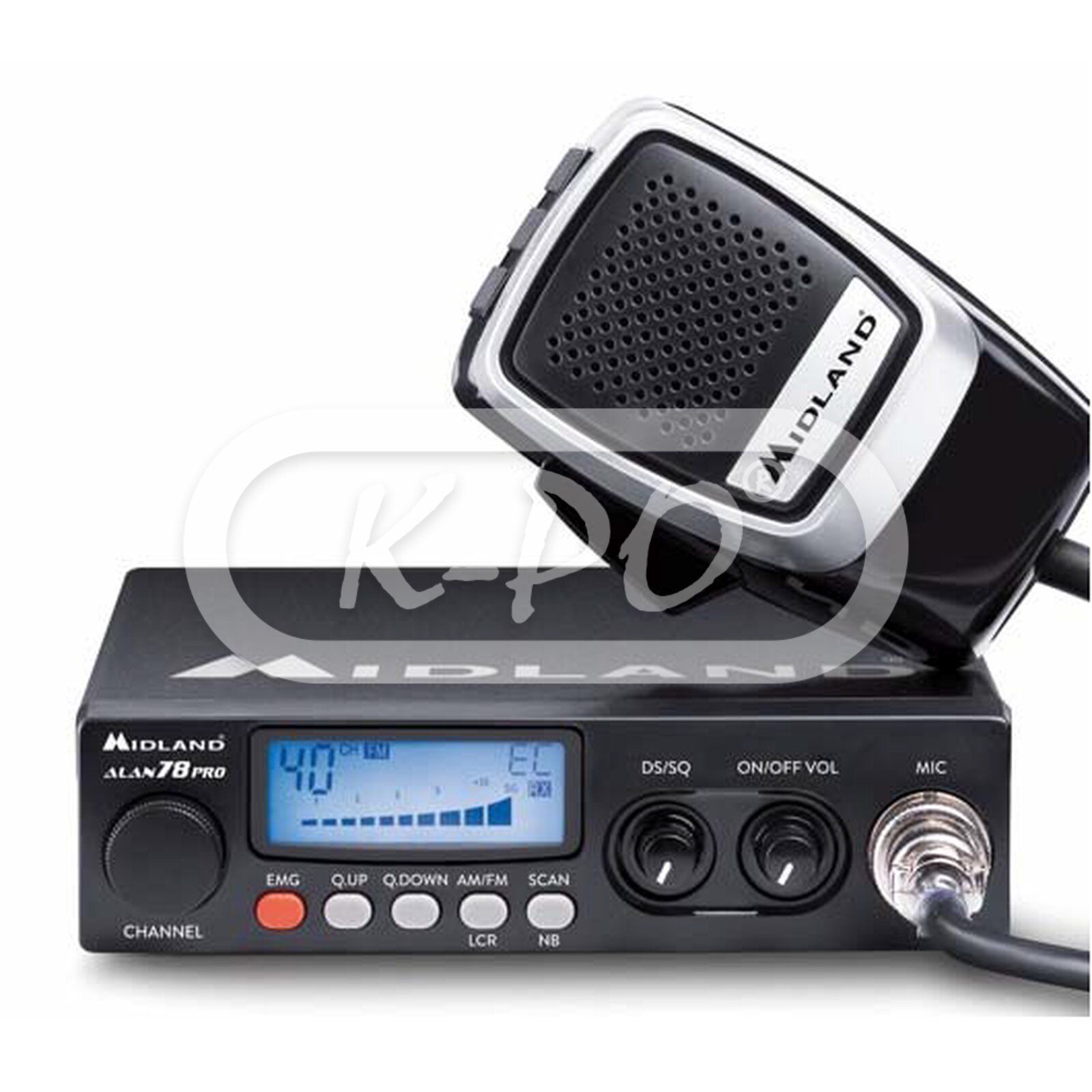

Alan 78 Pro is conceived for multi band frequencies and designed for long journeys and routes in Europe: it has in fact a power output (1W / 4W) that can be changed according to country regulations. Alan 78 Pro is able to to scan available channels and is equipped with the EMG key on the front panel for immediate selection of the Emergency channel 9 . TheLCD blue back-lit display clearly shows the functions set and the S-Meter indicator, which shows the rx and tx signal strength. Alan 78 Pro is high tech and perfect even when dealing with noise: its Digital Squelch eliminates background noises, while the Noise Blanker eliminates continuous environmental noise. The supplied microphone belongs to “Precision Series”, with Up, Down and Lock buttons. Alan 78 Pro has sockets to connect to an external S Meter, to an external speaker and a 6-pin microphone connector.

Frequency range: 26.965 - 27.405 MHz

Shipped next business day

€134.95 (111.53 excl. 21% VAT)

Features

• Modulation: AM / FM
• Multi-bands: Yes
• Output power: 1 - 4 Watt / Duty cycle 10% @ 13.8V DC
• Channels: 40 AM / FM
• Display type: LCD display
• Display colors: Blue
• Noise blanker: Yes
• Squelch: ASQ (Automatiq Squelch Systeem) / DSS (Dynamic Squelch System) /
• Emergency channel: Yes
• Scan function: Yes
• Quick channel selection: Yes
• External speaker socket: Yes

Electrical data

• Voltage: 13,8 Volt / 24 Volt /
• Operating temperature: -10° to +55° C
• Operating mode: F3E (FM) / A3E (AM)
• Frequency control: 1.8 kHz to ± 0.2 kHz
• Frequency tolerance: 13.8 Volt: 1100 mA

Transmitter

• Audio frequency response: 300 Hz - 3 kHz
• Modulation AM: from 85% to 95%
• Modulation FM: 1.8 kHz to ± 0.2 kHz
• Drain: 13.8 Volt: 1100 mA

Receiver

• AM sensitivity: 0.5 µV for 20 dB SINAD
• FM sensitivity: 0.5 µV for 20 dB SINAD
• Frequency response: 300 Hz - 3 kHz
• Adjacent channel selectivity: 65 dB
• Signal to noise ratio: 45 dB
• Maximum audio power: 2 Watt
• Internal speaker: 8 Ohm
• Receiving system: Dual conversion superheterodyne
• IF frequencies: Double conversion 1st 10.695 MHz / 2nd 455 kHz
• Audio distortion: Less than 8% @ 1 kHz
• Image rejection: 65 dB

Mechanical data

• Length: 180 mm
• Height: 35 mm
• Width: 140 mm
• Weight: 850 gram
• Antenna connector: UHF (PL) female (SO-239)
• Mike connector: 6 pin connector

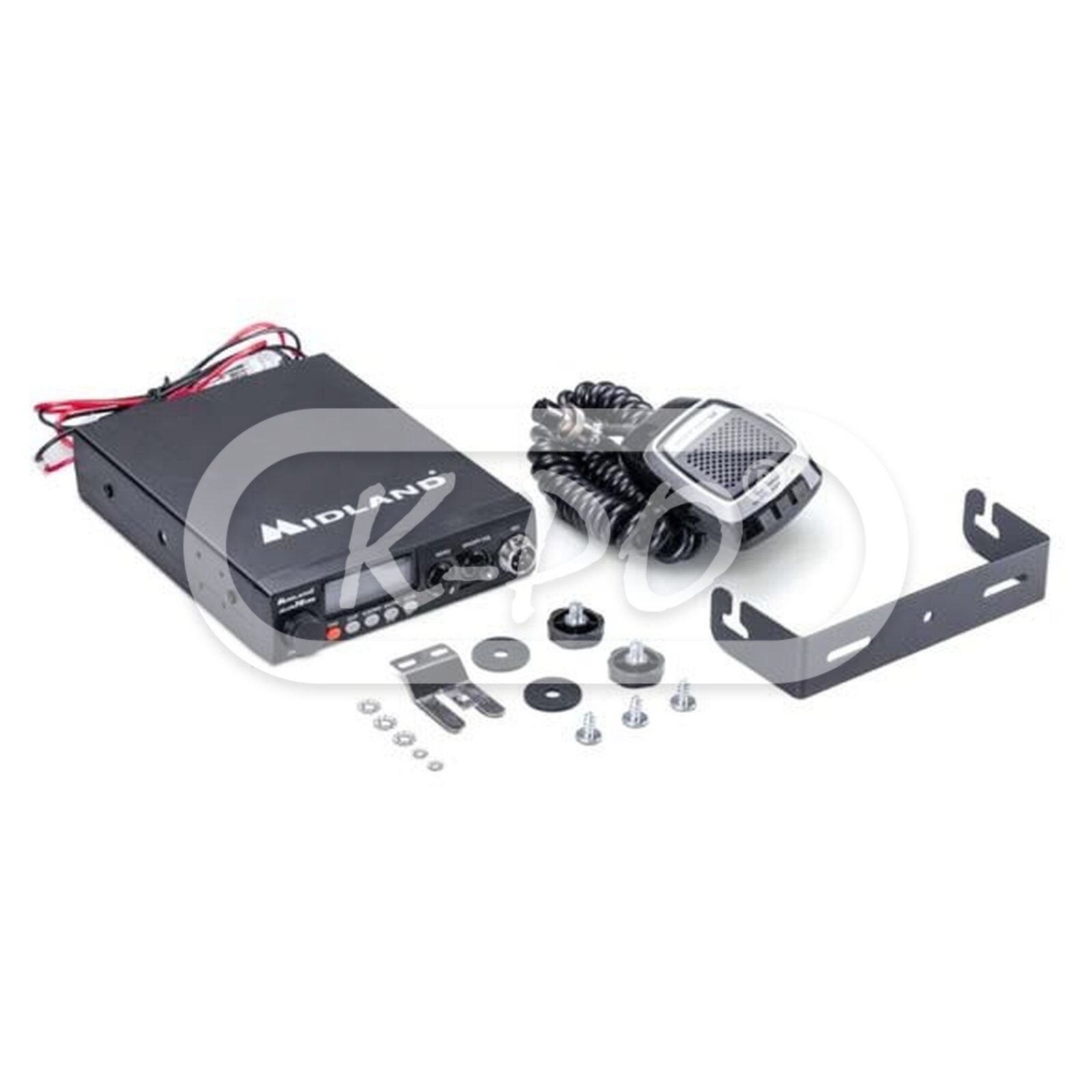

Inside the box

• Transceiver: 1 pcs
• Microphone: 1 pcs
• Fixing screws: 1 set
• Mounting bracket: 1 pcs
• Power lead: 1 pcs
• User Manual: English, German, Spanish, Italian, French, Polish, Romania
• Microphone holder: 1 pcs

Downloads

• Datasheet: MANUAL ALAN 78 PRO
