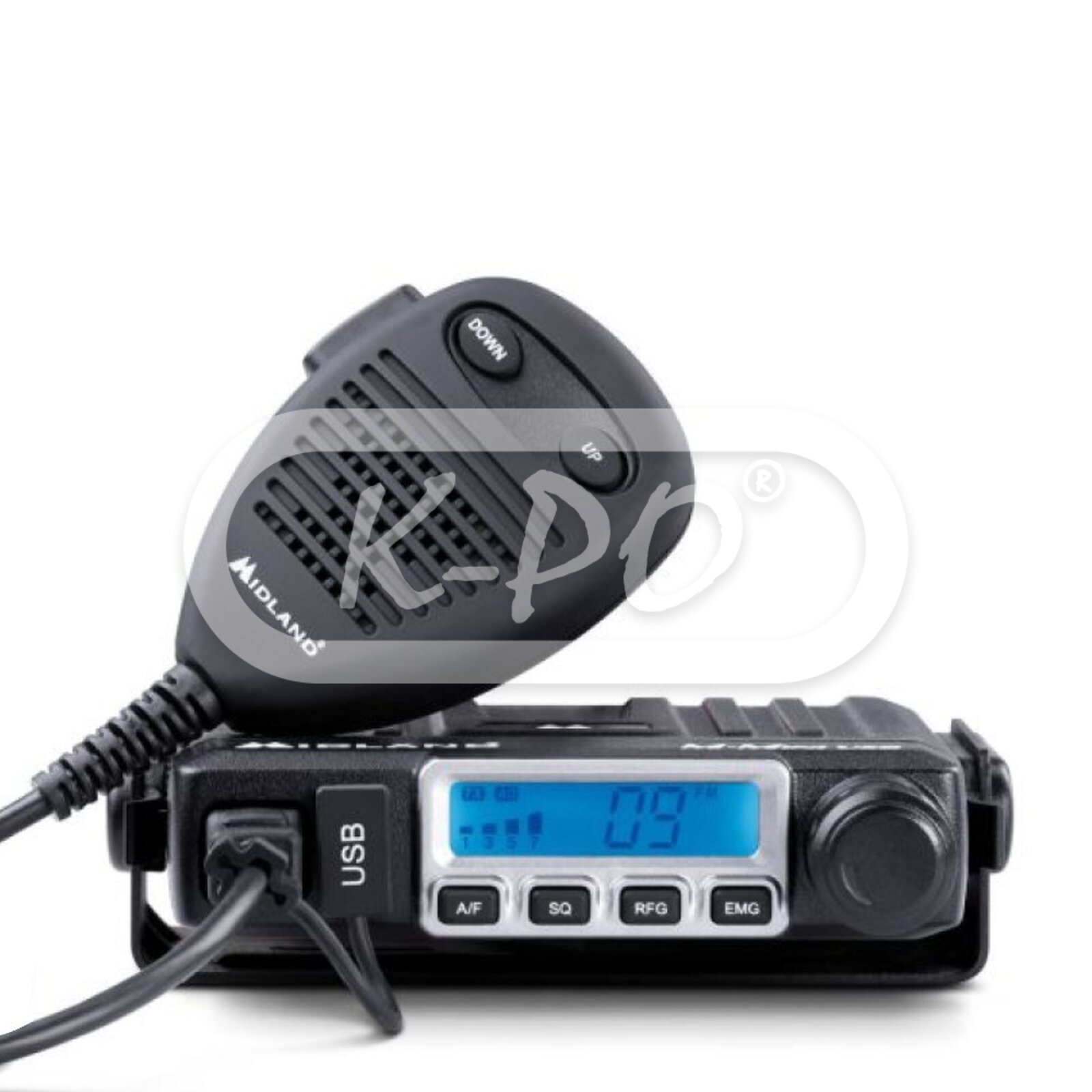

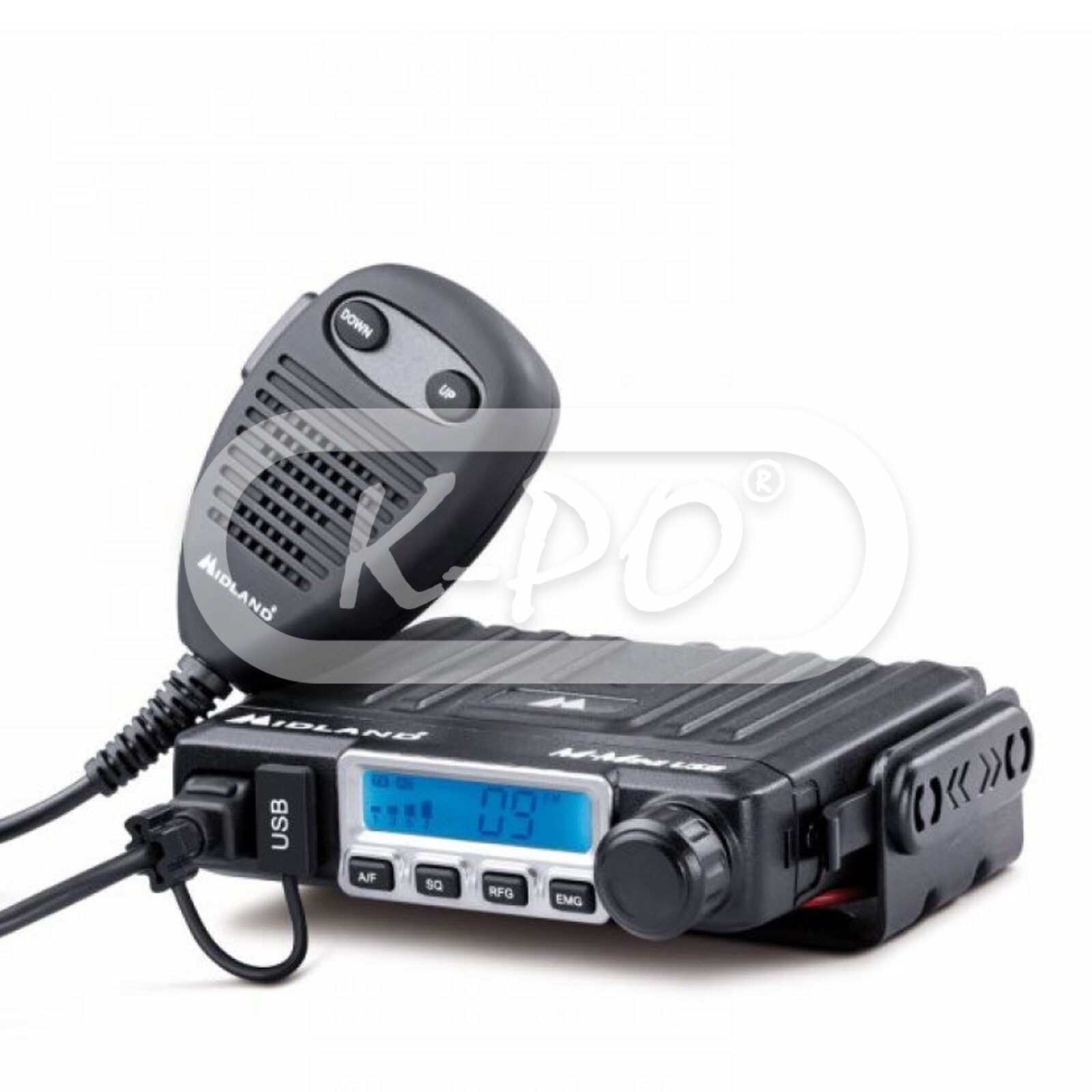

Midland - CB-GO USB

Product code: 126202
Factory code: C1262.05
Barcode: 8011869203510

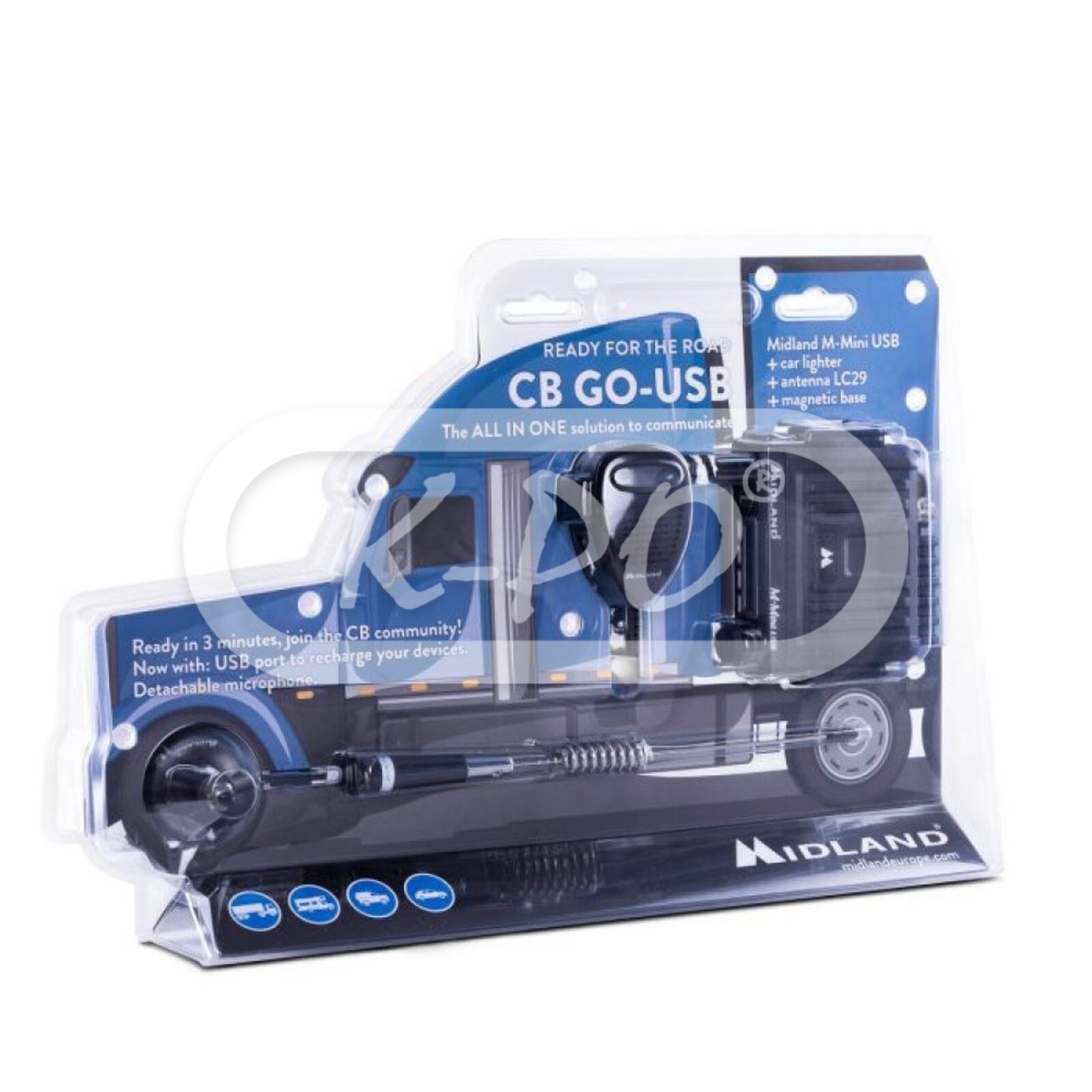

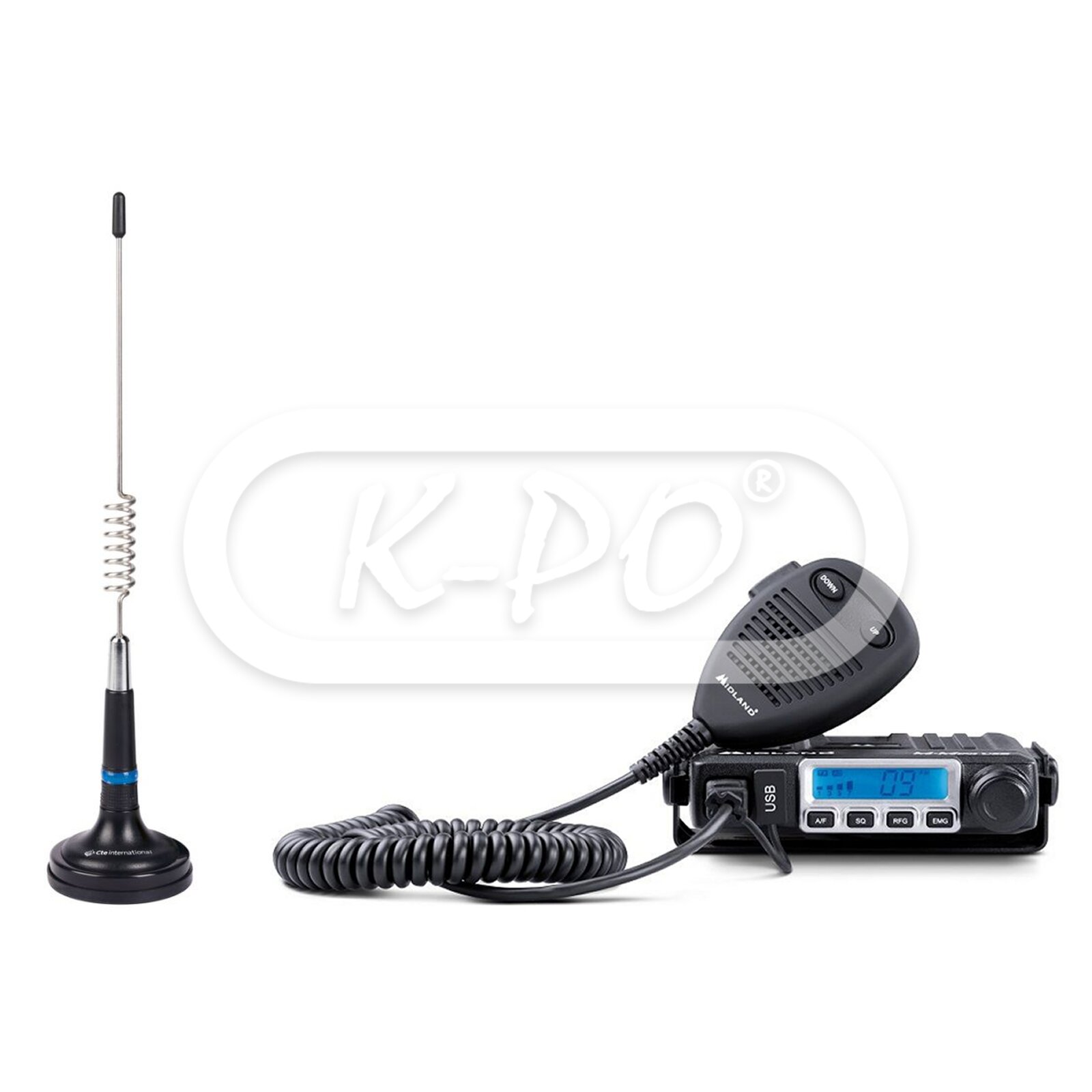

The Midland CB-GO USB is one of the most popular CB starter and holiday packs. A complete pack with the very compact sized M-Mini USB CB radio with cigarette lighter plug and the Midland LC29 magnetic antenna. Comes in a luxury 'truck' shaped blister packaging.

Frequency range: 26.965 - 27.405 MHz
Shipped next business day - Stock: 1
€98.95 (81.78 excl. 21% VAT)

Features

  • Modulation: AM / FM
  • Multi-bands: Yes
  • Output power: 1 - 4 Watt
  • Channels: 40 AM / FM
  • Display type: LCD display
  • Display colors: Blue
  • USB: Yes
  • Squelch: Digital squelch
  • Emergency channel: Yes
  • Keypad lock: Yes
  • Quick channel selection: Yes
  • External speaker socket: Yes
  • S-meter: Yes
  • RF gain: Yes
  • Car socket connector: Yes

Electrical data

  • Voltage: 13,8 Volt
  • Operating temperature: -20° to +55° C
  • Frequency tolerance: 0.002%

Transmitter

  • Modulation AM: from 85% to 90%
  • Modulation FM: 1.9 kHz
  • Frequency allowance: ± 300 Hz
  • Spurious transmissions: inferior to 4 nW (- 54 dBm)
  • Emitted power in the adjacent channel: inferior a 20 μW

Receiver

  • Adjacent channel selectivity: 60 dB
  • Maximum audio power: 1 Watt
  • Internal speaker: 8 Ohm
  • Image rejection: 70 dB

Mechanical data

  • Length: 120 mm
  • Height: 25 mm
  • Width: 110 mm
  • Weight: 450 gram
  • Antenna connector: UHF (PL) female (SO-239)
  • Mike connector: RJ45 connector

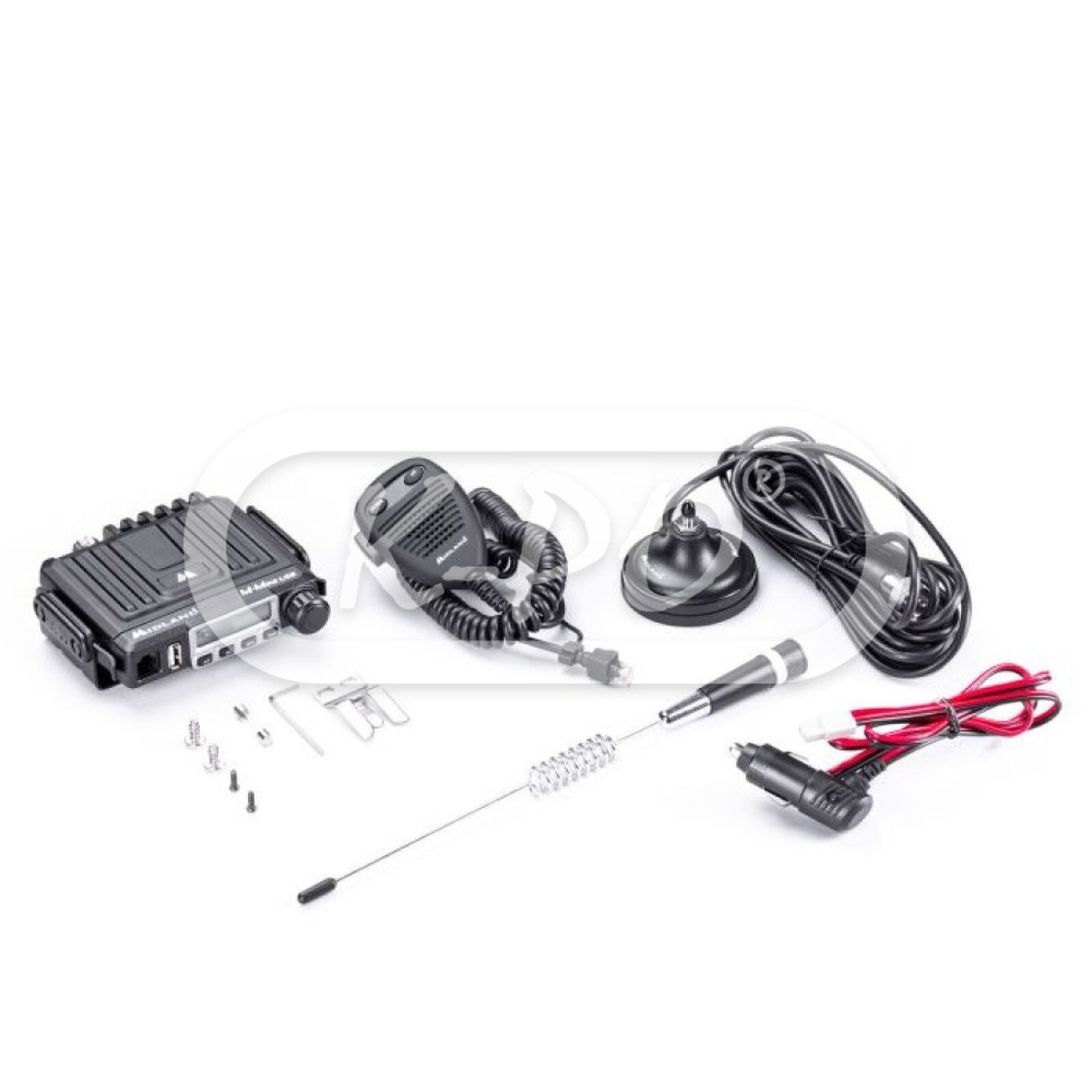

Inside the box

  • Transceiver: 1 pcs
  • Microphone: 1 pcs
  • Fixing screws: 1 set
  • Mounting bracket: 1 pcs
  • Power lead: 12 Volt cigarette lighter plug
  • User Manual: English, German, Spanish, Italian, French, Polish, Romania
  • LC29 antenna: 1 pcs
  • Magnetic base: 1 pcs

Downloads
