Nagoya - NA-771 BNC male

Product code: 771

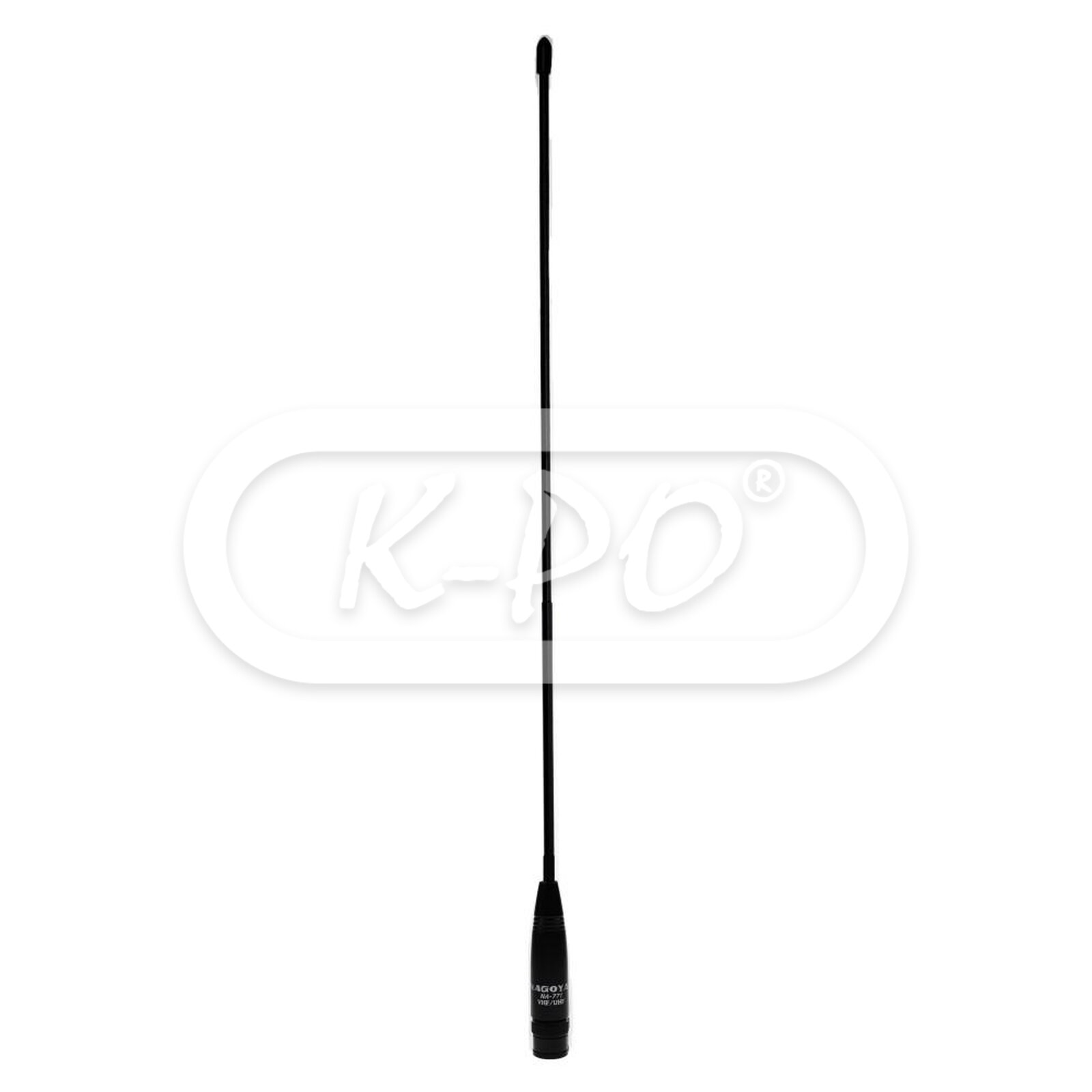

39 cm long handheld antenna with a flexible rubber whip for 144 / 430 MHz. RX on 120 / 150 / 300 / 450 / 900 MHz.

Original Nagoya, made in Taiwan.

Frequency range: TX: 144 / 430 MHz, RX: 120 / 150 / 300 / 450 / 900 MHz
Shipped next business day
€18.95 (15.66 excl. 21% VAT)

Electrical data

  • Electrical type: 144 MHz: 1/4 λ / 430 MHz: 1/2 λ
  • Gain: 2.15 dBi
  • VSWR: ≤ 1.5
  • Maximum continuous power: 10 Watts
  • Impedance: 50 Ohm
  • Polarization: Linear vertical

Mechanical data

  • Length: 390 mm
  • Antenna connector: BNC male

Inside the box

  • Antenna: Yes
