Nagoya - NA-771 SMA female

Product code: 5321

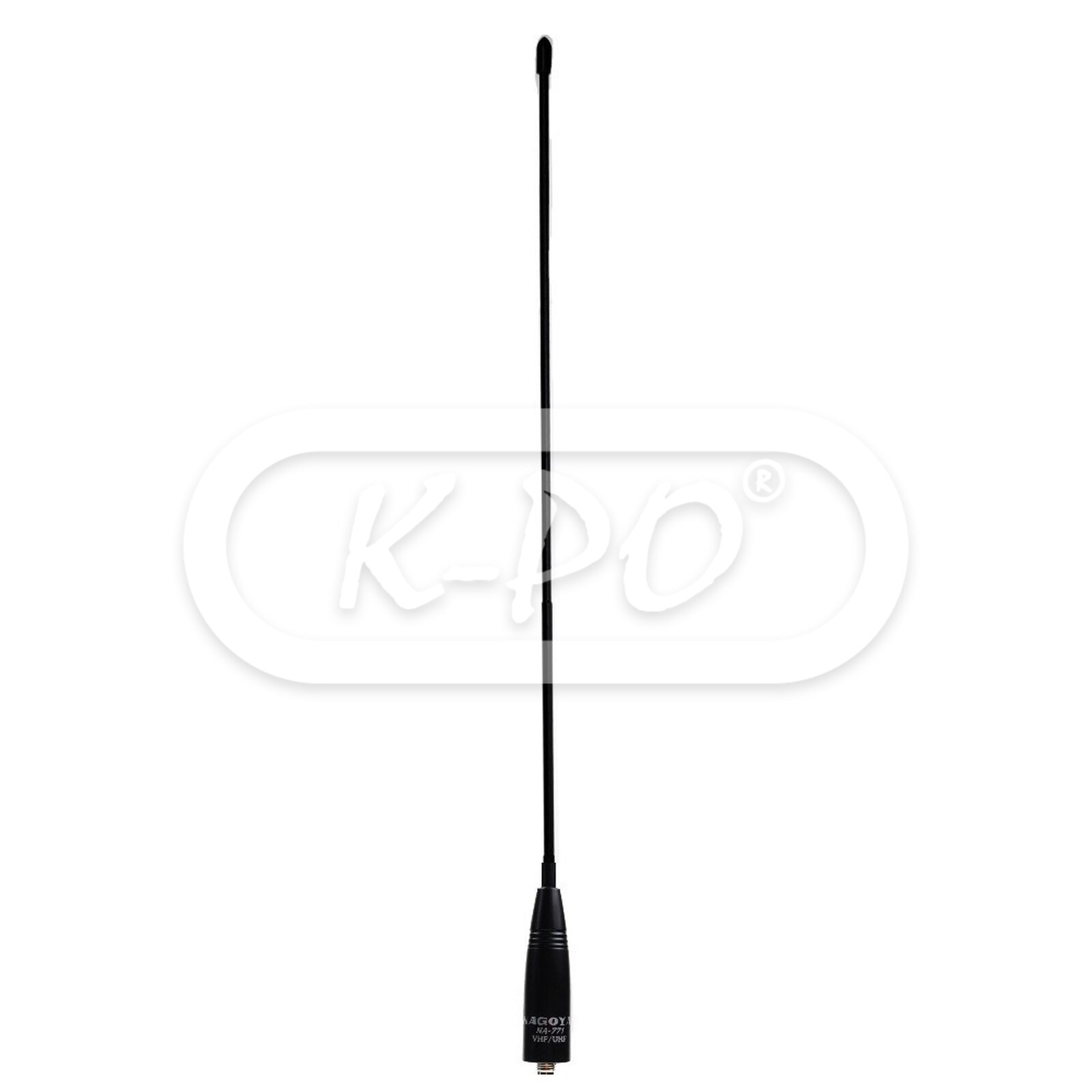

39 cm long handheld antenna with a flexible rubber whip for 144 / 430 MHz. RX on 120 / 150 / 300 / 450 / 900 MHz.

Original Nagoya, made in Taiwan.

Frequency range: TX: 144 / 430 MHz, RX: 120 / 150 / 300 / 450 / 900 MHz

Shipped next business day

€18.95 (15.66 excl. 21% VAT)

Electrical data

• Electrical type: 144 MHz: 1/4 λ / 430 MHz: 1/2 λ
• Gain: 2.15 dBi
• VSWR: ≤ 1.5
• Maximum continuous power: 10 Watts
• Impedance: 50 Ohm
• Polarization: Linear vertical

Mechanical data

• Length: 390 mm

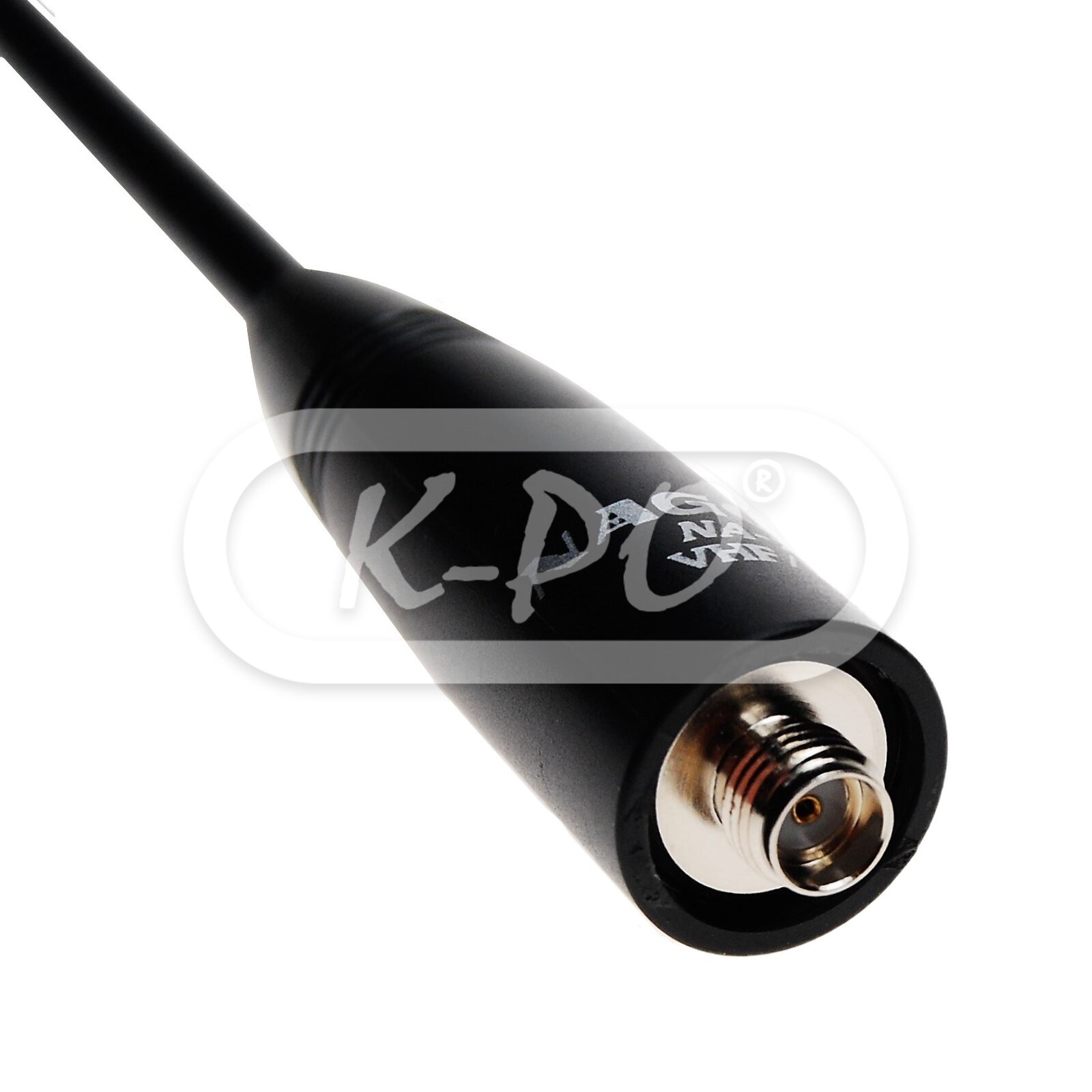

• Antenna connector: SMA female

Inside the box

• Antenna: Yes
