Nagoya - UT-72 UHF (PL)

Product code: 5127
Factory code: 5127

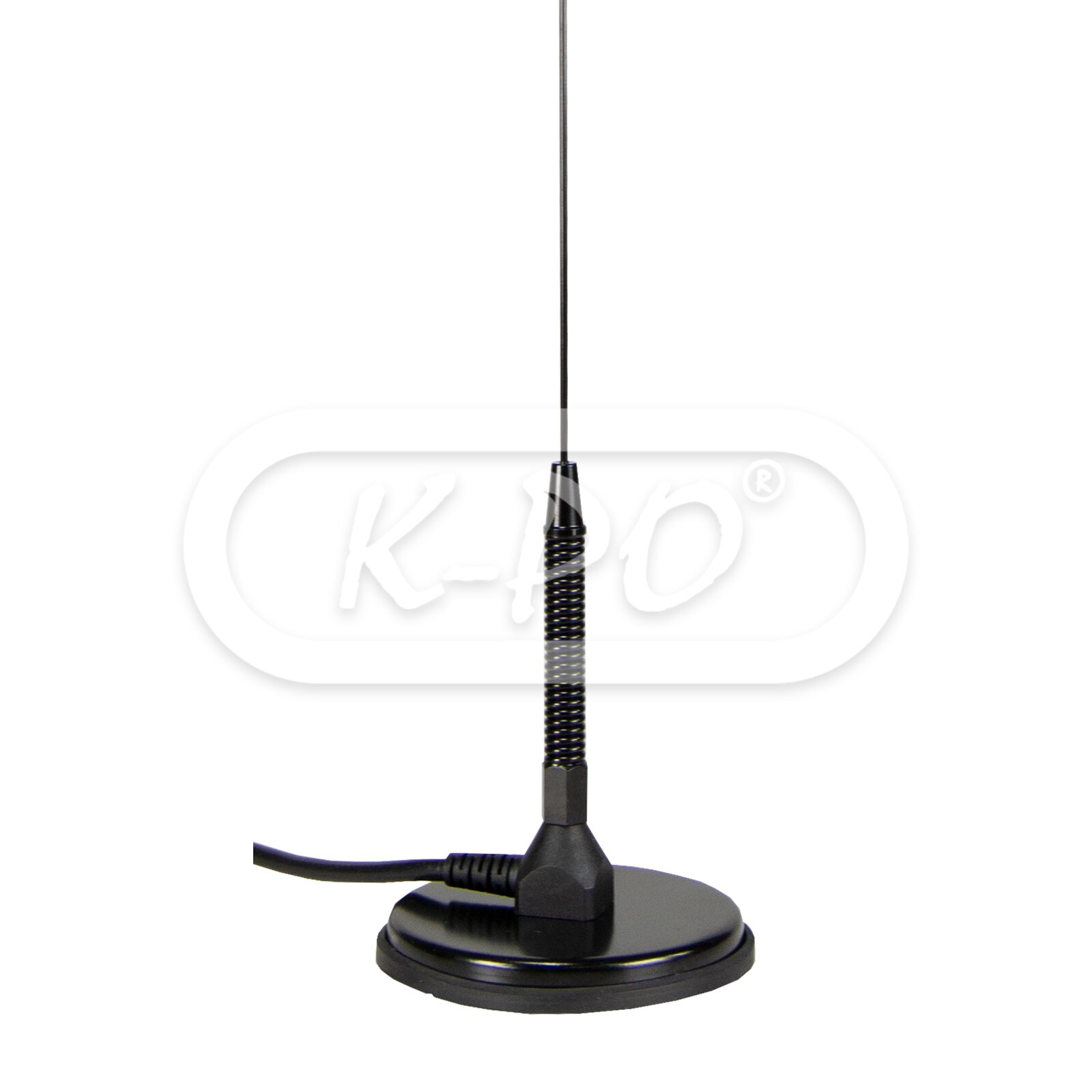

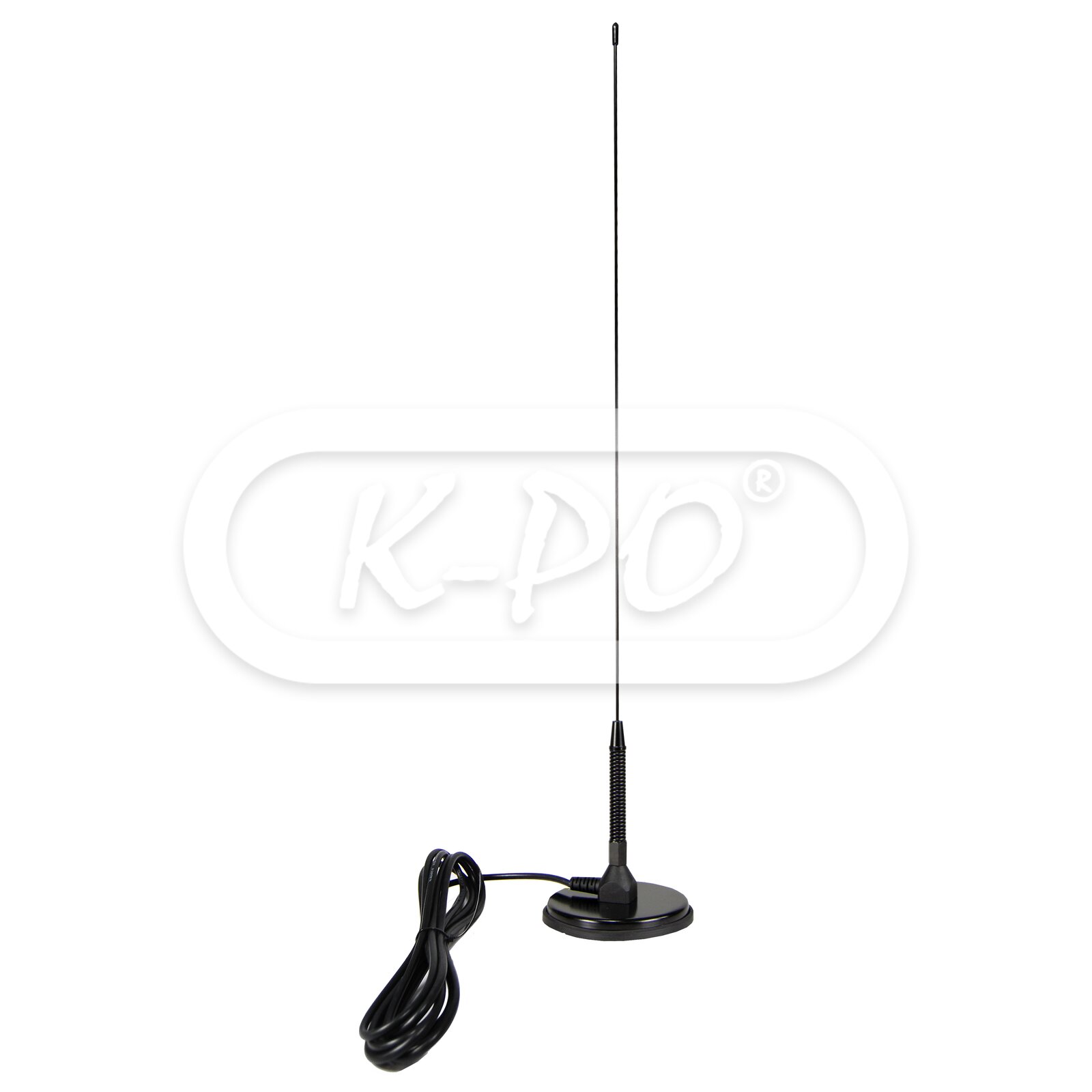

The Nagoya UT-72 is a nicely finished mobile magnet antenna for the 144 and 430 MHz. The antenna is around 51 cm long and with an UHF (PL) male connector.

Original Nagoya, made in Taiwan.

Frequency range: 144 / 430 MHz
Shipped next business day
€25.95 (21.45 excl. 21% VAT)

Electrical data

  • Electrical type: 144 MHz: 1/4 λ / 430 MHz: 5/8 λ
  • Gain: 144 MHz: 1.7 dBi / 430 MHz: 3.5 dBi
  • VSWR: ≤1.5:1
  • Bandwidth: ≥15 MHz at SWR ≤2.0
  • Power peak: 80 Watts
  • Impedance: 50 Ohm
  • Polarization: Linear vertical
  • Cable: Yes
  • Cable length: 3 meter / RG 58

Mechanical data

  • Height: 510 mm
  • Weight: 450 gram

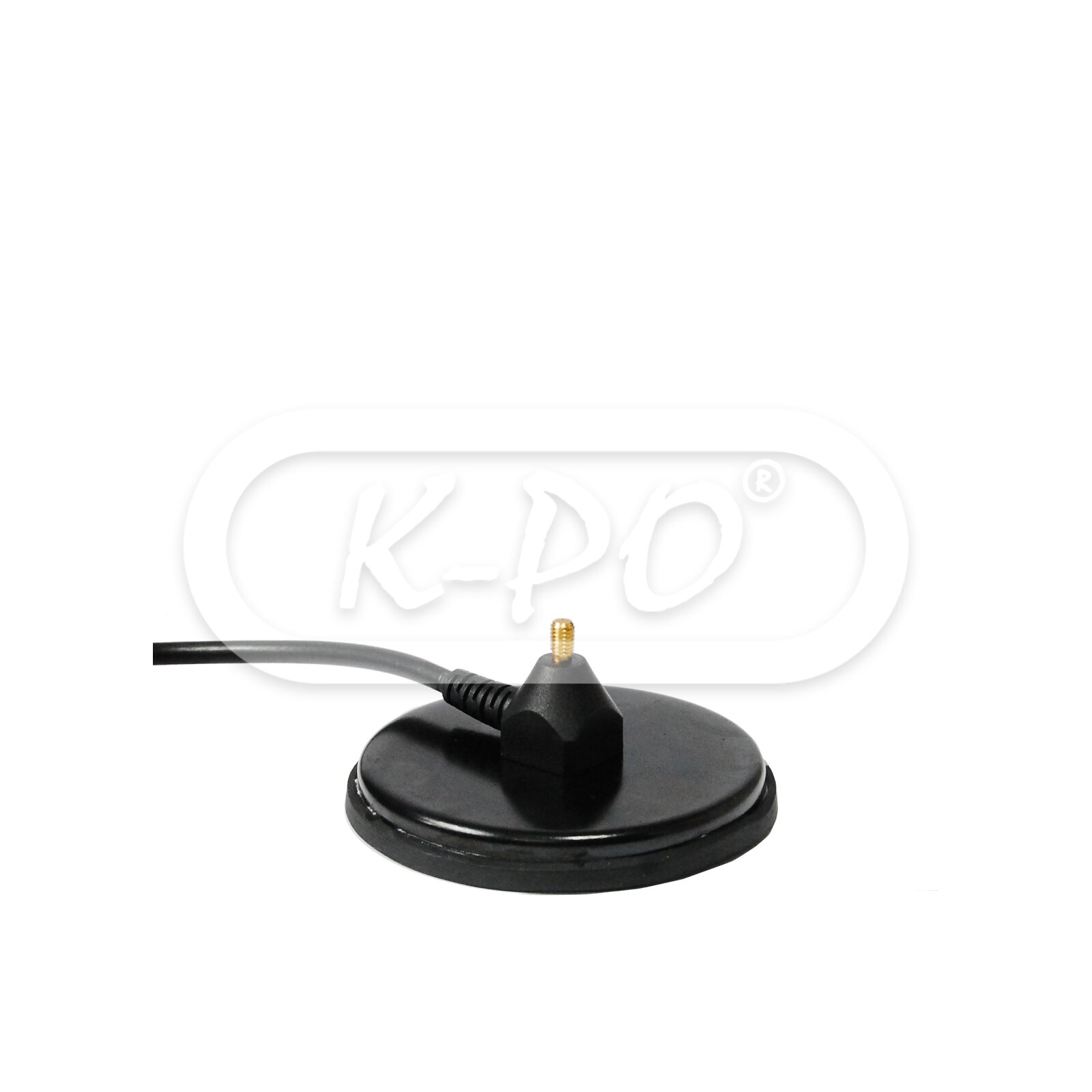

  • Mounting type: 80 mm magnet

Inside the box

  • Antenna: Yes

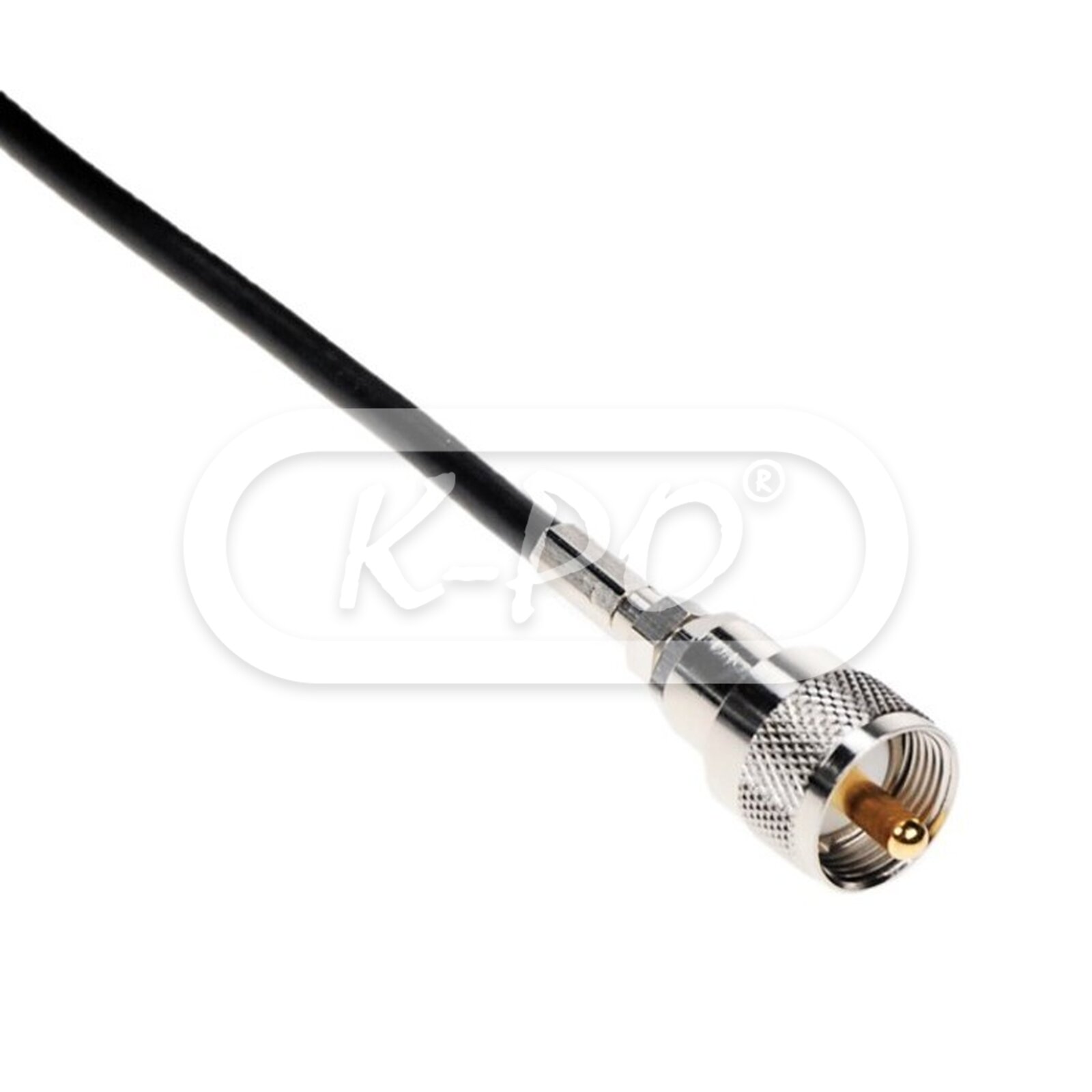

  • Radio connector: UHF (PL) male
  • Antenna cable: Yes
  • Installation manual: English
