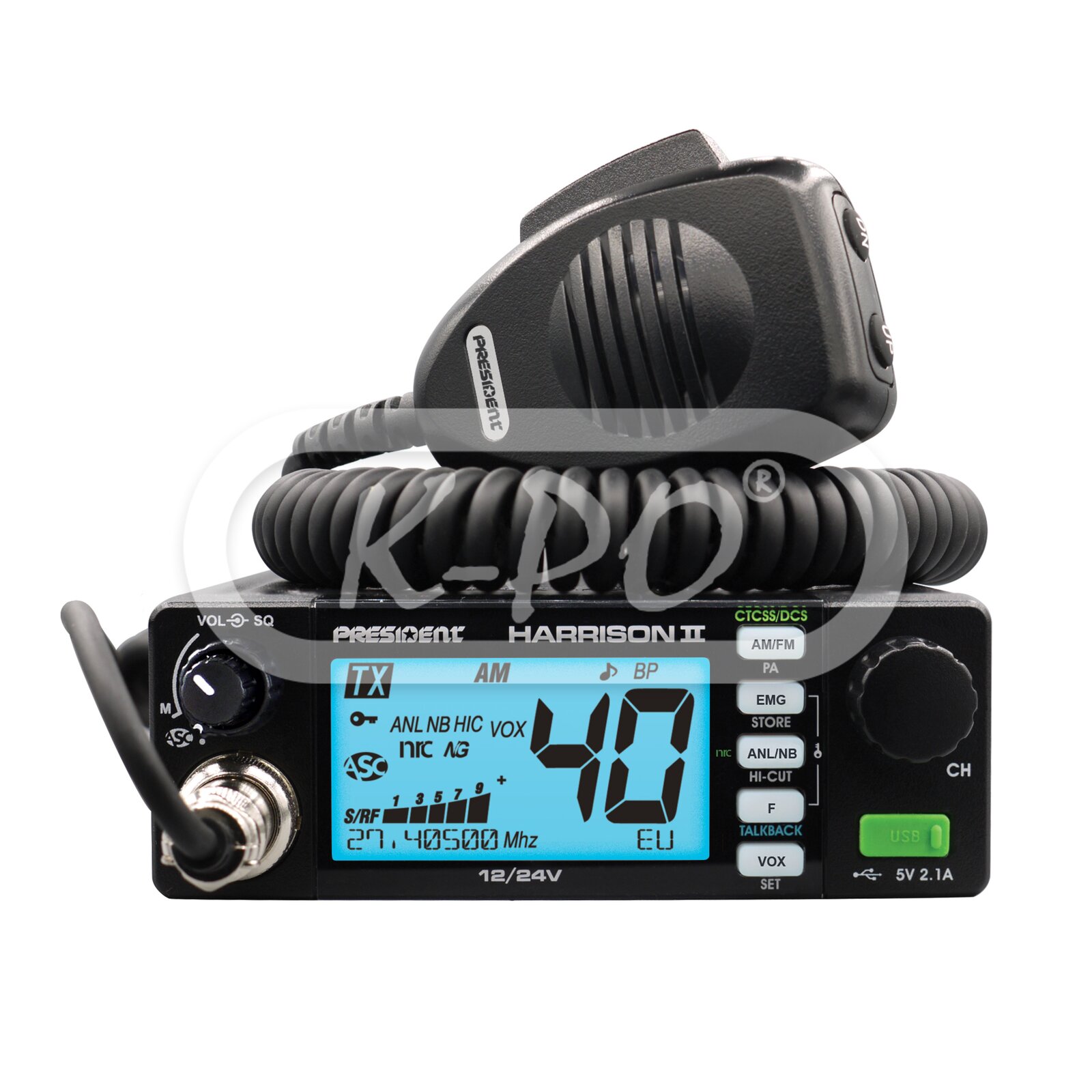

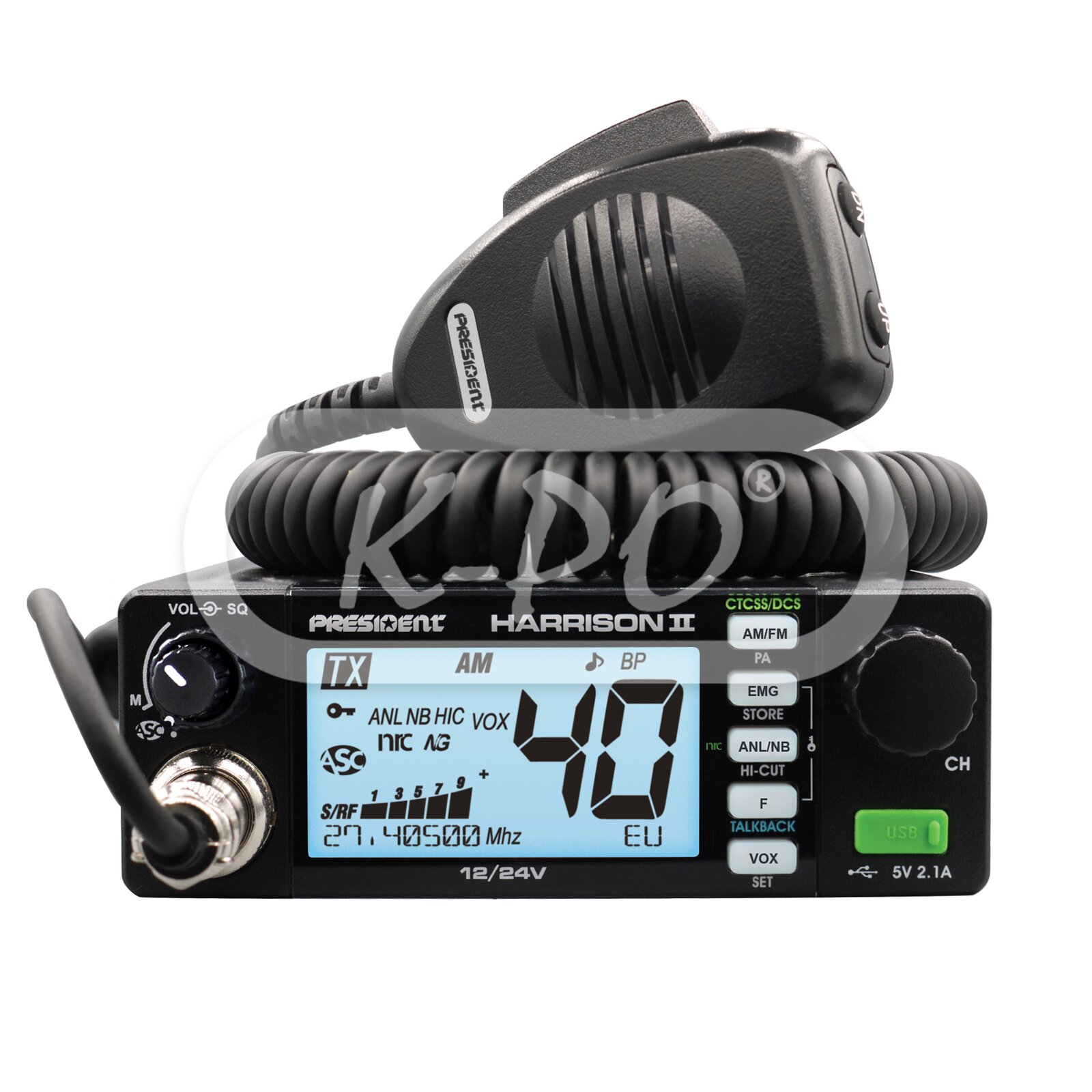

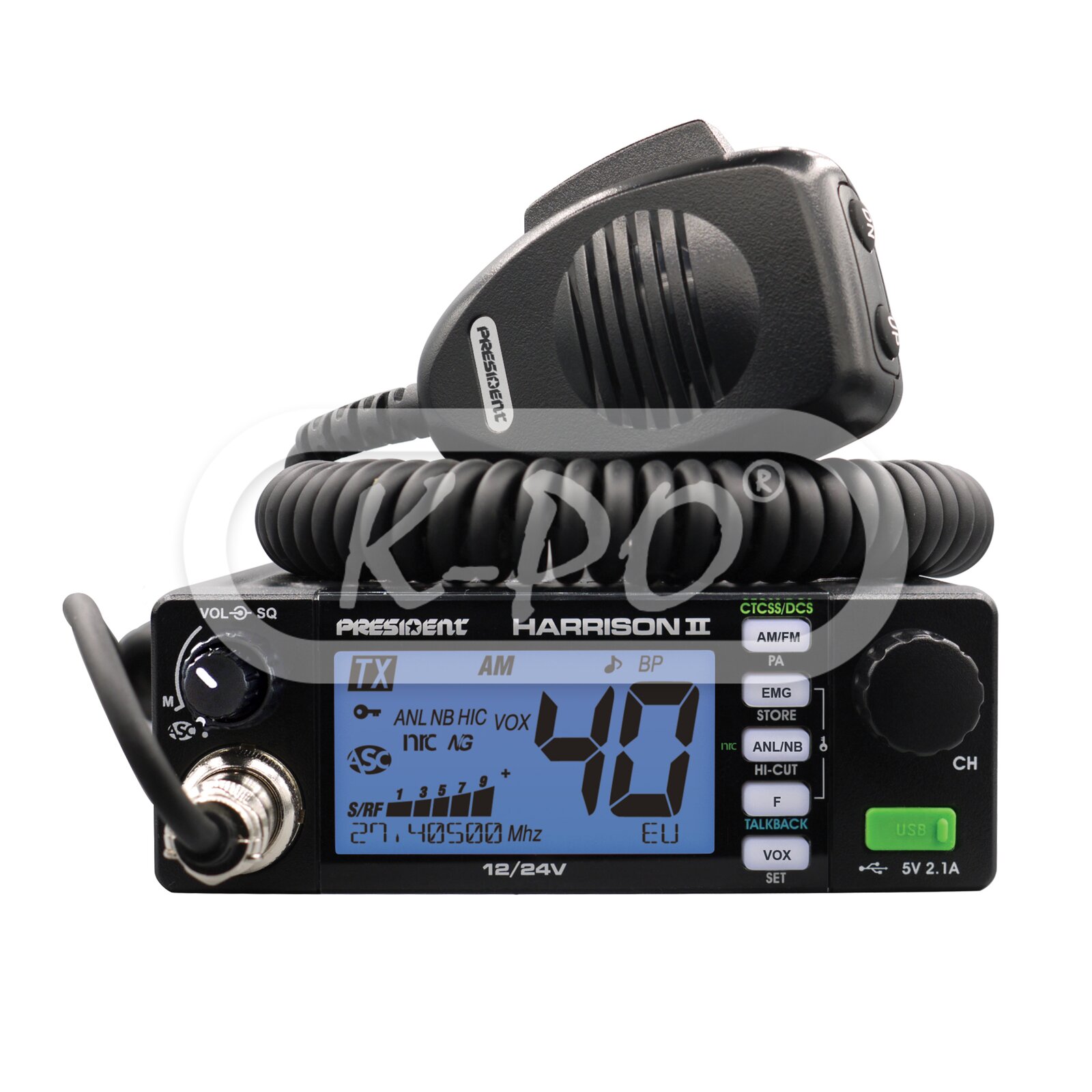

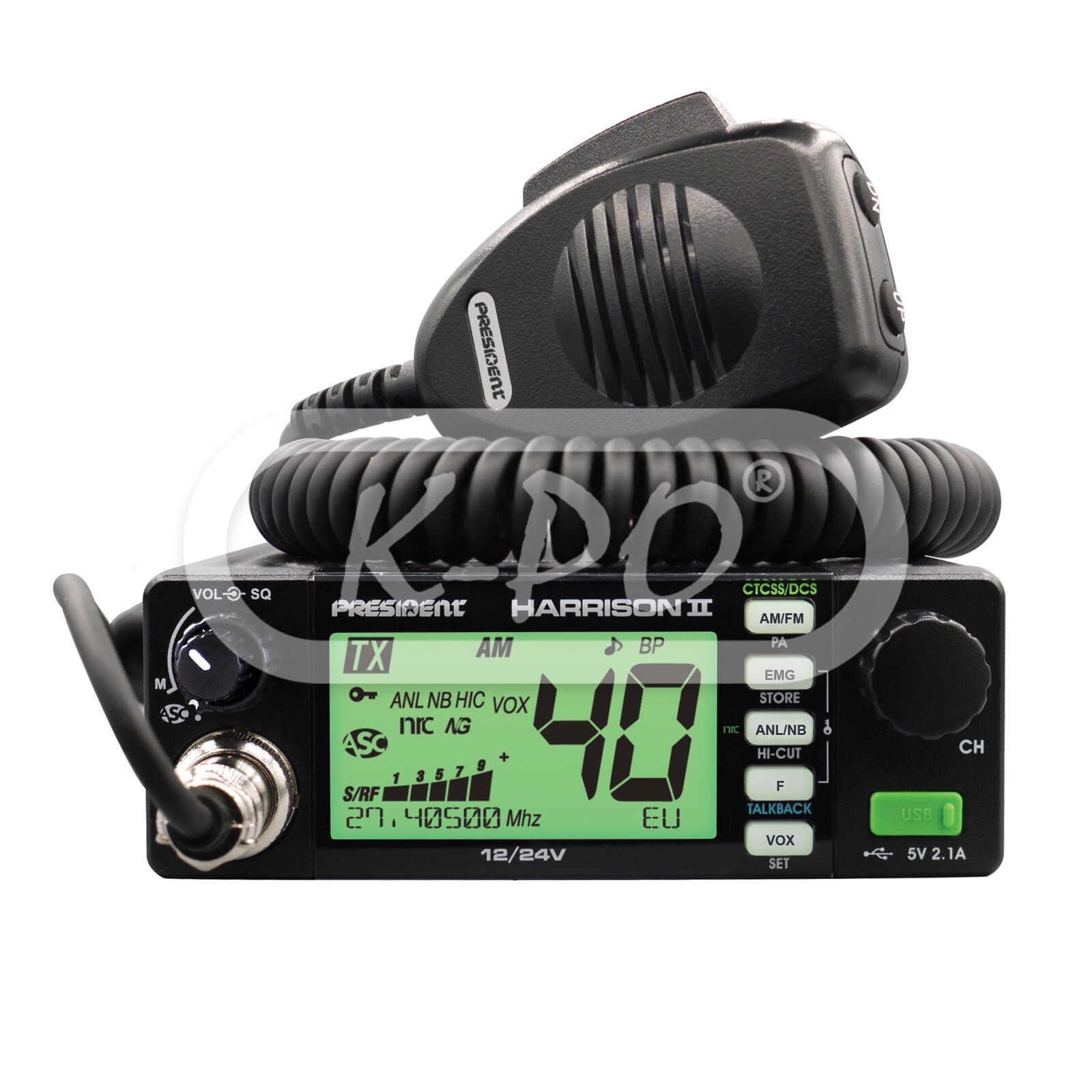

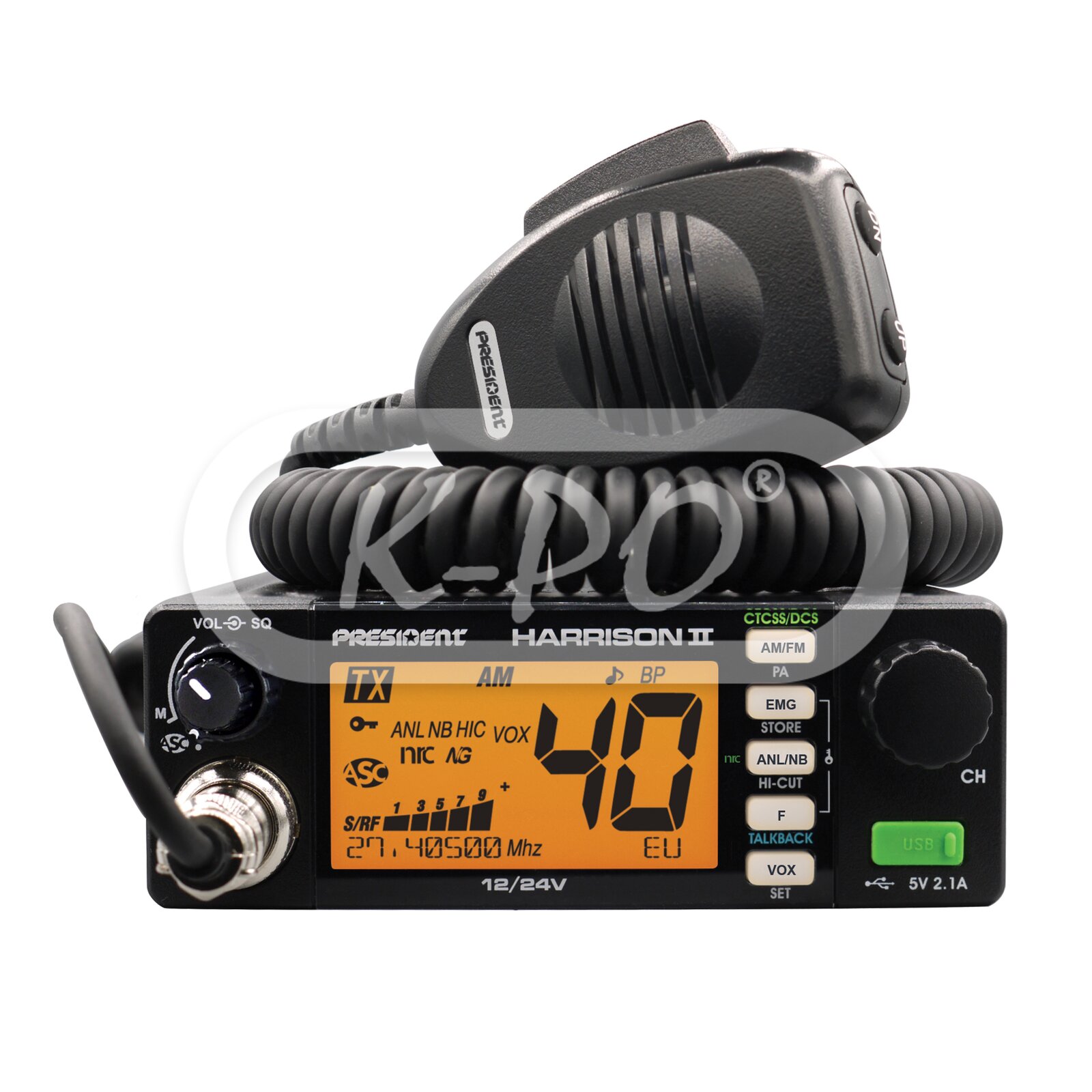

President - Harrison II ASC

Product code: 80088

Factory code: TXPR668

Barcode: 3435991128070

The President Harrison II ASC is a brand new CB radio from President with USB input and a VOX function. This compact mobile CB radio is easy to install and operate, just has all the controls you needed. The President Harrison II can be used on 12 and 24 Volt, has a large clear display with 7 colors to choose from and many other features.

Frequency range: 26.965 - 27.405 MHz

Shipped today

€219.95 (181.78 excl. 21% VAT)

Features

• Modulation: AM / FM
• Multi-bands: Yes
• Output power: 4 Watt
• Channels: 40 AM / FM
• Display type: LCD display
• Display colors: Green / Orange / Purple / Blue / Cyaan / Yellow / Clear Blue
• VOX Function: Yes
• USB: Yes
• Noise blanker: Yes
• Squelch: ASQ (Automatiq Squelch Systeem) / Manual squelch /
• Emergency channel: Yes
• Scan function: Yes
• External speaker socket: Yes
• External PA socket: Yes
• S-meter: Yes
• CTCSS: Yes, 38 tones
• DCS: Yes, 104 tones
• External VOX socket: Yes
• Filter ANL: Yes
• Filter NB: Yes
• Filter HI-CUT: Yes
• Filter NRC: Yes
• Scan Skip: Yes

Electrical data

• Voltage: 13,8 Volt / 24 Volt /

Transmitter

• Audio frequency response: 300 Hz - 3 kHz
• Microphone sensitivity: 7 mV
• Frequency allowance: ± 200 Hz
• Transmission interference: inferior to 4 nW (- 54 dBm)
• Emitted power in the adjacent channel: inferior a 20 μW
• Modulated signal distortion: 2 %
• Drain: 13.2 Volt: 1.7 A / 26.4 Volt: 0.85 A

Receiver

• AM sensitivity: 0,5 µV - 113 dBm
• FM sensitivity: 0,35 µV - 116 dBm
• Frequency response: 300 Hz - 3 kHz
• Adjacent channel selectivity: 60 dB
• Maximum audio power: 3 Watt
• Squelch sensitivity: min. 0.2 μV - 120 dBm / max. 1 mV - 47 dBm
• Frequency image rejection rate: 60 dB
• Intermediate image rejection rate: 70 dB
• Drain: 13.2 Volt: 180 - 500 mA / 26.4 Volt: 90 - 250 mA

Mechanical data

• Length: 165 mm
• Height: 45 mm
• Width: 125 mm
• Weight: 900 gram
• Antenna connector: UHF (PL) female (SO-239)
• Mike connector: 6 pin connector

Inside the box

• Transceiver: 1 pcs
• Microphone: 1 pcs
• Fixing screws: 1 set
• Mounting bracket: 1 pcs
• Power lead: 1 pcs
• User Manual: English, Spanish, French, Polish
